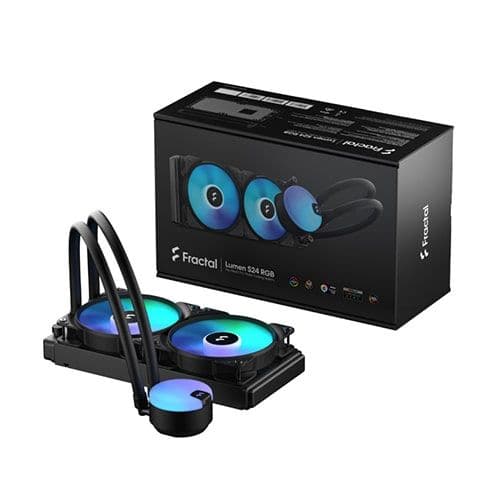

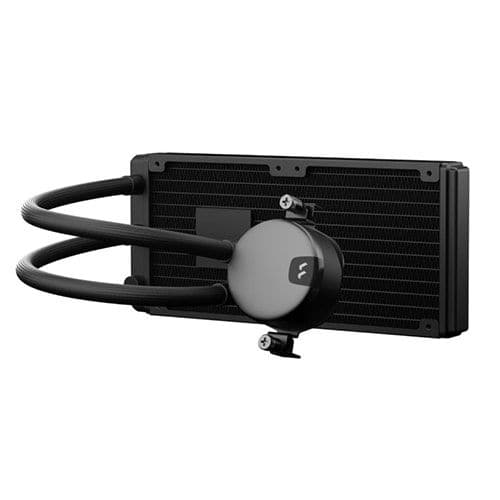

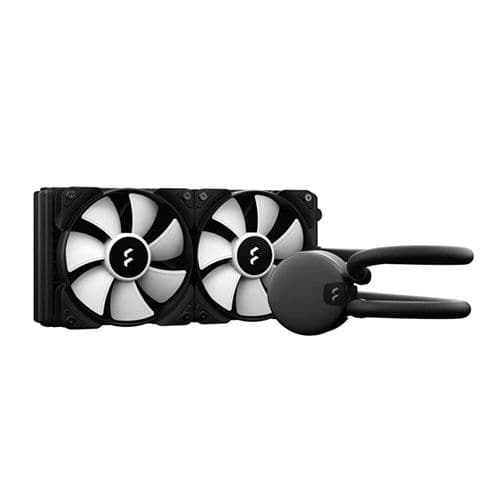

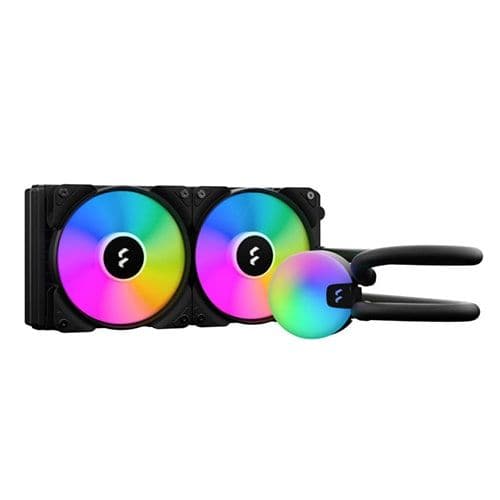

Fractal Design Lumen S24 RGB 240mm CPU Liquid Cooler

Fractal Design Lumen S24 RGB Liquid Cooler

Features:

Lumen S24 RGB

Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.

The right way up

The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation. Low-permeability rubber tubes with braided nylon sleeves.

From subtle to stunning

Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI. Six ARGB LEDs are yours to command via your motherboard or controller

Forget the thermal paste

Thermal paste is pre-applied to ensure a proper and pain-free installation. Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing

Common denominators

Supports the most common sockets for both Intel and AMD

Technical Details

Brand : Fractal Design

Model : FD-W-L1-S2402

Specification

Sockets supported (Intel) : LGA 1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066

Sockets supported (AMD) : AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2

Cold plate material : Copper

Thermal paste : Pre-applied

Tube length : 400mm

Tube material : : Low-permeability rubber with braided nylon sleeve

Fittings, block side : Articulating 90-degree Elbow

Fittings, radiator side : Barbed fitting

Block height : 43mm

Block measurements (with fittings) : 79 x 67 mm

Block diameter (main block body) : 67 mm

Fan specifications

Fan type : Aspect 12 RGB PWM

Rotational speed : 500–2000 RPM

Fan bearing : Rifle bearings

Fan PWM control : Yes

Fan acoustical noise : <10–33.2 dBA

Fan maximum air flow : 13-56 CFM

Fan maximum static pressure : 0.230–2.34 mm H2O

Fan input voltage : 12V

Fan maximum input current : 0.37A

Fan MTTF : 90,000 hours

Pump specifications

Rotational speed : 4000 ± 10% RPM

Bearing type : Ceramic

PWM control : No

Acoustical noise (full speed) : 22 dBA

Maximum pressure : 1.8 mm H2O/ 17.6 kPa / 2.5 PSI

Input voltage : 12V DC

Input current (without fans) : 0.34 A

MTTF : 50 000 hours

Radiator specifications

Radiator dimensions : 272 x 120 x 27 mm

Radiator housing material : Aluminum

Radiator fin material : Aluminum

Radiator fan screw threads : 6-32
