Fractal Design Lumen S24 240mm CPU Liquid Cooler

Fractal Design Lumen S24 Liquid Cooler

Features:

Lumen S24

Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.

The right way up

The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation Low-permeability rubber tubes with braided nylon sleeves

From subtle to stunning

Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI , Six ARGB LEDs are yours to command via your motherboard or controller

Forget the thermal paste

Thermal paste is pre-applied to ensure a proper and pain-free installation Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing .

Technical Details

Brand : Fractal Design

Model : FD-W-L1-S2401

Technical Specs

Sockets supported (Intel) : LGA 1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066

Sockets supported (AMD) : AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2

Cold plate material : Copper

Thermal paste : Pre-applied

Tube length : 400mm

Tube material : Low-permeability rubber with braided nylon sleeve

Fittings, block side : Articulating 90-degree Elbow

Fittings, radiator side : Barbed fitting

Block height : 43mm

Block measurements (with fittings) : 79 x 67 mm

Block diameter (main block body) : 67 mm

Fan specifications

Fan type : Aspect 12 PWM

Rotational speed : 500–2000 RPM

Fan bearing : Rifle bearings

Fan PWM control : Yes

Fan acoustical noise : <10–33.2 dBA

Fan maximum air flow : 13-56 CFM

Fan maximum static pressure : 0.230–2.34 mm H2O

Fan input voltage : 12V

Fan maximum input current : 0.37A

Fan MTTF : 90,000 hours

Rotational speed : 4000 ± 10% RPM

Bearing type : Ceramic

PWM control : No

Acoustical noise (full speed) : 22 dBA

Maximum pressure : 1.8 mm H2O/ 17.6 kPa / 2.5 PSI

Input voltage : 12V DC

Input current (without fans) : 0.34 A

MTTF : 50 000 hours

Radiator dimensions : 272 x 120 x 27 mm

Radiator housing material : Aluminum

Radiator fin material : Aluminum

Radiator fan screw threads : 6-32

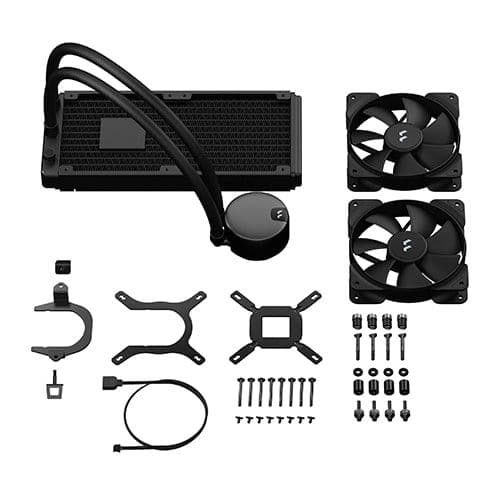

Package contents : CPU Cooler Assembly, 2x Aspect 12 PWM fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable

Package dimensions : 332 x 205 x 137 mm
