- Fractal Design Ion+ 660P 80+ Platinum Fully Modular Power Supply (660 W)
Description

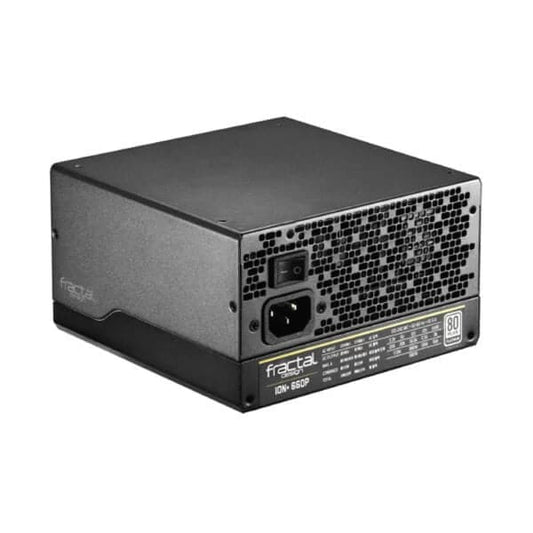

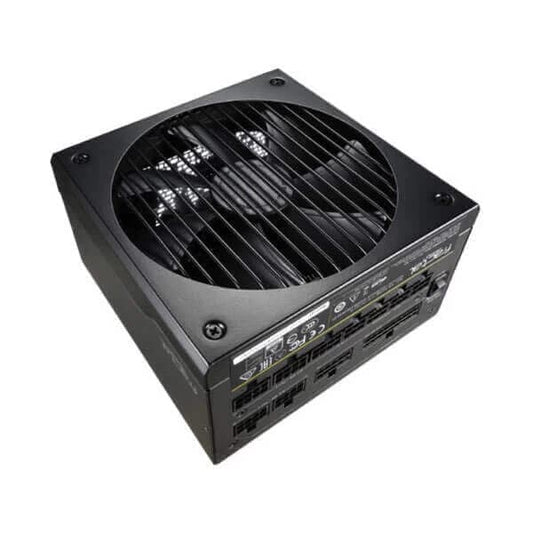

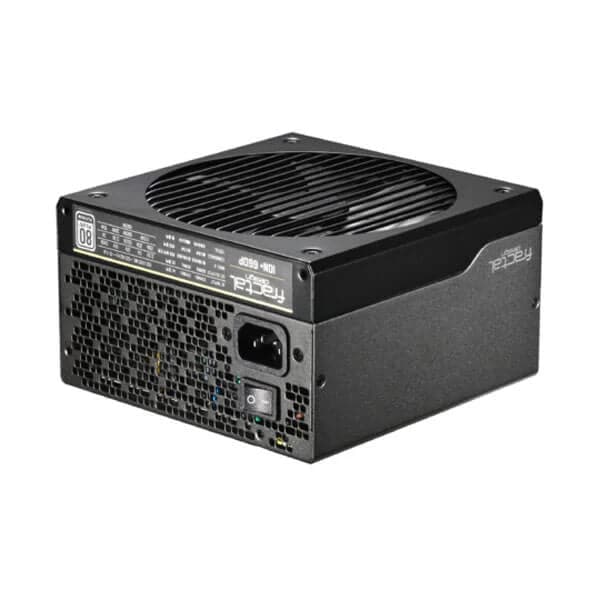

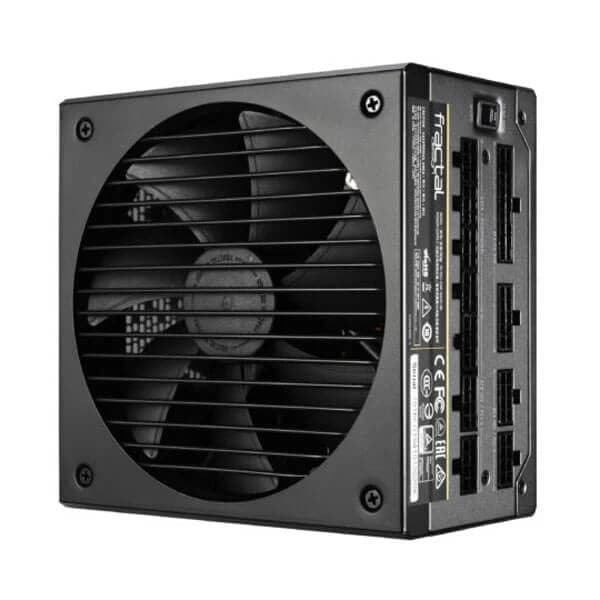

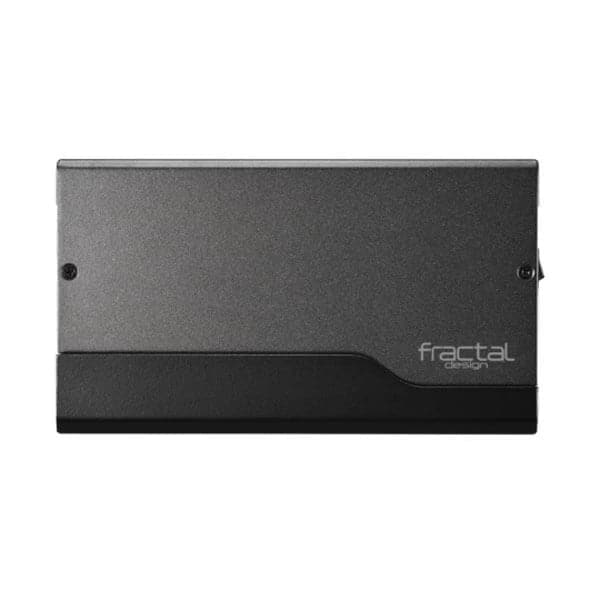

Fractal Design Ion+ 660P Platinum Full Modular PSU (660 Watt)
Features :

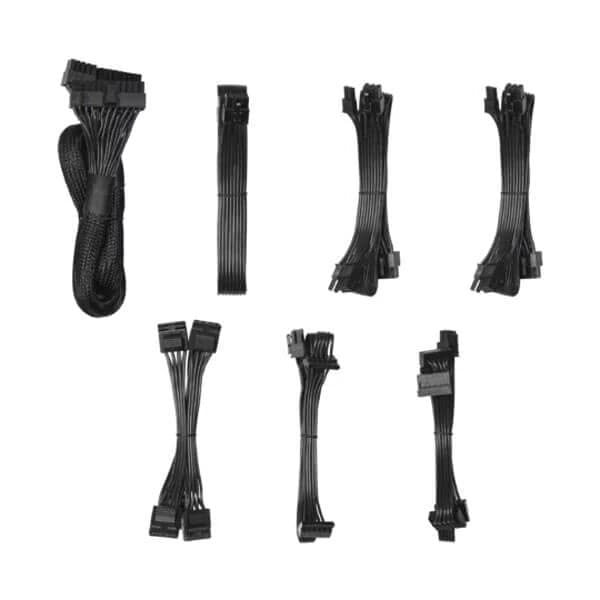

- New UltraFlex cables that twist and bend to fit your installation

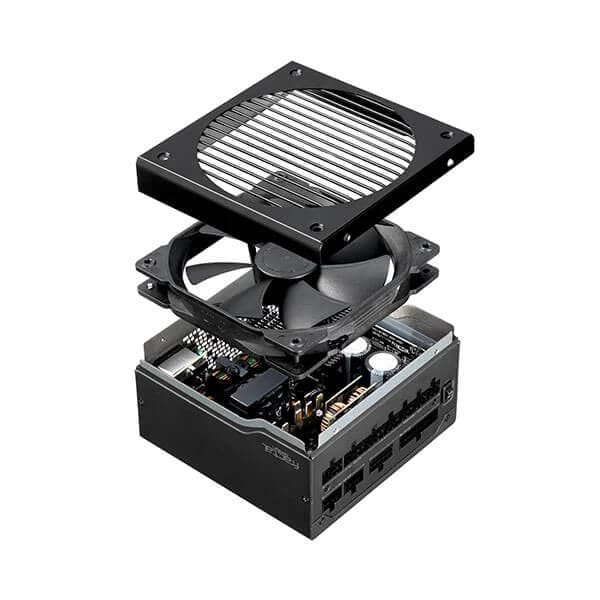

- Custom-tailored fan with low minimum speed and long-life FDB bearing
- 80 PLUS Platinum Efficiency for optimized performance and reduced heat
- User selectable semi-passive mode
- Great electrical output quality, with tight voltage regulation and low ripple

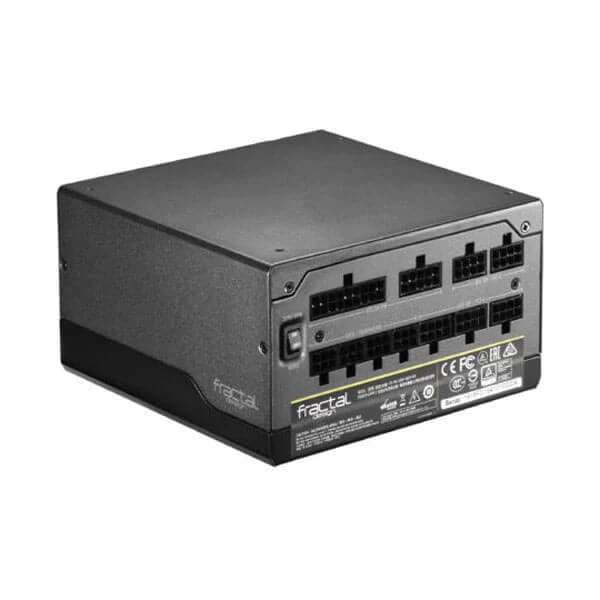

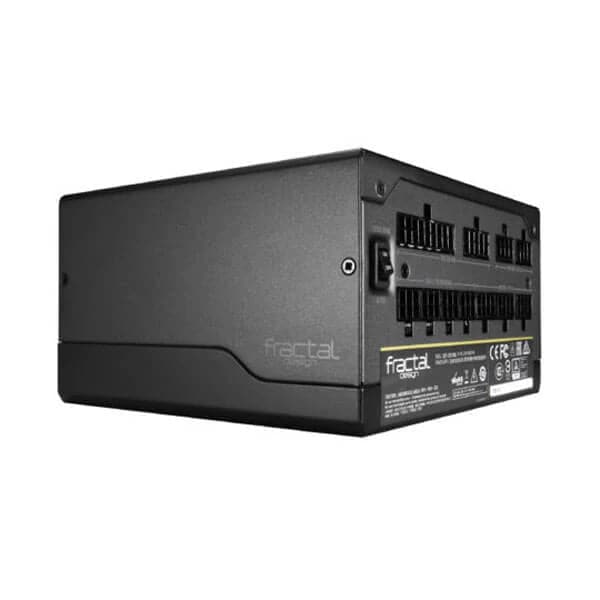

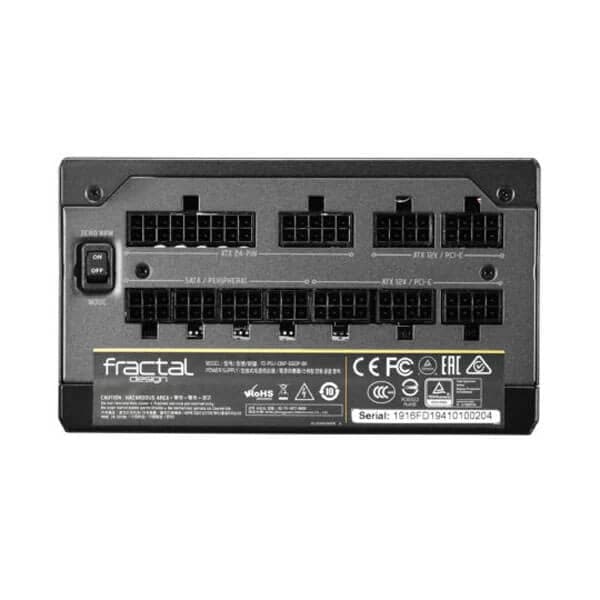

- Fully modular design for reduced clutter and maximum ease of installation

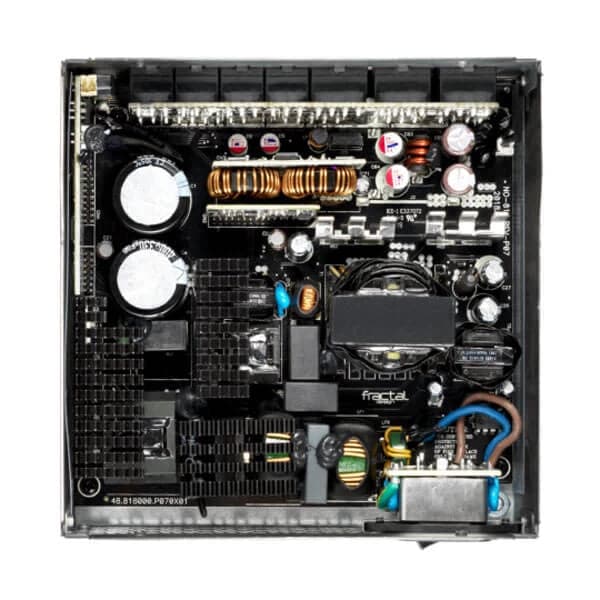

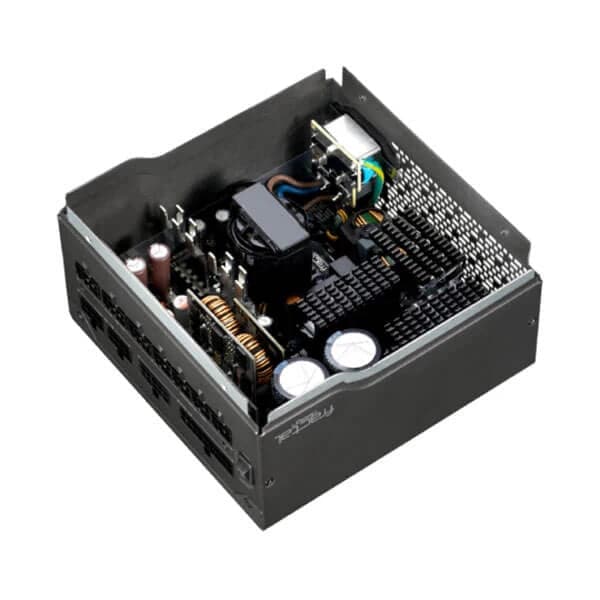

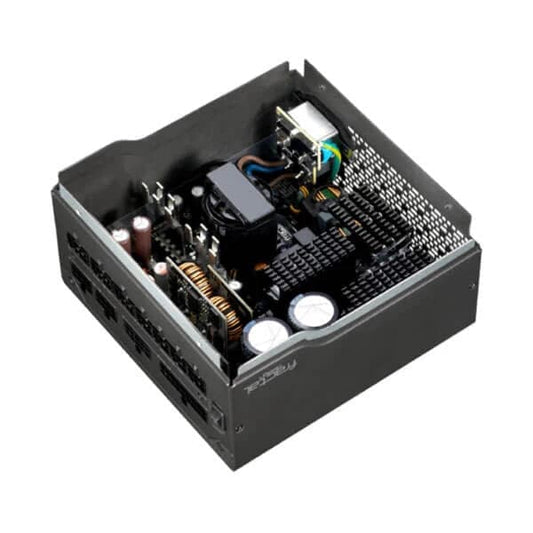

- Premium Japanese 105°C capacitors provide maximum reliability and durability
- Fits compact cases and gives additional cable management in larger cases
- 10 year warranty and a full electrical protection suite for peace of mind
Specifications:
| Brand | Fractal Design |
| Series | Ion+ |
| Model | FD-PSU-IONP-660P-BK |
| Type | ATX12V 2.4 / EPS12V 2.92 |
| Maximum Power | 660W |

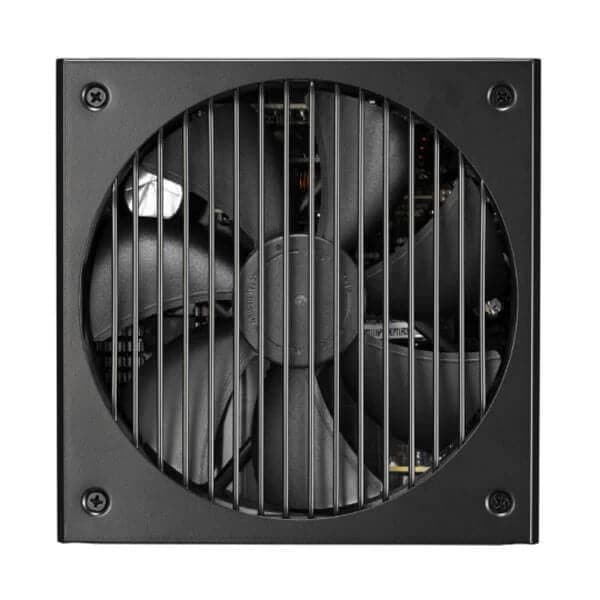

| Fans | 1 x 140 mm FDB Bearing Fractal Design Dynamic Series fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 10 |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10/5 A |
| Output | +3.3V@20A, +5V@20A, +12V@55A, -12V@0.3A, +5VSB@3A |
| MTBF | 100,000 hours |
| Approvals | CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE |
| Dimensions | 3.39" x 5.91" x 5.91" |
| Max PSU Length | 150 mm |
| Weight | 3.55 lbs. |
