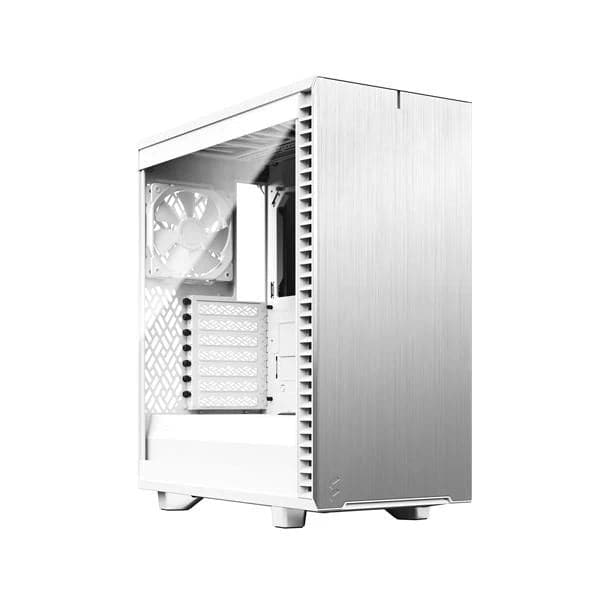

- FRACTAL DESIGN Define 7 Compact Clear ATX Mid Tower Cabinet (White)
Description
Features of FRACTAL DESIGN Define 7 Compact TG Clear Tint Cabinet (White)
A cleaner look

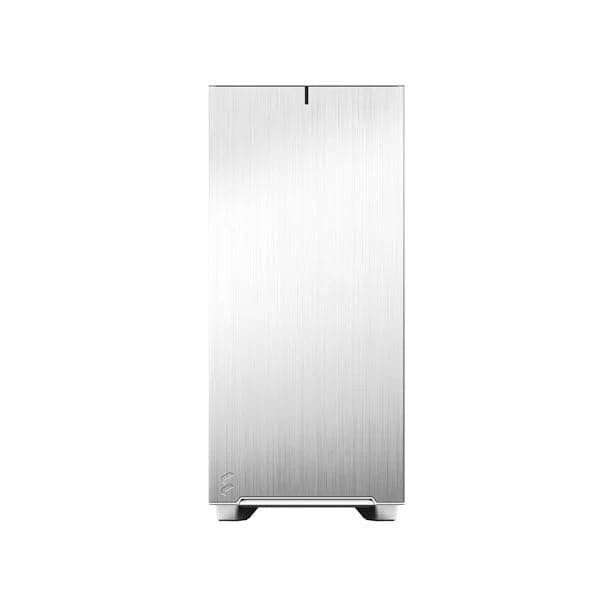

Brushed aluminum front and interchangeable side panels give a very clean look.
Compact yet spacious
The versatile layout of the Fractal Design cabinet allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.
Remarkably quiet
- Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation.
- Brushed aluminum front and top-latching side panels offer a clean sophisticated look.
- Top panel effortlessly swaps from solid steel to filtered ventilation.
Substantial cooling
- Install up to 7 x 120 mm or 4 x 140 mm fans, and radiators up to 360 mm.
- 1 x 120 mm and 1 x 140 mm Dynamic X2 fans included.
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support.
Robust front I/O
Five front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbps.
Open access
Remove the entire top to build and route with zero hindrance.
Concealed storage
You can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplate.
More in store
A pair of SSDs are easily mounted straight on the PSU shroud.
Front, top and base
Easy-to-clean high airflow nylon filters.
Get the affordable cpu cabient price with the huge variety with us!
Specifications of FRACTAL DESIGN Define 7 Compact Clear ATX Mid Tower Cabinet (White)
3.5"/2.5" Universal drive brackets | 2 |
Dedicated 2.5" drive brackets | 2 trays included, 4 positions total |
Expansion slots | 7 |
Front ports | 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button |
Total fan mounts | 7 x 120 or 4 x 140 mm and 2 x 120 mm |
Front fan | 3 x 120 or 2 x 140 mm, (1 x Dynamic X2 GP-14 included) |
Top fan | 2 x 120 or 2 x 140 mm |
Rear fan | 1 x 120 mm, (1 x Dynamic X2 GP-12 included) |
Bottom fan | 1 x 120 mm (requires removal of HDD cage) |
Dust filters | Top, 2 x front, full length bottom |
Fixed velcro straps | Yes |
Cable routing grommets | Yes |
Captive thumbscrews | HDD brackets, SSD brackets, PSU bracket |
Left side panel | Tempered glass |
Right side panel | Industrial sound-damped steel |
Motherboard compatibility | ATX / mATX / mITX |
Power supply type | ATX |
PSU max length | 200 mm (with HDD cage and front fan) |
GPU max length | 341 mm (360 mm without front fan) |
CPU cooler max height | 169 mm |
Front radiator | Up to 360/280 mm (max 145 mm width) |
Top radiator | Up to 240 mm |
Rear radiator | 120 mm |
Bottom radiator | 120 mm (requires removal of HDD cage) |
Cable routing space | 17-28 mm |
Case dimensions (LxWxH) | 427 x 210 x 474 mm |
Case dimensions w/o feet/protrusions/screws | 415 x 210 x 451 mm |
Package dimensions (LxWxH) | 536 x 310 x 521 mm |
Net weight | 8.76 kg |
Package weight | 11.04 kg |
Volume | 39.3 liters |
Box contents | Define 7 Compact, Accessory box, User manual, Ventilated top panel |
