- Fractal Design Define 7 Clear Tint TG Mid Tower Cabinet (Black/White)
Description

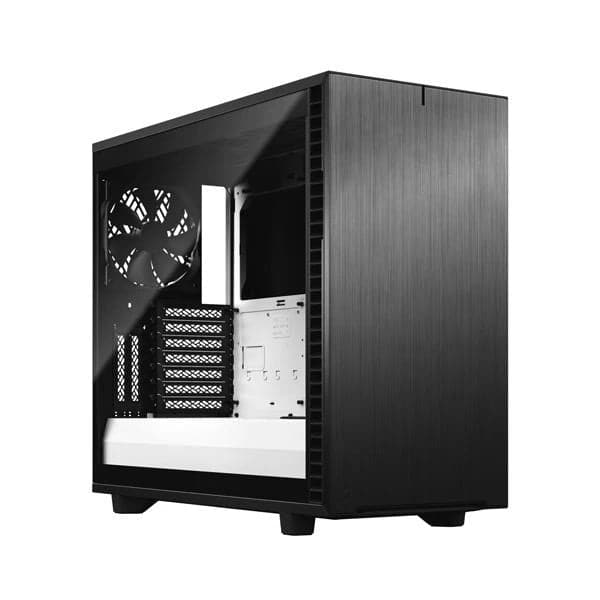

Fractal Design Define 7 Clear Tint TG Mid Tower Cabinet (Black/White)
Features :
- Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including 285 mm E-ATX
- Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base in the default Open Layout
- Convert to Storage Layout for up to 14 HDDs along with 4 dedicated SSD mounts and one ODD bay (6 HDD/SSD + 2 SSD brackets + 1 multi-bracket included)
- The single 5.25" ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering
- Silence-optimized construction with industrial sound-damped front, top, and side panels
- Top panel effortlessly swaps from sound-damped solid steel to filtered ventilation
- New chassis design opens up to fully expose the case interior for totally unhindered installation and cable routing
- Anodized aluminum front panel with reversible dual-handed hinges opens and closes easily with magnetic latching
- Outstanding cooling capacity with a total of 9 x 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
- Versatile new multi-brackets convert any unused fan position to an HDD, SSD or pump mount
- Two vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
- Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
- Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
- Redesigned HDD cage for easier installation and improved transportation security
- Tool-less, top-latching panels allow quick access while preventing accidental drops
- Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
- Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access
Specifications:
| Brand | Fractal Design |
| Series | Define 7 |
| Model | FD-C-DEF7A-05 |
| Type | ATX Mid Tower |
| Color | Black / White |
| Case Material | Steel |
| With Power Supply | No |
| Power Supply | ATX |
| Power Supply Mounted | Bottom |
| Motherboard Compatibility | Micro ATX / ATX / Mini ITX / E-ATX |
| Side Panel Window | Clear Tint Tempered Glass |
| LED | No |
| Dust Filters |
Top panel 2 x Front Bottom, full length |
| External 5.25" Drive Bays | 1 |
| Internal 3.5" Drive Bays | 6 included , 14 positions total |
| Internal 2.5" Drive Bays | 2 included, 4 positions total |
| Expansion Slots | 7 + 2 vertical |
| Front Ports | 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O |
| Fan Options |
Front: 3 x 120mm / 140mm fan (2 x Dynamic X2 GP-14 included)
Top: 3 x 120mm / 140mm fan Rear: 1 x 120mm / 140mm fan (1 x Dynamic X2 GP-14 included) Bottom: 2 x 120mm / 140mm fan |
| Radiator Options |
Front: Up to 360mm / 280mm
Top: Up to 360mm / 420mm Rear: 120mm Bottom: Up to 240mm / 280mm |
| Max GPU Length | 491 mm |
| Max CPU Cooler Height | 185 mm |
| Max PSU Length | 250 mm (with HDD cage installed) |
| Dimensions (H x W x D) |
18.70" x 9.45" x 21.54" 17.76" x 9.45" x 20.98" w/o feet/protrusions/screws |
| Weight | 29.65 lbs. |
