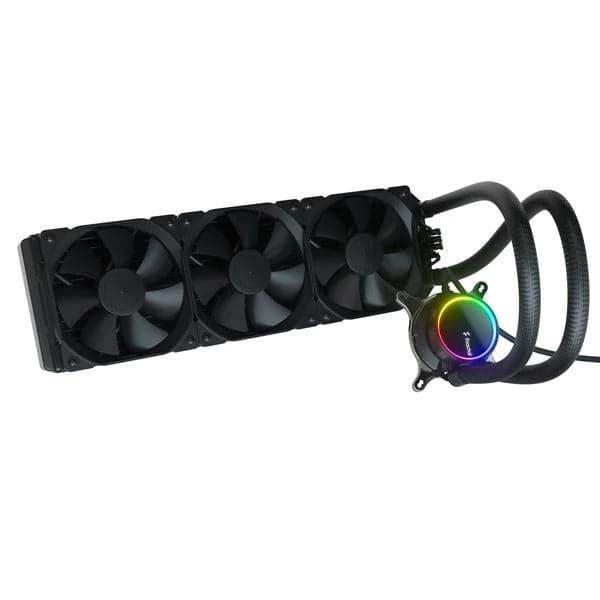

- FRACTAL DESIGN Celsius + S28 Prisma ARGB 280mm CPU Liquid Cooler (Black)
Description
Features of FRACTAL DESIGN Celsius + S28 Prisma ARGB 280mm CPU Liquid Cooler (Black)

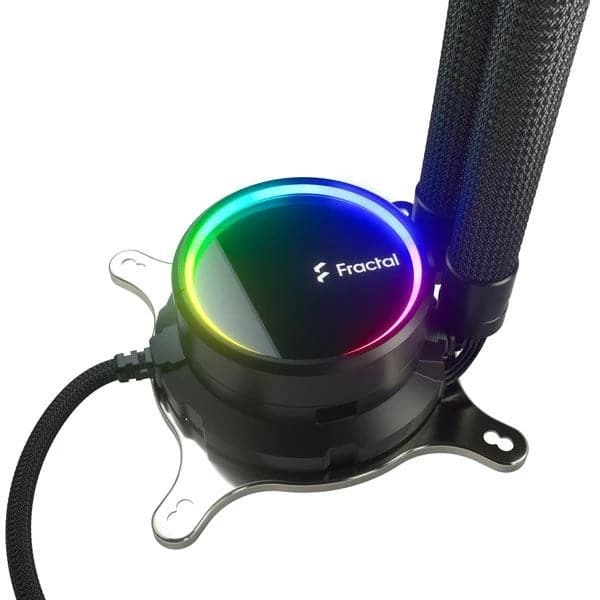

- Tinted glass pump face with backlit logo and ARGB LED effects
- Articulating elbow fittings make tubes easier to route and reduces tension on the pump
- Backed by a 5-year warranty for extended peace of mind
Specifications of FRACTAL DESIGN Celsius + S28 Prisma ARGB 280mm CPU Liquid Cooler (Black)
| Product code | FD-W-2-S3601 |
|
Sockets supported (Intel) |
1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066 |
|
Sockets supported (AMD) |
AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box) |
| Coldplate material | Copper |
| Thermal paste | Pre-applied |
| Tube length | 400 mm |
| Tube material | Low-permeability rubber with braided nylon sleeve |
| Fittings, block side | Articulating 90-degree elbow |
| Fittings, radiator side | Straight rotary |
| Fan control |
Dual mode (Auto/PWM) Note:-The Celsius+ is NOT compatible with the Adjust R1 |
| Fan specifications | |
| Fan type | Dynamic X2 GP-12 PWM |
| Rotational speed | 500 – 2000 RPM |
| Bearing | LLS |
| PWM control | Yes |
|
Acoustical noise (full speed) |
32.2 dBA |
| Maximum air flow | 87.6 CFM |
|
Maximum static pressure |
2.3 mm H2O |
| nput voltage | 12V DC |
| Maximum input current | 0.2A |
| MTBF | 100,000 hours |
| Pump specifications | |
| Rotational speed |
800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C |
| Bearing type | Ceramic bearing and shaft |
| PWM control | Yes |
| Acoustical noise (full speed) | 20 dBA |
| Maximum pressure | 14.4 kPa / 1.46 mm H2O /2.0 PSI |
| Input voltage | 12V DC |
| Input current (without fans) | 0.36A |
| MTTF | 50,000 hours |
| Block height | 45 mm |
| Block measurements (with fittings) | 86 x 75 mm |
| Block diameter (main block body) | 62 mm |
| Radiator specifications | |
| Dimensions | 123 x 30 x 403 mm |
| Housing material | Aluminum |
| Fin material | Aluminum |
| Fan screw threads | 6-32 |
| Other | |
| Package Dimensions | 470 x 180 x 145 mm |
| Warranty | 5 Years |
| Note | ***Features, Price, Specifications are subject to change without notice. |
