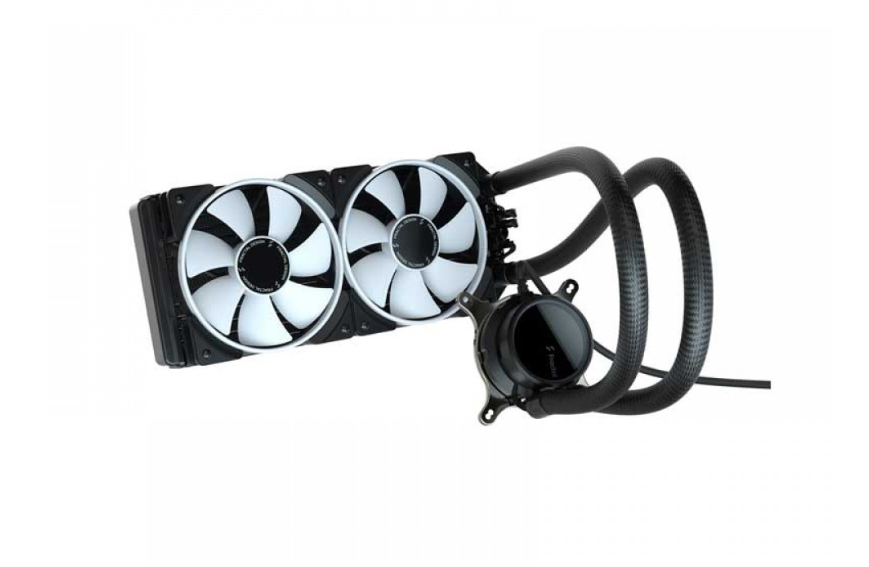

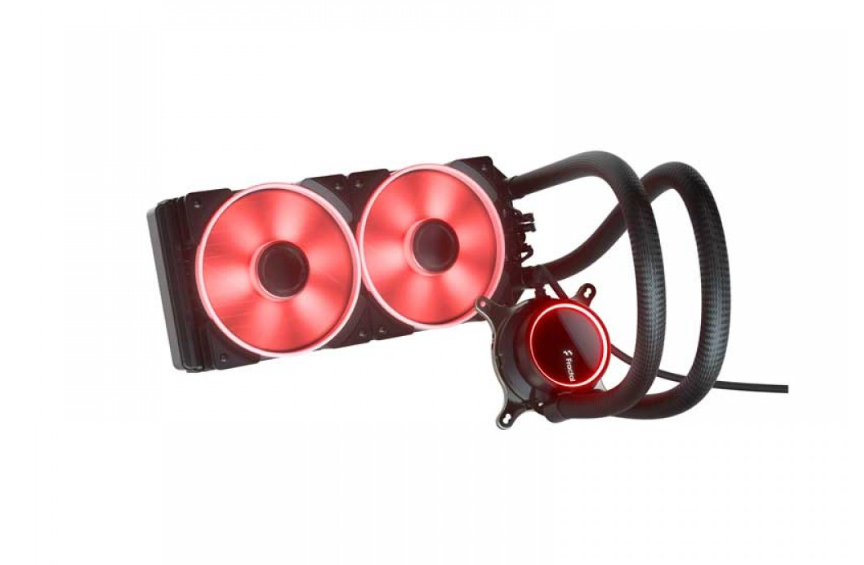

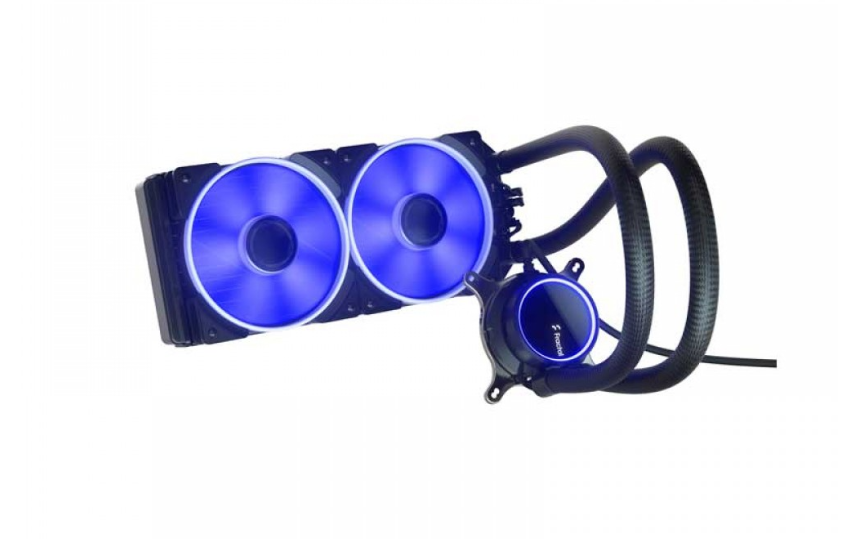

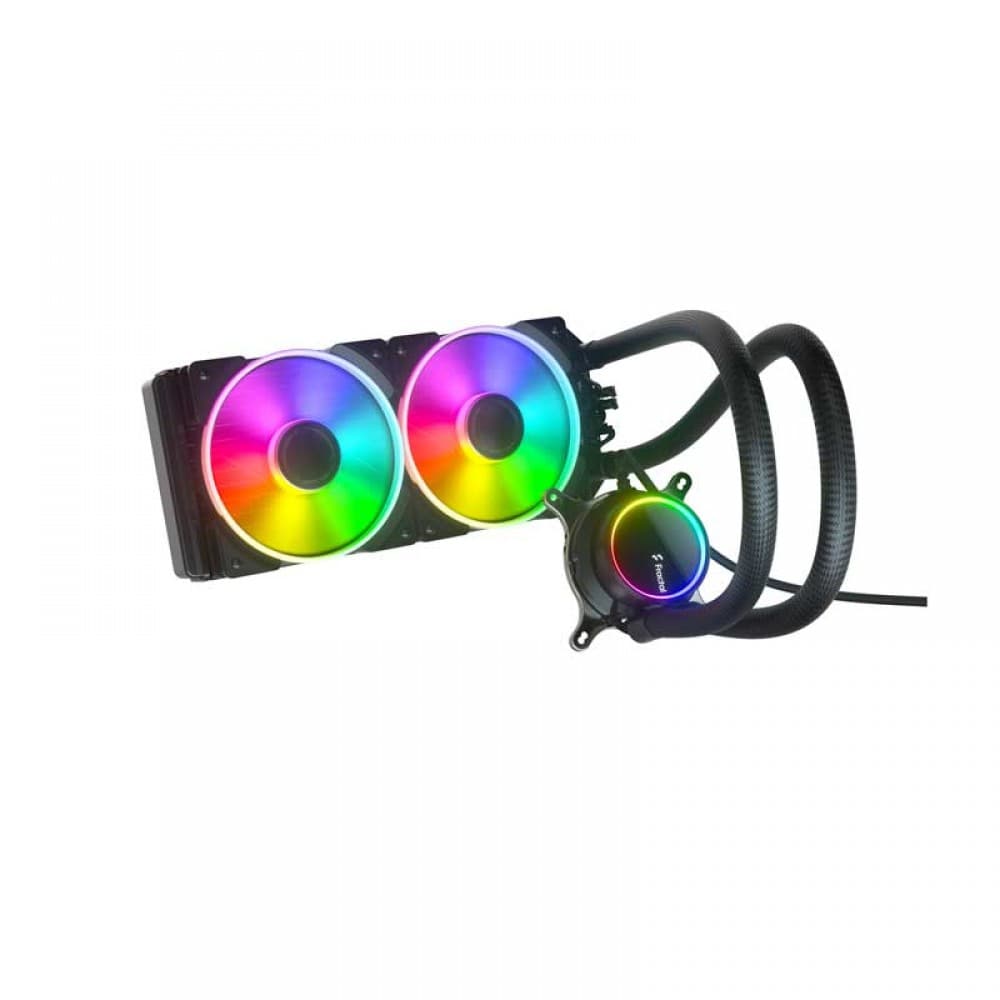

- FRACTAL DESIGN Celsius + S28 Prisma ARGB 280mm CPU Liquid Cooler (Black)
Description
Features of FRACTAL DESIGN Celsius + S28 Prisma ARGB 280mm (Black)
FRACTAL DESIGN Celsius+ S28 Prisma takes AIO water cooling to a new level with an ARGB-accented pump face, a fully redesigned block and an upgraded on-radiator PWM fan hub with ARGB support. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5.

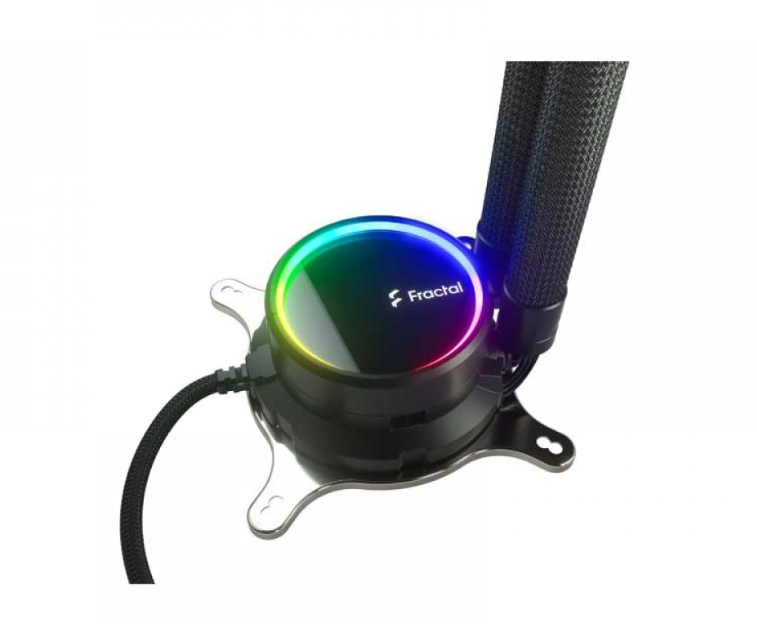

- Tinted glass pump face with backlit logo and ARGB LED effects
- Articulating elbow fittings make tubes easier to route and reduces tension on the pump
- Backed by a 5-year warranty for extended peace of mind
- Compatible with LGA 1700 and AM5
The brilliance of prisma
- Prisma ARGB PWM fans deliver outstanding airflow with brilliant lighting effects
- Specially designed fan blades and outer ring produce a uniform glow
- Optimized fan geometry balances airflow with extra emphasis on static pressure
- Trip Wire technology reduces blade turbulence
- LLS (Long Life Sleeve) fan bearings provide silent operation with a long lifespan
Get the balance right
Our intelligent auto mode dynamically adjusts the fan and pump speeds for optimized silent performance – and a simple twist of the pump face changes to PWM mode for full user control
Tidier through technology
ARGB-enabled PWM hub places all fan connections directly on the radiator for a clutter-free installation
Forget the thermal paste
With the Celsius+, the thermal paste is pre-applied to ensure a mess-free installation
Color-coordinated cooling
Your options for controlling the color effects of Celsius+ are continually growing, with current certifications including Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma and ASRock Polychrome support
Mounting made easy
Supports the most common sockets for both Intel and AMD
Compatible with LGA 1700 and AM5
Up our sleeves
Braided tube sleeves readily contain both the fan control cables and ARGB wires
Specifications of FRACTAL DESIGN Celsius + S28 Prisma ARGB 280mm (Black)
| General Specifications |
Sockets supported (Intel) : 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066 Sockets supported (AMD) : AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box) Coldplate material : Copper Thermal paste : Pre-applied Tube length : 400 mm Tube material : Low-permeability rubber with braided nylon sleeve Fittings, block side : Articulating 90-degree elbow Fittings, radiator side : Straight rotary Fan control : Dual mode (Auto/PWM) Note: The Celsius+ is NOT compatible with the Adjust R1 |
| Fan Specifications |
Fan type : Prisma AL-14 PWM ARGB Rotational speed : 500 – 1700 RPM Bearing : LLS PWM control : Yes Acoustical noise (full speed) : 34.1 dBA Maximum air flow : 103.9 CFM Maximum static pressure : 2.38 mm H2O Input voltage : 12V DC Maximum input current : 0.18A MTBF : 100,000 hours |
| Pump specifications |
Rotational speed : 800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C Bearing type : Ceramic bearing and shaft PWM control : Yes Acoustical noise (full speed) : 20 dBA Maximum pressure : 14.4 kPa / 1.46 mm H2O /2.0 PSI Input voltage : 12V DC Input current (without fans) : 0.36A MTTF : 50,000 hours Block height : 45 mm Block measurements (with fittings) : 86 x 75 mm Block diameter (main block body) : 62 mm |
| Radiator Specification |
Dimensions : 143 x 30 x 324 mm Housing material : Aluminum Fin material : Aluminum Fan screw threads : 6-32 |
| Others |
Package contents : Celsius+ S28 unit, 2 x 140 mm fans, User manual, Mounting hardware for all listed sockets, Fan and radiator mounting screws Product code : FD-W-2-S2802 |
| Warranty | 5 Years |
| Note* | Price, feature and specifications are subject to change without notice |
