Description
Features of FRACTAL DESIGN Celsius + S24 Prisma ARGB (Black)

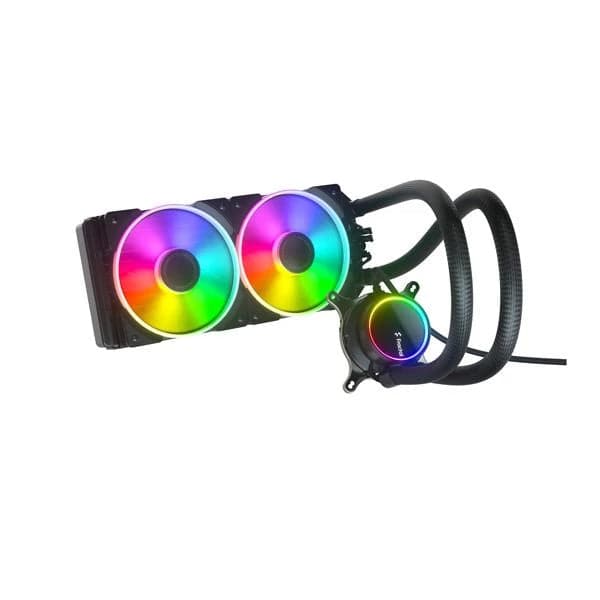

FRACTAL DESIGN Celsius+ S24 Prisma takes AIO water cooling to a new level with an ARGB-accented pump face, a fully redesigned block and an upgraded on-radiator PWM fan hub with ARGB support.

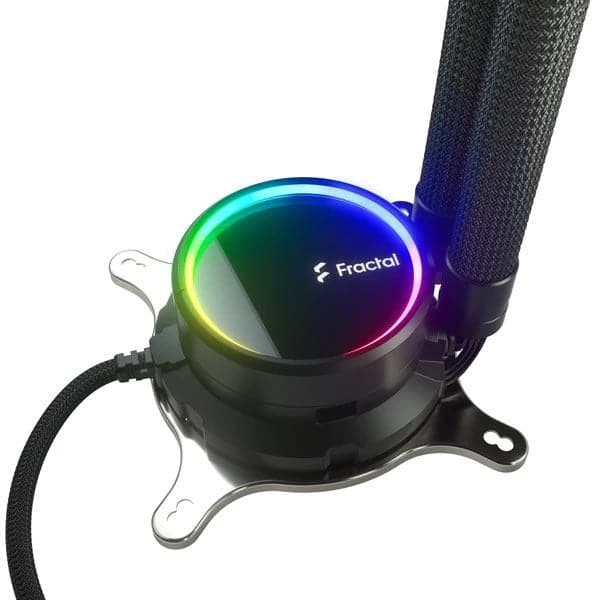

- Tinted glass pump face with backlit logo and ARGB LED effects
- Articulating elbow fittings make tubes easier to route and reduces tension on the pump
- Backed by a 5-year warranty for extended peace of mind
The brilliance of prisma
- Prisma ARGB PWM fans deliver outstanding airflow with brilliant lighting effects
- Specially designed fan blades and outer ring produce a uniform glow
- Optimized fan geometry balances airflow with extra emphasis on static pressure
- Trip Wire technology reduces blade turbulence
- LLS (Long Life Sleeve) fan bearings provide silent operation with a long lifespan
Get the balance right
Our intelligent auto mode dynamically adjusts the fan and pump speeds for optimized silent performance – and a simple twist of the pump face changes to PWM mode for full user control
Tidier through technology

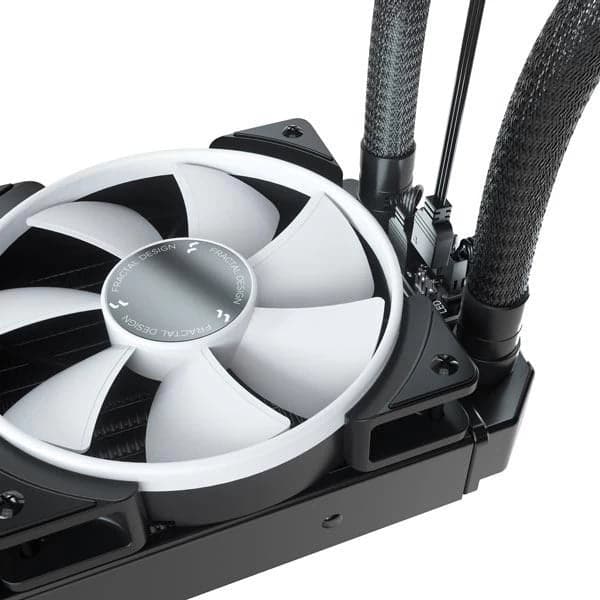

ARGB-enabled PWM hub places all fan connections directly on the radiator for a clutter-free installation
Forget the thermal paste
With the Celsius+, the thermal paste is pre-applied to ensure a mess-free installation
Color-coordinated cooling
Your options for controlling the color effects of Celsius+ are continually growing, with current certifications including Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma and ASRock Polychrome support
Mounting made easy
Supports the most common sockets for both Intel and AMD
Up our sleeves
Braided tube sleeves readily contain both the fan control cables and ARGB wires
Specifications of FRACTAL DESIGN Celsius + S24 Prisma ARGB (Black)
Product code | FD-W-2-S2402 |
Sockets supported (Intel) | 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066 |
Sockets supported (AMD) | AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box) |
Coldplate material | Copper |
Thermal paste | Pre-applied |
Tube length | 400 mm |
Tube material | Low-permeability rubber with braided nylon sleeve |
Fittings, block side | Articulating 90-degree elbow |
Fittings, radiator side | Straight rotary |
Fan control | Dual mode (Auto/PWM) Note:-The Celsius+ is NOT compatible with the Adjust R1 |
Fan specifications | |
Fan type | Prisma AL-12 PWM ARGB |
Rotational speed | 500 – 2000 RPM |
Bearing | LLS |
PWM control | Yes |
Acoustical noise (full speed) | 32.7 dBA |
Maximum air flow | 85.71 CFM |
Maximum static pressure | 2.78 mm H2O |
Input voltage | 12V DC |
Maximum input current | 0.18A |
MTBF | 100,000 hours |
Pump specifications | |
Rotational speed | 800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C |
Bearing type | Ceramic bearing and shaft |
PWM control | Yes |
Acoustical noise (full speed) | 20 dBA |
Maximum pressure | 14.4 kPa / 1.46 mm H2O /2.0 PSI |
Input voltage | 12V DC |
Input current (without fans) | 0.36A |
MTTF | 50,000 hours |
Block height | 45 mm |
Block measurements (with fittings) | 86 x 75 mm |
Block diameter (main block body) | 62 mm |
Radiator specifications | |
Dimensions | 122 x 31 x 284 mm |
Housing material | Aluminum |
Fin material | Aluminum |
Fan screw threads | 6-32 |
Other | |
Package Dimensions | 411 x 180 x 145 mm |
Warranty | 5 Years |
Note | ***Features, Price, Specifications are subject to change without notice. |
