Description
Features of FANATEC CSL Elite V2 Pedals
The popular pedal set returns with an overhauled load cell brake, Hall sensors on throttle and clutch, and many refinements to the design.
Better than ever.
The popular pedal set returns with an overhauled load cell brake, Hall sensors on throttle and clutch, and many refinements to the design.
Magnetic sensors.
Both the throttle and brake axes use precision Hall-effect sensors. By measuring pedal position with magnets, the system is contactless, meaning no wear on the sensors and consistent performance.
Solid, full-metal design.
The pedal arms, faces, and heel rest are made from cast and machined aluminium, with a durable powder-coated finish. Additional bracing towards the rear of the assembly provides extra stiffness and stability under heavy load.
Brake with confidence.
The brake pedal has been completely reworked, with an all-new custom load cell sensor.
Muscle memory.
The load cell sensor measures pressure rather than position. Tuned to a genuine 90 kg (adjustable) at the pedal plate, this realistic level of resistance trains your muscle memory and you’ll brake with confidence and precision every time.

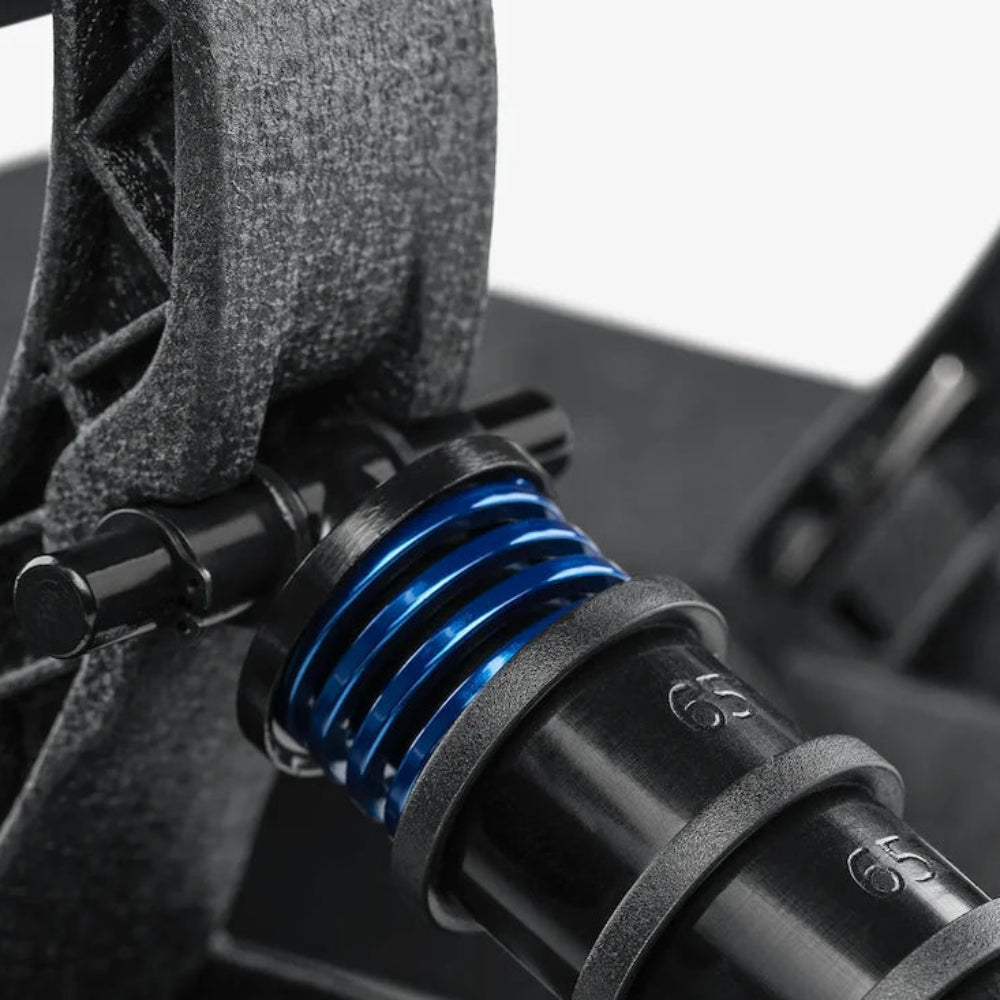

Dual-stage brake action.
The adjustable, tool-free elastomer stack incorporates a coil spring to simulate the initial movement of the brake pad to the disc. You can easily adjust the firmness of the pedal travel by selecting between elastomer springs (included).
Drive your way.
CSL Elite Pedals V2 connect directly to any supported FANATEC® Wheel Base via the included RJ12 cable. Alternatively, they can be used as a standalone USB device (on PC) using the included USB cable. Pedal position can be adjusted sideways along the heel rest, and it is easily configurable as a two-pedal set.
Choose your pedal surface.
Detachable rubber pads on the pedal faces give you the choice between high or low friction. For example, you might prefer more grip on the brake pedal for applying very high forces, but a slick throttle to assist with smooth acceleration out of corners.
Electronically adjustable.
The amount of braking force required can be easily tweaked through the Fanatec Tuning Menu (or Fanatec Control Panel on PC)*. Manual calibration of all three pedal axes is also possible.
Special Notes
-
*When connected via RJ12 directly to the wheel base, brake sensitivity is adjusted using the BRF setting in the Tuning Menu, accessed by supported Fanatec steering wheels.
-
Bolts for hard-mounting the pedals are not included, because the required bolt length differs depending on the thickness of the mounting plate or type of mounting solution. See product manual and drilling template for more information.
Specifications of FANATEC CSL Elite V2 Pedals
| Model | CSL_EP_V2 |
| Pedal Set | Three-pedal set |
| Included Pedals | Clutch, brake, throttle |
| Sensor Type | Contactless Hall sensors |
| Sensor Locations | Clutch and throttle |
| Brake System | Load cell brake system |
| Maximum Foot Force | Up to 90 kg |
| Load Cell Rating | >200 kg |
| Load Cell Sensitivity | Adjustable via Tuning Menu or Fanatec Control Panel |
| Minimum Sensitivity | Approx. 10 kg |
| Brake Feel System | Elastomer stack with load cell sensor |
| Included Elastomer Hardness | 65, 75, and 85 Shore |
| Elastomer Adjustment | Tool-free adjustment |
| Preload System | Dual-stage preload |
| Preload Components | Metal spring and elastomer |
| Alternative Spring | Included for stiffer preload |
| Construction Material | Cast and machined aluminium |
| Finish | Durable powder-coated finish |
| Assembly | Fully assembled out of the box |
| Setup | Plug and play |
| Two-Pedal Configuration | Supported |
| Pedal Adjustment | Sideways adjustable pedal position |
| Independent Mounting | Supported without heel rest |
| Inverted Mounting | Supported |
| Rubber Covers | Detachable rubber pedal covers |
| Structural Design | Revised pedal structure for durability |
| Mounting Access | Improved hard-mounting access |
| Handbrake Port | Dedicated handbrake port |
| Connection Type | RJ12 or USB |
| Wheel Base Connection | Direct RJ12 connection to Fanatec Wheel Bases |
| Standalone USB Support | Supported on PC |
| Compatiblity | Compatible with: All CSL Elite Wheel Bases CSL DD Wheel Base Gran Turismo DD Pro Wheel Base All ClubSport Wheel Bases All Podium Wheel Bases ClubSport Handbrake |
| Platforms | PC: This product can be used on Windows PC via RJ12 on all compatible Fanatec Wheel Bases, or as a standalone input device via USB. PlayStation: This product can be used on PlayStation 4 and PlayStation 5 consoles, if connected to a PlayStation-licensed Fanatec Wheel Base. Xbox: This product can be used on Xbox One and Series X|S consoles, if connected to a compatible Fanatec Wheel Base combined with an Xbox-licensed Fanatec Steering Wheel. |
| What's Included | CSL Elite Pedals V2 (three-pedal set, fully assembled) Alternative elastomers and metal spring for brake tuning 2x Brake pedal assembly helper 1x Wheel Base connection cable RJ12/RJ12 (~3 m) 1x USB cable (~3 m) 2x Wrench (13 mm) 1x Allen key (6 mm) 1x Allen key (4 mm) 1x Quick Guide 1x Sticker Set |
| Warranty | 3-Year Warranty |
