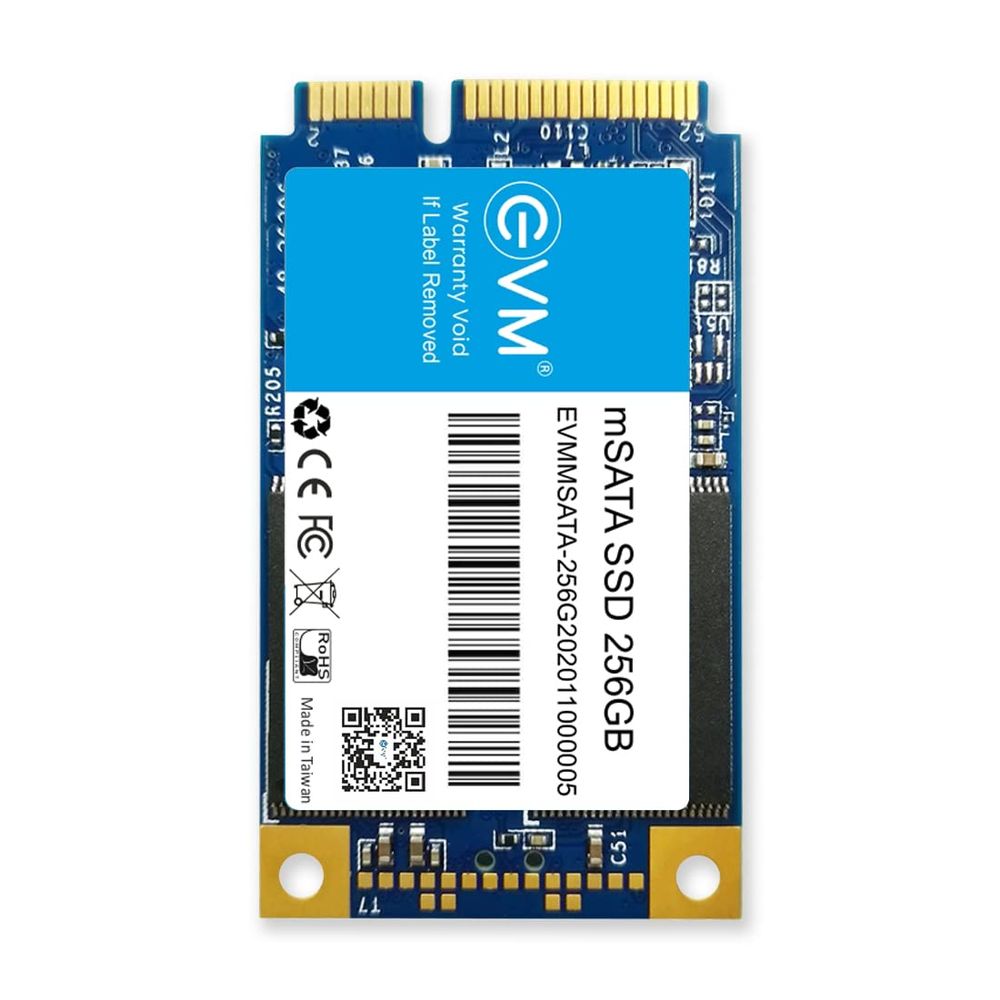

EVM 256GB mSATA Internal Solid State Drive ( SSD )

Features of EVM 256GB mSATA Internal

(1) Form Factor mSATA
(2) NAND FLASH 3D TLC
(3) Interface SATA 6.0 Gbps interface
(4) Sequential Read / Write Sequential Read: Write:up to 520MB/s 500MB/s
(5) Maximum 4K Read/ Write up to 79,000/25,000 IOPS
(6) Power Consumption 0.195W idle / 0.5WAvg / 1.17W (MAX)Read / 2.32W (MAX)Write
(7) Storage Temperature -40*C to 85*C
(8) Operating Temperature 0*C to 70*C
(9) Dimensions 50.8mm x 29.85mm x 4.85mm
(10) Weight 6.7g
(11) Vibration operating 2.17G Peak(7-800Hz)
(12) Vibration non-operating 20G Peak ( 10-2000Hz)
(13) Total Bytes Written (TBW) 256GB- 100TB

Affordably upgrade your hard drive to SSD performance with plug-and-play compatibility with any EVM 256GB mSATA connection with 256GB drawing power up to 0.195W/idle

Rely on 100TBW with 5 years of warranty.

Sequential read speeds up to 520MB/s and sequential write speeds up to 500MB/s give the speed you want for your most demanding computing applications.

Its high capacity with enhanced reliability and superior performance leads to high-end computation. It’s efficient and broadens the compatibility

Specifications of EVM 256GB mSATA Internal
