- EVGA SuperNova 1000 GT 80+ Gold Fully Modular Power Supply (1000 W)
Description
Features of EVGA SuperNova 1000 GT
The EVGA SuperNOVA GT line is your next choice in a fully modular, compact 150mm length & width power supply with 100% Japanese capacitors.
- 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
- 100% Japanese Capacitors ensure long-term reliability
- Fully Modular to reduce clutter and improve airflow
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and Dual OTP (Over Temperature Protection)
- Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
- Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
- OVP Over Voltage Protection
- OCP Over Current Protection
- OPP Over Power Protection
- SCP Short Circuit Protection
- UVP Under Voltage Protection
- Dual OTP Over Temperature Protection on the Primary and Secondary PCB
80 PLUS GOLD EFFICIENCY
80 PLUS Gold Certified. Ensures that your power supply is 90% efficient or higher.
FLUID DYNAMIC BEARING
The EVGA SuperNOVA CT Uses a long-life 135mm fan with a Fluid Dynamic Bearing (FDB) for silence, reliability, and a longer life expectancy.
SINGLE +12V OUTPUT
Provides a stable output for compatibility with the latest hardware.

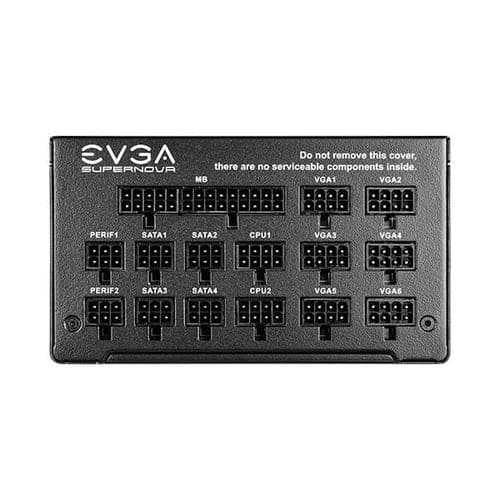

FULLY MODULAR DESIGN
Choose the cables you need to make cable management simple and clean.
Specifications of EVGA SuperNova 1000 GT

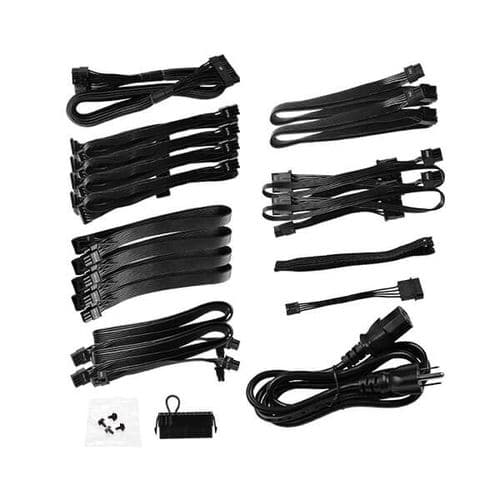

| ATX Cable | 1x 600mm (m) |
| EPS Cable | 2x 700mm (m) |
| PCIe Cable | 2x 700mm (m), 3x 700mm, 850mm (m) |
| SATA Cable | 4x 550mm, 650mm, 750mm (m) |
| Four-Pin Peripheral Cable | 1x 550mm, 650mm, 750mm, 850mm (m) |
| Floppy Adapter | 1x Molex to FDD Adapter |
| AC Power | 1x 1500mm (m) |
| Modular Cable Type | Full |
| 24 Pin ATX | 1x |
| EPS (CPU) | 2x 8pin(4+4) |
| PCIe | 8x 8pin(6+2) |
| SATA | 12x |
| Four-Pin Peripheral | 4x |
| Floppy | 1x |
| Input Voltage | 100-240V~ |
| AC Input | 12-6A |
| Input Frequency Range | 60/50Hz |
| Efficiency | 90% or Higher Typical |
| Total | 1000W |
| Max Output |
130W Max Output:- 25A Rail:- +3.3V / +5V 1000W Max Output:- 83.3A Rail:- +12V 15W Max Output:- 3A Rail:- +5Vsb 3.6W Max Output:- 0.5A Rail:- -12V |
| Operating Temperature | 0° to 50° C |
| Japanese Capacitors | 100% |
| ECO Mode | Yes |
| MTBF | 100,000 Hours |
| Gross Weight | 8.80 lbs |
| Size | 86mm (H) x 150mm (W) x 150mm (L) |
| Approvals |
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |
| Fan Size / Bearing | 135mm Fluid Dynamic Bearing |
| Warranty | 10 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
