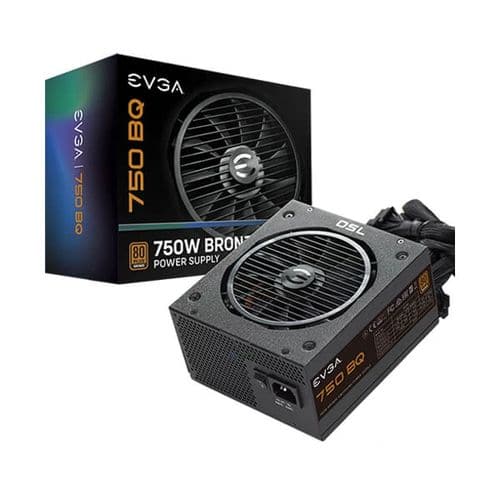

- EVGA 750 BQ 80+ Bronze Semi Modular Power Supply (750 W)
Description
Features of EVGA 750 BQ
Introducing the next generation in value; the EVGA BQ series. These power supplies take some of the best features from EVGA's award winning power supply lineup, like
a 140mm fan with near silent operation and modular cables to make one of the best values today in high performance power supplies.
- 5 Year Warranty and unparalleled EVGA Customer Support
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
- Quiet and Intelligent Auto Fan for near-silent operation
ULTRA-QUIET
Teflon Nano-Steel Bearing fan allows for near silent operation, even
under the toughest loads.
EXCELLENT
PERFORMANCE
85% efficiency or higher under typical loads and high quality Japanese brand capacitors ensure long-term reliability.

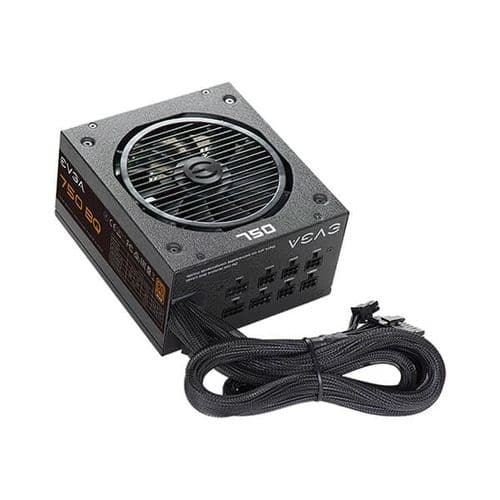

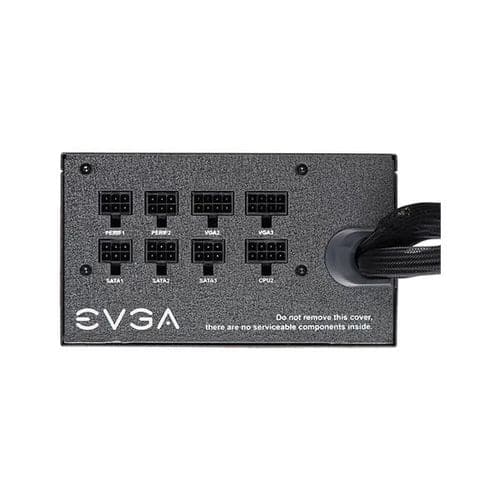

MODULAR DESIGN
Semi-modular design allows you to only use the cables you need, helping to improve case airflow, eliminate unnecessary wires, and best of all, reduce cable clutter.
Single +12V Rail
A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.
Modular
Modular design allows some cables to be removed from the power supply for ease of installation and removal. You can leave off unnecessary cables to reduce case clutter and maximize case airflow.
NVIDIA SLI Ready
Run multiple NVIDIA graphics cards for the ultimate gaming experience. The EVGA BQ give you the power you need to drive these demanding systems and achieve the best overclocks.
80 Plus Bronze Rated Efficiency
80 Plus Bronze certification ensures your power supply isn't wasting power and turning it into excess heat. Under typical loads these power supplies are 85% efficient or higher.
Specifications of EVGA 750 BQ

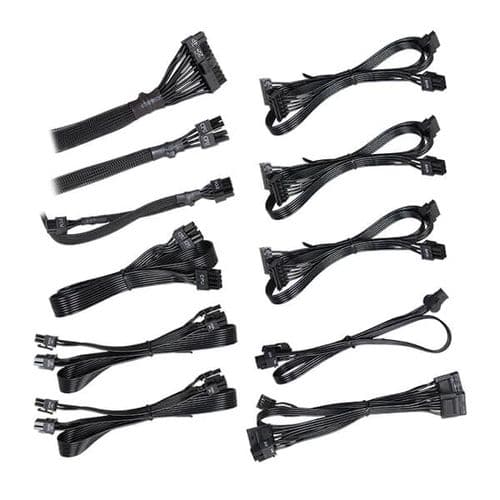

ATX Cable | 1x 550mm |
EPS Cable | 2x 600mm |
PCIe Cable | 3x 550mm, 700mm |
SATA Cable | 3x 500mm, 650mm, 800mm |
Four-Pin Peripheral Cable | 1x 550mm, 700mm, 1x 550mm, 700mm, 850mm + 1000mm (Floppy) |
Floppy Adapter | 1x |
AC Power | 1x 1800mm |
Modular Cable Type | Semi-Modular |
24 Pin ATX | 1x |
EPS (CPU) | 2x 8pin(4+4) |
PCIe | 3x |
SATA | 9x |
Four-Pin Peripheral | 5x |
Floppy | 1x |

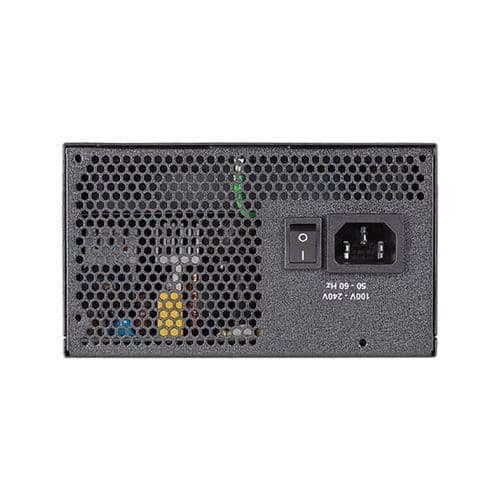

Input Voltage | 100 - 240 VAC |
AC Input | 10A |
Input Frequency Range | 50-60Hz |
Efficiency | 85% Typical |
Total | 750W @ +40C |
Max Output |
150W Max Output:- 24A / 20A Rail:- +3.3V / +5V 744W Max Output:- 62A Rail:- +12V 15W Max Output:- 3A Rail:- +5Vsb 3.6W Max Output:- 0.3A Rail:- -12V |
Operating Temperature | 0° to 40° C |
Japanese Capacitors | Main PCB |
ECO Mode | No |
MTBF | 100,000 Hours |
Gross Weight | 5.68 lbs |
Size | 85mm (H) x 150mm (W) x 165mm (L) |
Approvals | TUV, CE, FCC, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
Fan Size / Bearing | 140mm Teflon Nano-Steel Bearing |
Warranty | 5 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
