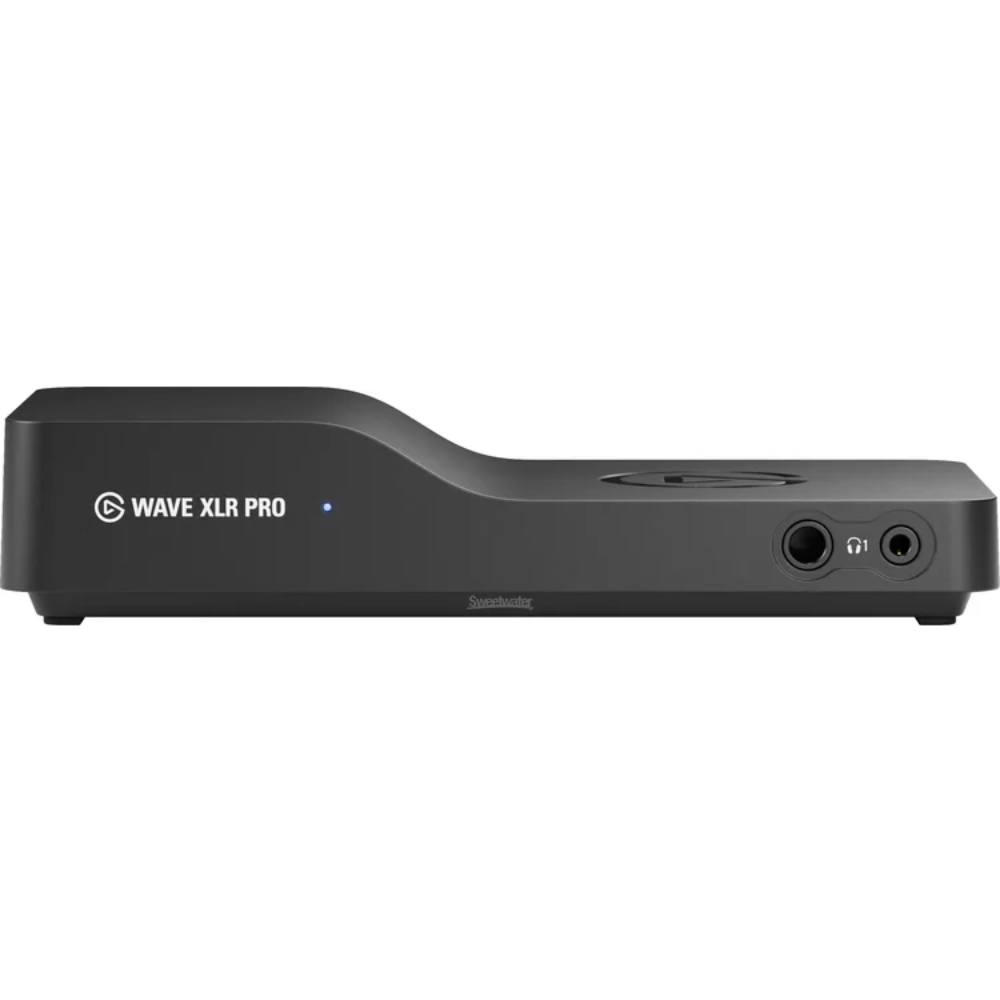

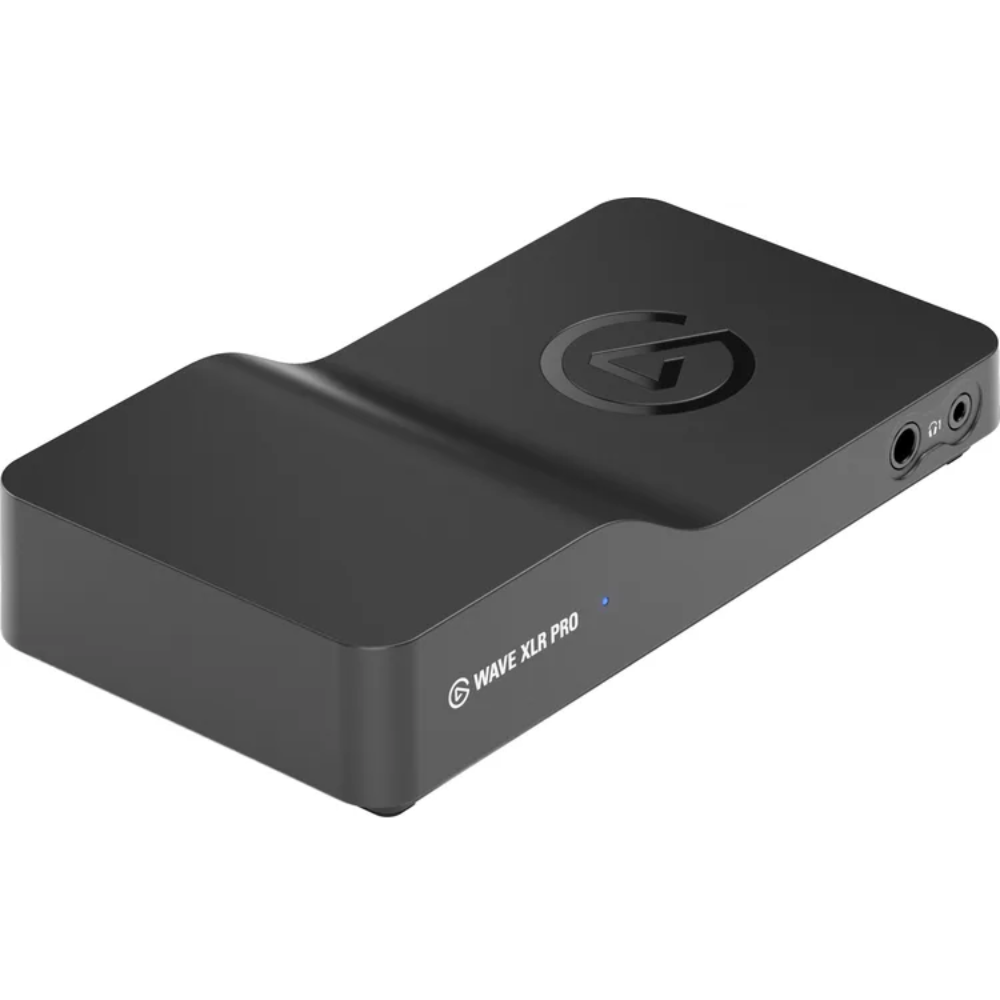

- ELGATO Wave XLR Pro Audio Matrix
Description
Features of ELGATO Wave XLR Pro Audio Matrix
NOTHING COMES CLOSE
Wave XLR Pro drops a full-sized mixing desk in the palm of your hand. But it’s more than a mixer. It’s a powerful audio matrix that pairs hyper-customizable routing with all the right connections, unlocking capabilities mixers simply can’t match. Creators, podcasters, anyone who’s serious about audio—this is the solution you’ve been waiting for. No workarounds. All flow.
GIVE YOUR SETUP SUPERPOWERS
We didn’t just add connections—we added the right ones. For co-hosted studios with remote guests, channels powered by fully stacked setups, and solo projects destined to grow. Whatever your workflow, Wave XLR Pro brings all your gear together.
The Pro in the Processor
Your voice flows through Clipguard, onboard DSP, and VST effects in one continuous signal path. So you get studio-grade sound with super-responsive monitoring, but none of the routing complexity.
ONE APP FOR ALL YOUR AUDIO
Wave Link gives you full control over your Wave hardware, but that’s just the start. Apply and customize effects, add a soundboard to voice chat, create a separate recording mix, and so much more. Everything you need for professional sound, all in one place.
ANY SETUP IMAGINABLE
Workflows that require workarounds now connect and scale without friction. From dual-mic setups to complex production studios, your gear becomes a seamlessly integrated ecosystem. So what once felt hacked together now feels streamlined and fully under your control. Everything just works.
TACTILE CONTROL, PERFECTED
Paired with Wave XLR Pro, Stream Deck + XL becomes the tactile controller for your entire signal chain. And because it’s a Stream Deck, it extends far beyond audio to lighting, video, apps, everything.
THIS IS WAVE
A new generation of audio tools for creators. Hardware and software working together as one, taking the friction out of great sound. Welcome to the new standard.
Specifications of ELGATO Wave XLR Pro Audio Matrix
| Product | Wave XLR Pro |
| SKU | 10MAM9901 |
| XLR Input Frequency Range | 20 Hz – 20 kHz |
| XLR Input Dynamic Range | 135 dB |
| Equivalent Input Noise (EIN) | -130 dBV(A) (A-Weighted) |
| Gain | Up to 80 dB (Digital) |
| Phantom Power | 48 V, 7 mA |
| Maximum Input Level (XLR) | 6 dBV |
| ADC Resolution | 24-bit |
| ADC Sample Rate | 48 kHz |
| Headphone Output Power @16Ω | 50 mW |
| Headphone Output Power @600Ω | 18 mW |
| DAC Resolution | 32-bit |
| DAC Sample Rate | 48 kHz |
| Line In Frequency Range | 20 Hz – 20 kHz |
| Maximum Line In Level | 10 dBV |
| Line Out Frequency Range | 20 Hz – 20 kHz |
| Maximum Line Out Level | 10 dBV |

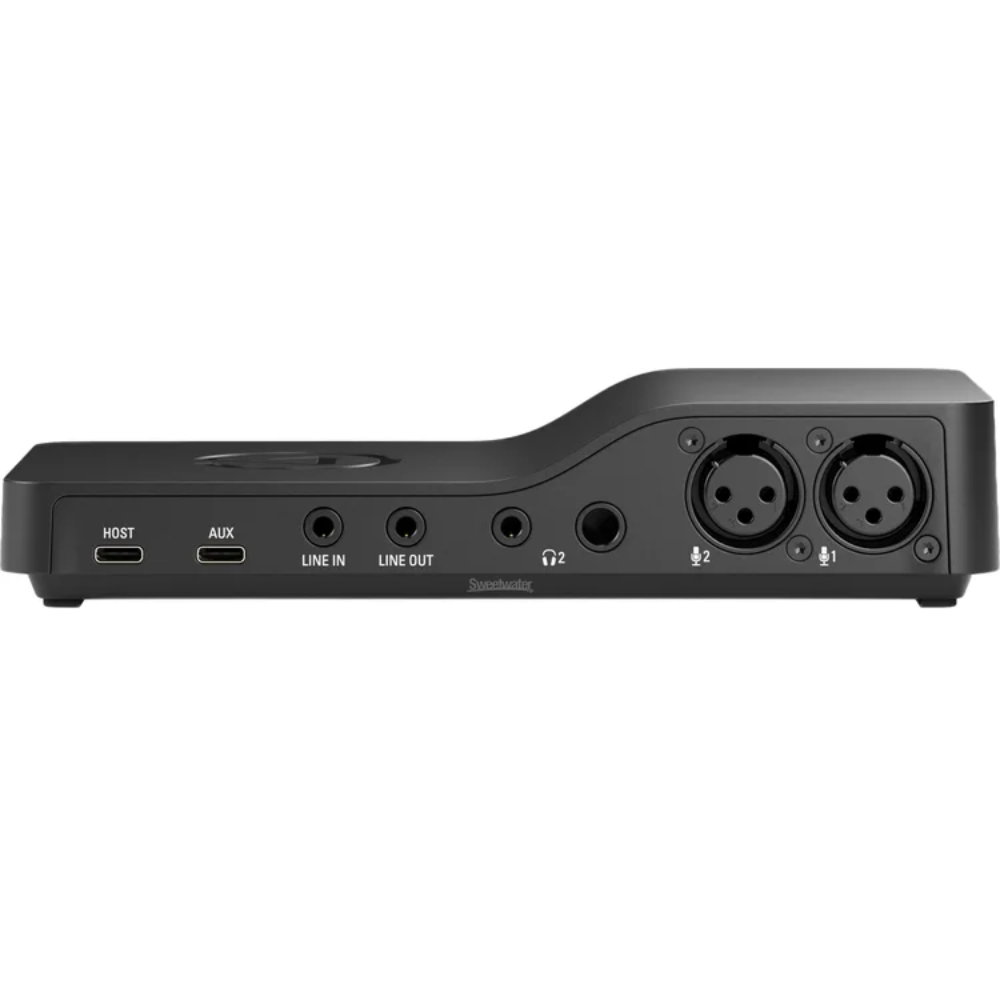

| Microphone Inputs | 2 × XLR (Mono) |
| Headphone Outputs | 2 × 6.3 mm & 3.5 mm TRS Jack (Stereo) |
| Line Input | 3.5 mm TRS Jack (Stereo) |
| Line Output | 3.5 mm TRS Jack (Stereo) |
| Host Interface | USB-C 2.0 High-Speed |
| Auxiliary Interface | USB-C 2.0 Full-Speed |
| Mounting Points | 3/8" (Housing), 1/4" (Pre-Mounted Adapter) |
| Power Consumption | 5 V DC, 900 mA Max |
| Dimensions (D × W × H) | 97 × 185 × 37 mm |
| Weight | 385 g |
| In The Box | Wave XLR Pro, 150 cm USB-C Cable, Quick Start Guide |
