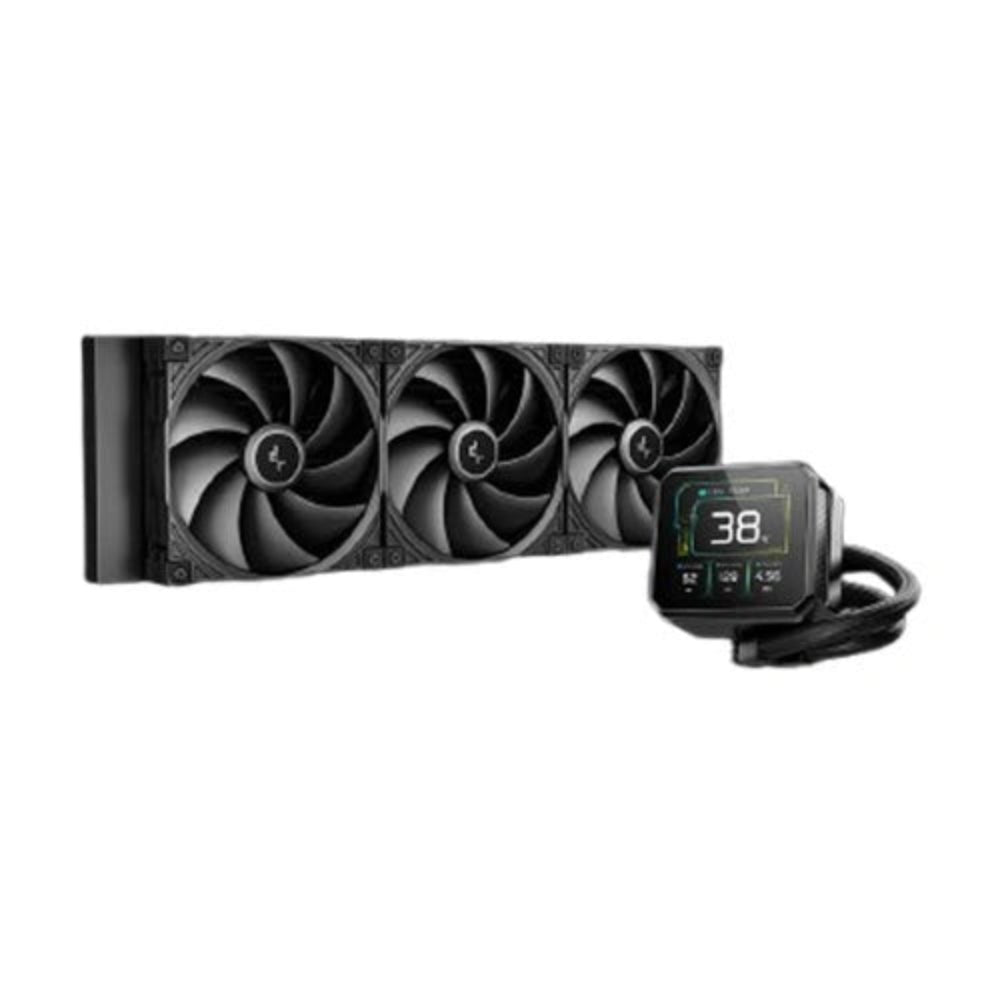

DEEPCOOL Spartacus 420 420mm CPU Liquid Cooler ( Black ) ( With LCD Display )

Features of DEEPCOOL Spartacus 420 420mm CPU Liquid Cooler ( Black ) ( With LCD Display )

• Radiator Dimensions: 462×140×27 mm(L×W×H)
• Radiator Material: Aluminum
• Tube length: 465 mm
• Pump Dimensions: 99×91×65 mm(L×W×H)
• Pump Speed: 2500~3400 RPM±10%
• Pump Connector: 4-pin PWM
• Pump Rated Voltage: 12 VDC
• Pump Rated Current: 0.29 A
• Pump Power Consumption: 3.48 W
• Fan Dimensions: 140×140×30 mm (L×W×H)
• Fan Speed: 500~2000 RPM±10% / 0 RPM (PWM duty < 5%)
• Fan Airflow: 112.5 CFM
• Fan Air Pressure: 4.15 mmAq
• Fan Noise: ≤32.89 dB(A)
• Fan Connector: 4-pin PWM
• Bearing Type: Hydro Bearing
• Fan Rated Voltage: 12 VDC
• Fan Rated Current: 0.35 A
• Fan Power Consumption: 4.2W
• LED Type: Addressable RGB LED
• LED Connector: 3-pin(+5V-D-G)
• LED Rated Voltage: 5 VDC
• LED Power Consumption: 2.0 W（PUMP
• Display Specifications: 3.4 inch 480×480 TFT LCD

SPARTACUS 420 is DeepCool’s latest generation of liquid coolers featuring an advanced customizable LCD screen. Personalize your build with modular layouts and dynamic visuals on the 3.4" IPS screen. Equipped with an upgraded Gen 6 pump and high-performance fans, it ensures exceptional cooling efficiency and quiet operation.

A FORM THAT SPEAKS

With a precision-crafted design and refined metal finish, SPARTACUS 420 reflects DeepCool's commitment to modern aesthetics and build quality. The pump cap attaches magnetically for easy removal, and precision pogo pin contacts ensure a stable and reliable connection.

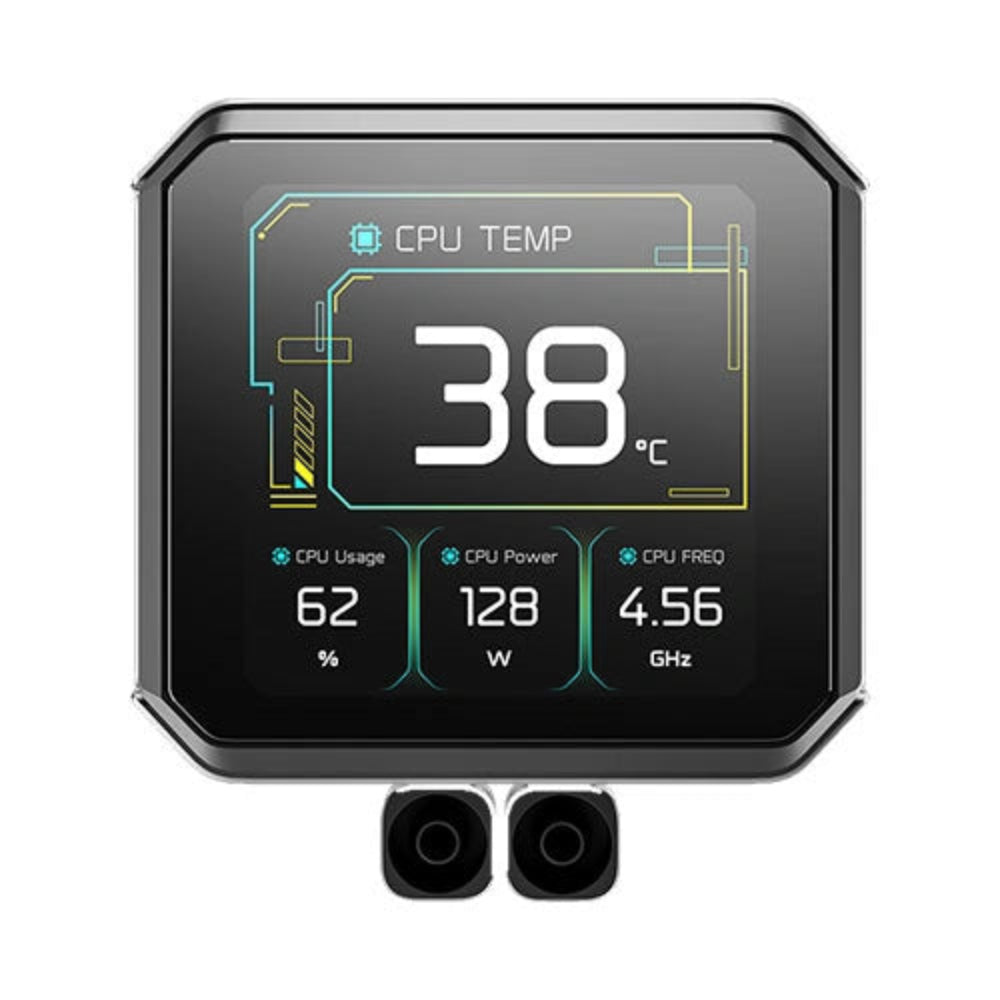

VIVIDLY FLUID 3.4" LCD

A 3.4" IPS display opens a new screen experience, featuring 480×480 resolution and support for 16.7 million colors. Content is structured in modular blocks, enabling a flexible visual layout tailored to individual preferences.

AI-TUNED CHILL. POWERED BY DeepCreative

With the upgraded DeepCreative interface, one click replaces BIOS tinkering — DeepCreative’s proprietary AI-driven algorithm tracks CPU load in real time and coordinates both fan and pump speeds to match the optimal fan speed curve. This ensures perfect harmony between powerful cooling and whisper-quiet operation, all without lifting a finger.

• Brightness: 750 nits
• Resolution: 480 × 480
• Color Depth: 16.7M Colors
• Refresh Rate: 30Hz

DeepCreative: THE CONTROL CENTER

Unlock a deeply visual experience with the SPARTACUS cooler through DeepCreative software. Monitor real-time system stats, customize your display with flexible block layouts, and switch between multiple modes as needed. When performance takes priority, Zen Mode reduces update frequency to minimize system load while keeping critical data visible.

MONITORING

Keep track of essential system data, including CPU temperature, usage, frequency, and pump speed. Depending on what's shown in the main block, the secondary blocks can display options like GPU power, network speeds, or RAM usage.

MEDIA

Showcase images, animated GIFs, or MP4 videos on screen, or add rhythm and motion to your setup with music spectrum effects.

GRAPH

Visualize system trends with dynamic graph blocks, including CPU and GPU usage, frequency, and network traffic. Data updates every second and supports multiple layout sizes.

ZEN

Automatically reduces update frequency under high system loads to minimize resource usage and help you stay focused.

DRIVEN BY THE GEN 6 PUMP

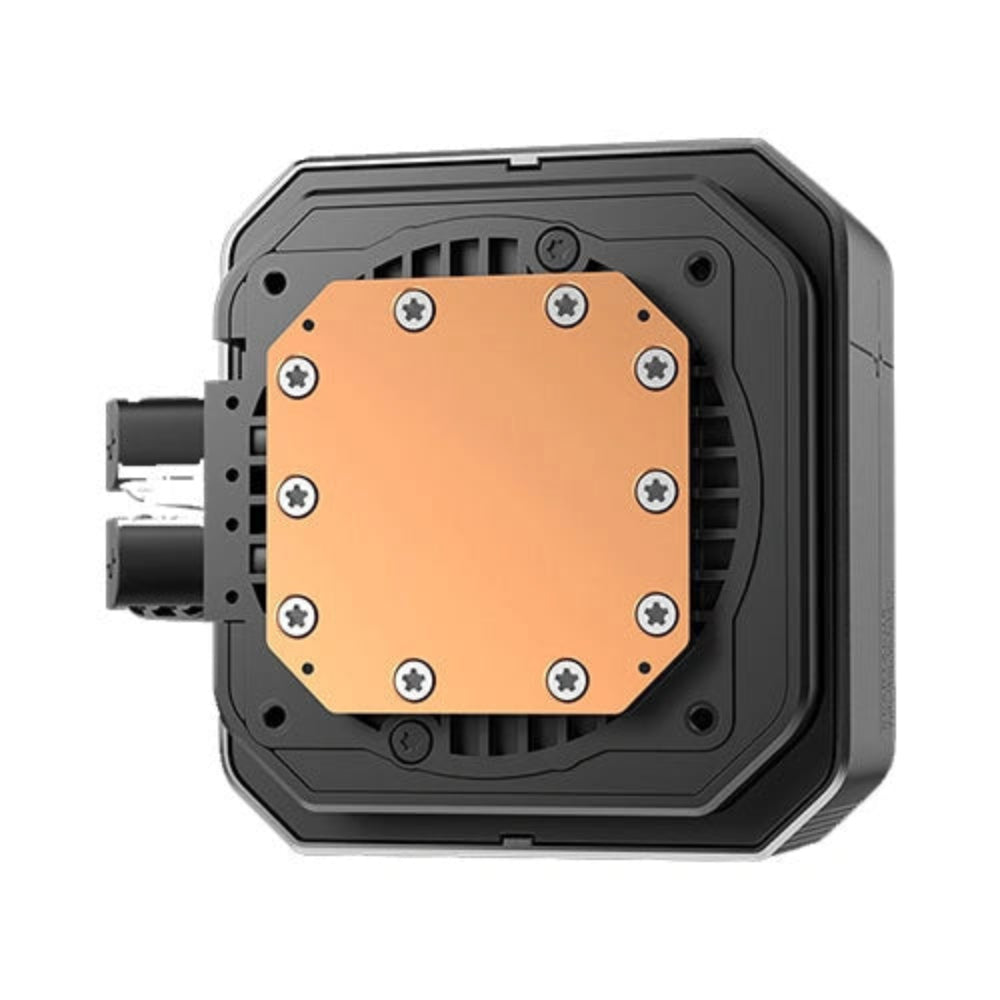

The 6th-generation pump features a 3-phase, 6-slot, 4-pole motor with FOC control, delivering smoother and more efficient operation across a PWM-adjustable range of 2,500 to 3,400 RPM. The expanded copper base and fine-tuned microfin geometry help maximize thermal transfer, enabling up to 350W of heat dissipation with low noise and long-term reliability.

THE POWER OF 30mm THICKNESS

SPARTACUS 420 is equipped with three 30mm-thick 140mm PWM fans built with PPS for enhanced structural stability at high speeds. Each fan integrates a precision 3-phase 6-slot 4-pole motor with closed-loop control to maintain strong airflow and responsive performance. Hydro bearings support smooth, reliable operation over the long term.

SINGLE CONNECTION, TOTAL CONTROL

The unique 10-pin connector integrates power and signal for both pump and screen, eliminating cable clutter with a single, streamlined connection. Control is centralized through a compact hub, allowing independent adjustment of fan speeds and ARGB lighting per channel, with magnetic and screw mounting options for flexible installation.

PRECISION COOLING ALIGNMENT

SPARTACUS 420 features a newly engineered offset bracket optimized for Intel 24- or 20-core LGA1851 CPUs (such as the Core Ultra 9 285K or Core Ultra 7 265K). By offsetting the cold plate upward, it aligns precisely with the CPU’s hotspot and reduces temperatures by 1-3°C*.Other Intel and AMD platforms remain fully supported with standard mounting hardware.

REAR-LOCK MOUNTING

The rear-mounted locking system allows front-side installation without screws, streamlining the process and resulting in a cleaner build.

ANTI-LEAK TECHNOLOGY

The SPARTACUS liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and purges it when internal pressure exceeds atmospheric pressure, extending the cooler's lifespan and reducing the risk of leaks.

Specification of DEEPCOOL Spartacus 420 420mm CPU Liquid Cooler ( Black ) ( With LCD Display )
