Description
Features of DEEPCOOL PX850G 850W 80 + Gold Fully Modular ATX 3.0 Power Supply
The DeepCool PX850G is a newly designed power supply that meets the latest ATX 3.0 standard. With a dedicated 12VHPWR, 2 EPS, and 3 PCI-e ports, the PX850G provides stable power for a wide range of components.
Past, Present and Future
With the ability to provide three times the total GPU and twice the total system power for 0.1 ms, power spikes will never be an issue. The PX850G will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

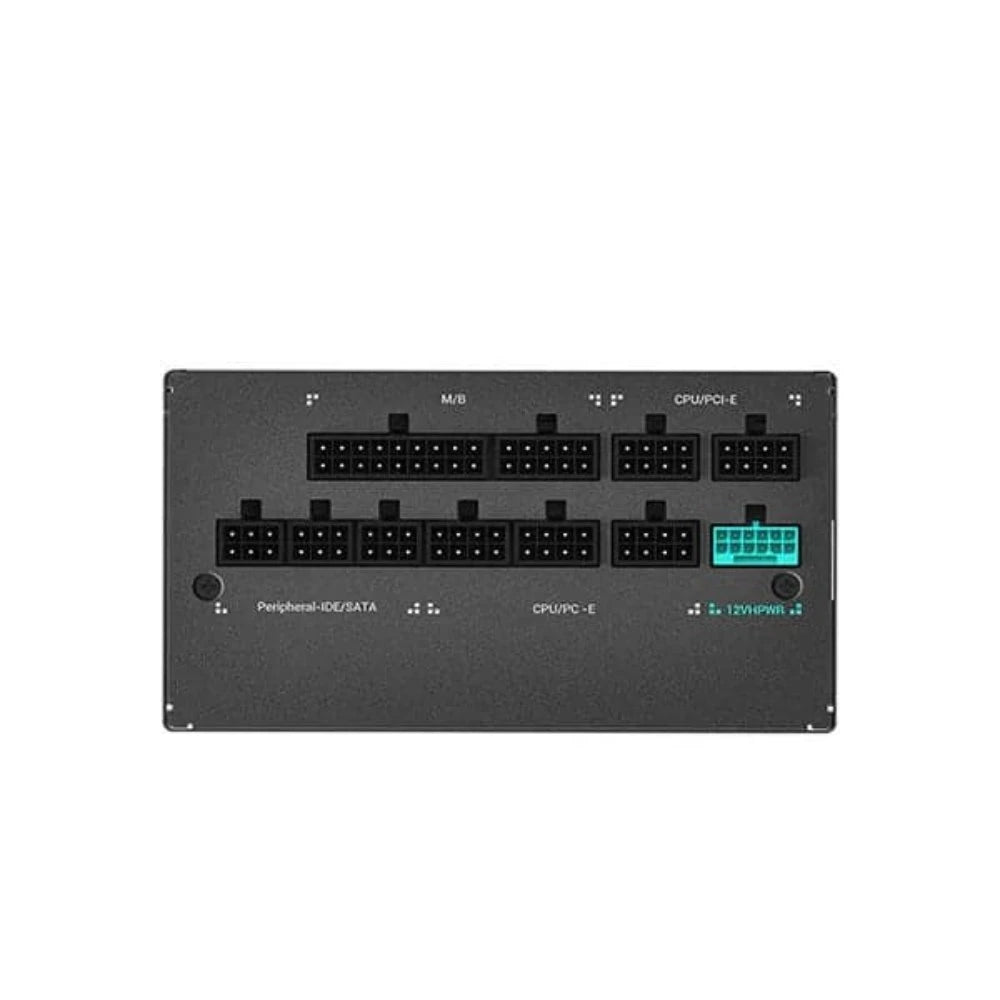

PCI-e 5.0 Power Perfected
Equipped with the new PCI-e Gen 5.0 12VHPWR cable, the PX-G provides up to 600W for power hungry GPUS.
Static to Dynamic
The PX850G comes equipped with the option to switch into semi-fanless operation. In hybrid mode, the 135mm FDB fan will dynamically adjust out of its zero RPM state once the system load hits a certain threshold.
Specifications of DEEPCOOL PX850G 850W ATX 3.0
80+ Gold Fully Modular Power Supply
Model | R-PX850G-FC0B-UK |
Type | ATX12V V3.0 |
Product Dimensions | 150×160×86mm (W x L x H) |
Efficiency certification | 80Plus GOLD/Cybenetics_GOLD |
Fan Size | 135mm |
Fan Bearing | FDB (Fluid Dynamic Bearing) |
Topology |
Active PFC + Half Bridge SRC LLC + DC to DC
|
Power Good Signal | 100-150ms |
Hold Up Time | ≥16ms |
Efficiency |
≥90% Under Typical Load(50% Loading)
|
Protection | OPP/OVP/SCP/OTP/OCP/UVP |
Operation Temperature | 0 - 40℃ |
Regulatory |
CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS;
|
Erp Regulation | ErP 2014 |
MTBF | 100,000 Hours |
Warranty | 10 Years |
Note |
*** Features, Price, Specifications are subject to change without notice.
|
