Deepcool PAB 300 Graphics Card Holder With 200mm Extension Cable

Feature of Deepcool PAB 300 Graphics Card Holder

• PAB 300 is applicable for the MATREXX 70 / MATREXX 55 V3/ MATREXX 50 / MACBUE 310 series case.
• Its 90°vertical installation perfectly displays your graphic card and offers complete protection.
• Standard high-quality PCI-E 16X 164-pins slot for both ends.
• Large rubber pad is attached at the bottom

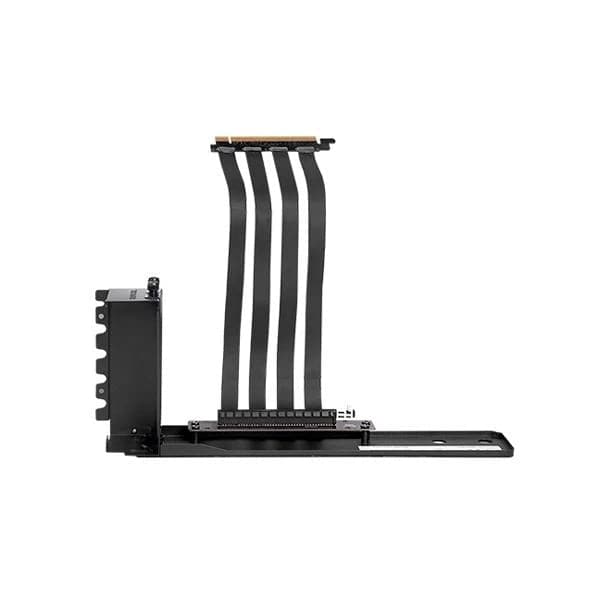

Equipped with metal graphics card holder with a 200mm extension cable, PAB300 is used to establish an external connection with a vertical graphics card. Its 90°vertical installation perfectly displays your graphics card and offers complete protection. Preventing it from bending or sagging, while also reducing stress for the motherboard.

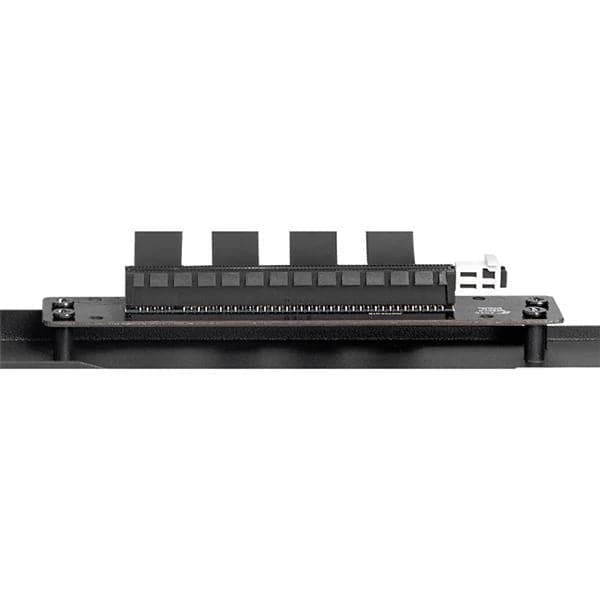

Standard high-quality PCI-E 16X 164-pins slot for both ends. Unicrystal OCC copper wire significantly improves signal stability and structural strength.

Large rubber pad is attached at the bottom to further absorb vibration.

Easy Installation

Deepcool PAB 300 is applicable for the MATREXX 70 / MATREXX 55 V3/  MATREXX 50 / MACBUE 310 series case.

• Loosen the last 5 screws of the chassis PCI-E baffle. Insert the graphics card bracket and tighten the screws.
• Tighten the upper and lower screws on the right side of the PCI-E baffle.
• Fix hand screw on the right-side of your chassis.
• Connect the graphics card extension cable to the motherboard PCI-E slot.
• Unplug PAB300 graphics card slot and lock the latch after installing the graphics card.
• Install the graphics card fixing screws.

Specifications of Deepcool PAB 300 Graphics Card Holder
