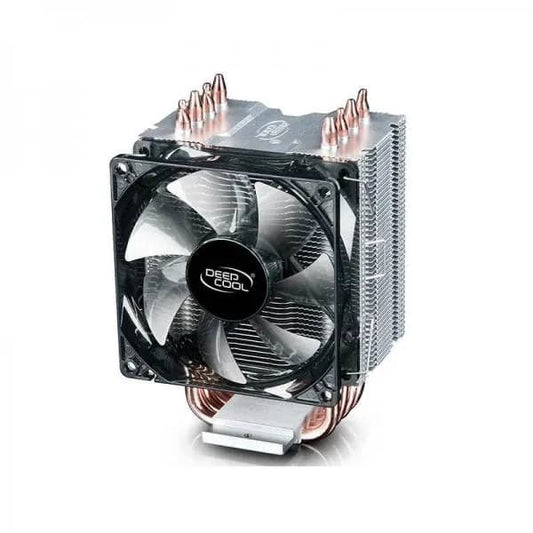

- DEEPCOOL Gammaxx C40 92mm Single Tower CPU Air Cooler (Black)
Description
Features of DEEPCOOL Gammaxx C40 92mm Single Tower
M-ATX and ITX build fans have long been suffering from size or price mismatching when choosing CPU coolers. To cure the headache, DeepCool brings the ultimate cooling solution that combines all advantages—DEEPCOOL Gammaxx C40
- Small in size with height of 137mm, using 92mm fan.
- Powerful performance, Compact fin design + powerful fan makes it capable to support chipsets up to TDP 130W.
- Offcenter heatsink structure to avoid interference with RAM.
- 4*Ф6 mm heatpipes directly in contact with CPU, absorbing and dissipating the heat more efficiently.
- Special backplate bracket and metal adapter frame makes the mounting easy and structure strong.
- Compact but Powerful
- Offcenter to Avoid RAM Interference
- 4 Heatpipes Directly Touching the Core
- Easy Installation, Strong Structure
Compact but Powerful
Gammaxx C40 is only 137mm tall, but the specially designed compact fin and the 92mm powerful fan make it marvelous in performance, able to support chipsets of TDP up to 130W

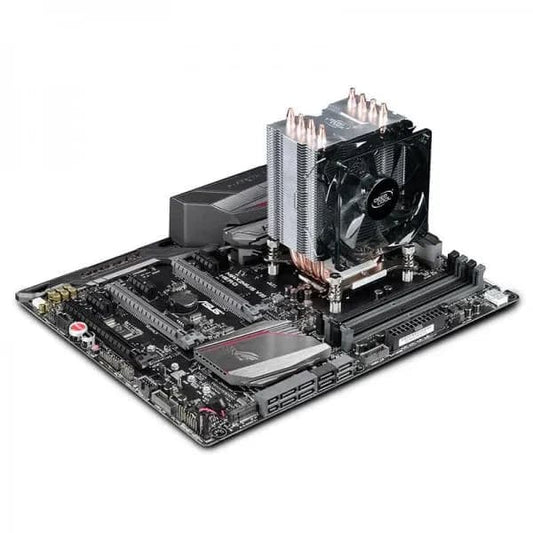

Offcenter to Avoid RAM Interference
To avoid interference, the heat sink of Gammaxx C40 is designed to lean away from RAM. The offcenter design allows the users to enjoy fully-loaded RAM and the cooling solution at the same time

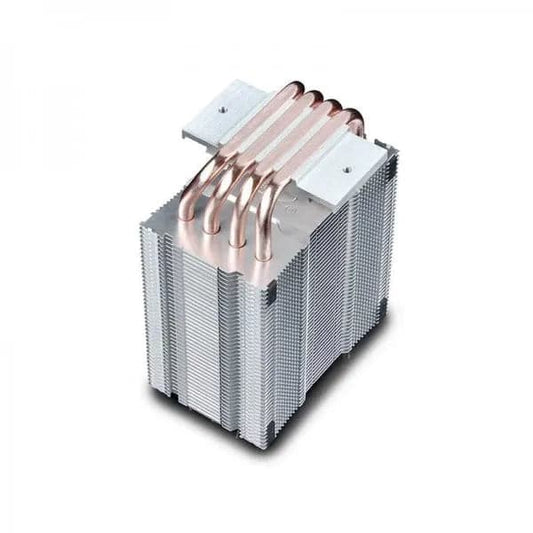

4 Heatpipes Directly Touching the Core
4*Ф6 mm heatpipes are constructed with Core Touch Technology (CTT) for direct contact on the chipset. Thus the heat can be carried out directly by the heatpipes and dissipated efficiently through the aluminum fins
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Specifications of DEEPCOOL Gammaxx C40 92mm Single Tower
Model | DP-MCH4-GMX-C40P |
Product Dimension | 92×83.8×137 mm |
Heatsink Dimension | 92×58.5×137 mm |
Heatsink Weight | 377 g |
Heatpipe | Ø6 mm×4 pcs |
Fan Dimension | 92×92×25 mm |
Fan Speed | 500~2000 RPM±10% |
Fan Airflow | 33 CFM |
Fan Air Pressure | 2.31 mmAq |
Fan Noise | ≤23.9 dB(A) |
Fan Connector | 4-pin PWM |
Bearing Type | Hydro Bearing |
Fan Rated Voltage | 12 VDC |
Fan Rated Current | 0.06 A |
Fan Power Consumption | 0.72W |
Socket Compatibility | Intel LGA20XX/1151/1150/1155/LGA1200/LGA1366; AMD AM4/AM3+/AM3/AM2+/AM2/ FM2+/FM2/FM1. |
Warranty | 1 Year |
Note | ***Features, Price and Specifications are subject to change without notice. |
