- DEEPCOOL DQ750-M-V2L 80+ Gold Fully Modular Power Supply (750 W) (White)
Description

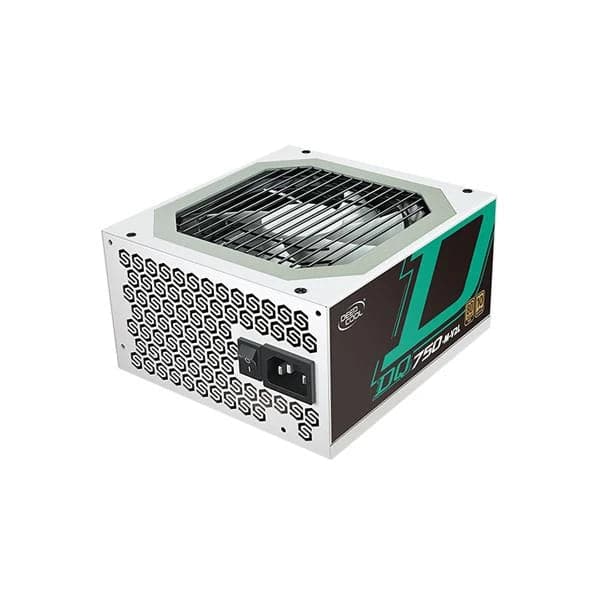

Features of DEEPCOOL DQ750-M-V2L (White)
DEEPCOOL DQ750-M-V2L WH 80 Plus Gold SMPS delivers improved performance with lower power usage, better thermals, and higher quality with the help of LLC Half Bridge Topology with DC-DC module design. To reduce the clutter of cables on your desk and make it clean and tidy, the Deepcool DQ750-M-V2L WH 80 Plus Gold SMPS is designed with the Full modular cable design. Deepcool DQ750-M-V2L WH 80 Plus Gold SMPS is artistically designed with flat cables keeping your system clean and neat. Deepcool DQ750-M-V2L WH 80 Plus Gold SMPS comes with a warranty of 10 years.
- 80 PLUS® GOLD certified - Up to 91.2% efficiency
- 100% High-quality Japanese capacitors
- Full bridge PFC + LLC Resonant converter
- Fully modular with flat cable design
- CircuitShield™ — OVP / UVP / SCP / OPP / OTP
- 80 PLUS® Gold Certified
- Top-notch Design
- Fully Modular
80 PLUS® Gold Certified
Get all the power you need with a maximum 91.2% efficiency to reduce excess energy consumption and waste heat.
Top-notch Design
Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ750-M-V2L delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.

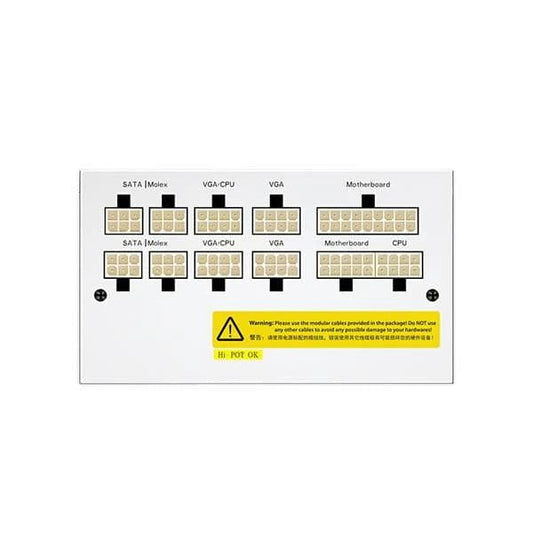

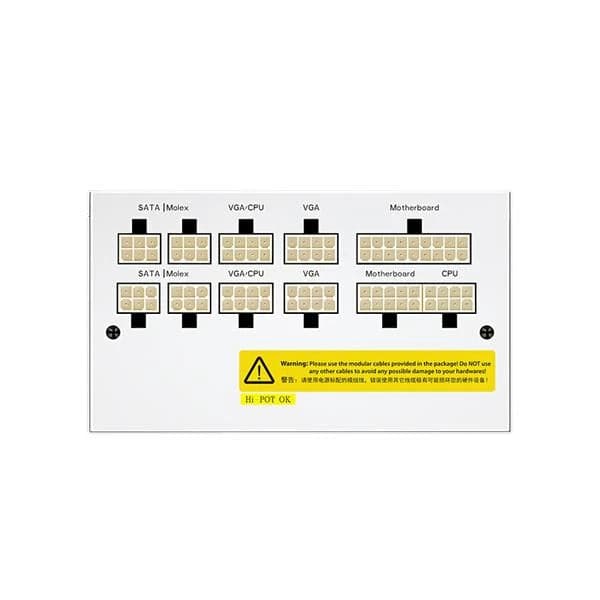

Fully Modular
Easy cable management with flat cables keep your system clean and tidy.
The 100% Japanese capacitors enhanced ripple filtering, improved reliability and product life.
The 100% Japanese capacitors enhanced ripple filtering, improved reliability and product life.

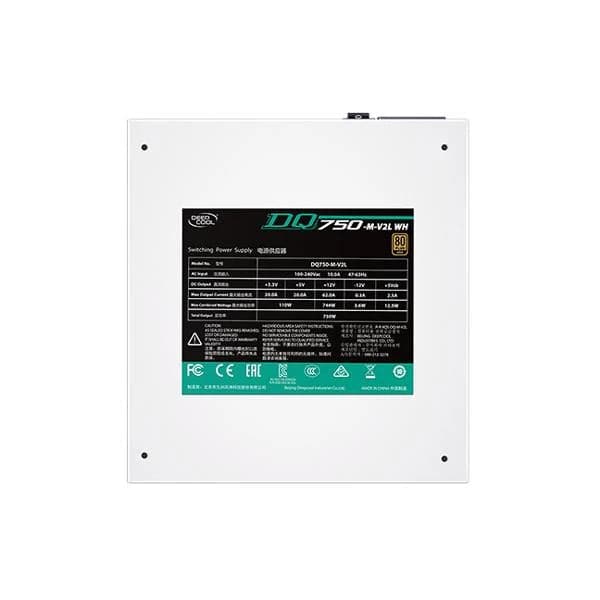

Specifications of DEEPCOOL DQ750-M-V2L (White)
Model | DQ750-M-V2L WH |
Type | ATX 12V V2.31 |
Certifications | 80PLUS GOLD |
Dimension | 150×160×86mm (W × L × H) |
Output Capacity | 750W |
Input Voltage | 100-240V |
Input Current | 10.0A |
Input Frequency Range | 47-63Hz |

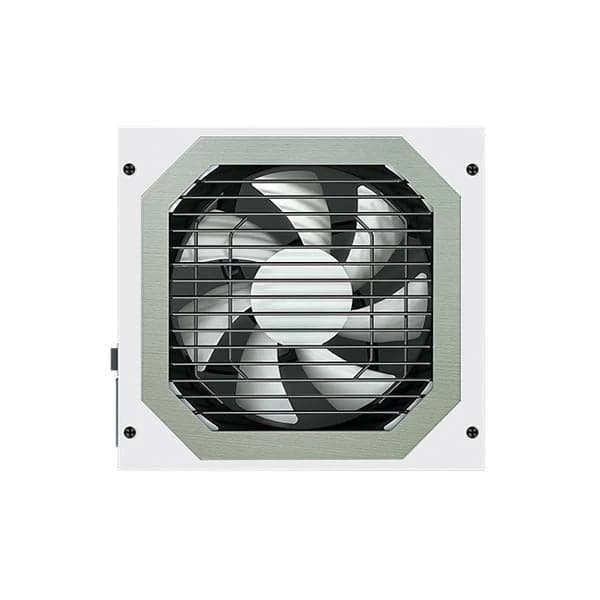

Fan Size | 120mm |
PFC | Active |
Power Good Signal | 100-500ms |
Hold Up Time | >16ms(80% Loading) |
Efficiency | >90% Under Typical Load (50% Loading) |
Standby Efficiency | ErP Lot 3 2014 |
Protection | OVP/UVP/OCP/SCP/OPP/OTP |
Operation Temperature | 0-40°C |
Regulatory | CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs |
MTBF | 100,000 Hours |
Warranty | 10 Years |
Note | ***Features, Price and Specifications are subject to change without notice |
