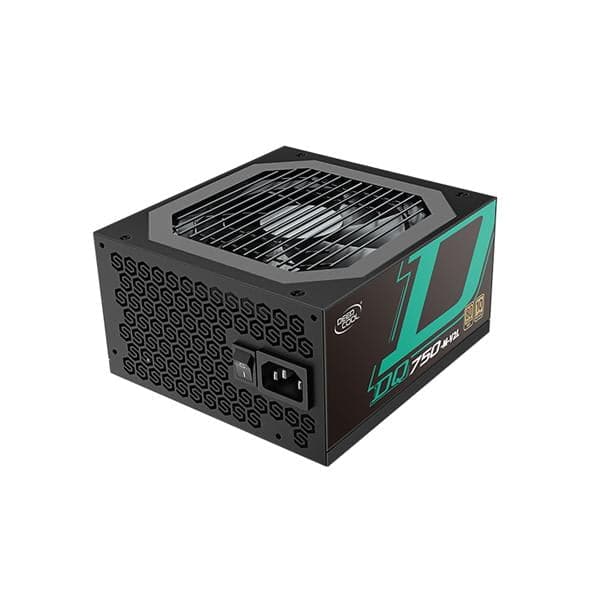

- DEEPCOOL DQ750-M-V2L 80+ Gold Fully Modular Power Supply (750 W)
Description
Features of DEEPCOOL DQ750-M-V2L
The DEEPCOOL DQ750M-V2L fully modular 750W Power Supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ750-M-V2L offers better reliability for your PC system.
Deepcool DQ750-M-V2L 50W 80 PLUS Gold power supply is artistically designed with flat cables keeping your system clean and neat. With Japanese technology, this Deepcool Power Supply has a better product life and is even more reliable. This one is even thermally efficient with PWM cooling fans. Comes with a warranty of 10 long years!
- 80 PLUS® GOLD certified - Up to 91.2% efficiency
- 100% High quality Japanese capacitors
- Full bridge PFC LLC Resonant converter
- Fully modular with flat cable design
- CircuitShield™ — OVP / UVP / SCP / OPP / OTP
- 80 PLUS® Gold Certified
- Top-notch Design
- Fully Modular
80 PLUS® Gold Certified
Get all the power you need with a maximum 91.2% efficiency to reduce excess energy consumption and waste heat.
Top-notch Design
Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ750-M-V2L delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.

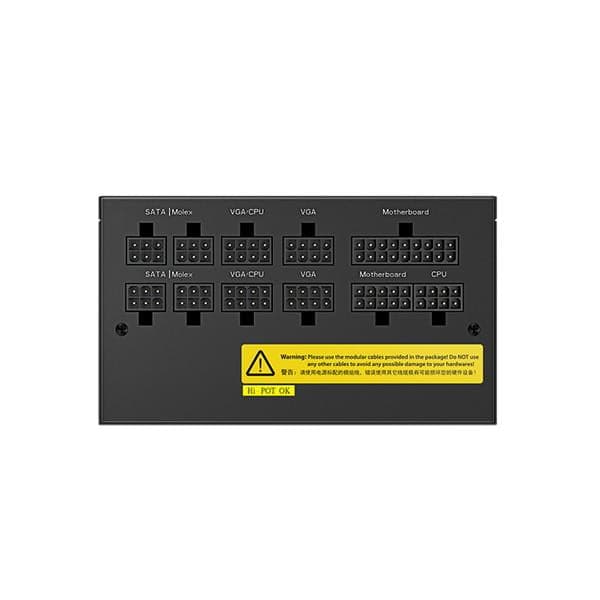

Fully Modular
Easy cable management with flat cables keep your system clean and tidy.
The 100% Japanese capacitors enhanced ripple filtering, improved reliability and product life.
The 100% Japanese capacitors enhanced ripple filtering, improved reliability and product life.
Get the best 80 Plus Gold cpu power supply price from us today!
Specifications of DEEPCOOL DQ750-M-V2L
| Model | DQ750-M-V2L |
| Type | ATX 12V V2.31 |
| Certifications | 80PLUS GOLD |
| Dimension | 150×160×86mm (W × L × H) |
| Output Capacity | 750W |
| Input Voltage | 100-240V |
| Input Current | 10.0A |
| Input Frequency Range | 47-63Hz |
| Fan Size | 120mm |
| PFC | Active |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms(80% Loading) |
| Efficiency | >90% Under Typical Load (50% Loading) |
| Standby Efficiency | ErP Lot 3 2014 |
| Protection | OVP/UVP/OCP/SCP/OPP/OTP |
| Operation Temperature | 0-40°C |
| Regulatory | CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs |
| MTBF | 100,000 Hours |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
