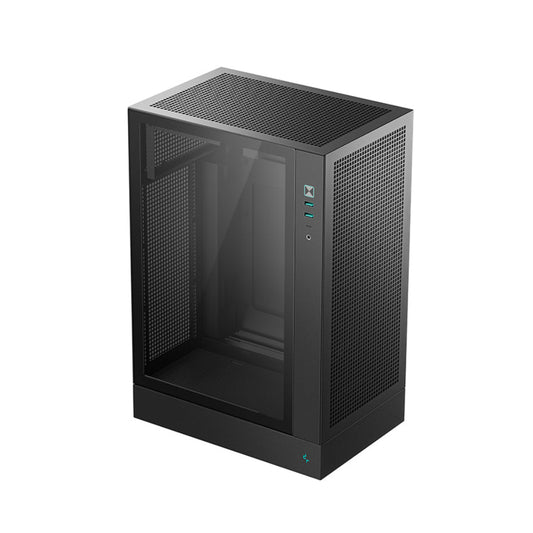

- DEEPCOOL CH170 Plus MATX Mid Tower Cabinet ( Black )
Description
Features of DEEPCOOL CH170 Plus MATX Mid Tower Cabinet ( Black )

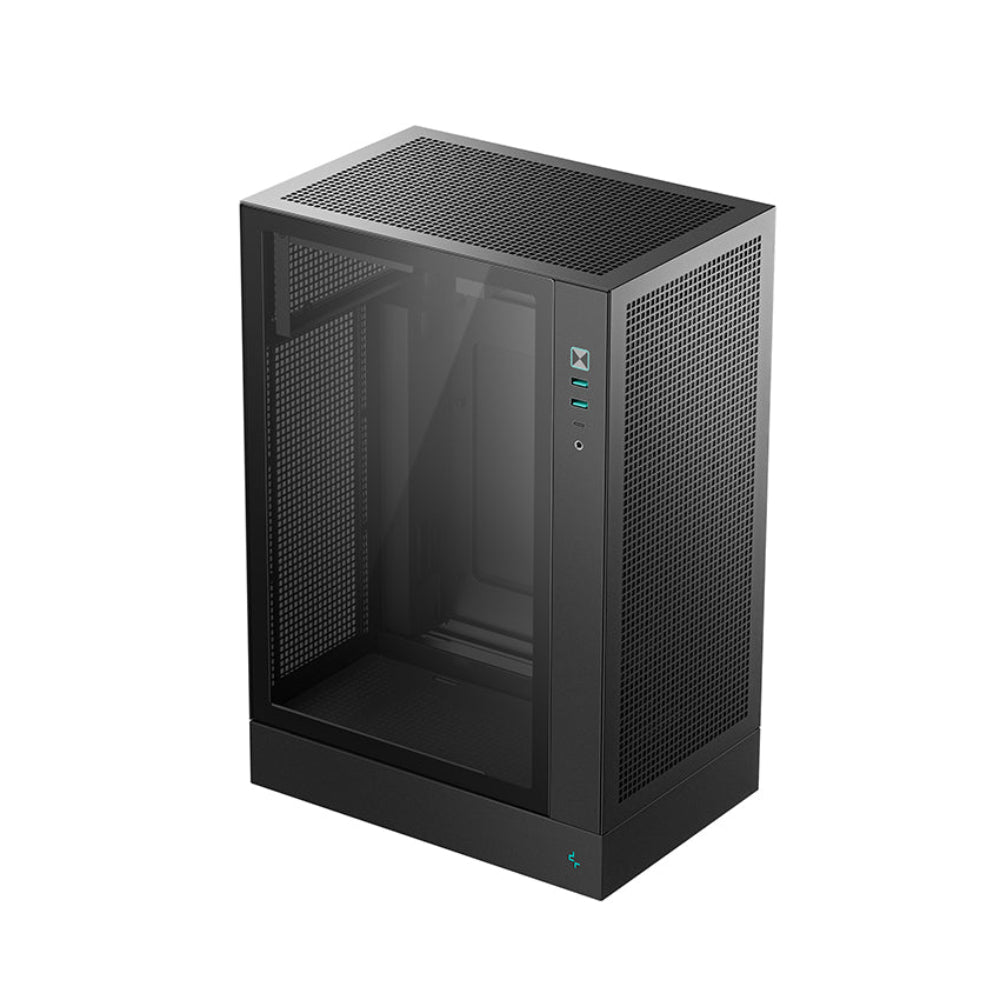

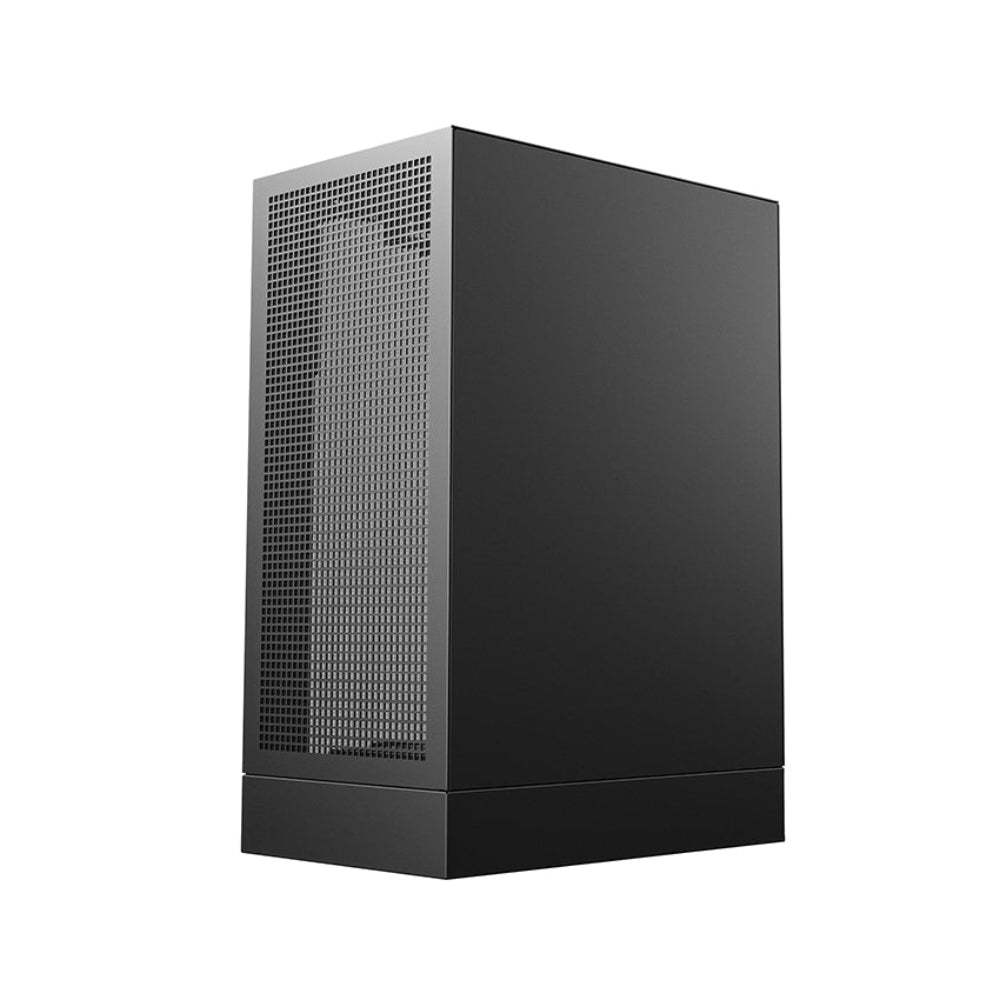

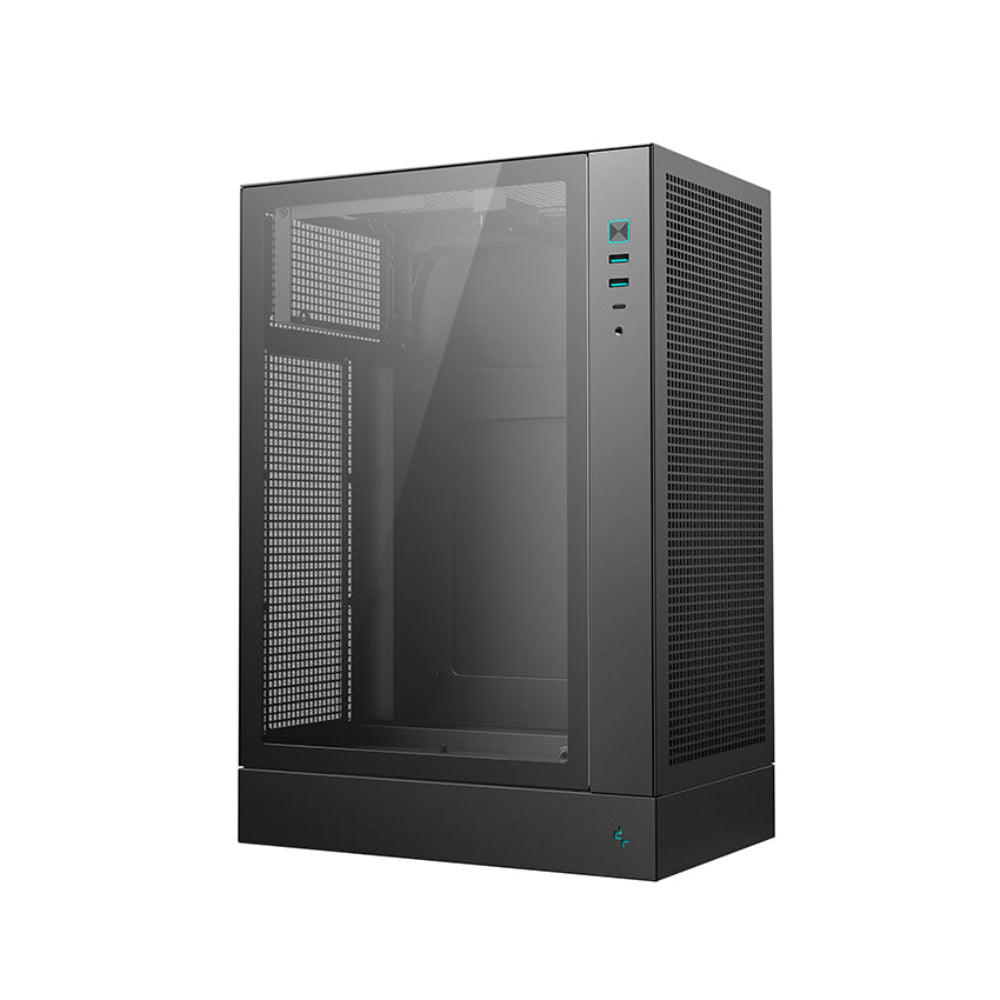

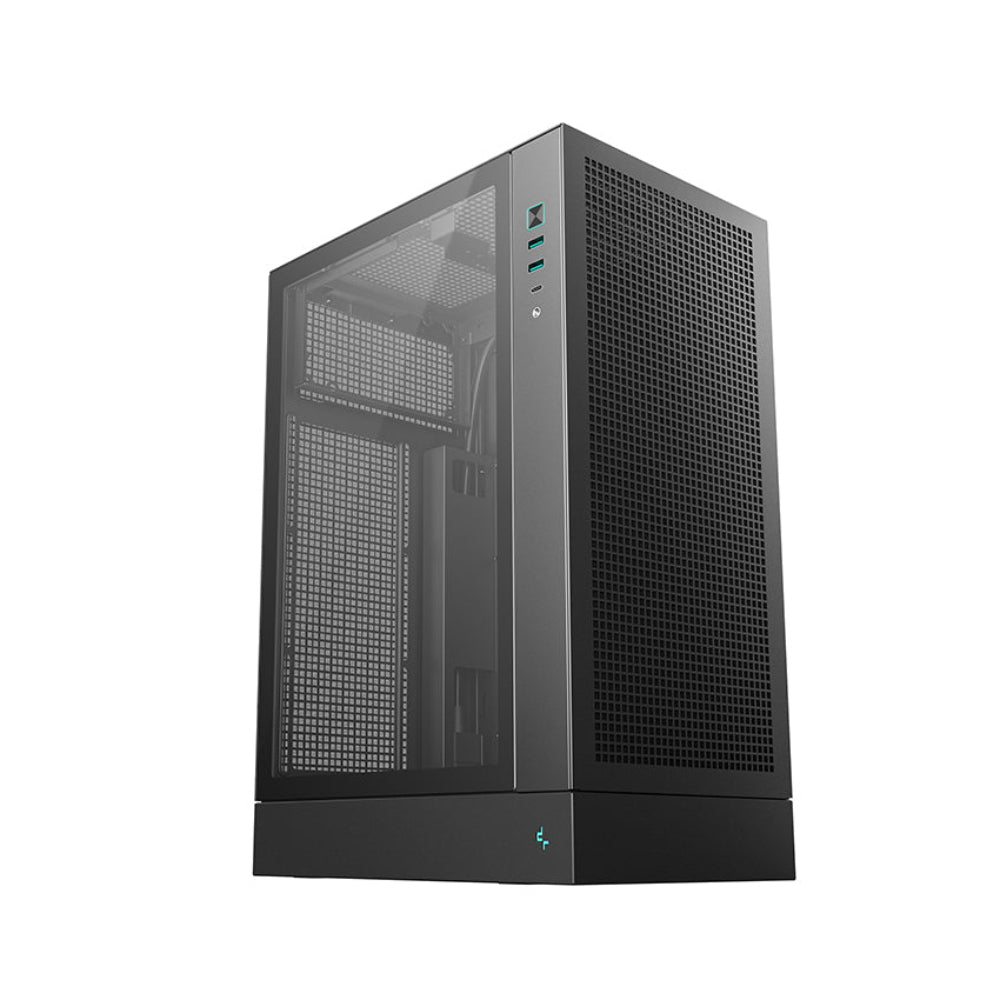

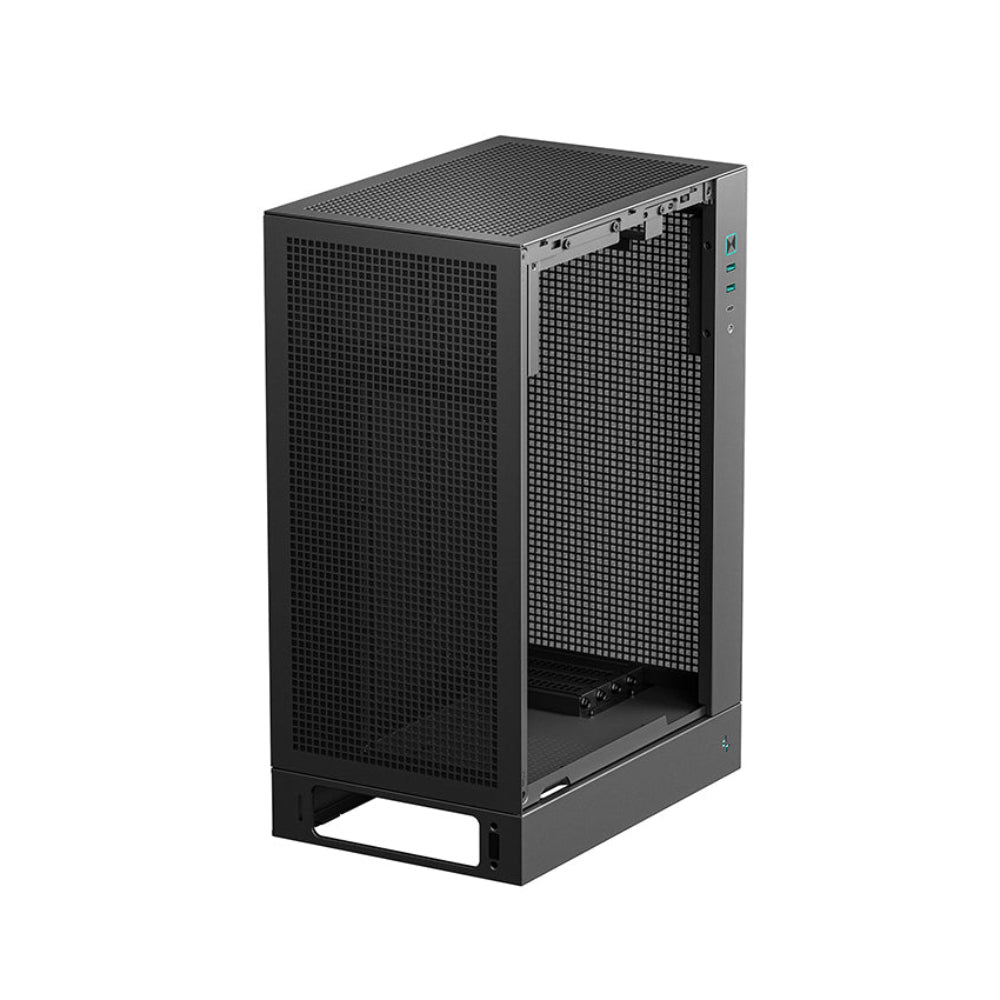

The CH170 PLUS is a vertical mid-tower case with all the high-airflow features, offering flexibility for coolers and PSU options in a compact design.
BUILT TO BREATH

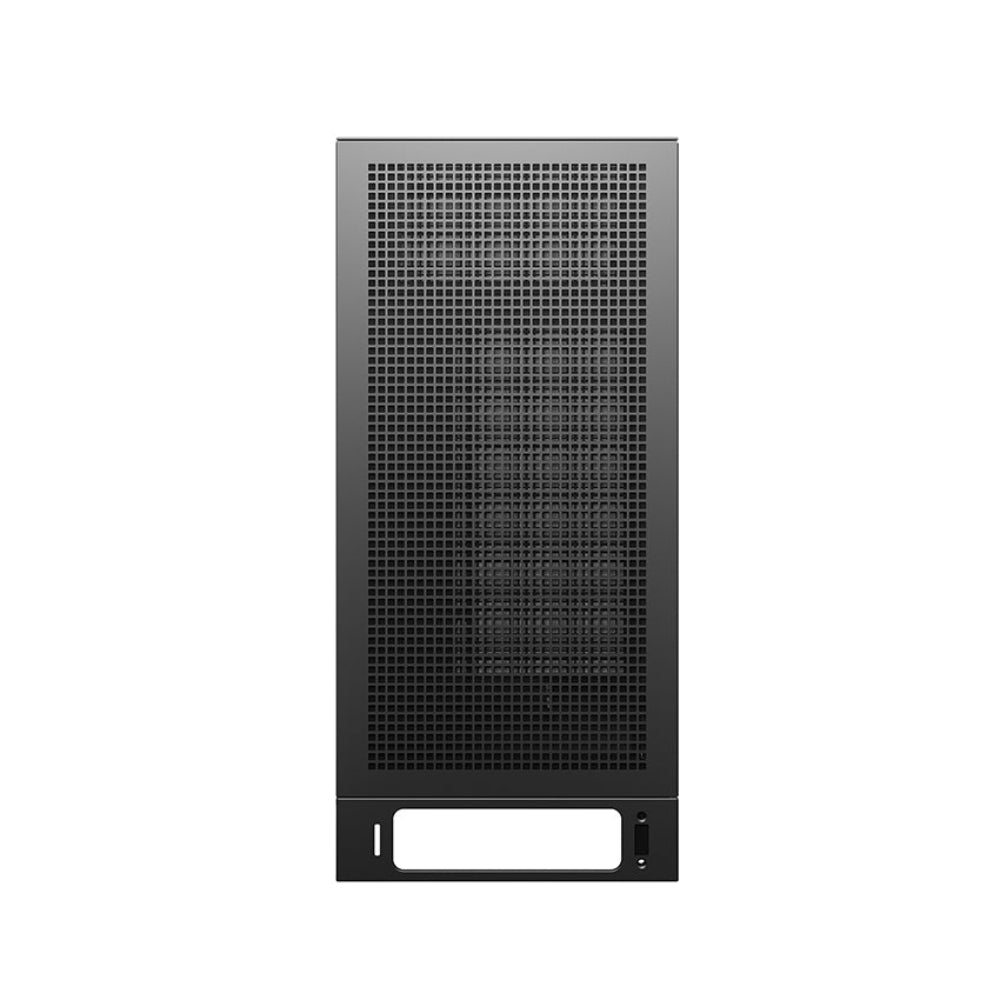

Mesh panels across multiple sides boost airflow to keep your system cool, while a tempered glass panel highlights your components.
ROOM FOR BIGGER GPU
No matter your PSU choice, the CH170 PLUS supports GPUs up to 342mm in length (328mm with top fan installed), with widths up to 138mm and thicknesses up to 75mm. Cards can be directly inserted into the motherboard.
FLEXIBLE POWER OPTIONS
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 PLUS can support any of them up to 140mm.
CUSTOMIZE WITH PURPOSE
Personalize with DeepCool accessories like the HB-01 headset holder and PIXEL decorative bits to give your build a unique touch.
CONVENIENCE IN EVERY DETAIL
Everyday access is easy with two USB 3.0 ports, a Gen2 Type-C, and a hybrid audio jack all within reach. Dust filters on four sides keep maintenance simple and your build clean.
COOLING THAT ADAPTS
From liquid to air, the CH170 PLUS supports a 240mm side radiator or up to four 120mm fans, with room for air coolers up to 164mm tall.
Radiators:
Front: NA
Side: 120/240mm
Bottom: 120mm
Side: 120/240mm
Bottom: 120mm
Fans:
Top: 1×120mm / 1×140mm (with SFX PSU)
Side: 2×120mm
Bottom: 1×120mm
Side: 2×120mm
Bottom: 1×120mm
CPU Cooler:
164mm
Specifications of DEEPCOOL CH170 Plus MATX Mid Tower Cabinet ( Black )
| P/N | R-CH170-BKNGM0-G |
| Product Dimensions | 290mm*195mm*424.5mm(L×W×H) |
| Net Weight | 4.4Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX |
| Front I/O Ports | USB3.0×2、Gen2 Type-C x1、Audio/Mic×1 |
| 3.5" Drive Bays | 1 |
| 2.5" Drive Bays | 1+1 |
| Expansion Slots | 4Slots |
| Pre-Installed Fans | None |
| Fan Support | Top:1×120mm/1×140mm（with SFX PSU） Side:2×120mm Bottom: 1×120mm |
| Radiator Support | Front: NA Side:120/240mm Bottom: 120mm |
| CPU Cooler Height Limit | 164mm |
| GPU Length Limit | 342mm |
| Power Supply Type | ATX PS2（maximum length: 140mm)/SFX/SFX-L |
| EAN | 6933412765363 |
