- DEEPCOOL CH170 Digital M-ITX Mini Tower Cabinet ( White )
Description

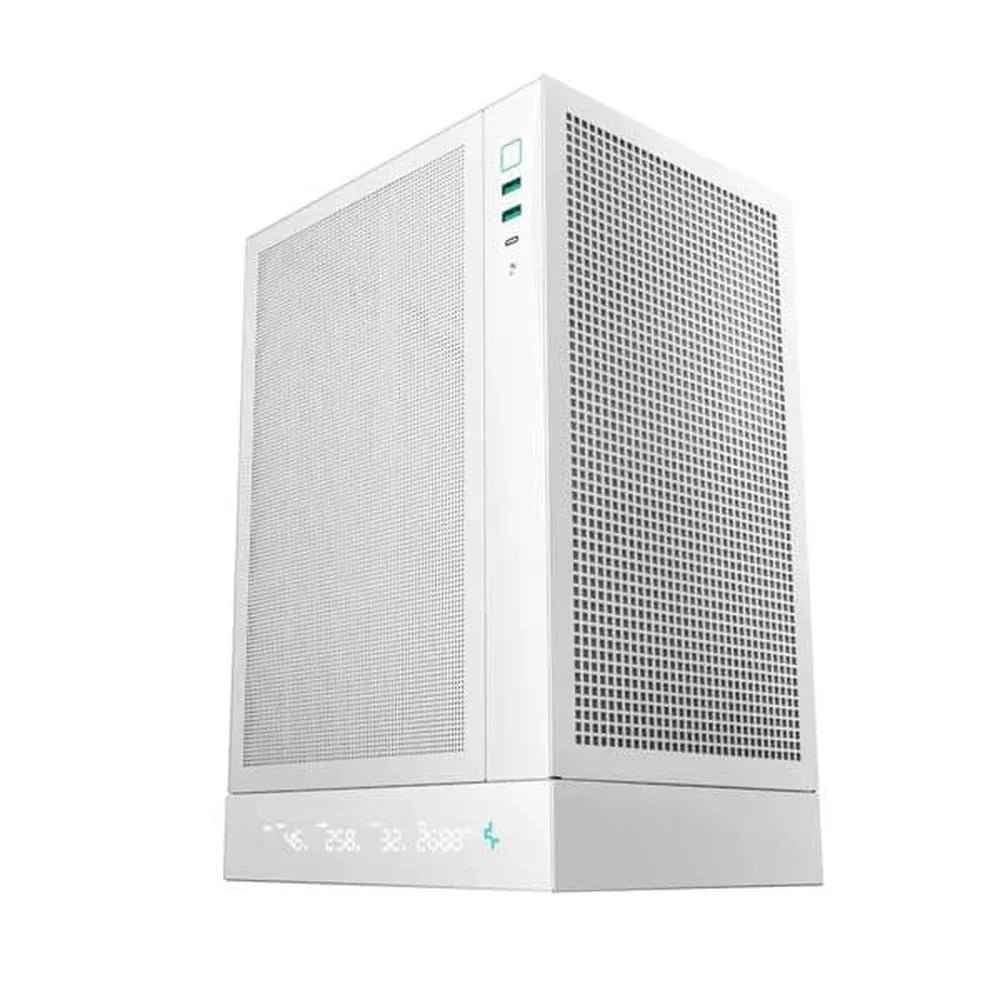

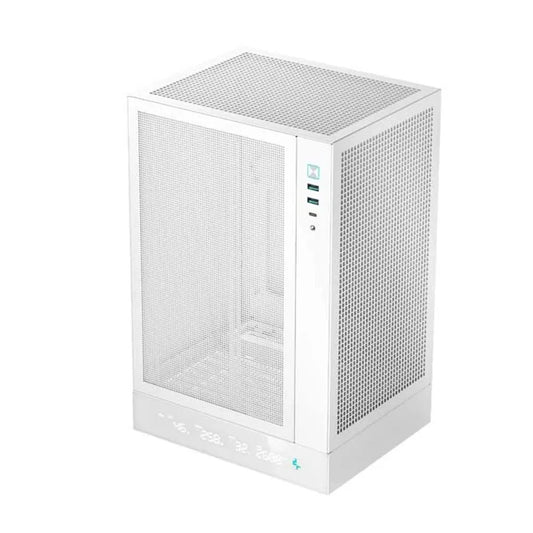

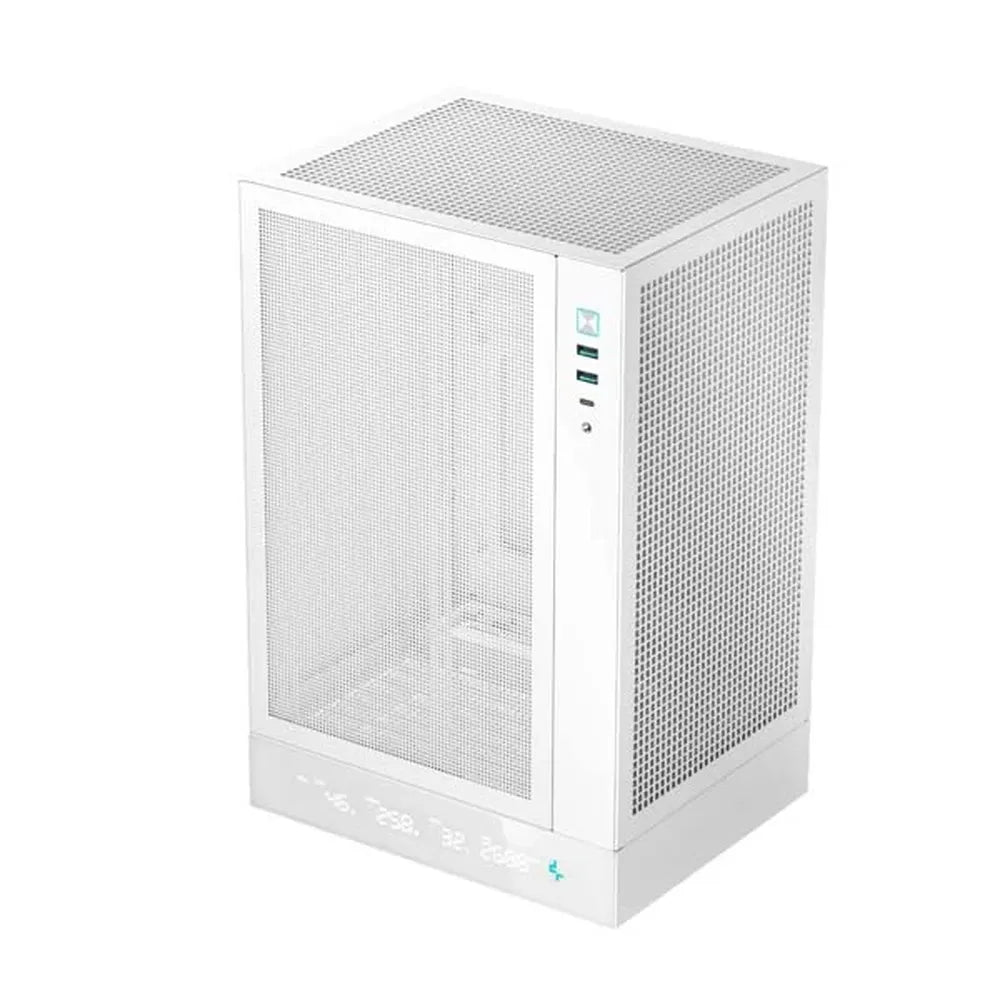

Features of DEEPCOOL CH170 Digital M-ITX Mini Tower Cabinet ( White )
Tiny Tower of Power, the DEEPCOOL CH170 Digital M-ITX Mini Tower computer cpu case with surrounding mesh panels helps in high airflow. The Case is mini in size but the internal layer provides lots of flexibility for coolers and SMPS options.
The deepcool cabinet is a vertical ITX case that has all the hallmarks of a high-airflow DeepCool case but in a tiny footprint. The internal layout provides a lot of flexibility for coolers and PSU options.
High Airflow Panels
Mesh Panels surround the CH170 Digital pc cabinet white from every side and create a high-airflow, small-form-factor case like no other.
Multiple Data Point Display
The CH170 DIGITAL WH has a digital base that displays four vital points of data at the same time. The display can focus on CPU, GPU, and PSU information at any given point in time. It can scroll through all aspects at a timed interval.
Full Sized Air Cooling!
Lack of air cooler support in small mITX cases is a thing of the past. The CH170 DIGITAL WH can support giant air coolers up to 172mm in height!
Or Go Liquid
If liquid cooling is preferred, that is also an option with the CH170 DIGITAL WH. A specialized radiator bracket and a full mesh panel make it possible to mount a standard-sized 240mm AIO without any worries.
No Added Gpu Latency!
Designed to accommodate most 65mm thick dual-fan GPUs that are shorter than 305mm in length and up to 138mm in width, it can be directly inserted into the motherboard without the assistance of a riser cable—no added GPU latency concerns!
Flexible Power Options
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 DIGITAL WH can support any of them up to 140mm.
Quality Of Life Improvements
Equipped with options such as removable fan brackets, where the top fan bracket can be utilized to support either an SSD, HDD drive, or a 120mm fan; three removable dust filters for ease of cleaning; two USB 3.0, a Type-C, and a hybrid audio port, the CH170 DIGITAL makes everything a little easier.
Specification of DEEPCOOL CH170 Digital M-ITX Mini Tower Cabinet ( White )
Model | CH170 DIGITAL WH |
P/N | R-CH170-WHNPI0D-G-1 |
Product Dimensions | 380x200x250mm(L×W×H) |
Net Weight | 3.5Kg |
Materials | ABS+SPCC |
Motherboard Support | Mini-ITX |
Front I/O Ports | USB3.0×2、Audio×1、Gen2 TypeC×1 |
3.5" Drive Bays | 1(2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three) |
2.5" Drive Bays | 1(2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three) |
Expansion Slots | 3 Slots |
Pre-Installed Fans | None |
Fan Support | Top:1×120 mm Front: NA Rear: 2×120 mm Bottom:1×120 mm Side : 2×120 mm |
Radiator Support | Side : 240mm |
CPU Cooler Height Limit | 172mm |
GPU Size Limit | Length: SFX/SFX-L: 305mm / ATX: 230mm Height: 138mm Width: 65mm (3 Slots) |
Power Supply Type | ATX PS2(maximum length: 140mm)/ SFX / SFX-L |
Warranty | 1 Year |
Note | *** Images are for Representation purposes only *** Features, Price, Specifications are subject to change without notice. |
