- DEEPCOOL CH160 (ITX) Mini Tower Cabinet (Black)
Description
Features of DEEPCOOL CH160 (ITX) Mini Tower Cabinet (Black)
- HIGH AIRFLOW PANELS
- FULL SIZED AIR COOLING
- NO ADDED GPU LATENCY
- FLEXIBLE POWER OPTIONS

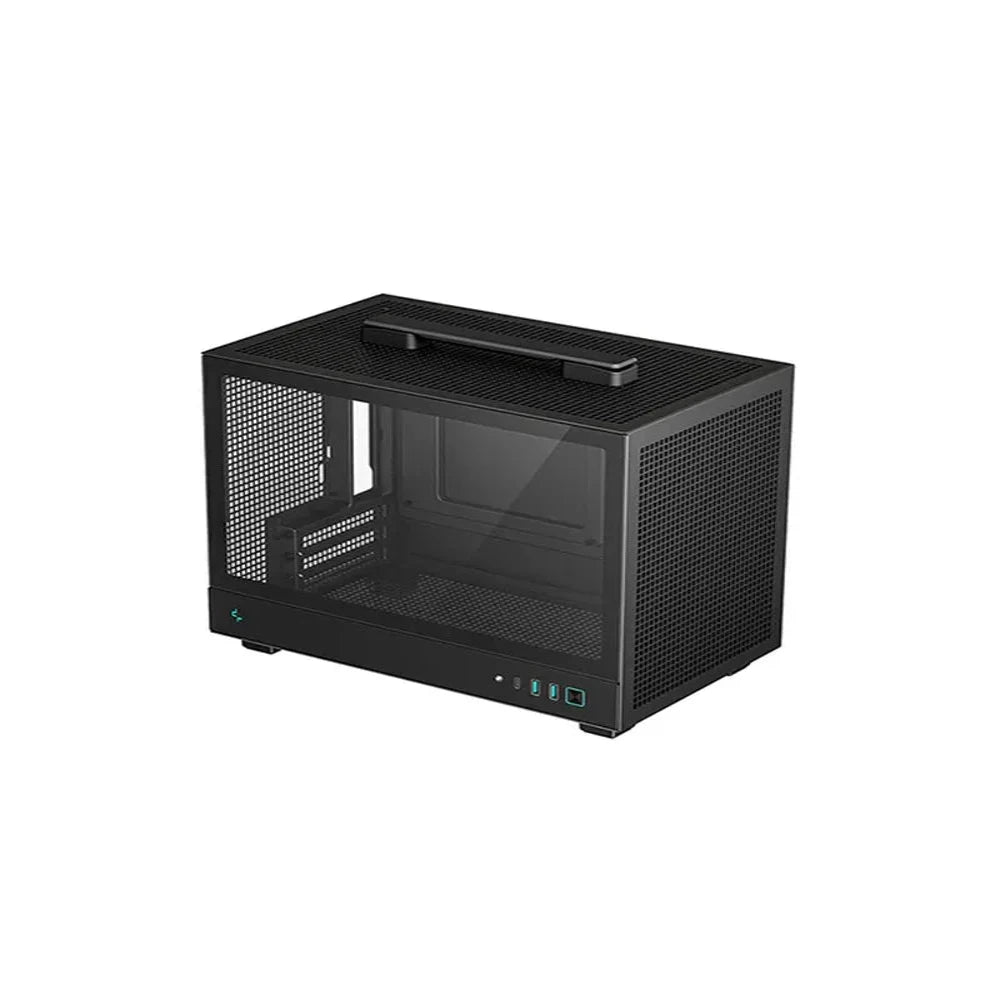

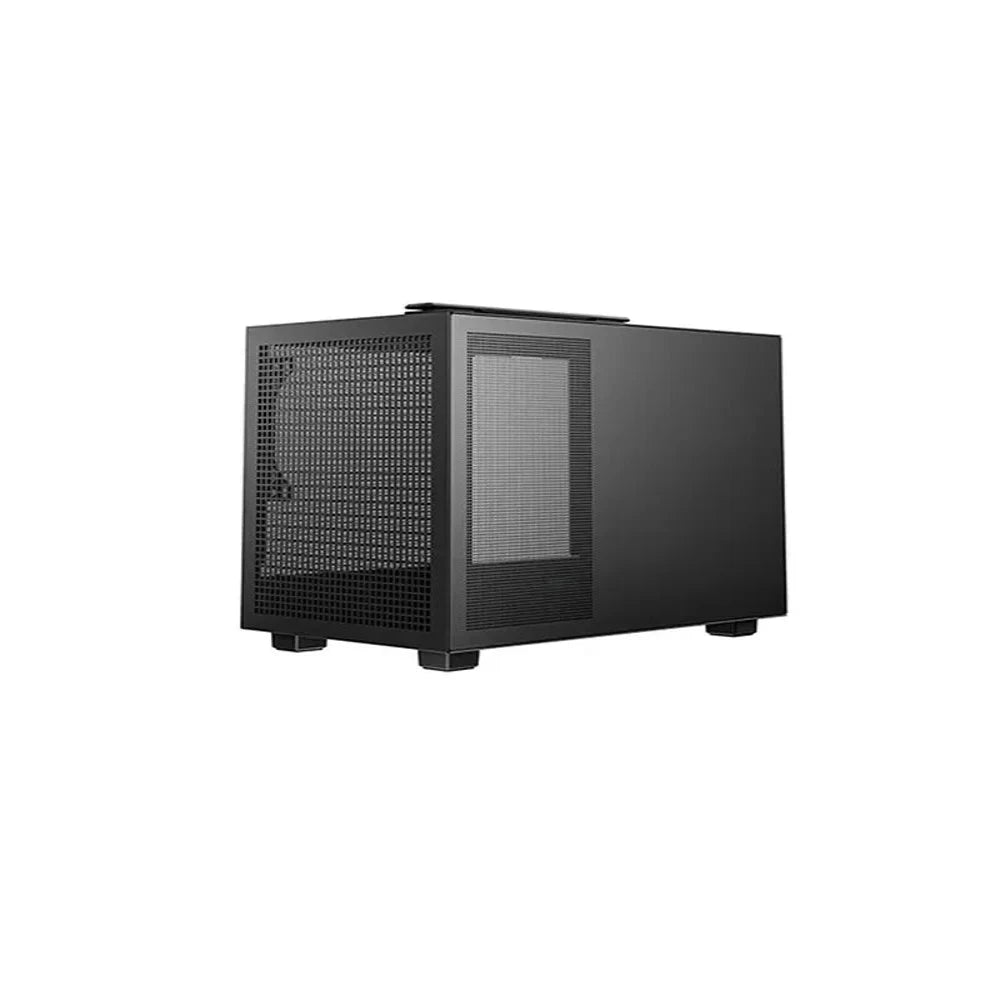

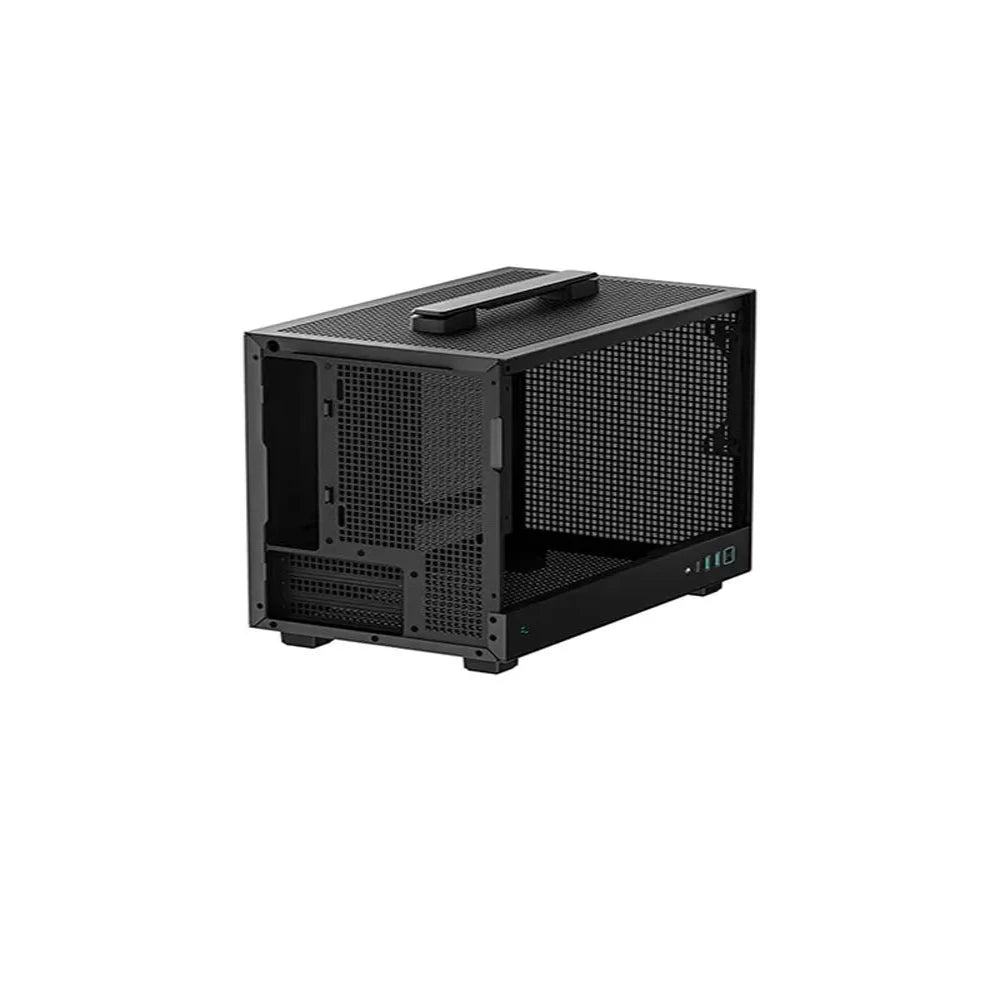

DeepCool CH160 Ultra-Portable Mini-ITX Case
The DEEPCOOL CH160 is an ultra-portable mini-ITX computer cpu case that has all the hallmarks of a high-airflow deepcool cabinet but in a small footprint. The internal layout provides a lot of flexibility for drives and PSU options.
HIGH AIRFLOW PANELS
Mesh panels surround the CH160 from numerous sides and create a high-airflow, small-form-factor case like no other.
FULL SIZED AIR COOLING!
Lack of air cooler support in small mini-ITX cases is a thing of the past. The CH160 can support giant air coolers up to 172mm in height!
NO ADDED GPU LATENCY!
Designed to accommodate most 3-slot dual-fan GPUs that are shorter than 305mm in length and can be directly inserted into the motherboard without the assistance of a riser cable—no added GPU latency concerns!
FLEXIBLE POWER OPTIONS
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH160 can support any of them up to 140mm
QUALITY OF LIFE IMPROVEMENTS
Equipped with options such as removable fan brackets, where the front fan bracket can be utilized to support both an SSD and an HDD drive; three removable dust filters for ease of cleaning; a nice and sturdy carrying handle; two USB 3.0, a Gen2 Type-C, and a hybrid audio port, the CH160 makes everything a little easier.
Specifications of DEEPCOOL CH160 (ITX) Mini Tower Cabinet (Black)
Product Dimensions | 336×200×283.5mm(L×W×H) |
Net Weight | 3.3Kg |
Materials | ABS+SPCC+Tempered Glass |
Motherboard Support | Mini-ITX |
Front I/O Ports | USB3.0×2、Audio×1、Gen2 Type-C×1 |
3.5" Drive Bays | 1(2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three) |
2.5" Drive Bays | 1(2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three) |
Expansion Slots | 3 Slots |
Pre-Installed Fans | None |
Fan Support |
Front: 1×120 mm(2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three) Top: 2×120mm Rear: 1×120mm |
Radiator Support | None |
CPU Cooler Height Limit | 172mm |
GPU Size Limit |
Length: SFX/SFX-L: 305mm / ATX: 230mm Height: 138mm Width: 65mm (3 Slots) |
Power Supply Type | ATX PS2(maximum length: 140mm)/ SFX / SFX-L |
EAN | 6933412774457 |
P/N | R-CH160-BKNGI0-G-1 |
Reviews ( 0 )
Frequently asked questions
1. What is the price of DEEPCOOL CH160?
The cost for the DEEPCOOL CH160 will vary greatly depending on the retailer and location. In general, it's advertised as a budget ITX case that is priced at approximately Rs. 4,337 in India. For the most up-to-date pricing, look up this DEEPCOOL CH160 (ITX) Mini Tower Cabinet page for the product.
2. What is the GPU length of DEEPCOOL CH160?
The DEEPCOOL Ch160 is built to take in GPUs with a long length that is a crucial aspect of an extremely small ITX case. It can accommodate GPUs that are up to 305mm in length. This permits the installation of numerous high-performance graphics cards which means that users won't need to sacrifice graphics power to fit into a smaller size. It's important to confirm the exact dimension of the GPU and then compare them to the specifications of your case to ensure compatibility.
3. Does DEEPCOOL CH160 have good airflow?
The DEEPCOOL CH160 was built to maximize airflow. It has panels that are ventilated to aid in effective heat loss. The case's design permits sufficient venting and intake of air while ensuring the proper cooling of components. The perforated side panel is designed to allow fresh air to get to the essential components inside the case. The possibility of adding more fans can also increase the flow of air. The slim design does make airflow more crucial and Deepcool has taken this into account.
4. Is the DEEPCOOL CH160 a good case?
The DEEPCOOL CH160 is generally regarded as an excellent case, especially when you're building an ITX system with a tight budget. It is a good compromise of affordability, good airflow and compatibility with more powerful GPUs. Its tiny footprint is ideal for environments with limited space. Reviews frequently praise the quality of its construction and the ease of assembly. Like all cases there are limitations including a limited amount of space to manage cables. If you require a small and budget-friendly case, it's a fantastic choice.
5. How to remove CH160 front panel?
The front panel of the DEEPCOOL Ch160 is usually removed using an easy-to-fit design. Simply pulling the top portion of the front panel from the case will usually let the clips that hold it in the position. It's crucial to apply consistent pressure to ensure that the clips aren't damaged. Some people find it beneficial to begin with the lowest point and then work upwards. Always check the user's manual, if it is available, since it contains precise instructions. If there's no manual available online, videos may be useful.
6. Which DEEPCOOL is best?
Best is subjective and is based on the individual's needs. DEEPCOOL provides a variety of products that include coolers, cases and fans. For coolers for CPUs the AK620 is frequently highly praised for its performance. In terms of cases, designs such as the CH510 are well-known because of their combination of features and price. The best DEEPCOOL product will depend on your individual requirements, such as your cooling requirements, size of the case, and your budget. It is recommended to review reviews and examine specifications to find the perfect solution for your needs.
7. Does the DEEPCOOL CH160 come with fans?
The DEEPCOOL CH160 doesn't typically have pre-installed fan units. This lets users customize the cooling system to suit the specific requirements and preferences of their. The user can select the type of fan according to their preferred airflow as well as noise levels and aesthetic preferences. This feature is a standard feature of many cases that are budget-friendly which allows for customized designs. Always verify the specifications provided by the retailer since sometimes bundle deals contain fans.
8. Are DEEPCOOL fans quiet?
DEEPCOOL offers a wide range of fans and their noise levels differ. Certain of their premium fans like those in the FK120 series, are specifically designed to be quiet. But, the perception of quiet is dependent on the speed of the fan and the load on the system. Generally speaking, DEEPCOOL strives to offer fans that offer a balanced combination of efficiency in addition to noise reduction. User feedback and reviews frequently focus on the quiet operation of the majority of DEEPCOOL fans, particularly when they are operating at low RPMs.
9. Is the DEEPCOOL CH160 an ARGB?
The DEEPCOOL CH160 isn't by nature an ARGB (Addressable RGB) case. It does however support it to install ARGB components, like ARGB lights and fans. This lets users add their personal ARGB lighting, which can be used to enhance the aesthetics of the case. The design of the case provides opportunities to show off lighting effects, especially through its perforated sides panel.
