- DEEPCOOL CG580 Panaromic ATX Mid Tower Cabinet ( Black )
Description
Features of DEEPCOOL CG580 Panaromic ATX Mid Tower Cabinet ( Black )

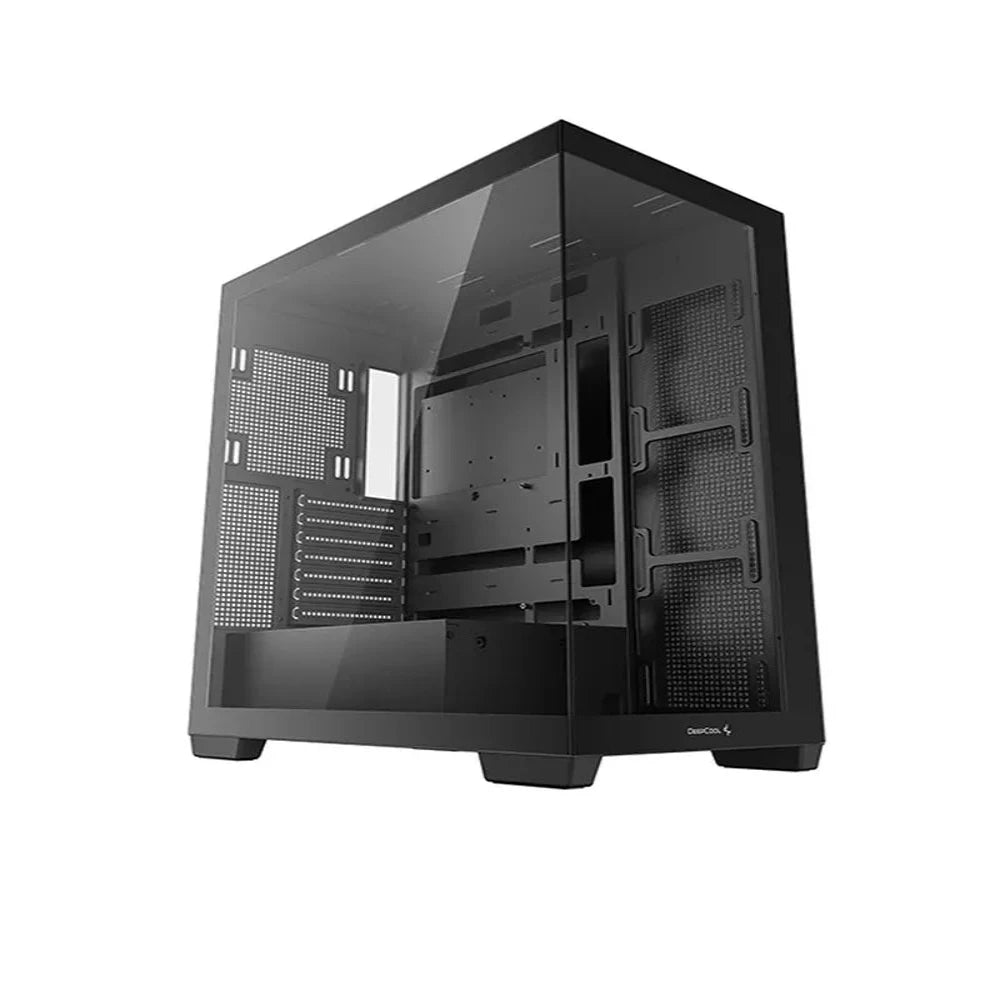

The DEEPCOOL CG580 is a picturesque single-chamber panoramic computer cpu case that was built to accommodate the most commonly used components available while showing them off in style. With support for 360mm radiators and numerous fan configurations, deepcool cabinet CG580 is also extremely functional. No fans are included, so the case is fully primed to accept your favorite cooling fans.
SCENIC VIEW
The lack of an A pillar between the front and side tempered glass panels removes the main obstruction to a clear and uninterrupted view of your incredible build.
KEEPING IT CLEAN
The internal single chamber layout optimizes the available space with 33mm of cable management space, while the motherboard tray supports motherboards with back connectors from ASUS and MSI; as a result, your system will look more steamlined and cleaner than ever before.
THE SUPPORT YOU NEED
Designed to support up to ATX motherboards, 360mm radiators at the top and side, 410mm long GPUs (limited to 262mm if a radiator and fan set are mounted on the side), 210mm PSUs, 176mm tall air coolers, and up to 9 120mm fans, the CG580 can be configured in a wide array of combinations for your modern hardware needs. The bottom position can support either a 120mm fan or a 3.5″” HDD drive.
RADIATORS:
Top: 120/140/240/280/360mm
Side: 120/240/360mm
Rear: 120/140mm
FANS:
Top: 3x120mm/2x140mm
Side: 3x120mm
Rear: 1x120mm/1x140mm
Bottom: 1x120mm
PSU Shroud: 2x120mm
Specification of DEEPCOOL CG580 Panaromic ATX Mid Tower Cabinet ( Black )
Product Dimensions | 437×235×501mm(L×W×H) |
Net Weight | 7.9Kg |
Materials | ABS+SGCC+Tempered Glass |
Motherboard Support | ITX/Micro-ATX/ATX ATX(Rear Connector)/Micro-ATX(Rear Connector) |

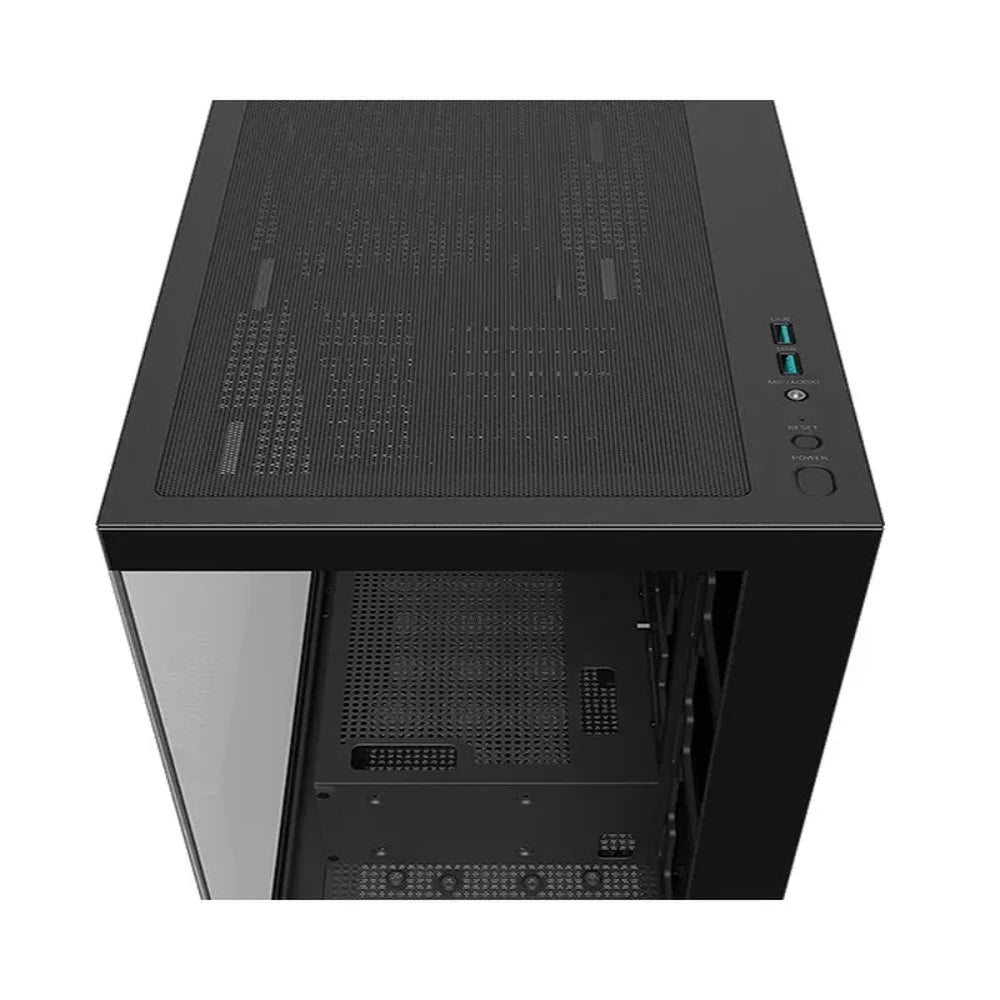

Front I/O Ports | USB3.0×2、Audio×1、Power、Reset |
3.5" Drive Bays | 2 |
2.5" Drive Bays | 2+1 |
Expansion Slots | 7Slots |
Pre-Installed Fans | None |
Fan Support | Front: NA Top: 3×120mm/2x140mm Side: 3x120mm Rear: 1×120mm/1x140mm Bottom: 1×120mm(3.5 HDD/120FAN :Choose one of two) PSU Shrouded: 2×120mm |
Radiator Support | Front: NA Top: 120/140/240/280/360mm Side: 120/240/360mm Rear: 120/140mm |
CPU Cooler Height Limit | 176mm |
GPU Length Limit | 410mm (limited to 262mm if a 360mm radiator and fan set are mounted on the side) |
Power Supply Type | ATX PS2(maximum length: 210mm) |
Reviews ( 0 )
Frequently asked questions
1. What is the price of DEEPCOOL CG580?
The price of the DEEPCOOL CG580 is dependent on the retailer and area. It is generally advertised as a budget-friendly model that is priced at around the price of Rs. 4,999. Prices differ based on the availability of the product and local conditions. It is recommended to check the MSI MAG Forge 111R ARGB ATX Mid Tower Cabinet product page for the most recent prices.
2. What is the GPU length of DEEPCOOL CG580?
The DEEPCOOL G580 supports graphics cards that are up to 350mm in length. This large clearance permits the installation of all premium GPUs that are currently for sale. It is crucial to keep in mind that some thick or long GPUs could have compatibility problems when used with fans or front-mounted radiators. So, if you're contemplating using a front-mounted radiator or fan, make sure you verify the clearance prior to installing the radiators or fans to make sure that your GPU can fit.
3. Does DEEPCOOL CG580 have good airflow?
The DEEPCOOL G580 was designed with good flow in mind. It has a mesh front panel that can be used with different fan configurations that allow the efficient intake and expulsion of air. This design helps keep cooling of internal elements, which are crucial to ensure optimal performance and long-lasting. The case is also designed to provide ample space for the management of cables, which further enhances the flow of air by removing obstructions. The front panel with mesh is an important component that is part of the airflow layout.
4. Is the DEEPCOOL CG580 a good case?
The DEEPCOOL CG580 is generally regarded as an excellent case, particularly at its cost. It comes with a range of features, such as excellent airflow, plenty of space for components as well as a contemporary design with a large side panel made of tempered glass. Many reviews praise its user-friendliness and high-quality construction. It is a great price for builders looking for an extremely feature-rich mid-tower. It's especially suitable for those who wish to showcase their PC components through the side panel of tempered glass.
5. How to remove DEEPCOOL CG580 front panel?
The front panel of the DEEPCOOL CG580 is usually removed by taking it off of the chassis. It is fixed with clips made of plastic. Begin at the base of the panel and gently pull upwards. Do not use excessive force in order to avoid damaging the clips. Certain cases could have different mechanisms, therefore consulting the user's manual is an excellent idea. Front panels are designed so that they can be taken off for cleaning or installation.
6. Which DEEPCOOL is best?
Best is subjective and depends on each person's individual preferences. DEEPCOOL provides a variety of products that include CPU coolers, fans and cases. For CPU coolers the AK620 is frequently noted for its efficiency. For cases that require cooling, the CH510 and the CG580 are both popular selections. For fans The FC120 as well as the FK120 are well-known due to their low noise and effective cooling. The ideal DEEPCOOL product for you is based on the specifics of your needs and budget. Be aware of your cooling needs and preferences for case size and your aesthetic preferences in making your choice.
7. Does the DEEPCOOL CG580 come with fans?
Based on the information provided on the website of the manufacturer, the DEEPCOOL CG580's case is not shipped with already installed fans. This allows the user to personalize the cooling configuration, and to choose their preferred fan selection. Since there aren't any supplied fans included in the case, this allows for savings on the cost of the case.
8. Are DEEPCOOL fans quiet?
The fans of DEEPCOOL are typically designed with silent operation in the back of their minds. The models such as FK120 and FC120 FK120 as well as the FC120 are renowned for their quiet operation. However, the noise levels can differ depending on the speed of the fan as well as the system's overall configuration. Deepcool is a firm attention on the design of the fan and this results in higher than average noise profiles for fans.
9. Is the DEEPCOOL CG580 an ARGB?
The DEEPCOOL's CG580 itself is a case that doesn't necessarily come with ARGB lighting. However, it was specifically designed to show off ARGB components. Through the panoramic glass and the internal layout, you are able to install ARGB coolers, fans, and other components to make an attractive and appealing design. While the case doesn't come with ARGB lights, it does provide an excellent display platform for ARGB components.
