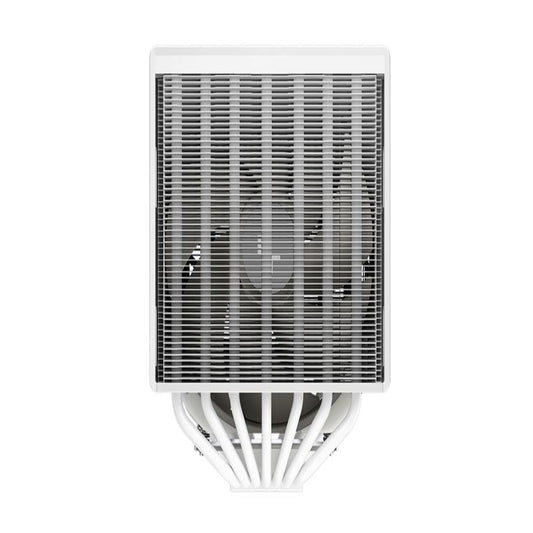

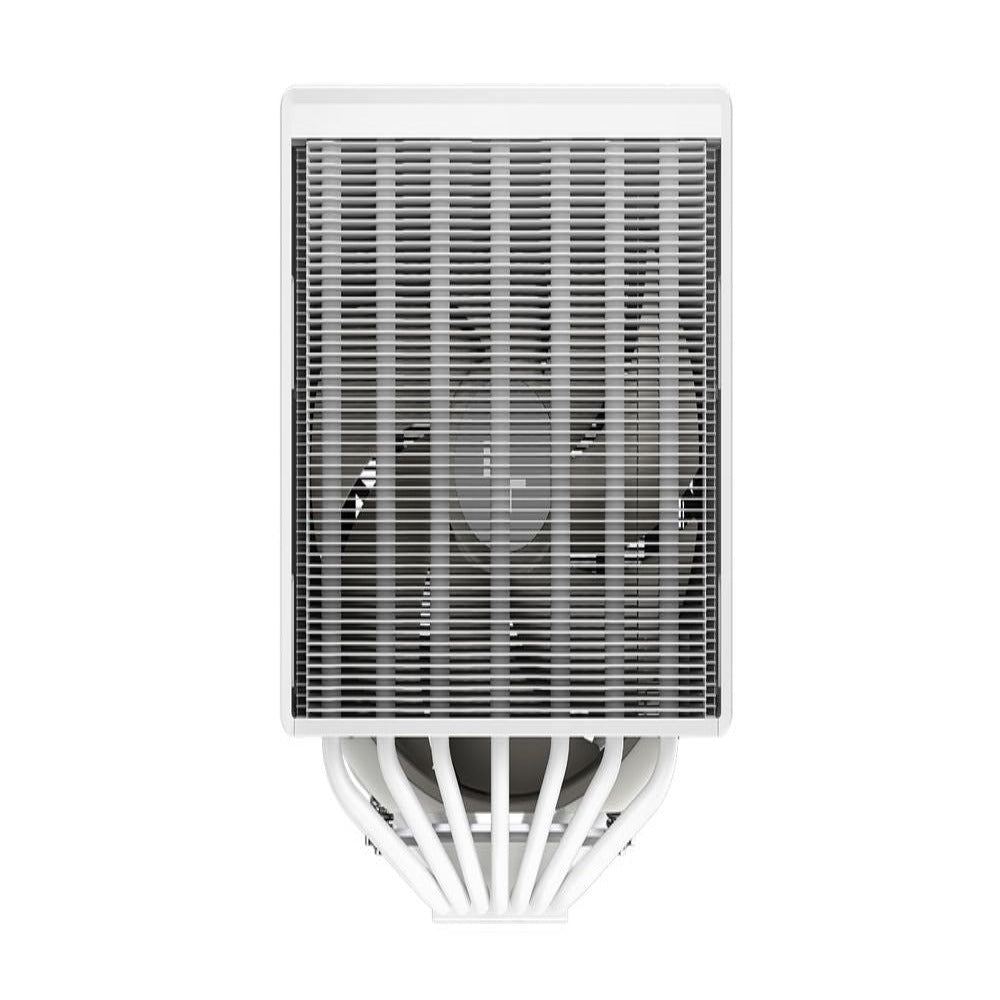

- Deepcool Assasin 4S Air Cooler (White)
Description
Features of Deepcool Assasin 4S Air Cooler (White):
BEAUTY IN SIMPLICITY

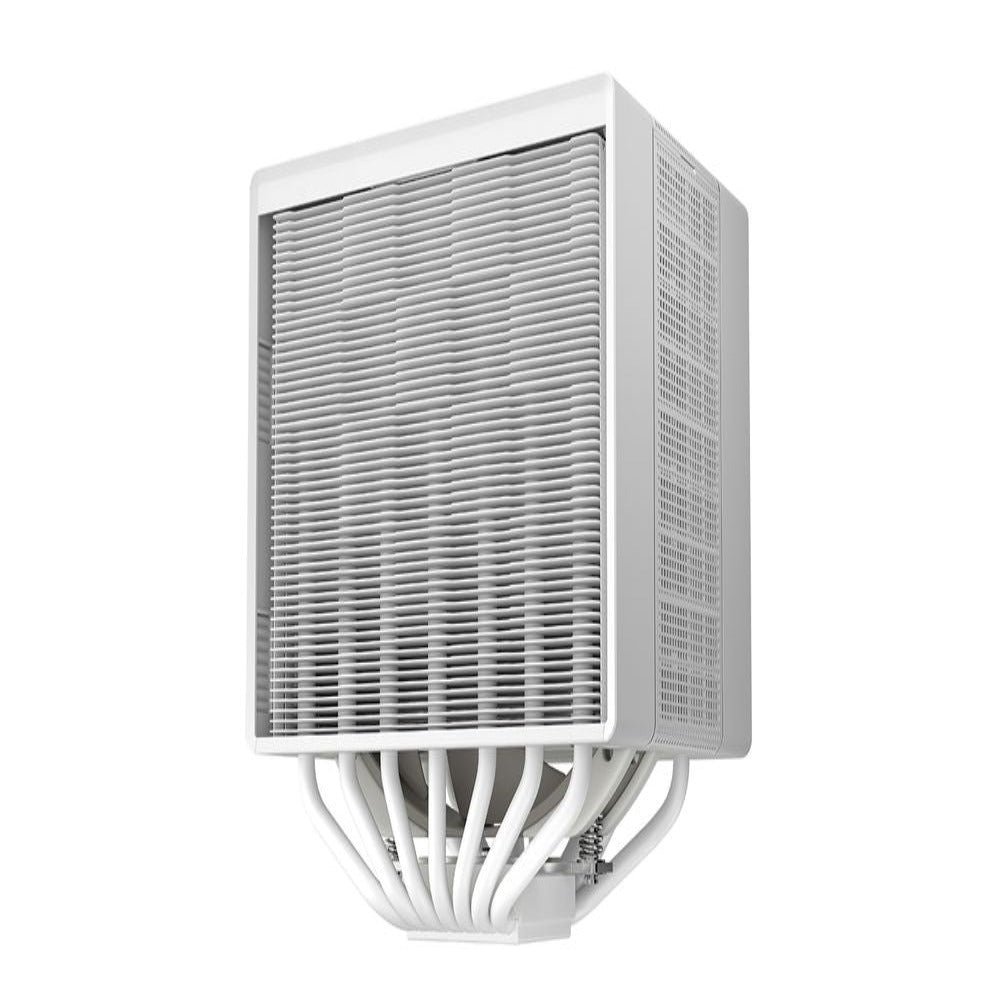

The elegant design of the Deepcool Assasin 4S Air Cooler (White) is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.
QUIET OR PERFORMANCE MODE
With a simple slide of a switch, the ASSASSIN 4S can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.
LET IT SHINE!

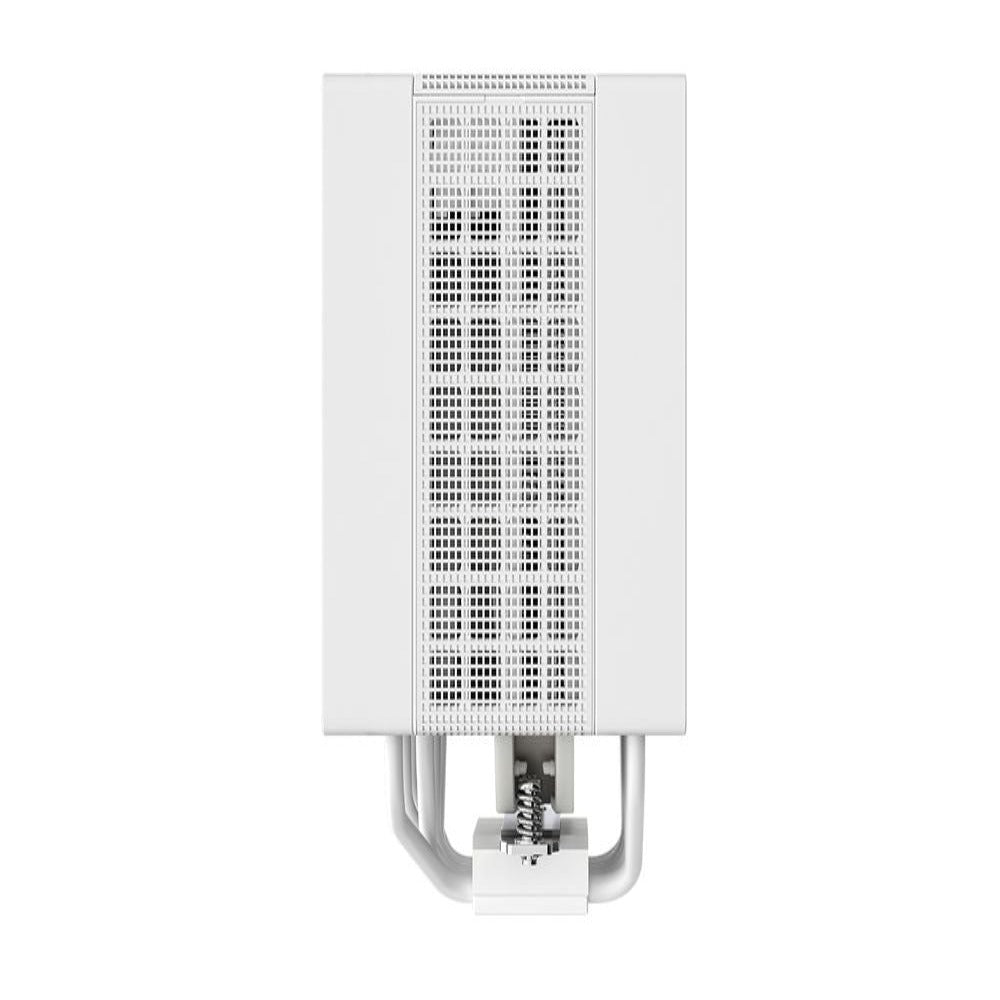

The shell of Deepcool Assasin 4S Air Cooler (White) is clean, sleek, and helps channel air through the fin towers, while the slimmer profile provides unobstructed clearance for high-profile RGB RAM.
BE COOL, BE CALM
A key factor in the ASSASSIN 4S's extremely silent operation is the use of three-phase, six-pole fan motors with low voltage and power consumption. DeepCool is so confident in our new design that the ASSASSIN 4S comes with 6 years of limited warranty coverage!
EXCEPTIONAL BY DESIGN

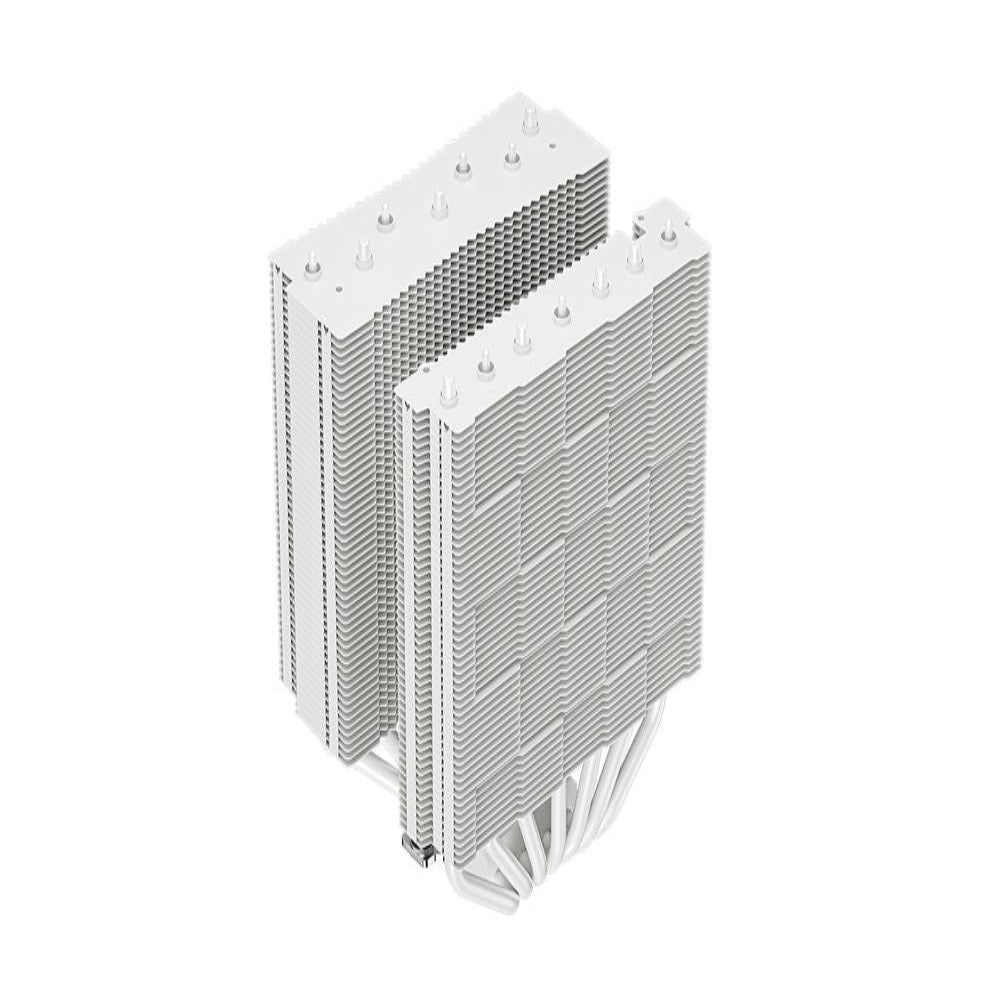

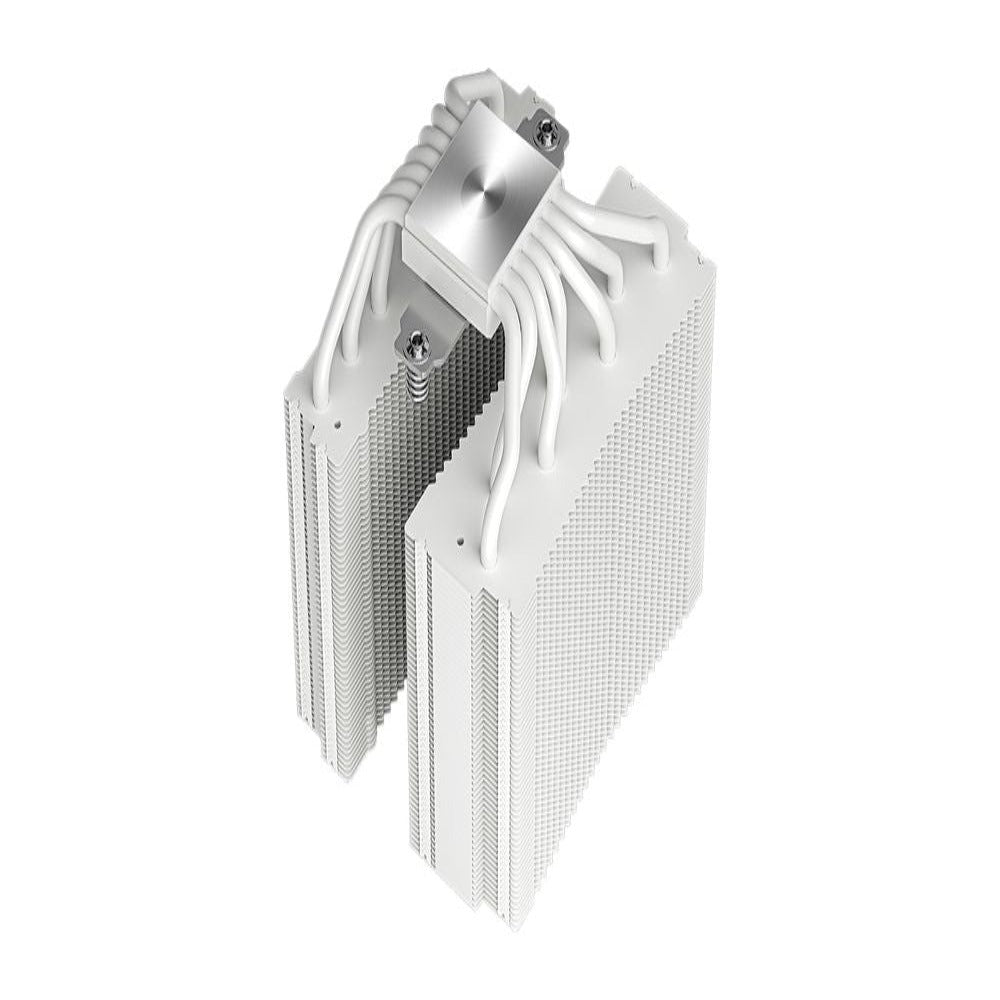

Featuring seven heat pipes that deliver improved heat transfer through two fin-array heat sink towers for high performance efficiency. The included DM9 thermal paste meets the rigorous standards used in industrial applications.
THE FLOW BELOW
Due to the center 140mm fan sitting deep into the heart of the Deepcool Assasin 4S Air Cooler (White), there is a lower flow of air that provides additional cooling to the toasty surrounding VRMs.
STREAMLINED INSTALLATION

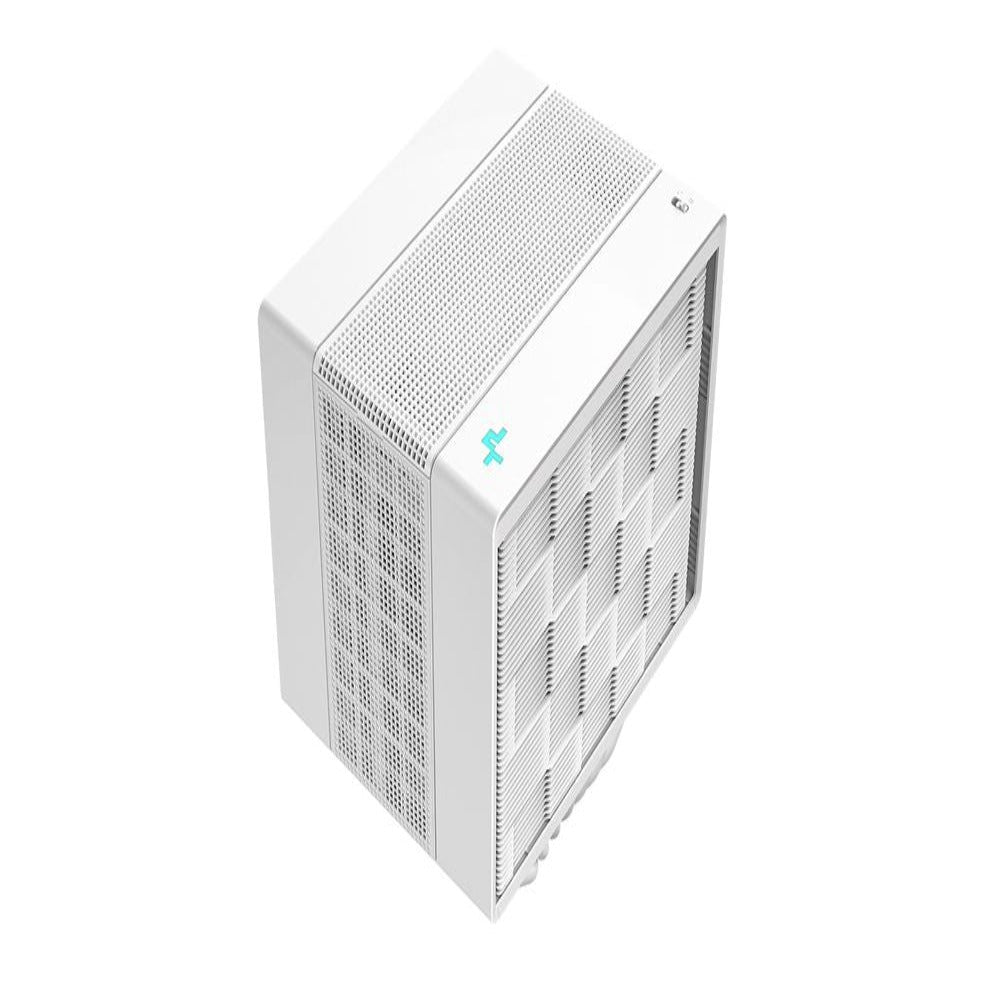

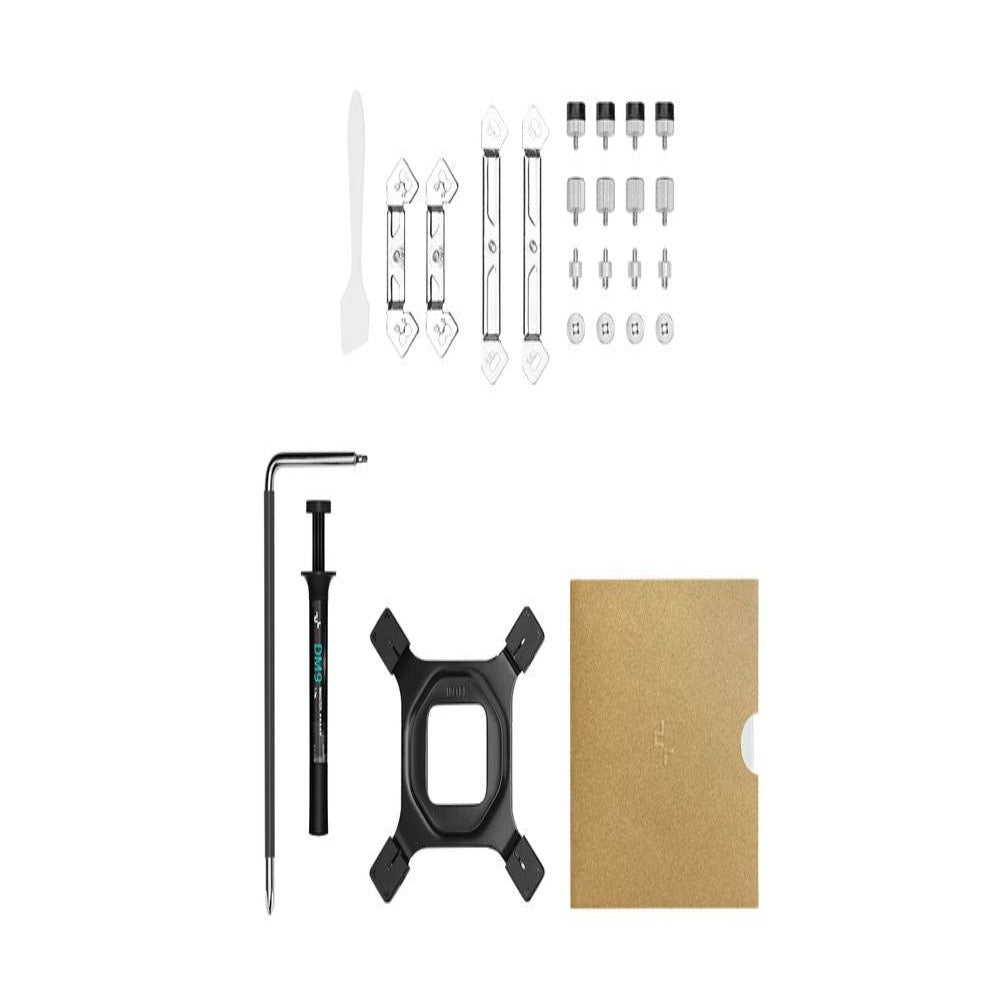

Installing larger air coolers can be difficult and is a prime reason the hardware and installation was designed to be extremely user friendly. Even the magnetic top fan cover was crafted with ease of installation in mind.
Specifications of Deepcool Assasin 4S Air Cooler (White):
Product Dimensions | 116×147×164 mm(L×W×H) |
Heatsink Dimensions | 140×110×160 mm(L×W×H) |
Net Weight | 1380 g |
Heatpipe | Ø6 mm×7 pcs |
Fan Dimensions | 140×140×25 mm(L×W×H) |
Fan Speed (Performance Mode) | 500~1800 RPM±10% |
Fan Airflow (Performance Mode) | 61.25 CFM |
Fan Air Pressure (Performance Mode) | 3.76 mmAq |
Overall Noise (Performance Mode) | ≤29.3 dB(A) |
Fan Speed (Quiet Mode) | 500~1450 RPM±10% |
Fan Airflow (Quiet Mode) | 48.55 CFM |
Fan Air Pressure (Quiet Mode) | 2.46 mmAq |
Overall Noise (Quiet Mode) | ≤22.6 dB(A) |
Fan Connector | 4-pin PWM |
Bearing Type | Fluid Dynamic Bearing |
Motor Type | 6-Pole Fan Motor |
Fan Rated Voltage | 12 VDC |
Fan Rated Current | 0.2 A |
Fan Power Consumption | 2.4 W |
Rated Voltage | 12 VDC |
Power Consumption(Performance Mode) | 3.6 W |
Power Consumption(Quiet Mode) | 2.4 W |
EAN | 6933412728702 |
P/N | R-ASN4S-WHGPMN-G |
Reviews ( 0 )
Frequently asked questions
1. Is Deepcool Assassin 4S PWM or DC?
The Deepcool Assassin 4S utilizes PWM (Pulse Width Modulation) fans, which are a key component in contemporary CPU coolers. This constitutes the precise and dynamic regulation of the fan's rotational velocity to respond instantaneously to the CPU's real-time thermal requirement. The intelligent control mechanism in such a type of fan, operating between faster speed and slower speed, can provide the cooling effect when required but limit noise transmissions when not required. PWM fans hold the edge compared to DC fans, providing an efficient and elegant solution to airflow management that results in an improved and more responsive cooling experience.
2. Does the Deepcool Assassin 4S come with thermal paste?
Yes, Deepcool Assassin 4S comes with a tube of thermal paste in the package. This thoughtful addition makes installation easier for consumers. The thermal paste is specially designed to improve heat transfer directly between the heat spreader integrated into the CPU and the base plate of the cooler. This will ensure proper thermal conduction, which is particularly important in maintaining CPU temperature within the limit. Consumers need not buy thermal paste separately, making the configuration simpler.
3. What is the rpm of Deepcool Assassin 4S fan?
The Deepcool Assassin 4S has a flexible RPM range with its fans, which are going to change speeds according to the CPU temperature. The specific RPM range is given in the cooler's specifications. By this changing speed property, the cooler can work closely to a soundless condition at low CPU loading and run into a much higher speed to acquire maximum cooling performance as soon as CPU loading is high. By this ability to adapt RPM control, it achieves proper thermal performance-side noise output balance.
4. Is the Deepcool Assassin 4S Single Tower or dual Tower?
The Deepcool Assassin 4S is a dual-tower CPU air cooler. This design incorporates two distinct fin stacks, significantly increasing the overall surface area available for heat dissipation. This dual-tower configuration is a key factor in the cooler's ability to handle high thermal loads generated by demanding CPUs. The increased surface area allows for more efficient heat exchange with the surrounding air, resulting in superior cooling performance compared to single-tower coolers.
5. What is the radiator size of the Deepcool Assassin 4S?
Unlike conventional liquid coolers, the Deepcool Assassin 4S boasts two fin-stack towers for cooling, as opposed to a standard radiator. Each fin-stack tower has its own array of aluminium fins. All these dimensions, height, width, and depth, are critical to determining overall size and heat dissipation capacities. In fact, these fin stacks are designed to maximize surface area in the efficient transfer of heat, which is the key factor that makes sure the best possible CPU temperatures are being maintained.
6. How big is Deepcool Assassin 4S?
Deepcool Assassin 4S is a large cooler having dual-tower coolers. The dimension of this cooler is 116×147×164 mm(L×W×H). Because of the bulky size, it is always a good idea to consider case compatibility before buying such coolers. People should check whether their PC case actually has enough room to accommodate the cooler's dimensions. Also, there will be huge space consumed by its dual tower structure and large fans.
7. Is Deepcool Assassin 4S good enough?
Yes, Deepcool Assassin 4S is considered a premium air cooler with a nice cooling capacity for demanding CPUs. Due to its dual-tower setup, along with quality fans and layout of heat pipes, the cooler can absorb a lot of thermal power. So, for anyone working with really heavy cooling tasks like gaming, creation of content, or even other resource-guzzling tasks, this is something to be considered. The cooler was designed for a middle ground between performance and noise.
8. Is Deepcool Assassin 4S quiet?
The Deepcool Assassin 4S has been designed with quiet operation in mind so that there is the least noise possible emitted by the fan and heatsink as they are designed mainly for cooling. This said, there may be cases under heavy CPU loads wherein fans may ramp up so the noise level goes slightly higher. But overall, it gives you a quiet experience in operation-a nice blend of cooling performance with acoustic comfort. The fan curves are pre-configured to keep the noise down.
9. What is the TDP of Deepcool Assassin 4S?
Deepcool designs the Assassin 4S to effectively handle high TDP (Thermal Design Power) CPUs. Basically, it dissipates huge amounts of heat not suitable for demanding processors. The dual-tower layout of the coolers, combined with an efficient heat pipe arrangement and high-performance fans, allows it to sustain fairly hefty thermal loads. Thus, an option is feasible for a user who needs heavy-duty cooling for the high-end CPUs.
10. How many watts can a Deepcool Assassin 4S handle?
The Deepcool Assassin 4S is built to disperse considerable heat generated by CPUs that draw power in excess of the requirement. With the super dual-tower nature and an efficient heat pipe setting, it takes away considerable thermal load. Another thing that goes without saying is one wattage figure may differ among such coolers, and the design certainly stands for thick cooling for demanding processors in particular contexts. Thus, it becomes useful for a user who demands high-performance cooling for gaming, content creation, or other high-load tasks.
