DEEPCOOL AK700 Digital NYX 120mm CPU Air Cooler ( Black )

Features of DEEPCOOL AK700 Digital NYX 120mm CPU Air Cooler ( Black )

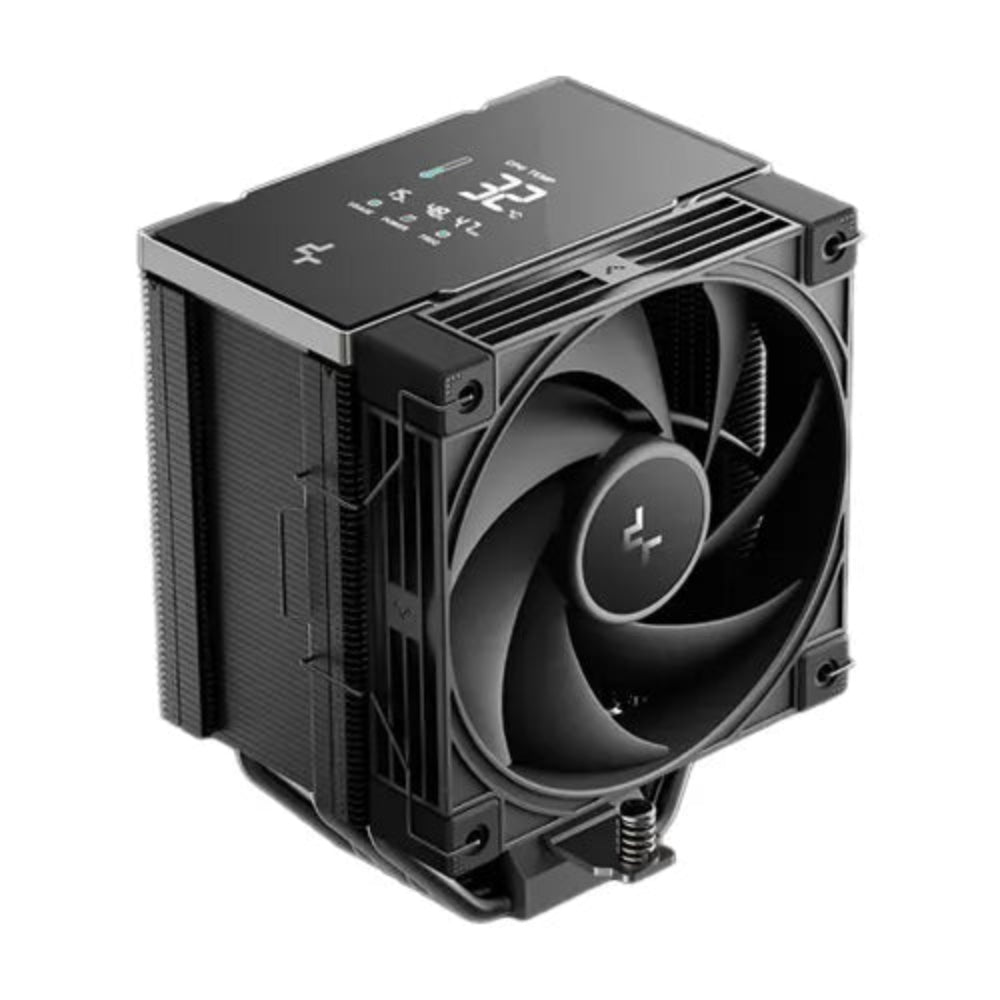

AK700 DIGITAL NYX Building on the legendary AK DIGITAL lineup, the AK700 DIGITAL NYX delivers enhanced cooling and a bold new look. Equipped with seven advanced copper heat pipes, a dense single-tower heatsink, newly designed silent fan, and a high-end quad-segmented digital display, it offers top-tier performance and intuitive real-time monitoring.

NEXT GENERATION PERFORMANCE

Thanks to DeepCool’s latest Core Touch Technology (CTT 2.0) and an optimized tower design, the AK700 DIGITAL NYX reaches a bump in cooling performance.

THE DIGITAL TOUCH

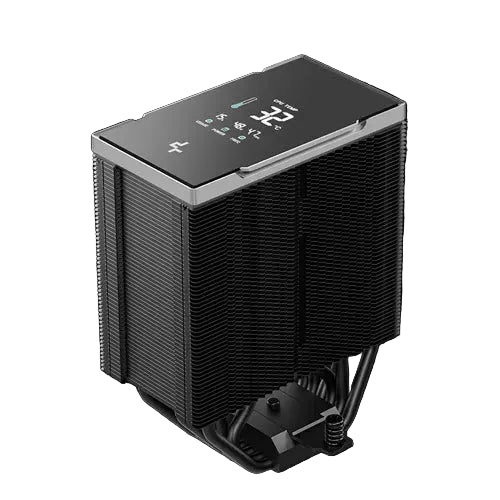

The standout addition of the AK700 DIGITAL NYX is the enhanced quad-segmented display that monitors the temperature, usage, wattage, and frequency of your CPU. The display is controlled via DeepCool software and only requires an open USB 2.0 header.

AI-TUNED CHILL.

With the upgraded DeepCreative interface, one click replaces BIOS tinkering — DeepCreative’s proprietary AI-driven algorithm tracks CPU load in real time to automatically match the optimal fan speed curve. This ensures perfect harmony between powerful cooling and whisper-quiet operation, all without lifting a finger.

PROVEN AK DESIGN

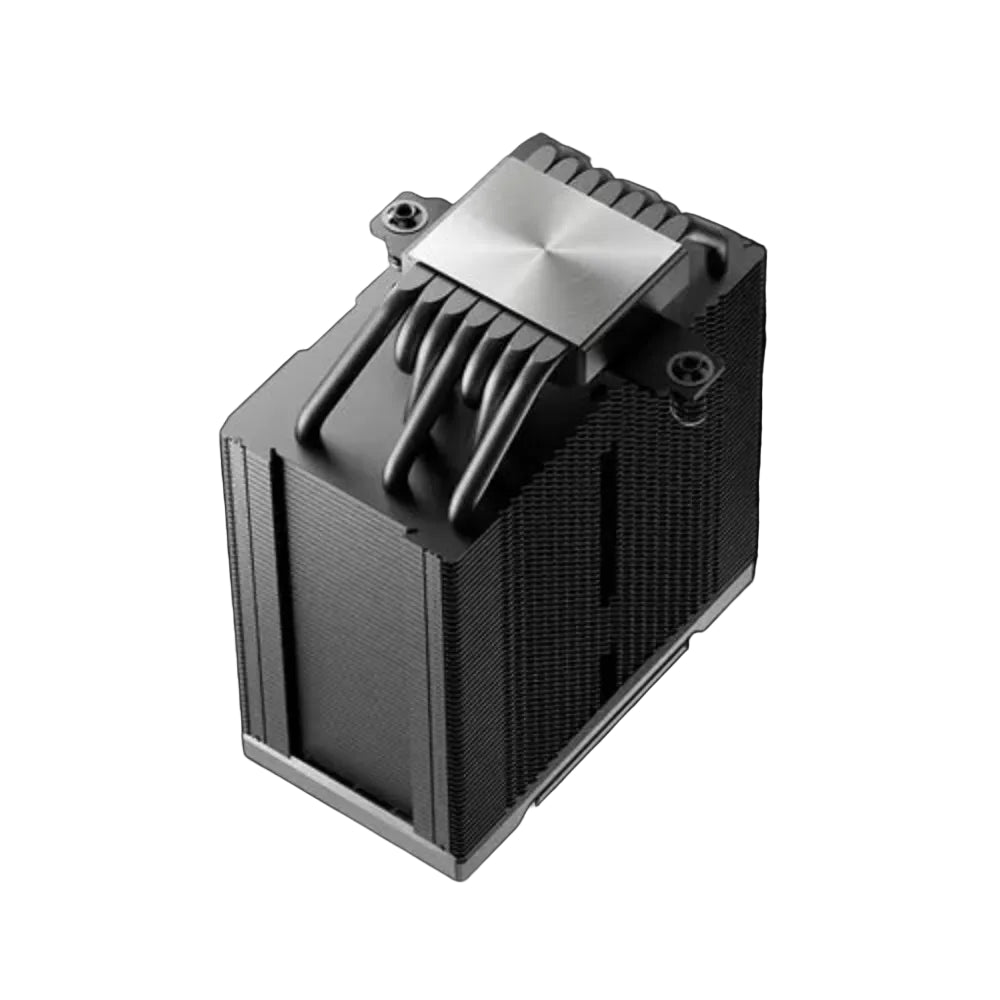

The AK700 DIGITAL NYX continues its legacy by featuring a precision-machined copper base and seven copper heat pipes that deliver improved heat transfer capabilities. The signature matrix fin array in a single tower heat sink layout offers better efficiency for high performance systems.

PREMIUM COMPATIBILITY

Designed with offset heat pipes to accommodate the larger heat sink depth for better component compatibility. This allows more space for tall heat spreaders and an unobstructed view of all your RAM slots.

COOL, QUIET, AND POWERFUL

Equipped with high-quality hydraulic bearings and a three-phase, six-slot, four-pole motor, the AK700 DIGITAL NYX's fans operate smoothly and quietly.

MULTI-PLATFORM PERFORMANCE

The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.

Application For

• Intel: LGA1851/1700/1200/115X
• AMD: AM5/AM4

Product Dimensions: 126×98×157 mm(L×W×H)

Heatsink Dimensions: 124×76×151 mm(L×W×H)

Net Weight: 1252 g

Heatpipe: Ø6 mm×7 pcs

Fan Dimensions: 120×120×25 mm(L×W×H)

Fan Speed: 2700±10% RPM(max)

Fan Airflow: 77.23 CFM

Fan Air Pressure: 5.13 mmAq

Fan Noise: 21.0/28.8/36.0 dB(A)

Fan Connector: 4-pin PWM

Bearing Type: Hydro Bearing

Fan Rated Voltage: 12 VDC

Fan Rated Current: 0.35 A

Fan Power Consumption: 4.2 W

Display Module Rated Current: 0.13 A±10%

Display Module Rated Voltage: 5 VDC

Display Module Power Consumption: 0.65 W

Display Area: 29x39 mm
