- DEEPCOOL AK500 120mm Single Tower CPU Air Cooler (Black)
Description
Features of DeepCool AK500 CPU Single Tower CPU Air Cooler (Black):

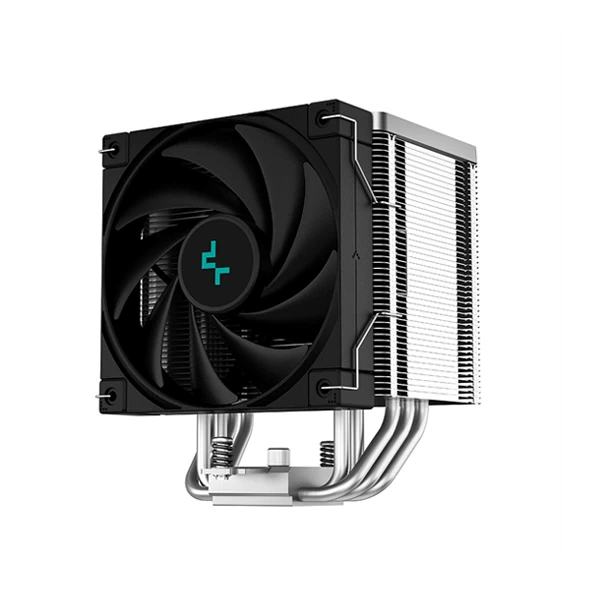

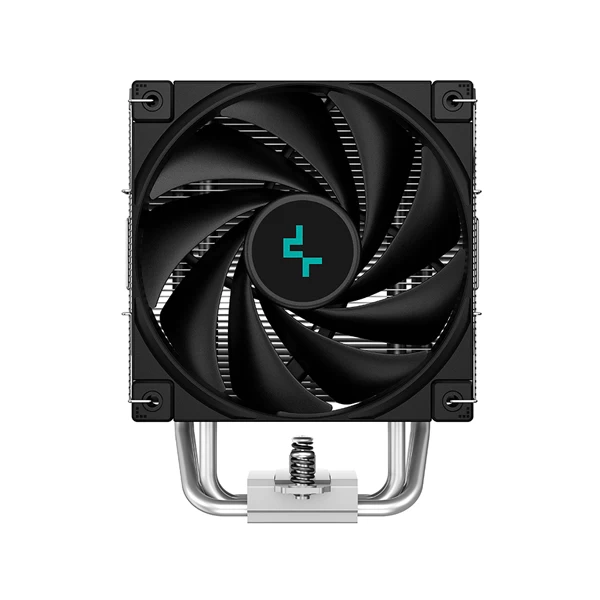

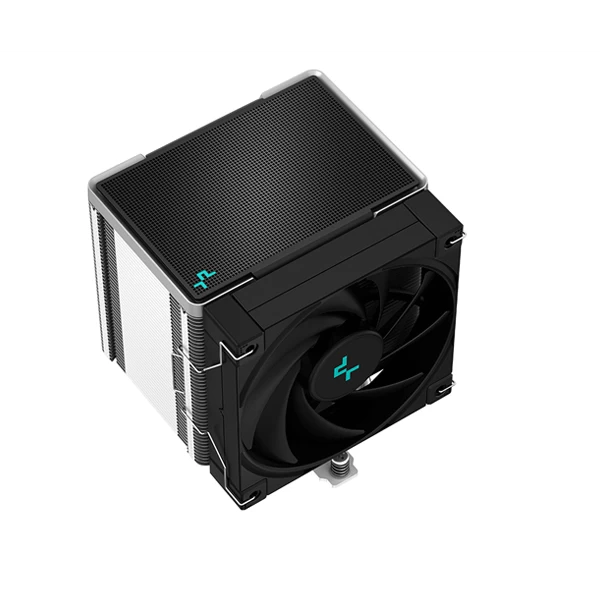

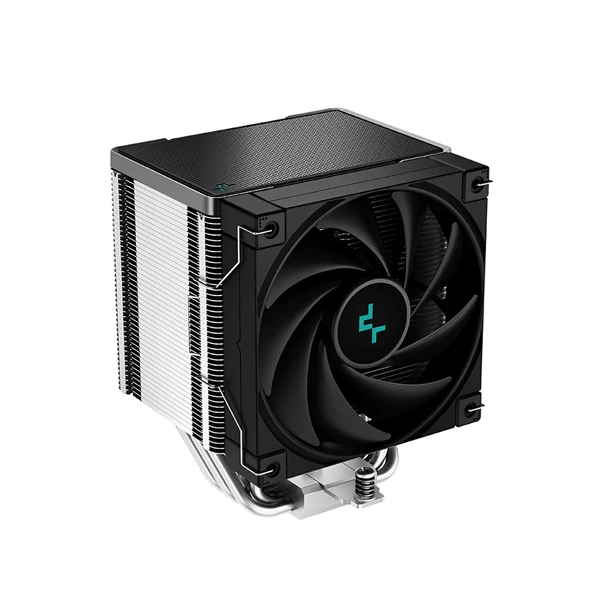

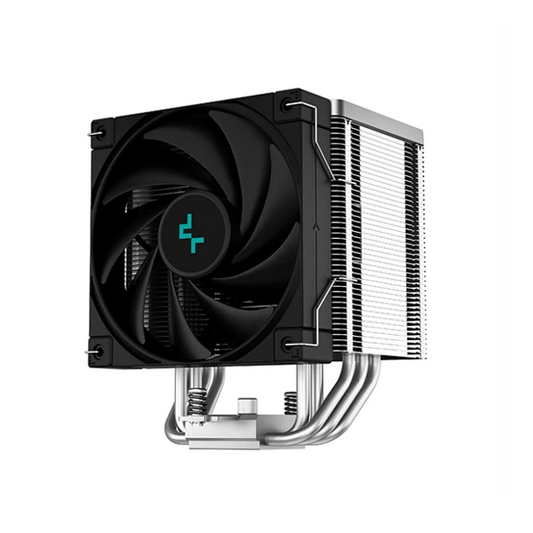

The DeepCool AK500 CPU Single Tower CPU Air Cooler (Black) is a high-performance single tower CPU cooler that maximizes cooling potential with a large heat sink, five advanced heat pipes, and a highly efficient 120mm FDB fan.
Prime Performance
Keep up with massive performance gains thanks to dominant cooling capacity from the DeepCool AK500 CPU Single Tower CPU Air Cooler (Black) boasting 240W of heat dissipation power to manage next generation processors. Tackle 4K gaming or high processing workloads knowing that your system is sufficiently cooled and performing at its peak.
Balanced Bidirectional Heat Pipe Technology
By optimizing the internal capillary structure and injecting a precise amount of liquid, our copper heat pipes achieve the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case.
This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance across a wide TDP range.
Full DRAM Compatibility
The angled offset heat pipe design offers clear access to your DIMM slots for better compatibility with tall heat spreaders and also shows off any RGB lighting. For quad-channel motherboards, the rear slots have a clearance of 45mm.
Cool, Quiet, and Powerful
Achieve high-performance cooling with minimal noise levels thanks to the included FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency. An optional low-speed adapter and extra fan clips are included for upgrades.
Simple and Secure
The provided all metal mounting bracket of the DeepCool AK500 CPU Single Tower CPU Air Cooler (Black) provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM5/AM4
Specifications of DeepCool AK500 CPU Single Tower CPU Air Cooler (Black):
Model Number | DeepCool AK500 CPU Single Tower CPU Air Cooler (Black) (R-AK500-BKNNMT-G) |
Product Dimensions | 127×117×158 mm |
Heatsink Dimensions | 127×90×158 mm |
Net Weight | 1040 g |
Heatpipe | Ø6 mm×5 pcs |
Fan Dimensions | 120×120×25 mm |
Fan Speed | 500~1850 RPM±10% |
Fan Airflow | 68.99 CFM |
Fan Air Pressure | 2.19 mmAq |
Fan Noise | ≤31.5 dB(A) |
Fan Connector | 4-pin PWM |
Fan Speed (with LSP) | 500~1550 RPM±10% |
Fan Airflow (with LSP) | 52.24 CFM |
Fan Air Pressure (with LSP) | 1.2 mmAq |
Fan Noise (with LSP) | ≤25.9 dB(A) |
Bearing Type | Fluid Dynamic Bearing |
Fan Connector | 4-pin PWM |
Fan Rated Voltage | 12 VDC |
Fan Rated Current | 0.12 A |
Fan Power Consumption | 1.44 W |
Warranty | 3 Years |
Note |
*** Features, Price, Specifications are subject to change without notice.
|
Reviews ( 0 )
Frequently asked questions
1. Does the DEEPCOOL AK500 120mm come with thermal paste?
The DEEPCOOL AK500 120mm arrives in the market with thermal paste already attached to its base. The pre-applied thermal paste on the cooler base helps users achieve easy installation and ensures the cooler maintains proper contact with the CPU for effective heat removal. Typical users find the pre-applied paste on the cooler sufficient for their needs.
2. Is DEEPCOOL AK500 120mm quiet?
The DEEPCOOL AK500 120mm features design elements that work to minimize noise. The 120mm fan adopts a fluid dynamic bearing that produces less noise than sleeve bearings during operation. The fan operates at a low volume during operation at reduced RPMs. Despite being quiet at normal operations the fan noise grows louder when the system demands higher performance because the fan rotates at faster speeds for CPU cooling.
3. Is the DEEPCOOL AK500 120mm Single Tower or Dual Tower?
The DEEPCOOL AK500 120mm operates as a single-tower ventilating unit. Single-tower cooling systems function well for regular CPUs by providing effective temperature management within a reasonable device dimension. The larger design of dual-tower coolers makes them necessary for high-performance processors but they provide superior cooling abilities.
4. What is the rpm of DEEPCOOL AK500 120mm fan?
The DEEPCOOL AK500 120mm fan operates between 500 RPM and 1700 RPM at its rotational speed. The fan automatically switches between quiet operations at low speeds while the CPU runs lightly and activates higher speeds to maximize cooling performance. The fan adjusts its speed automatically depending on the CPU temperature measurements.
5. How big is DEEPCOOL AK500 120mm?
The DEEPCOOL AK500 120mm measures 127mm in width and 97mm in depth with a height of 158mm. Its dimensions classify this cooler as a medium-sized component which can easily install in typical PC enclosures. You should verify your case's clearance specifications before installing this cooler especially the height clearance for the CPU cooler component.
6. Is DEEPCOOL AK500 120mm PWM or DC?
The DEEPCOOL AK500 120mm fan operates through PWM (Pulse Width Modulation) control. The speed regulation of PWM fans exceeds that of DC fans because they use Pulse Width Modulation technology. The PWM technology enables automatic fan speed adjustments according to CPU temperature which results in quieter operation and superior cooling during required periods.
7. What is the TDP of DEEPCOOL AK500 120mm?
The TDP rating for the DEEPCOOL AK500 120mm fan reaches 240W. The product design enables it to manage CPUs that release heat up to 240 watts. The TDP rating indicates this product can effectively cool CPUs that operate at high performance levels.
8. How many watts can a DEEPCOOL AK500 120mm handle?
This DEEPCOOL AK500 120mm operates effectively for CPUs which generate up to 240W of thermal energy. A CPU cooler should dissipate all heat produced by the CPU when its TDP rating reaches 240W. The TDP value marks the maximum CPU heat output your DEEPCOOL AK500 120mm should handle for proper cooling operation.
9. What is the radiator size
The DEEPCOOL AK500 120mm operates as an air cooler since it lacks a radiator component. Heatsinks combined with fans serve as the heat dissipation method in air coolers instead of liquid coolers' radiator system. The DEEPCOOL AK500 120mm uses its aluminum heatsink with fins together with the 120mm fan to manage CPU cooling.
10. Is DEEPCOOL AK500 120mm good enough?
Users with mainstream CPUs as well as those needing moderate to high cooling performance will find the DEEPCOOL AK500 120mm to be a suitable cooler. The product delivers powerful cooling performance within its compact size and operates quietly. This product suits users seeking a combination of effective cooling capabilities alongside quiet operation and economical cost.
