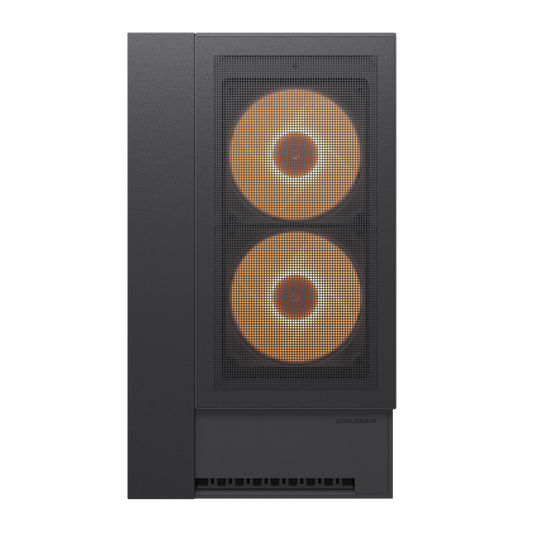

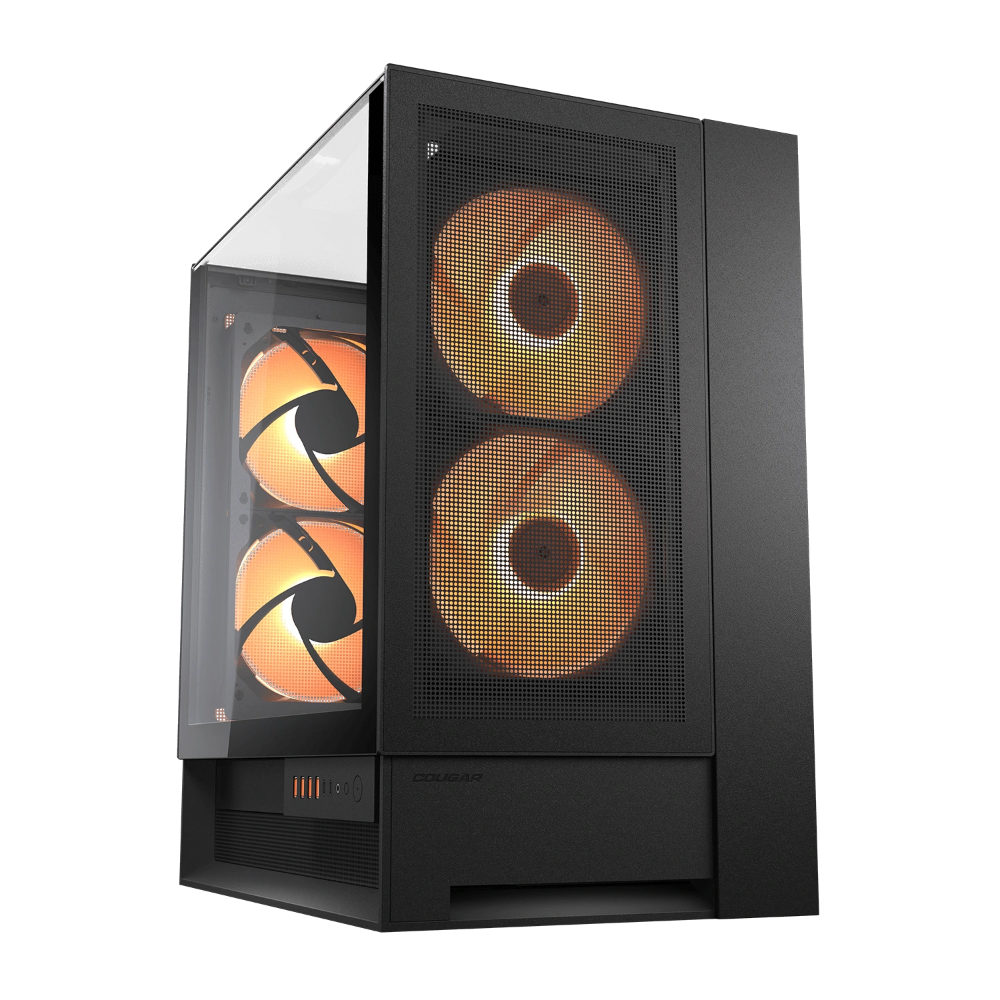

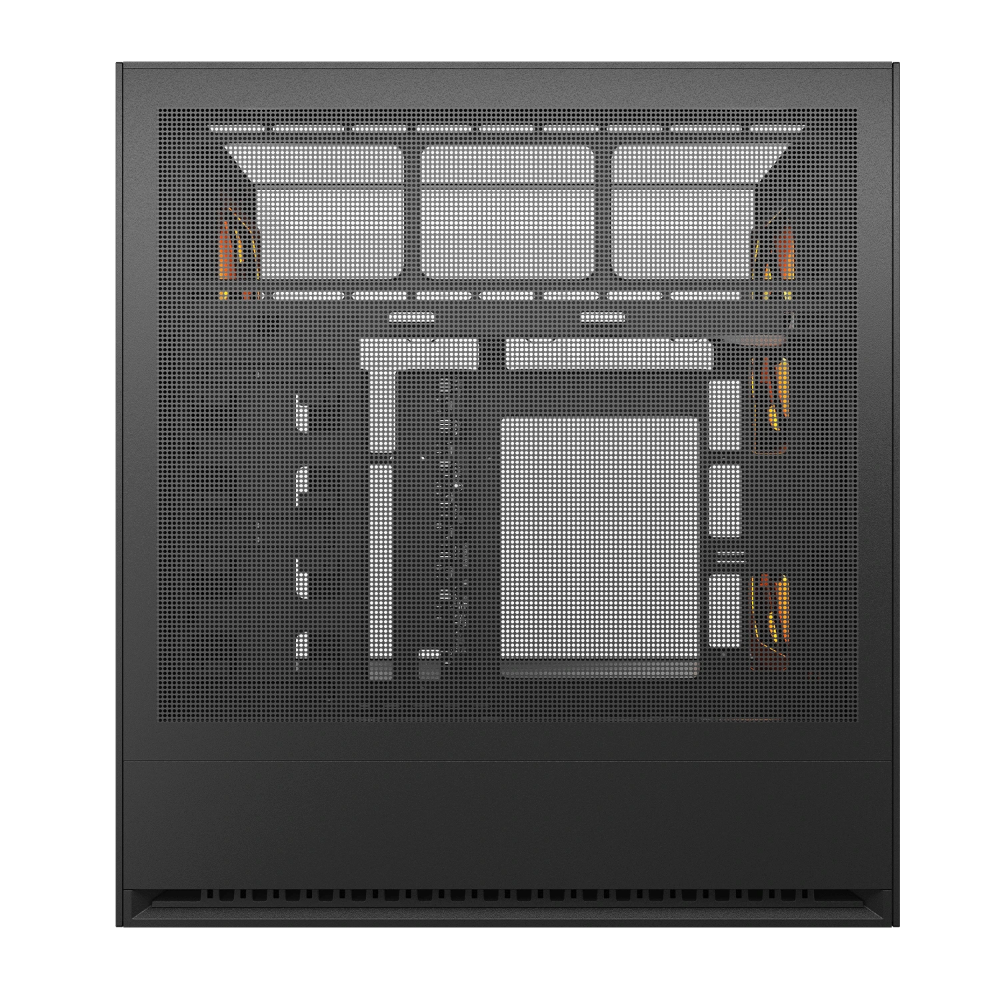

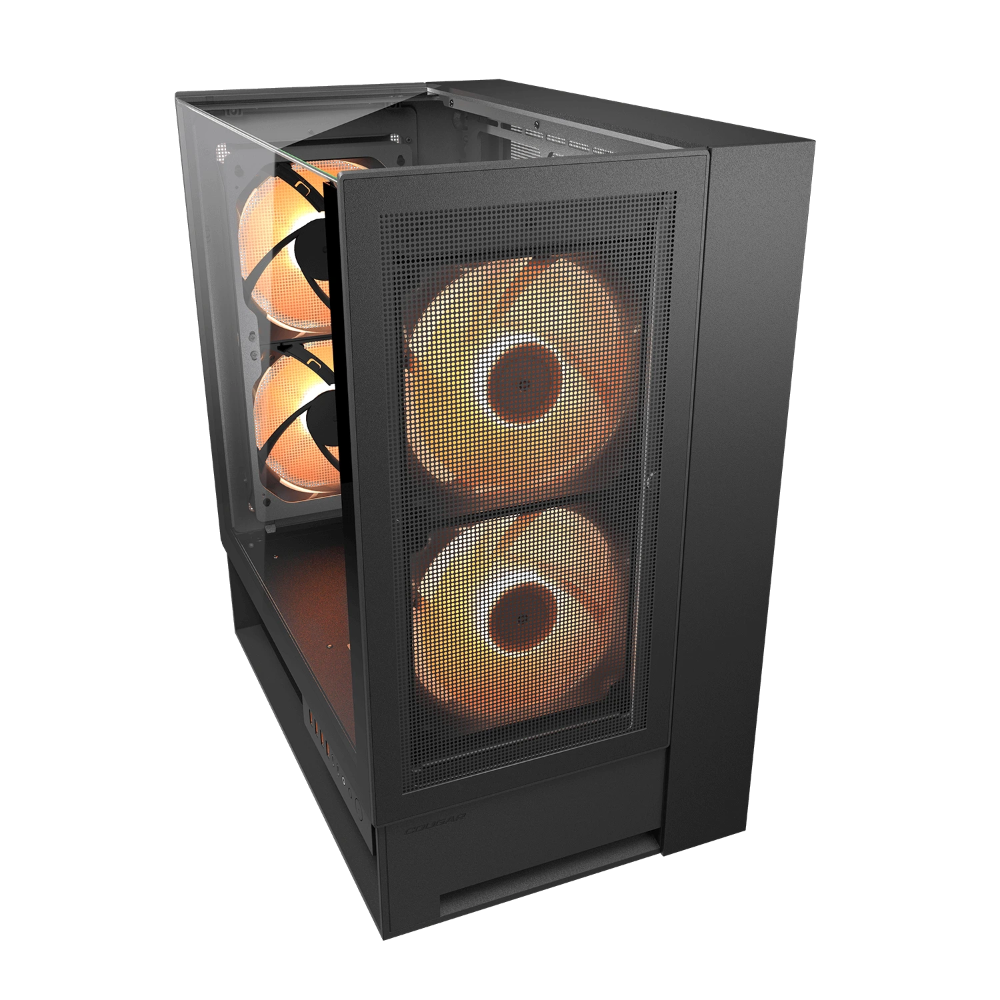

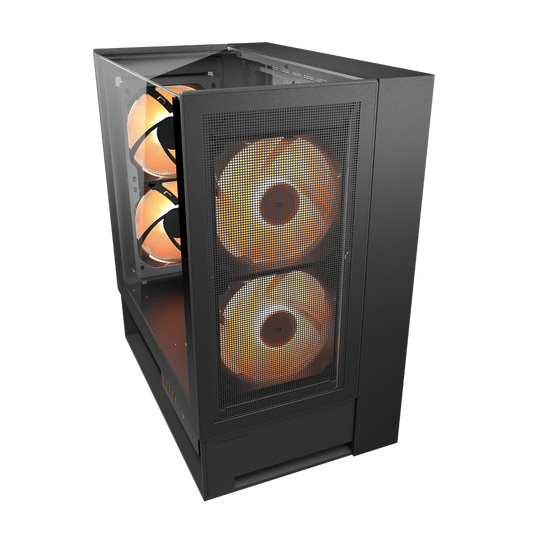

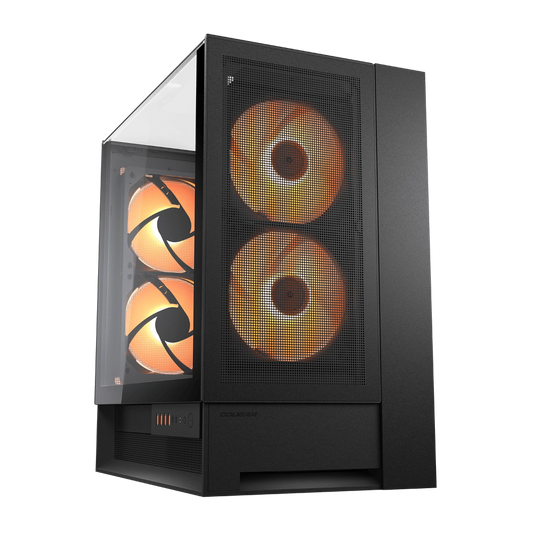

- COUGAR OmnyX ARGB ATX Mid Tower Cabinet ( Black )
Description
Features of COUGAR OmnyX ARGB ATX Mid Tower Cabinet ( Black )
Your Build. Your Vision. Any Side You Like.
The OmnyX gives you the power to play, create and perform with unprecedented flexibility. Experience true freedom of orientation and maximum airflow with COUGAR’s revolutionary Omnidirectional Dynamic Flow System.
Take a side, and showcase your masterpiece.
Omnidirectional Dynamic Flow System (ODF)
The Omnidirectional Dynamic Flow System, is a groundbreaking new PC chassis structure developed by COUGAR, built around powerful airflow, creative flexibility and the perfectly equal viability of right, left and center orientations.
Locking in an absolute mirrored front and rear fan capacity maximizes the surface area of the GPU in contact with constant, maximum airflow, irrespective of the case’s orientation.
The ODF System’s symmetrical layout facilitates the ability to flow seamlessly between different orientations, maintaining the full functionality of position-dependent features.
Take A Side

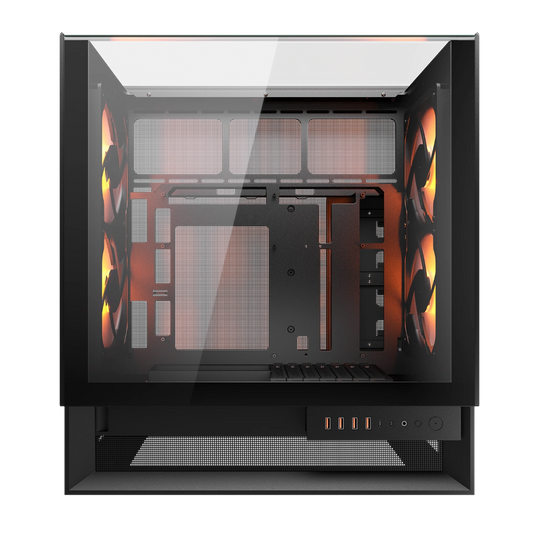

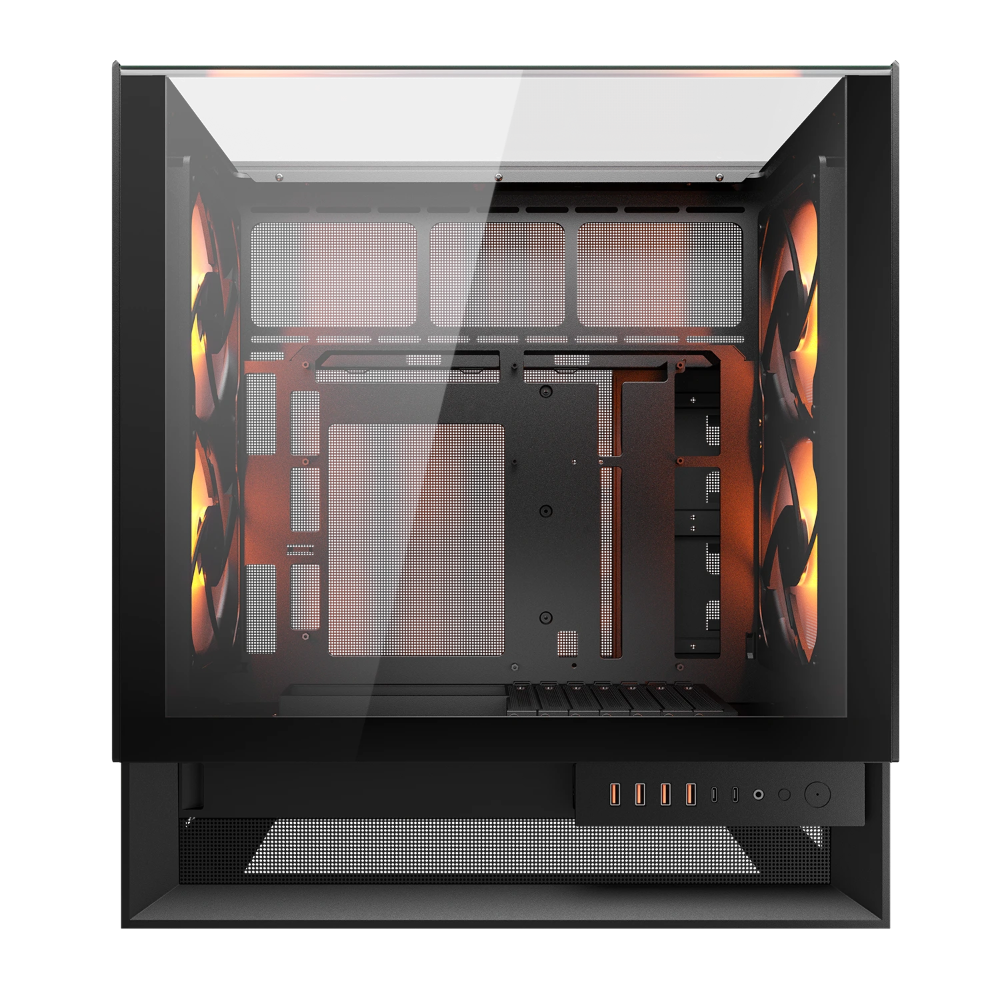

A perfectly symmetrical design makes for complete freedom of orientation. With dual transparent glass panels putting your build on display from any angle, the OmnyX looks stunning whether it’s placed on the right, left, or center.

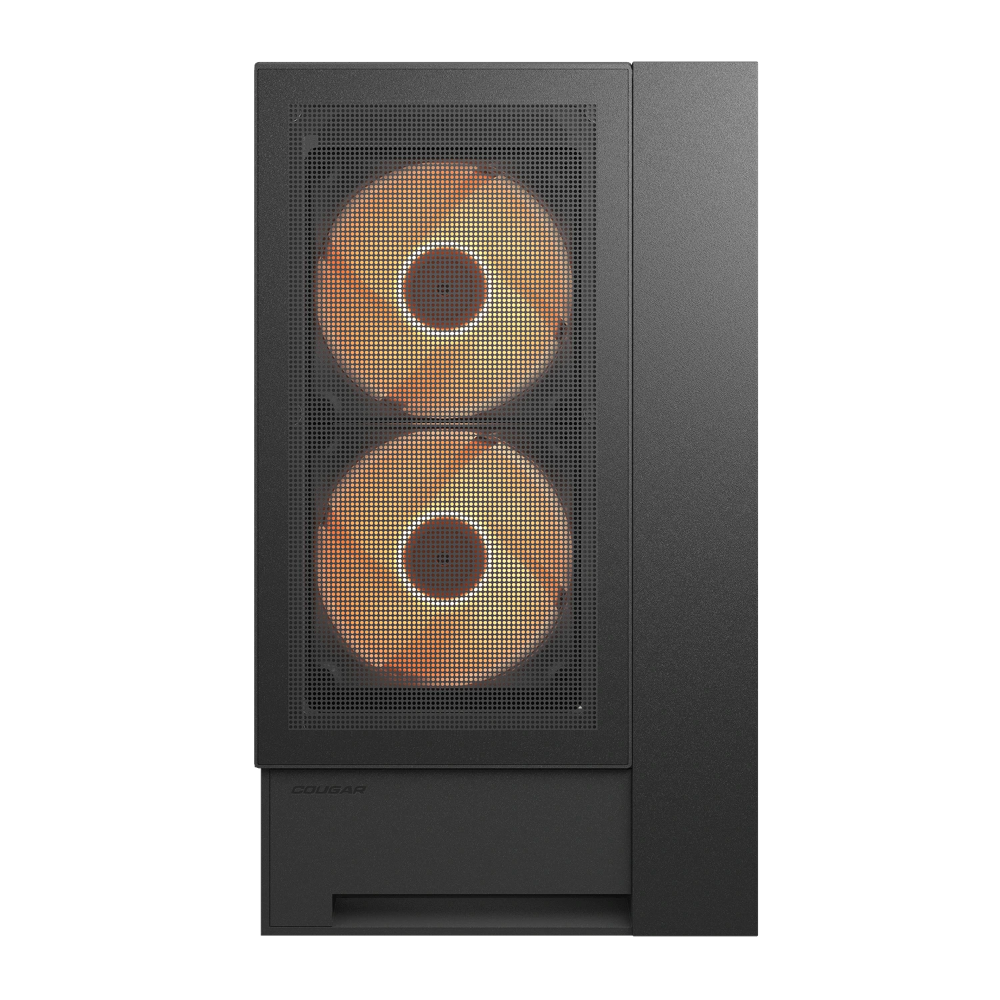

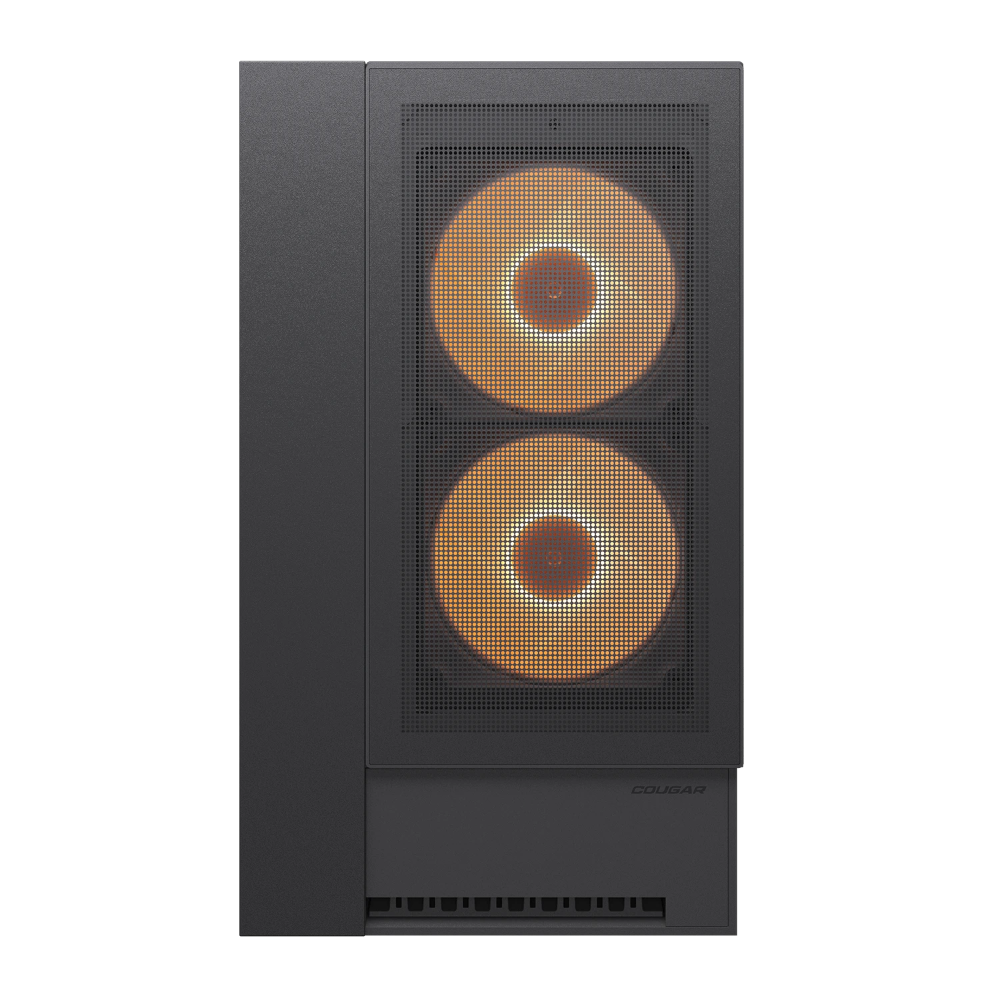

Bigger Fans. Jetstream Cooling.
The first ever – and only- PC case on the market with preinstalled quad 160mm PWM fans, the OmnyX delivers superior airflow straight out of the box, with room for a total fan capacity of 7. The mirrored front-to-rear alignment creates a naturally strong jetstream effect, with two front-mounted fans drawing in cold air and two rear-mounted fans expelling hot air in a direct, uninterrupted path. An equal distribution of reverse and forward blade fans allow for flexible intake modes, creating a smooth, directionally consistent airflow no matter how you choose to orient your build.

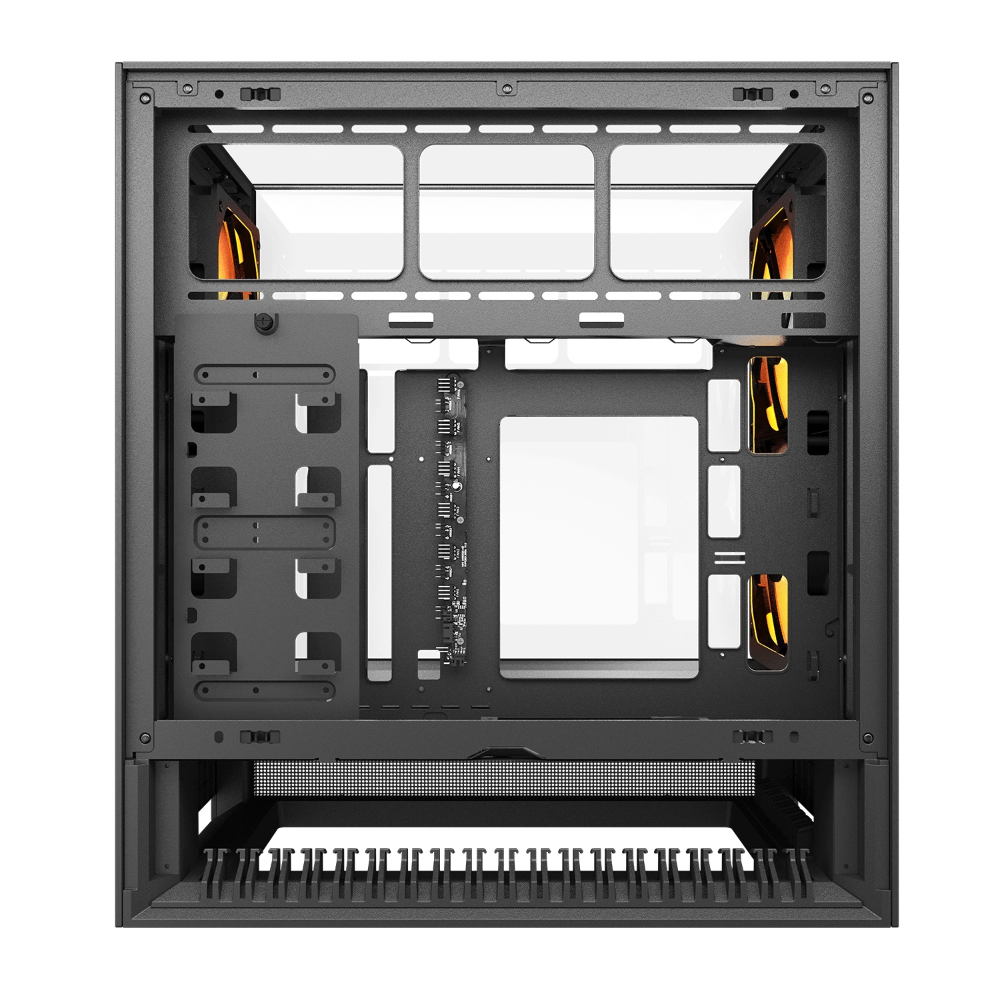

Game Over for Cable Clutter

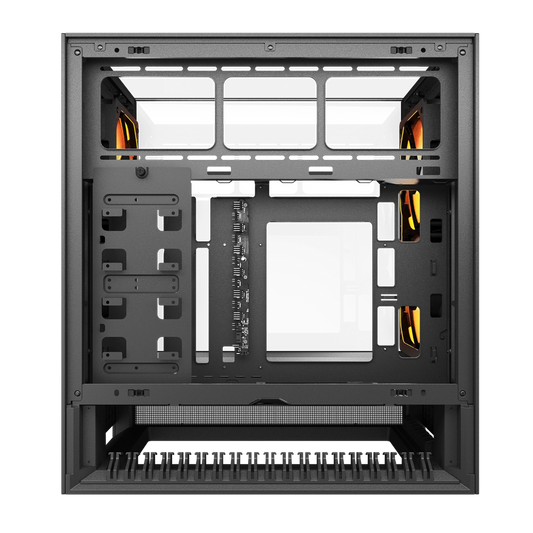

The ultimate zero-visibility cable management solution: all cabling is routed through the integrated base compartment, frontloading an ultra-clean interior from the start at setup.
Ambidextrous IO Module
An ingenious sliding rail system lets you position the IO module with full functionality on either the left or right side of the OmnyX. This smart design frees up additional connector space, expanding the conventional port array to 4x USB 3.0 Type-A and 2x USB 3.2 Gen 2 Type-C.
Bracketless Vertical GPU Mounting
The OmnyX accommodates a maximum GPU length of 380mm which can be vertically mounted without a bracket, maximizing surface exposure area to airflow for superior cooling. This also naturally aligns the GPU with gravity for inherent stability, mitigating the risk of damage to premium hardware from accidental displacement.
The Future of Motherboard Compatibility
The OmnyX is also fully compatible with reverse connector motherboards, including ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth. We’re not just ready for the gaming rigs of the future: we welcome them.
Quick Release Mechanism
Magnetic dust filter panel and quick release covers on the cable management compartment make removal and maintenance a breeze.
Streamlined Installation
Detachable fan brackets, SSD/HDD bracket and PSU bracket let you install these components without hassle.
Create Without Limit
Personalize your build with a near-endless choice of customizable covers.
Light. Speed.
The OmnyX features an integrated universal fan hub that enables seamless coordination of PWM fan speed and lighting. This allows you to control the RGB lighting without needing additional software, or motherboard software synchronization.
Specifications of COUGAR OmnyX ARGB ATX Mid Tower Cabinet ( Black )
| Product Number (P/N) | 382WA30.0001 |
| Model No | CGR-2WA3B-RGB |
| Product Name | OmnyX / OmnyX (White) |
| Case Form Factor | Mid Tower |
| Motherboard Type | Mini ITX / Micro ATX / ATX |
| Dimensions (WxHxD) | 300(W) x 520(H) x 470(D) (mm) 11.8(W) x 20.5(H) x 18.5(D) (in) |
| I/O Panel | USB 3.2 Gen 2 Type-C x 2, USB 3.0 Type-A x 4, 4 Pole Headset Audio Jack x 1, RGB Button |
| 3.5" Drive Bay | 2 |
| 2.5" Drive Bay | 2 |
| Expansion Slots | 7 (horizontal slots can be converted into vertical slots) |
| Cooling Fan Support | |
| Front | *120mm x 2 / *140mm x 2 / 160mm x 2 |
| M/B Side | 120mm x 3 |
| Rear | *120mm x 2 / *140mm x 2 / 160mm x 2 |
| Pre-installed Fans | |
| Front | 160mm ARGB PWM fan x 2 (Forward Blade) |
| Rear | 160mm ARGB PWM fan x 2 (Reverse Blade) |
| Speed | 300-1200 ± 10% RPM |
| Connector | 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) |
| Maximun Number of Fans | 7 |
| Water Cooling Support | |
| Front | *280mm / *240 mm / *140 mm / *120mm |
| M/B Side | 360mm / 240mm |
| Rear | *280mm / *240 mm / *140 mm / *120mm |
| RGB Hub Sync with M/B | Yes |
| Max. Graphics Card Length | 380(mm) / 15(in) |
| Max. CPU Cooler Height | 170(mm) / 6.7(in) |
| Max. PSU Length | 200(mm) / 7.9(in) |
| EAN CODE | 4710483779442 |
| UPC CODE | 192554009179 |
