- COUGAR CFV235 Mesh ARGB ATX Mid Tower Cabinet ( Black )
Description
Features of COUGAR CFV235 Mesh ARGB ATX Mid Tower Cabinet ( Black )
Float in Form. Flow in Function.

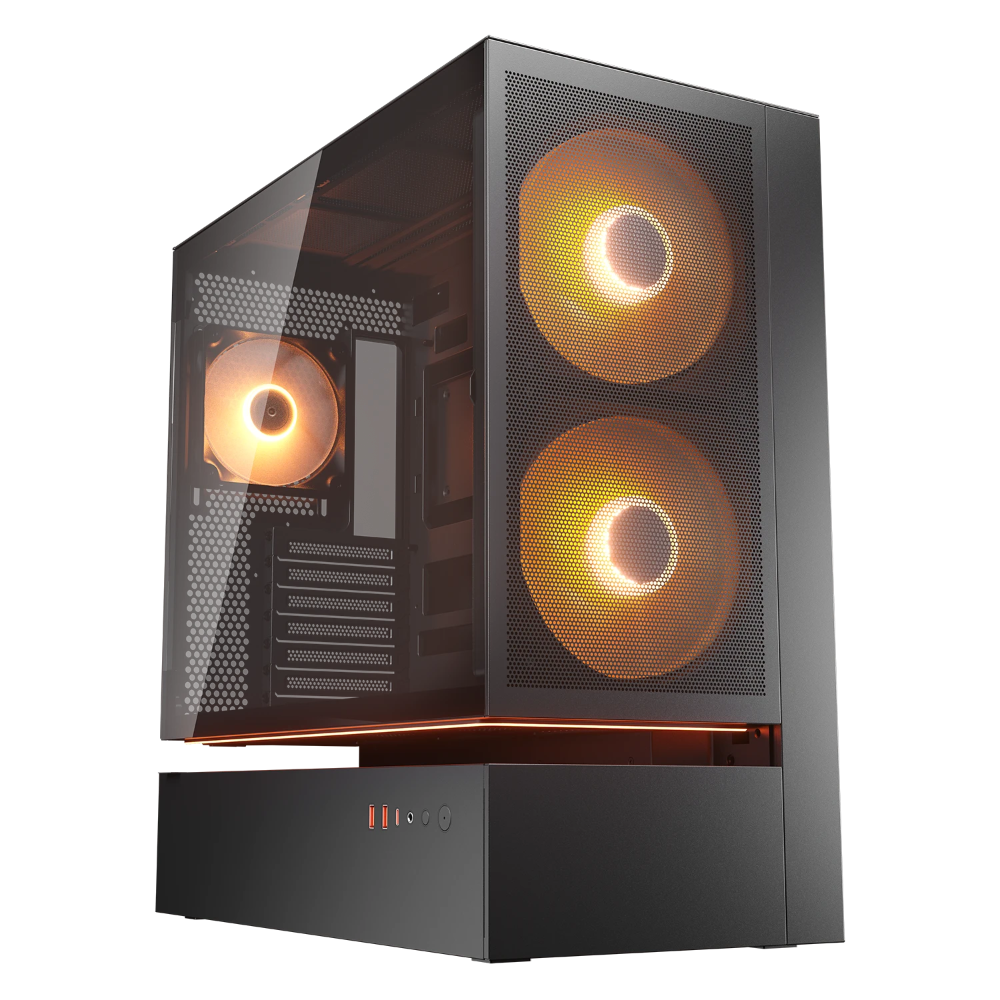

The CFV235 Mesh is a new kind of PC case featuring the innovative Central Floating Ventilation (CFV) structure. This divides the PSU cabin and main chamber, retooling the open space in between as a cooling advantage by accessing extra ventilation, preserving a compact footprint without compromising architecturally-enhanced cooling. Paired with a 3-in-1 front panel module—combining mesh, dual 160mm ARGB PWM fans, and a dust filter into a single pre-assembled unit— the CFV235 Mesh empowers airflow beyond ordinary dimensions.
True Free-Floating Structural Separation

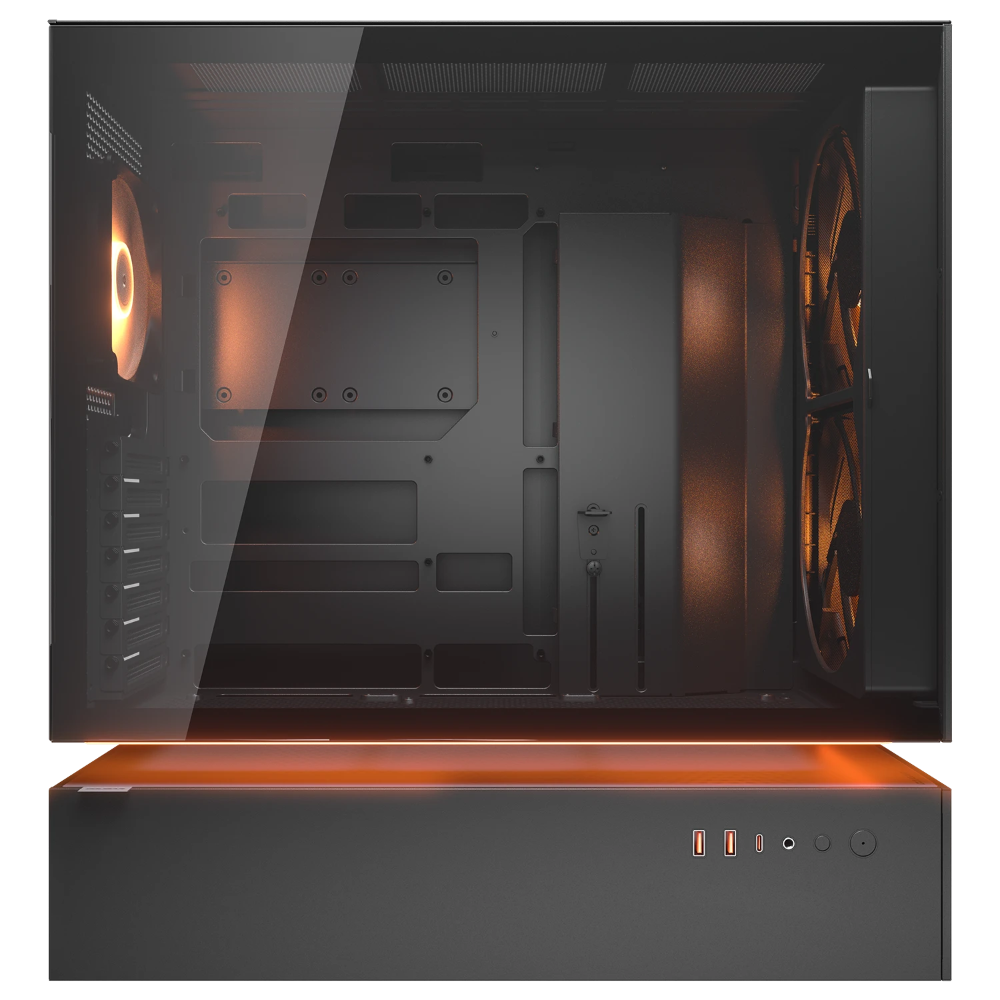

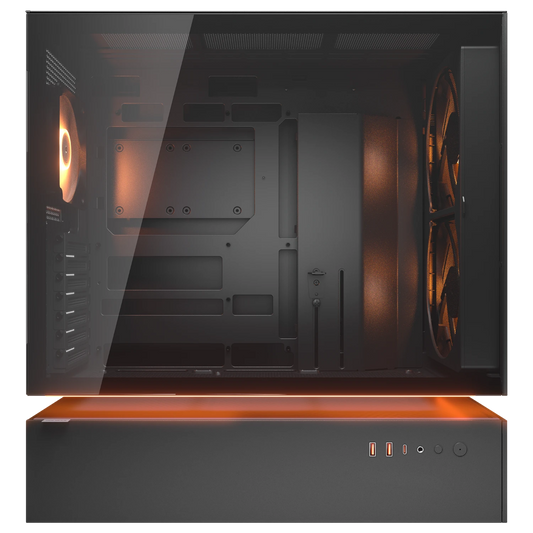

Conventional design squeezes both the PSU - a prime source of heat - and critical components in the same space, restricting airflow access to only the top, front and rear panels. The Central Floating Ventilation divides the PSU cabin and main chamber with a structural hollow that lets air move with greater freedom and purpose. This free-floating architectural separation also gives the CFV235 series its unique, progressive visual identity.
270° Airflow Access Within Suspended Space
The CFV235 series’ floating space is a fully 3 dimensional, discrete void suspended within the chassis. 270° of spacious, unobstructed airflow intake delivers greater ventilation than enclosed layouts to where it’s most needed.
Plug and Play With One Module

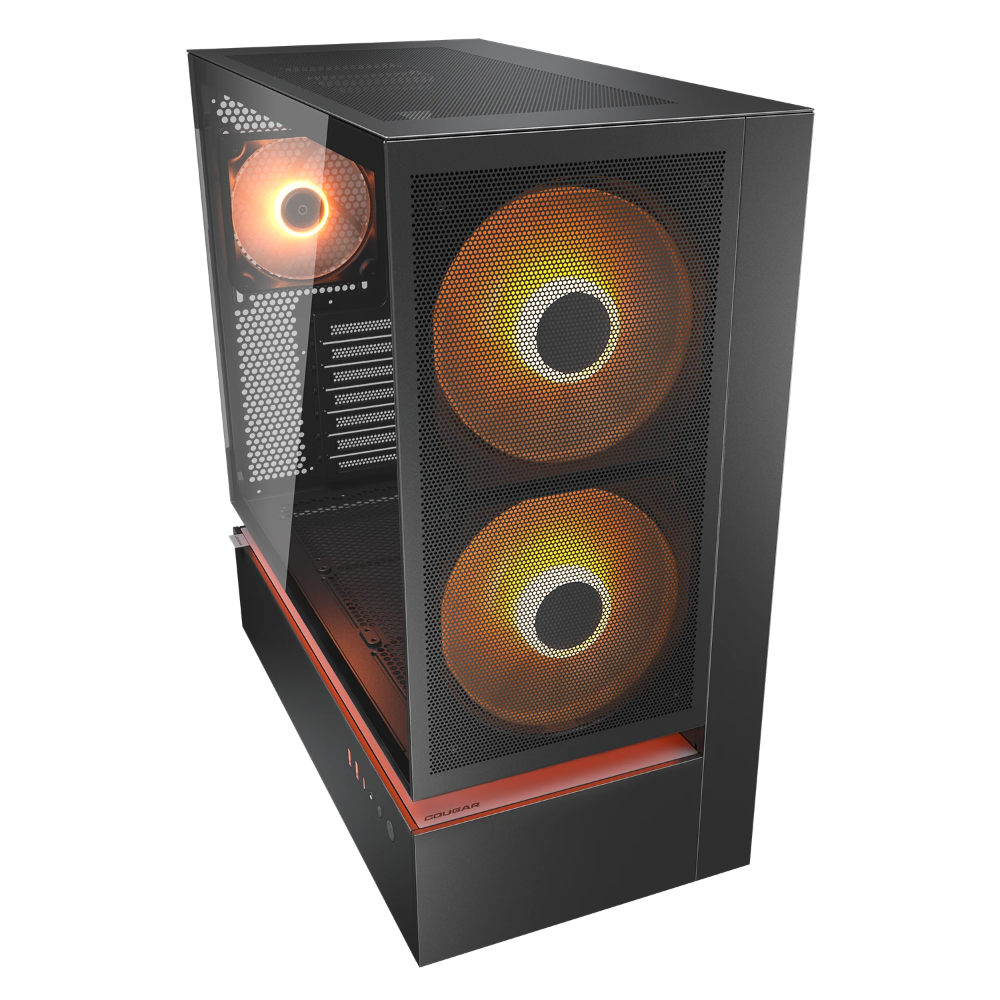

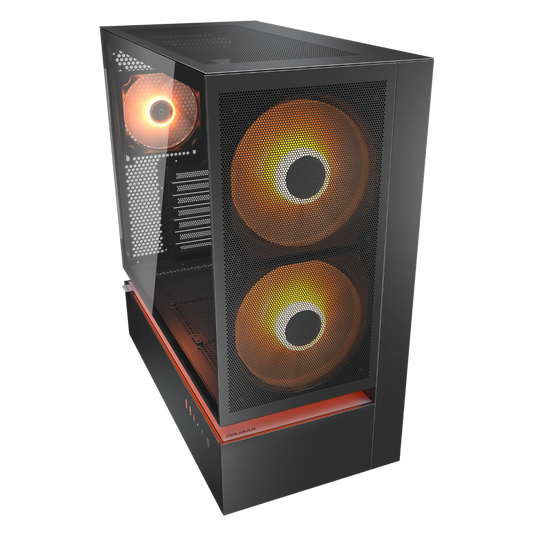

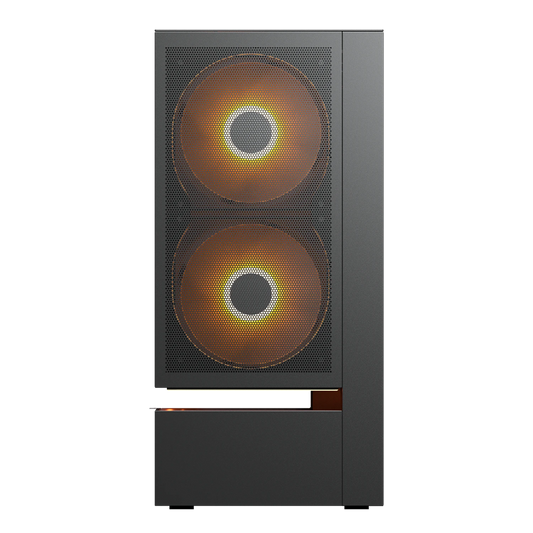

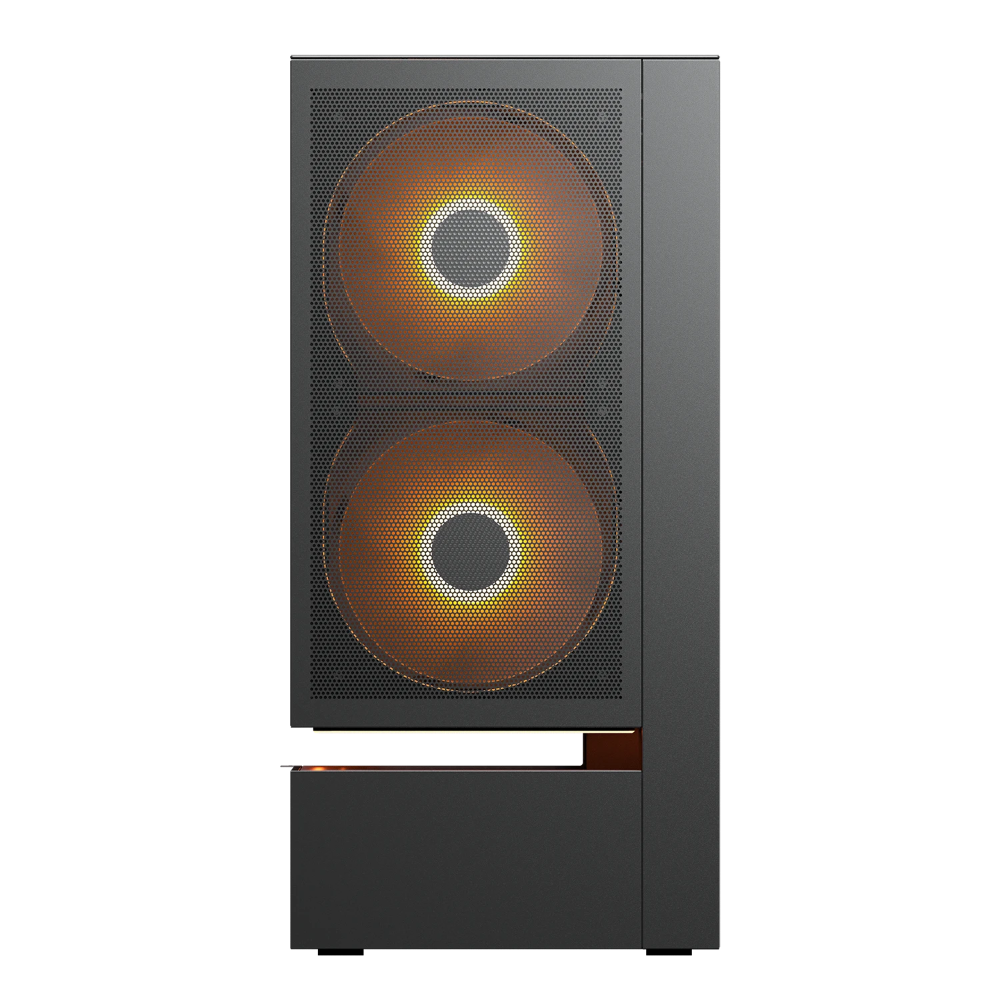

The 3-in-1 front panel module - merging dust filter, dual pre-installed 160mm ARGB PWM fans, and mesh panel into one pre-assembled unit - lets you handle maintenance in one smooth step.
Smart Pogo Pin Connector
A pogo pin on the 3-in-1 module maintains physical contact with a counterpart built into the CFV case minimizing cabling without compromising critical power and signal relay.
Pre-Installed Dual 160mm ARGB PWM Fans
Let your build hit the ground running: dual 160mm ARGB PWM fans are pre-installed and assimilated into the 3-in-1 front panel module, saving you setup time and providing ready-to-go, optimum cooling.
The Rainbow In Between
The Aurora lighting strip lights up with the integrated space of the Central Floating Ventilation structure from within, highlighting this innovative feature and displaying it as an architectural reinvention. It’s included with the case and attaches magnetically for ease and convenience.
Light. Speed
The CFV235 Mesh features an integrated universal fan hub that enables seamless coordination of PWM fan speed and RGB lighting. This allows you to control the RGB lighting without the need for software, or synchronize it with motherboard software.
Dual Magnetic Filtration
Magnetic dust filters at the roof and base of the Central Floating Ventilation structure proactively prevent dust and debris buildup, keeping airflow clean and uninterrupted without disrupting the suspended design.
Vertical Spatial Efficiency
The placement of the central floating ventilation channel on a vertical axis avoids expanding the overall width, keeping the footprint tight.
Space Engineering

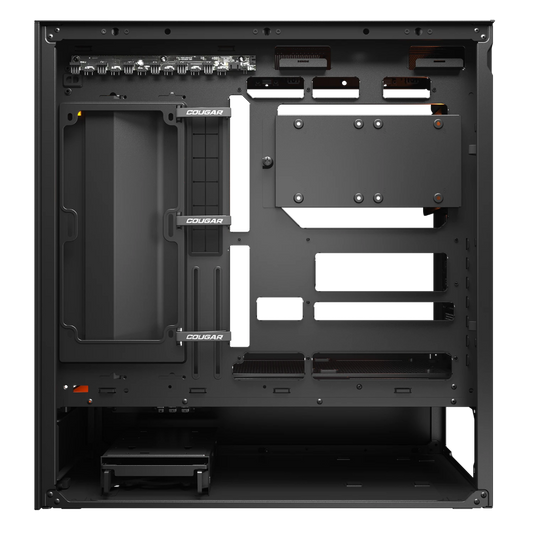

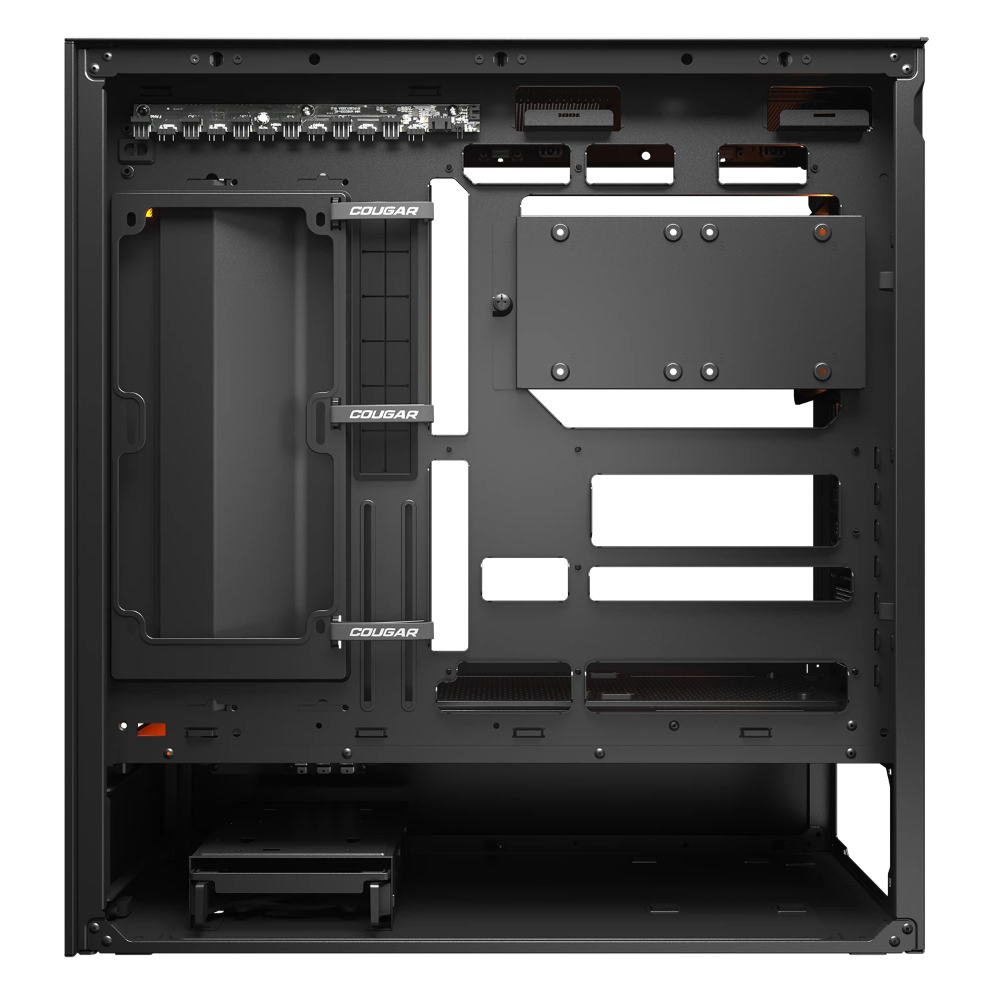

38mm of clearance behind the motherboard tray improves cable management ,offering more room to route and conceal cables of varying thickness. Five adjustable Velcro straps offer versatile options to secure and tidy your layout.
Architectural Strength
A 1.5mm-thick steel frame reinforces the chassis, preserving structural integrity even with the suspended central ventilation design. The result is a bold, open architecture that stays rigid, reliable, and ready for high-performance builds.
Versatile Compatibility
Compatible with reverse connector motherboards and accommodating GPUs of up to 400mm, the CFV235 Mesh is engineered for the gaming rigs of the future. A cover pulls triple duty as airflow guide, cable management facilitator and GPU holder which can be optimally placed according to motherboard specifications: this makes the most efficient use of available space by not only reducing cable clutter but improving performance stability.
Guided Airflow
The cable cover also acts as an airflow ramp to direct airflow with precision, cooling your CPU and graphics card where it's needed most.
Cooling Capacity

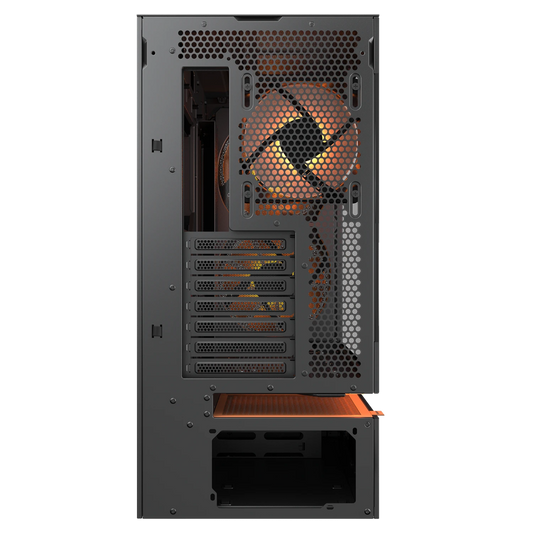

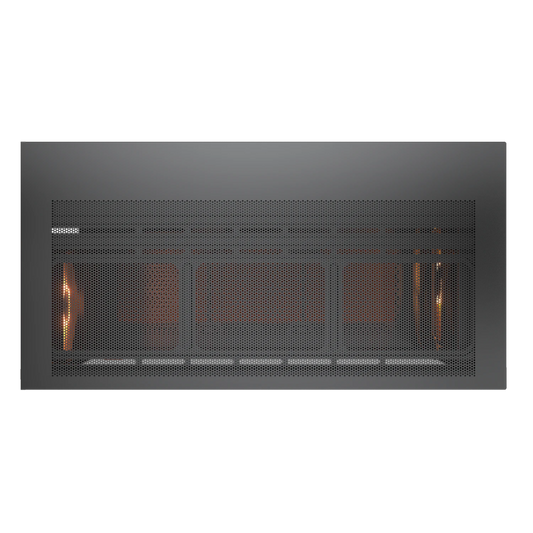

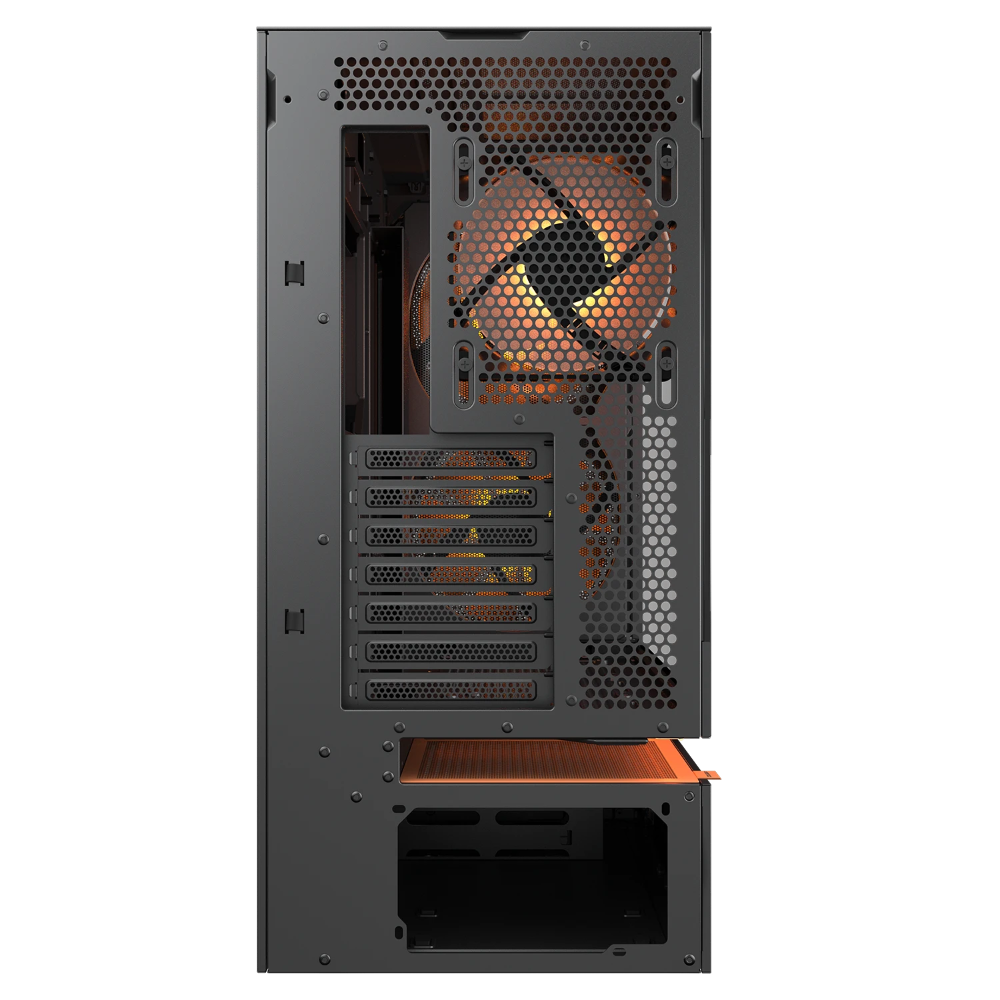

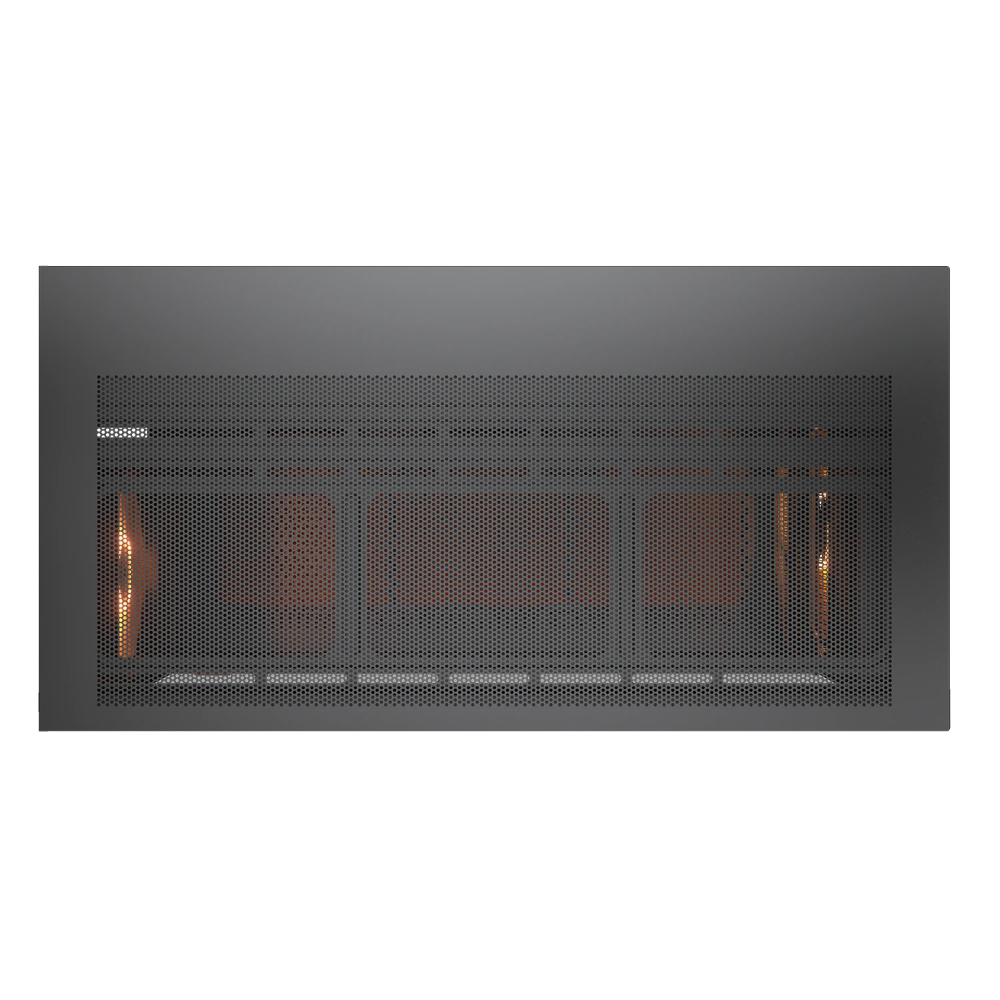

The CFV235 Mesh has a fan capacity of 3x120mm or 2x140mm on the top, 3x120mm on the floor of the main chamber, 2x160mm fans on the front, and 1x120mm on the rear (2x160mm and rear 120 mm ARGB PWM fans are pre-installed). Water cooling support maxes out at 360mm on the top.
Peripheral Vision
The CFV235 Mesh is equipped with USB 3.2 Gen 2x2 Type-C (20 Gbps) x1, USB 3.0 Type-A x 2, 4 pole headset audio jack for versatile device and peripheral connectivity.
Full House
Accommodating 2x3.5” HDD drives and 2+2 2.5” SSD drives (converted from 3.5” drive bays), versatile storage options gives you plenty of room to expand your storage as needed.
Specifications of COUGAR CFV235 Mesh ARGB ATX Mid Tower Cabinet ( Black )
| Product Name | CFV235 Mesh |
| Model No. | CGR-2DA4B-M |
| Case Form Factor | Mid Tower |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB |
| Dimensions (WxHxD) | 235 x 493 x 460 (mm) 9.3 x 19.4 x 18.1 (in) |
| I/O Panel | USB 3.2 Gen 2x2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button |
| 3.5" Drive Bay | 2 |
| 2.5" Drive Bay | 2+2 (converted from 3.5" drive bays) |
| Expansion Slots | 7 |
| Cooling Fan Support | |
| Front | 160mm x 2 |
| Top | 120mm x 3 / 140mm x 2 |
| Bottom | 120mm x 3 |
| Rear | 120mm x 1 |
| Pre-installed Fans | |
| Front | 160mm ARGB PWM fan x 2 |
| Rear | 120mm ARGB PWM fan x 1 |
| Speed | 160mm ARGB PWM fan: 500-1200 ± 10% RPM 120mm ARGB PWM fan: 500-1400 ± 10% RPM |
| Connector | 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) |
| Maximun Number of Fans | 9 |
| Water Cooling Support | |
| Top | 360mm / 280mm / 240mm / 140mm / 120mm |
| Rear | 120mm |
| Aurora LED Strip | Yes |
| PWM and RGB hub Sync with M/B | Yes |
| Max. Graphics Card Length | 400mm / 15.7in |
| Max. CPU Cooler Height | 175 (mm) / 6.9 (in) |
| Max. PSU Length | 200 (mm) / 7.9 (in) |
| EAN CODE | 4711649770129 |
| UPC CODE | 192554009759 |
