- COUGAR CFV235 ARGB ATX Mid Tower Cabinet ( Black )
Description
Features of COUGAR CFV235 ARGB ATX Mid Tower Cabinet ( Black )
True Free-Floating Structural Separation
Conventional design squeezes both the PSU - a prime source of heat - and critical components in the same space, restricting airflow access to only the top, front and rear panels. The Central Floating Ventilation divides the PSU cabin and main chamber with a structural hollow that lets air move with greater freedom and purpose. This free-floating architectural separation also gives the CFV235 series its unique, progressive visual identity.
270° Airflow Access Within Suspended Space
The CFV235 series’ floating space is a fully 3 dimensional, discrete void suspended within the chassis. 270° of spacious, unobstructed airflow intake delivers greater ventilation than enclosed layouts to where it’s most needed.

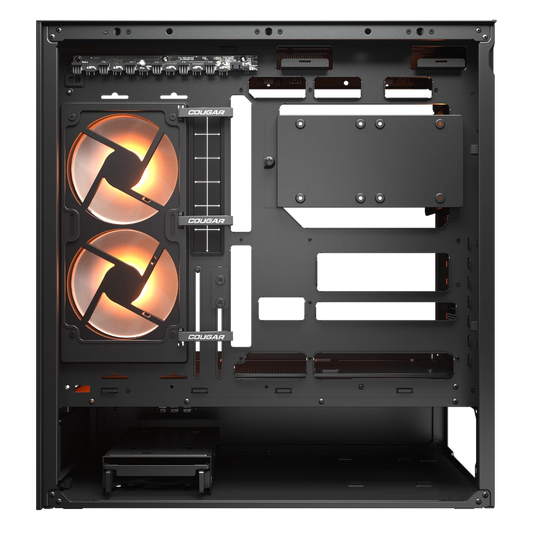

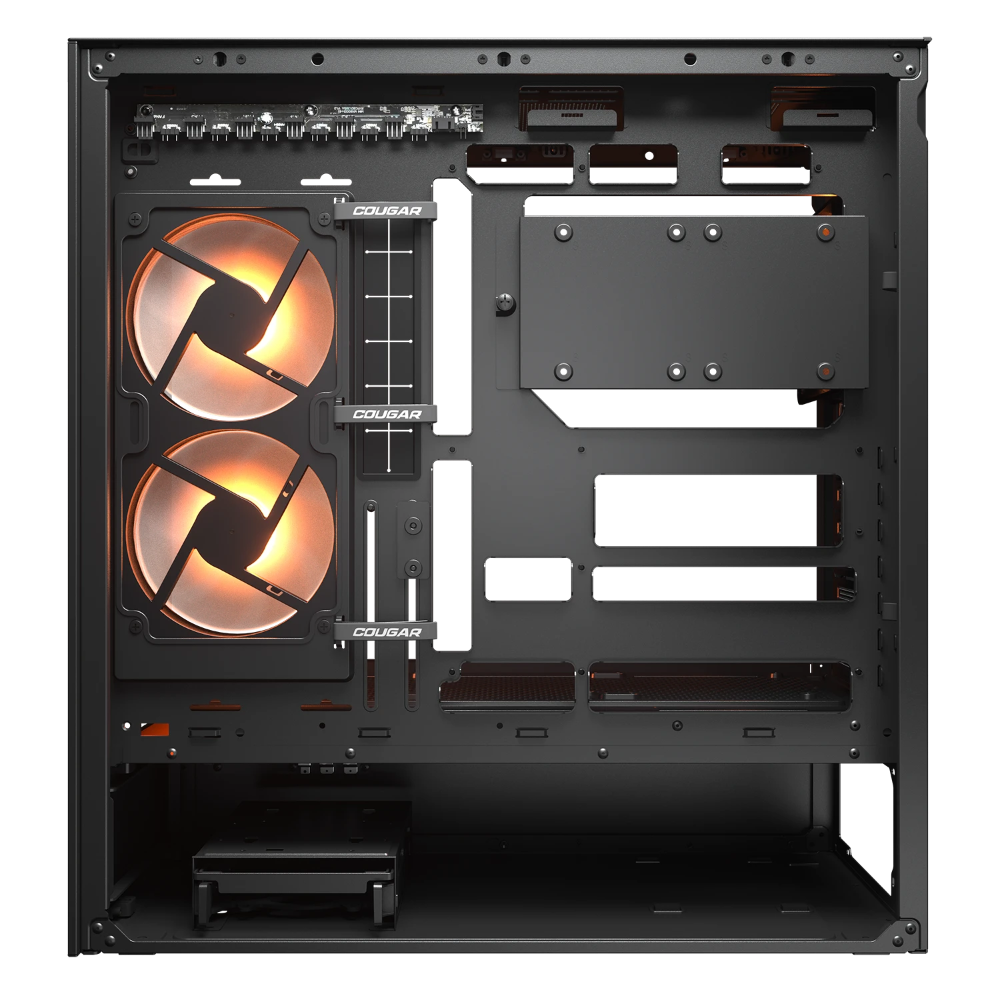

Pre Installed Reverse Blade Unity ARGB 240 Fans
COUGAR Unity ARGB 240 single-frame PWM reverse-blade fans are preinstalled on the motherboard side, providing precise fan speed control, exceptional cooling, near-silent operation, and stunning RGB lighting straight out of the box.
Dual Magnetic Filtration
Magnetic dust filters at the roof and base of the Central Floating Ventilation structure proactively prevent dust and debris buildup, keeping airflow clean and uninterrupted without disrupting the suspended design
The Rainbow In Between
The Aurora lighting strip lights up with the integrated space of the Central Floating Ventilation structure from within, highlighting this innovative feature and displaying it as an architectural reinvention. It’s included with the case and attaches magnetically for ease and convenience.
Light. Speed
The CFV235 features an integrated universal fan hub that enables seamless coordination of PWM fan speed and RGB lighting. This allows you to control the RGB lighting without the need for software, or synchronize it with motherboard software.
Vertical Spatial Efficiency
The placement of the central floating ventilation channel on a vertical axis avoids expanding the overall width, keeping the footprint tight.
Specifications of COUGAR CFV235 ARGB ATX Mid Tower Cabinet ( Black )
| Product Name | CFV235 |
| Case Form Factor | Mid Tower |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB |
| Dimensions (WxHxD) | 235 x 493 x 460 (mm) 9.3 x 19.4 x 18.1 (in) |
| I/O Panel | USB 3.2 Gen 2x2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button |
| 3.5" Drive Bay | 2 |
| 2.5" Drive Bay | 2+2 (converted from 3.5" drive bays) |
| Expansion Slots | 7 |
| Cooling Fan Support | |
| Top | 120mm x 3 / 140mm x 3 |
| M/B Side | 120mm x 2 |
| Bottom | 120mm x 3 |
| Rear | 120mm x 1 |
| Pre-installed Fans | |
| M/B Side | Unity 240 ARGB PWM Reversed fan x 1 |
| Rear | 120mm ARGB PWM fan x 1 |
| Speed | Unity 240 ARGB PWM Reversed fan: 700-1600 RPM ±10% 120mm ARGB PWM fan: 500-1400 ± 10% RPM |
| Connector | 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) |
| Maximun Number of Fans | 9 |
| Water Cooling Support | |
| Top | 360mm / 280mm / 240mm / 140mm / 120mm |
| Rear | 120mm |
| Aurora LED Strip | Yes |
| PWM and RGB hub Sync with M/B | Yes |
| Max. Graphics Card Length | 430 (mm) / 16.9 (in) |
| Max. CPU Cooler Height | 175 (mm) / 6.9 (in) |
| Max. PSU Length | 200 (mm) / 7.9 (in) |
