- CORSAIR VS550 550W 80+ White Non Modular ATX 2.0 Power Supply
Description

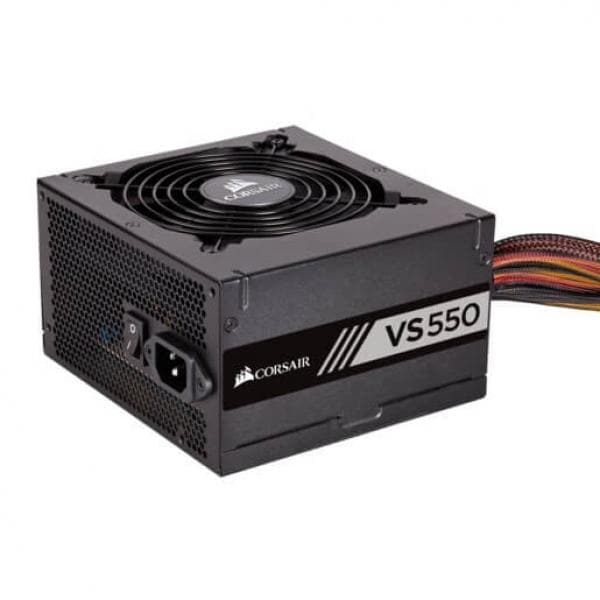

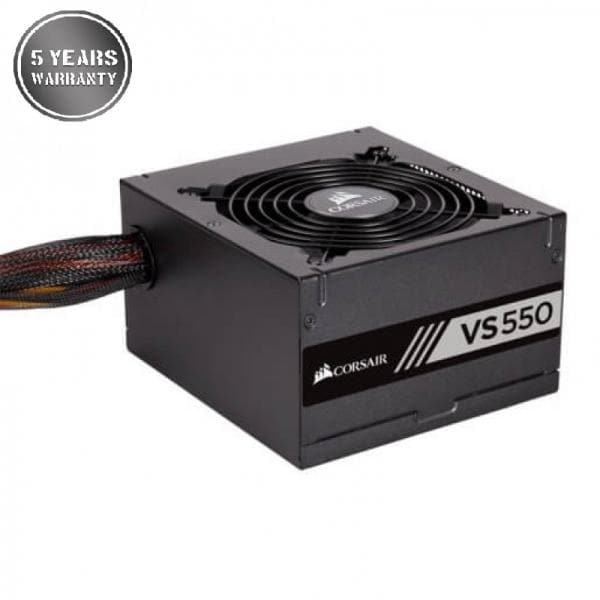

Features of CORSAIR VS550
The CORSAIR Power Supply unit from Corsair is an efficient, reliable, and affordable power supply unit. The Corsair VS550 power supply unit with its 80 PLUS White efficiency rating ensures efficient power at an affordable price. The continuous delivery of 550W of power from the VS550 assures better power delivery. Designed for PC builders in mind, the Corsair VS550 Power supply unit makes use of black sleeved cables and connectors for a uniform look that a modern PC requires. The Corsair VS550 is super compact making it suitable to use in mid towers cases with an ATX PSU slot support. The 120mm fan inside the Corsair Vs550 provides effective cooling under load and generating less heat and more efficiency while operating silently.
The thermally controlled fan provides higher cooling when under load and stays silent when idling. The power supply unit operates at 30 C continuously and has an MTFB of 100,000 hours. The VS550 550W Power Supply has 6 SATA connectors and 2 PCI-E connectors along with the main power connector for the motherboard and CPU. it also has the PATA connector for people who are using old hardware and need a new PSU for an upgrade or general replacement. The included power switch on the PSU turns off power input from the Power supply input itself. The corsair vs550 is backed by a 3-year warranty along with Corsair’s technical support team and customer service.
- A dedicated single 12V rail offers maximum compatibility with the latest components
- Active Power Factor Correction (PFC) with PF value of 0.99
- AC input from 200~240VAC
- Over-voltage, under-voltage, over-current, and short circuit protection provide maximum safety for your critical system components
- High-quality capacitors provide uncompromised performance and reliability
- A five years warranty and lifetime access to Corsair's legendary technical support and customer service
- Safety Approvals: cTUVus, CE, CB, FCC Class B, TÜV, CCC, C-tick
EFFICIENT POWER, RELIABLY DELIVERED
The CORSAIR VS550 delivers stable 80 PLUS efficiency power at an affordable price from the world’s most trusted name in PC power supplies
Real power
The VS550 delivers a guaranteed 550 Watts of continuous power. With universal input the power supply includes circuitry with components that can tolerate a wide range of mains voltage support (100-240 VAC). Multiple power protection circuits provide for added peace of mind. A dedicated single +12V rail saves you from the hassle of balancing your components across multiple power cables.
Designed with builders in mind
Black cables, cable sleeving and connectors make it easy to build a great looking PC, while a super-compact 125mm deep housing fits in almost any modern PC case for maximum compatibility.
Low noise, high efficiency

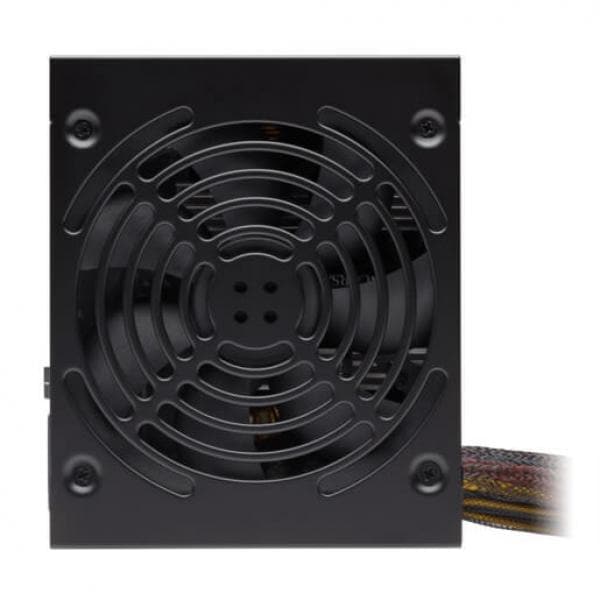

The 120mm fan is thermally controlled, so it only spins up when needed, and is quiet even at full load. The VS550 is 80 PLUS rated for greater efficiency, so it generates less heat, and you’ll enjoy lower energy bills.
Reliability you can count on
The VS550 is backed with a comprehensive three-year warranty including legendary CORSAIR technical support and customer service.
Get the best 80 Plus White cpu power supply price from us today!
Specifications of CORSAIR VS550
Model | CP-9020171-UK |
Weight | 3.62 |
MTBF | 100,000 hours |
80 PLUS Certification Level | White |
Power | 550 Watts |
Zero RPM Fan Mode | No |
Fan Bearing Technology | Sleeve |
Fan size | 120mm |
Corsair Link Support | No |
Continuous Output Rated Temperature (°C) | 40°C |
Dimensions | 150mm x 86mm x 140mm |
Modular | No |
Cable Type | Sleeved |
ATX Connector | 1 |
EPS Connector | 1 |
Floppy Connector | 2 |
4-Pin Peripheral Connector | 4 |
PCIe Connector | 2 |
SATA Connector | 7 |
Plug Type | NA |
Warranty | 5 Years |
Note | ***Features, Price and specifications are subject to change without notice. |
