Description
Features of CORSAIR Graphite 760T

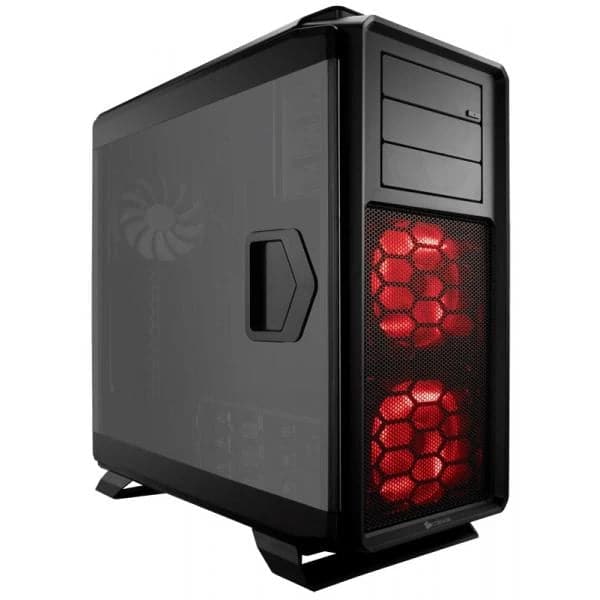

Graphite Series™ CORSAIR 760T computer cpu case is designed for building visually stunning PCs with performance to match their looks. The full-tower chassis is wrapped in a beautifully sculpted exterior, and offers plenty of room for advanced cooling and high-performance components.
Industry-leading design and a fully windowed door.
The Graphite Series 760T full-tower PC Corsair Case starts with a visually stunning design that’s a match for its stunning performance potential.
The beauty begins on the outside with its sculpted shapes and ingenious, full windowed hinged side panel with flush-mount latches. The front panel has two massive 140mm intake fans bathed in soft LED light, and there’s a dual-speed fan selector for performance or silence. Inside, there’s ample cooling potential, with eight fan mounting locations and room for multiple radiators for self-contained liquid CPU coolers, or even custom liquid cooling. And, clever touches like modular drive cages and laterally mounted SSD bays maximize interior volume to help your high-performance dreams come true.

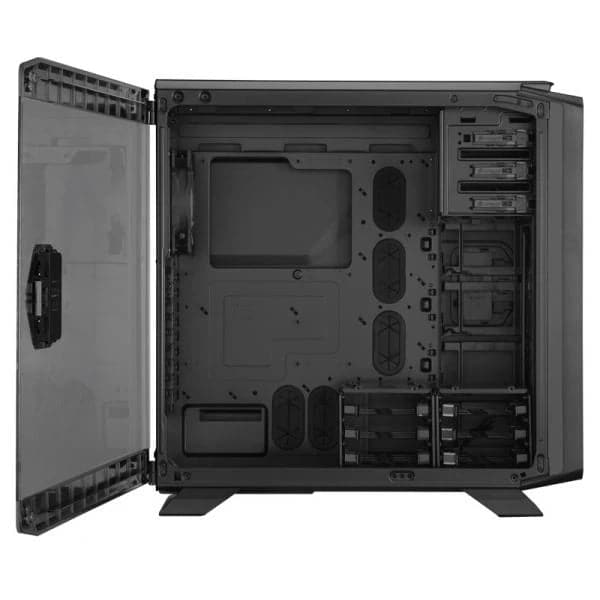

Swing-out side panels
The side panels are hinged, so opening your 760T EATX Cabinet is as simple as pulling the flush-mounted latch. They can also be removed entirely by simply lifting them off of the hinges.
Ample cooling potential
Like all Corsair cases, the 760T is designed for high-performance system builds, and high-performance systems require sophisticated cooling. There are eight total fan mounts, with room for top, front, bottom and rear-mounted radiators.
A clever drive bay design that maximizes interior volume
The four SSD bays are mounted laterally to make the most efficient use of the interior space. The combo 3.5” / 2.5” drive bays employ a modular bay system, so you can remove the bays you don’t need. The end result is an open interior optimized for extra-long GPUs and free airflow.
Front I/O panel with USB 3.0 and USB 2.0 connectors
You can never have too many devices. The 760T front panel has two high-speed USB 3.0 connectors and two USB 2.0 connectors, plus headphone and microphone connectors for your headset.
Dual AF140L 140mm LED front intake fans with dual-speed control
The AF140L fans are custom-engineered by Corsair to deliver high-volume airflow with less noise and turbulence. The extra-large diameter allows them to run at a lower RPM, and they’re positioned to deliver cool air directly to your GPUs. A front panel switch allows you to toggle between silent and performance modes.
Specifications of CORSAIR Graphite 760T
Weight | 11.2kg |
Color | Black |
Case Form Factor | Full-Tower |
Dimensions | 564mm x 246mm x 568mm |
Case Motherboard Support | Mini-ITX, MicroATX, ATX, E-ATX, XL-ATX |
Maximum GPU Length | 450mm |
Maximum CPU Cooler Height | 170mm |
Maximum PSU Length | 240mm |
Case Expansion Slots | 9 |
Case Drive Bays | (x3) 5.25in (x4) 2.5in (x6) Combo 3.5in/2.5in |
Case Material | Steel |
Case Power Supply | ATX (not included) |
External Connections | (x2) USB 2.0 (x2) USB 3.0 (x1) Fan Controller (x1) Headphone Port (x1) Microphone Port |
Fan Mount Locations | Front: (x2) 120/140mm Top: (x3) 120mm or (x2) 140mm Rear: (x1) 120/140mm Bottom: (x1) 120mm |
Fans Included | Front: (x2) 140mm Rear: (x1) 140mm |
Radiator Mount Locations | Front: 240/280mm Top: 240/280/360mm Rear: 120/140mm Bottom: 120mm |
Compatible Corsair Liquid Coolers | H55, H60, H75, H80i, H90, H100i, H105, H110 |
Warranty | 2 Years |
Note | ***Features, Price and specifications are subject to change without notice. |
