- CORSAIR AX1600i 1600W 80+ Titanium Fully Modular Power Supply
Description
Features of Corsair AX1600i 1600W 80+ Titanium Fully Modular Power Supply

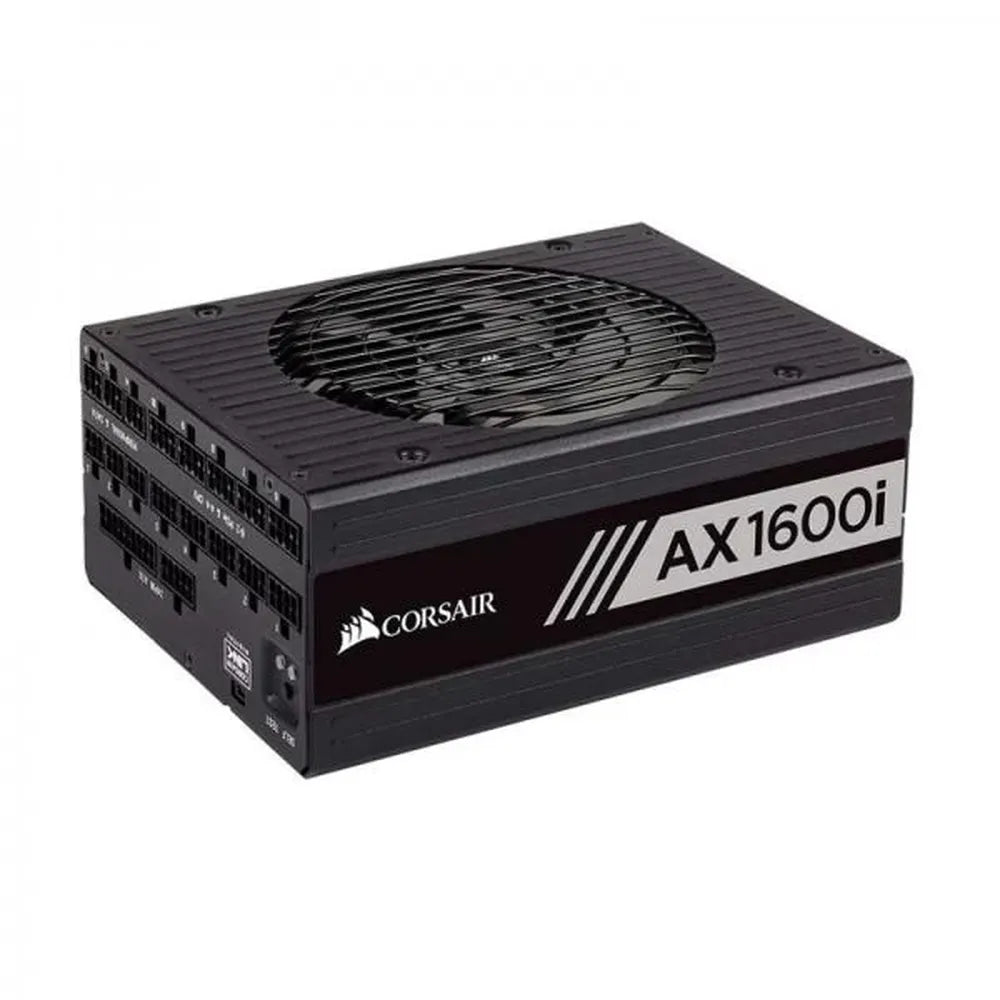

The CORSAIR AX1600i is the ultimate digital ATX power supply, built using only the best components and state-of-the-art gallium nitride transistors to deliver more than 94% efficiency.
- 9x Molex Connectors
- 16x SATA Connectors
- 10x PCIe Connectors (6+2-Pin)
- 4+4+8-Pin CPU Power Connector
- ATX Form Factor
The CORSAIR AX1600i is the ultimate digital ATX power supply, built using only the highest quality components for unmatched performance and better than 80 PLUS Titanium efficiency. State-of-the-art gallium nitride transistors and 100% 105°C Japanese capacitors deliver 1600W of ultra-stable, ultra-efficient power, while the AX1600i’s digital design allows for complete control and monitoring in CORSAIR LINK software. Adjust fan speeds, switch between single or multi-rail overcurrent protection (OCP), or monitor your PSU’s voltages and efficiency. Zero RPM Fan mode ensures near-silent operation at low and medium loads and the fully modular, low profile cable set makes for easy installation and great-looking builds. It’s the ultimate PSU for the most ambitious PC builds.
- 1600W of Ultimate Power: Delivers 1600W of continuous, ultra-stable, 80 PLUS Titanium efficiency power.
- Top Tier Components: 100% 105°C Japanese capacitors, top-specification internal components and digital design deliver over 94% efficiency.
- The Only Consumer PSU with Gallium Nitride Transistors: Totem-pole PFC Gallium Nitride (GaN) transistors for superior efficiency in a smaller form-factor.
- World Class Electrical Performance: Incredibly stable voltages and ultra-low ripple noise.
- Software Monitoring: CORSAIR LINK software provides in-depth monitoring for PSU temperature, fan speed, voltages, current, AC/DC wattage and efficiency, with the ability to log everything for easy troubleshooting.
- Take Control: CORSAIR LINK lets you adjust cooling fan speed, RPM curves and switch between single or multi-rail over current protection (OCP), all from your desktop.
- 140mm Patented FDB cooling fan: Delivers low-noise operation even at demanding loads.
- Zero RPM Fan Mode: For near-silent operation at low to medium loads.
- Choose Your Color: Three-color customizable magnetic side labels let you choose your PSU’s style to match your build.
- Fully Modular Cables: Use only the cables you need for quick and easy installation.
- Built to Last: Ten-Year comprehensive CORSAIR warranty
THE WORLD’S BEST PSU GETS BETTER
The CORSAIR AX1600i 80 Plus Titanium is the ultimate digital ATX power supply, built using only the best components and state-of-the-art gallium nitride transistors to deliver more than 94% efficiency.
1600W OF ULTIMATE POWER
Delivers 1600W of continuous, ultra-stable, 80 PLUS Titanium efficient power.
TOP TIER COMPONENTS
100% 105°C Japanese electrolytic capacitors, top-specification internal components and digital design deliver over 94% efficiency.
THE ONLY CONSUMER PSU WITH GALLIUM NITRIDE TRANSISTORS
Totem-pole PFC Gallium Nitride (GaN) transistors for superior efficiency in a smaller form-factor.
WORLD CLASS ELECTRICAL PERFORMANCE
Corsair AX1600i 80 Plus Titanium has Incredibly stable voltages and ultra-low ripple noise.
INTELLIGENT CONTROL. UNLIMITED POSSIBILITIES.
CORSAIR iCUE provides in-depth PSU voltage and performance monitoring, as well as stunning system-wide RGB lighting synchronization.

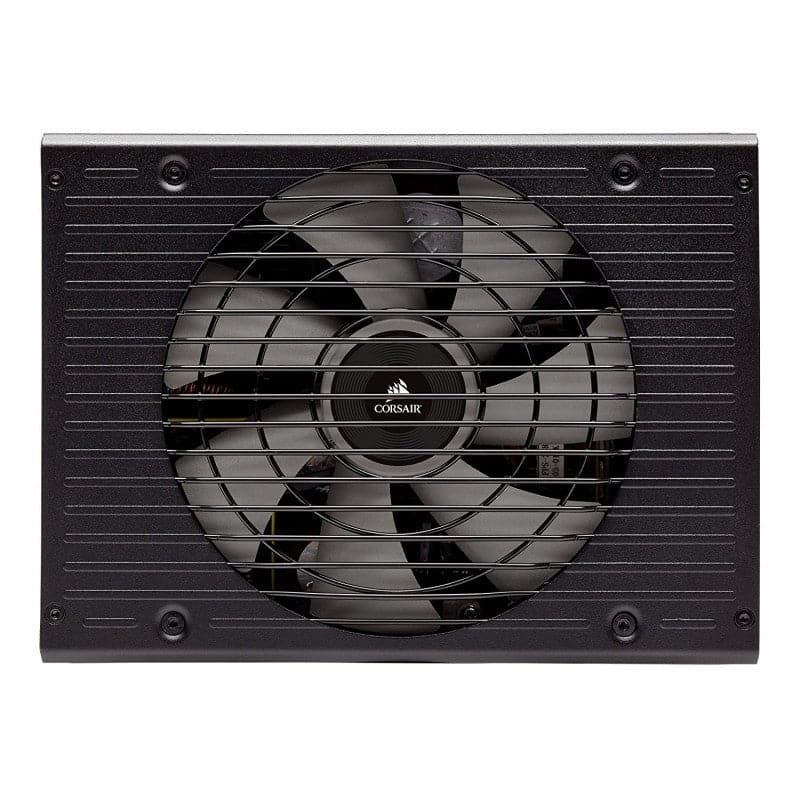

140MM PATENTED FDB COOLING FAN
Delivers low-noise operation even at demanding loads.
ZERO RPM FAN MODE
For near-silent operation at low to medium loads.
CHOOSE YOUR COLOR
Three-color customizable magnetic side labels let you choose your Corsair AX1600i 80 Plus Titanium PSU’s style to match your build.

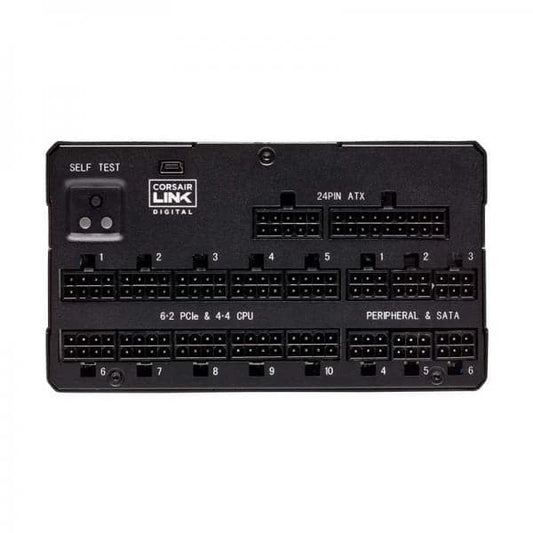

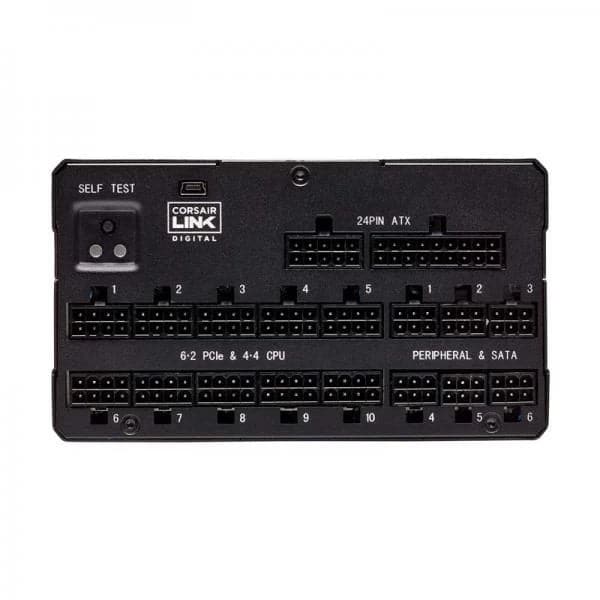

FULLY MODULAR CABLES
Use only the cables you need for quick and easy installation. Unused cables can be stored in the included roll-up cable bag.
BUILT TO LAST
Ten-Year comprehensive CORSAIR warranty.
Specifications of Corsair AX1600i 1600W 80+ Titanium Fully Modular Power Supply
| ATX Connector | 1 |
| Ability to toggle singlemultiple 12V rails | Yes |
| ATX12V Version | v2.4 |
| Continuous output rated temperature C | 50°C |
| Continuous power W | 1600 Watts |
| Corsair Link Support | Yes |
| Fan bearing technology | Fluid Dynamic Bearing |
| Fan size mm | 140mm |
| MTBF hours | 100,000 hours |
| Multi-GPU ready | YES |
| Power | 1600 Watts |
| 80 PLUS Efficiency | Titanium |
| PSU Form Factor | ATX |
| Zero RPM Mode | Yes |
| Cable Type | Low-Profile, All Black |
| Dimensions | 150mm x 86mm x 200mm |
| EPS Connector | 2 |
| Floppy Connector | 2 |
| Modular | Fully |
| PCI-E Connector | 8 |
| SATA Connector | 16 |
| Warranty | 10 Years |
| Note | ***Features, Price and specifications are subject to change without notice. |
