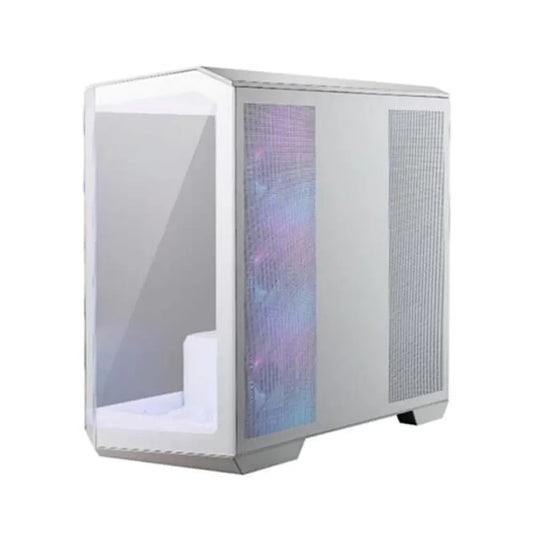

- MSI MAG PANO M100R PZ ARGB MATX Mid Tower Cabinet (White)
Description
Features Of MSI MAG PANO M100R PZ
A New Turning Point
The MSI MAG PANO M100R PZ MATX Cabinet comes with a 270-degree tempered glass panel paired with a Back-connect motherboard compatible, adding to the aesthetically pleasing and cleanliness of your PC build while enhancing its overall aesthetics and organization. MAG PANO M100R PZ offers spectacular ambient illumination with 3 x 120 mm Reverse-blade ARGB PWM intake fans and 1 x 120 mm ARGB PWM exhaust fan pre-installed.
Organize Easily
Supporting Back-connect motherboards not only simplifies the installation process but also makes it easy for cable management. Additionally, it prevents interfering with cables in front of the motherboard, keeping the interior of the case a lot cleaner.
The Velcro straps help to tie the cable easily.
Extensive Compatibility
Motherboard support: Micro-ATX (Back-connect and general motherboard compatible) and Mini-ITX (general motherboard compatible).
Component clearances:
- CPU Cooler height: 175 mm
- GPU Length: 390 mm
- PSU Length: Up to 200 mm
Storage options:
- 1 x 2.5″ SSD
- 1 x 2.5″/3.5″ SSD combo bay
Extensive Cooling Support
The MAG PANO M100R PZ ATX Cabinet WHITE pre-installed with 3 x 120 mm Reverse-blade ARGB PWM fans and 1 x 120 mm ARGB PWM fan, other fan cooling options include:
- Top: 3 x 120/2 x 140 mm fans
- Rear: 1 x 120/140 mm fan
- PSU shroud: 2 x 120 mm fans
- Bottom: 1 x 120 mm fan
1-to-4 ARGB-PWM Control Board
MSI Cabinet PANO M100R PZ has pre-installed 1-to-4 ARGB-PWM control board supports extra ARGB fan connections to the case. It supports intuitive control & lighting profiles through the LED switch button, and is also compatible with the Mystic Light utility via MSI motherboards.
1. 3-pin ARGB connector
2. 4-pin PWM connector
270-Degree Panoramic Display
This case features a 270-degree reinforced glass design, providing a panoramic view of the interior without obstructive metal at the corners, ensuring a seamless showcase of internal components.
Assemble for Cable Mangement
33mm cable routing space & pre-installed cable Velcro strips for easy to do cable management.
Multiple Inlets & Filters
The tool-free top removable design ensures effortless installation, while the bottom of this case features a magnetic dust filter for easy removal and cleaning.
Side I/O Connectivity
The side I/O panel features a USB 3.2 Gen 2×2 Type-C port for high-speed 20Gbps data bridging to compatible motherboards.
1. 1 x USB 3.2 Gen 2×2 Type-C (20Gbps)
2. 1 x USB 3.2 Gen 1 Type-A (5Gbps)
3. Mic in / Audio out
4. LED Switch Button
5. Power Button
Best cpu case with fan at affordable prices at Elitehubs!
Specifications Of MSI MAG PANO M100R PZ
| Model | MAG PANO M100R PZ |
| Color | White |
| Case Form Factor | Micro- ATX Tower |
| Motherboard Form Factor Support | M-ATX(Back-connect supported) / ITX |
| I/O Ports |
1 x USB 3.2 Gen 1 Type-A 1 x USB 3.2 Gen 2x2 Type-C 1 x Audio-Out / Mic-in 1 x LED Switch Button 1 x Power Button |
| Drive Mount Support |
1 x 2.5” 1 x 2.5”/3.5” combo (up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”) |
| Expansion Slots | 5 |
| Maximum GPU Length |
390 mm / 15.35 inches *Support horizontal installation only |
| Maximum CPU Cooler Height | 175 mm / 6.9 inches |
| Power Supply Support | ATX |
| Maximum PSU Length | 200 mm / 7.87 inches |
| Fan Size Support |
Top: 3 x 120 mm / 2 x 140 mm Front: NA Rear: 1 x 120 mm / 1 x 140 mm Side: 3 x 120 mm Bottom: 1 x 120 mm PSU Shroud: 2 x 120 mm |
| Pre-installed Fan Size |
Side: 3 x 120 mm Rear: 1 x 120 mm |
| Pre-installed Fan Type |
Side: 3 x ARGB Fan (Reverse-blade) Rear: 1 x ARGB Fan |
| Radiator Size Support |
Top: 120 / 240 / 360 mm Front: NA Rear: 120 / 140 mm Side: NA Bottom: NA |
| Dimensions (DxWxH) | 440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches |
| Connection |
1x USB 3.2 Gen 2x2 Type-C 1x USB 3.2 Gen 1 Type-A Mic In/ Audio Out LED Switch Button Power Button |
| Cooling Warranty | 1 Year |
| Note | *** Features, Price, Specifications are subject to change without notice. |
