- DEEPCOOL Gammaxx LE520 ARGB 240mm CPU Liquid Cooler (White)
Description
Features:
POWERFUL HEAT DISSIPATION

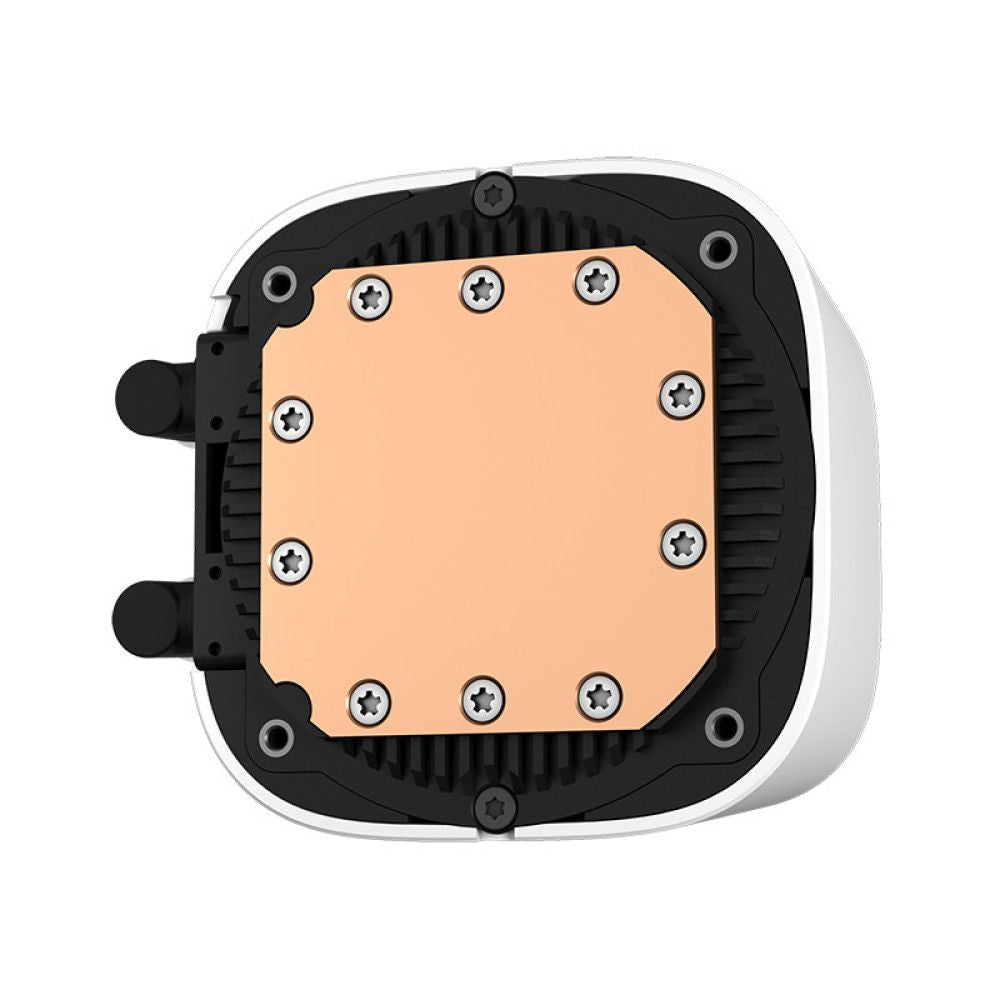

Thanks to an efficient micro-channel water block, thickened copper cold plate, and new high-performance ARGB fans, the LE520 achieves excellent heat dissipation of 220W TDP.
NEW SERIES DESIGN
The LE520 features a new series pump with rounded corners, a square shape, bright ARGB, and additional durability. The low pump height of 52mm provides excellent compatibility for various ITX cases.
HIGH-PERFORMANCE ARGB FANS
The included high-performance ARGB fans are vibrant, bright, and support various motherboard syncronizations. The fans provide maximum CFM and static pressure at higher RPMs while maintaining a quiet noise level of below 30dB at lower speeds.
Anti-leak Technology
The LE520 liquid cooler features DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.
Simple and Secure
The installation is simple and compatible with the latest mainstream Intel and AMD processors.
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Specifications:
Model Number | R-LE520-WHAMMN-G-1 |
Net Weight | 1238 g |
Radiator Dimensions | 282×120×27 mm(L×W×H) |
Radiator Material | Aluminum |
Tube length | 410 mm(L×W×H) |
Pump Dimensions | 91×80×52 mm(L×W×H) |
Pump Speed | 2400 RPM±10% |
Pump Noise | 17.8 dB(A) |
Pump Connector | 3-pin |
Pump Rated Voltage | 12 VDC |
Pump Rated Current | 0.2 A |
Pump Power Consumption | 2.4 W |
Fan Dimensions | 120×120×25 mm(L×W×H) |
Fan Speed | 500~2250RPM±10% |
Fan Airflow | 85.85 CFM |
Fan Air Pressure | 3.27 mmAq |
Fan Noise | ≤32.9 dB(A) |
Fan Connector | 4-pin PWM |
Bearing Type | Hydro Bearing |
Fan Rated Voltage | 12 VDC |
Fan Rated Current | 0.25 A |
Fan Power Consumption | 3.0 W |
LED Type | Addressable RGB LED |
LED Connector | 3-pin(+5V-D-G) |
LED Rated Voltage | 5 VDC |
LED Power Consumption | 2.25 W(PUMP)/ 2.1 W(FAN×2) |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
Reviews ( 0 )
Frequently asked questions
1. What's new in the DEEPCOOL LE520 ARGB?
Modern features of the DEEPCOOL LE520 ARGB include improved fan blades that create optimal airflow and static pressure together with an enhanced pump design for better coolant flow. The newer versions of this device incorporate updated radiator components that improve heat dissipation capabilities. Deepcool enhances the aesthetic appeal of pump housing units in their successive product releases. Users should review the product listing details to identify new features included in the DEEPCOOL LE520 ARGB.
2. What is the lifespan of DEEPCOOL LE520 ARGB?
The DEEPCOOL LE520 ARGB along with standard AIO liquid coolers has a designed operational period spanning multiple years. Users normally get about 5 years or longer from the product's operational lifespan. The longevity of the product depends on three main elements which include usage patterns as well as environmental exposure and maintenance quality. The lifespan of DEEPCOOL coolers depends on their durable design but external factors and regular use shorten the operational time of liquid cooling solutions.
3. What is the radiator size of the DEEPCOOL LE520 ARGB?
A 240mm radiator is integrated into the DEEPCOOL LE520 ARGB model. The 240mm radiator dimensions strike a perfect equilibrium between thermal efficiency and universal compatibility across different PC frame types. The 240mm radiator has space for two 120mm fans which optimizes cooling performance through maximum air circulation. The 240mm radiator size of this cooler suits mid-range to high-performance CPUs to provide efficient heat resistance during demanding usage and gaming scenarios.
4. Which socket does the DEEPCOOL LE520 ARGB have?
The DEEPCOOL LE520 ARGB features universal compatibility by supporting multiple Intel LGA 1700, 1200, 115x and AMD AM5 and AM4 processor sockets. This cooling device supports Intel LGA 1700, 1200, 115x in addition to AMD AM5 and AM4 sockets. The diverse compatibility range enables users to install this cooler with multiple modern central processing units thereby expanding their system building possibilities. These mounting components included in the package were designed to fit multiple computer platforms.
5. How long is the tube on the DEEPCOOL LE520 ARGB?
The tubes on the DEEPCOOL LE520 ARGB were built to provide enough length for users to install the cooler in different PC case arrangements. The design of the tubes allows users to achieve flexible installation of the AIO cooler. These tubes extend adequately to permit correct installation of the radiator at any position inside the case. Users achieve optimal radiator placement because this design allows for mounting the radiator in positions that maximize system airflow and component arrangement.
6. Does the DEEPCOOL LE520 ARGB Support the AMD Platform?
The DEEPCOOL LE520 ARGB functions with AMD platform devices that use AM5 as well as AM4 CPU sockets. The wide range of CPU support allows AMD users to achieve effective cooling with this product. The device comes with installation hardware designed to work with AMD motherboards which creates a dependable cooling solution for AMD-based PCs. The support system in this product enables it to work well with many different types of PC configurations.
7. Does the DEEPCOOL LE520 ARGB come in ARGB?
Addressable RGB (ARGB) lighting is included in the DEEPCOOL LE520 ARGB. The pump housing together with the fans receive lighting functionality which enables users to achieve detailed lighting effects through customization. Users who have compatible motherboards and software can synchronize the ARGB lighting to create their own customized dynamic lighting displays. The ARGB features add visual charm to the overall design of the cooler.
8. Does DEEPCOOL LE520 ARGB come in white color?
You should verify DEEPCOOL's current liquid cooler color options by checking both manufacturer websites and local retail stores. The LE520 ARGB model is typically sold in black but retailers may also offer it in white versions. Verifying particular product listings provides the necessary information to check available color options. Deepcool regularly produces white versions for most of their AIO cooling products.
9. Is DEEPCOOL LE520 ARGB good?
People commonly identify the DEEPCOOL LE520 ARGB as a solid AIO liquid cooler that delivers excellent value to users. The system provides efficient CPU cooling for mid-range processors with its 240mm radiator and ARGB fan technology. User feedback together with review analysis shows satisfactory performance combined with attractive looks in this product. Budget-conscious gamers along with PC enthusiasts choose this product because it combines performance capabilities with visual aesthetics.
10. Does DEEPCOOL LE520 ARGB come with thermal paste?
DEEPCOOL provides thermal paste on the CPU block of the LE520 ARGB before manufacturing. The product setup becomes straightforward because users receive all required materials needed for heat transfer performance immediately after purchase. The pre-installed thermal paste on this product ensures optimal thermal conductivity to maintain efficient heat transfer between CPU and cooler.
