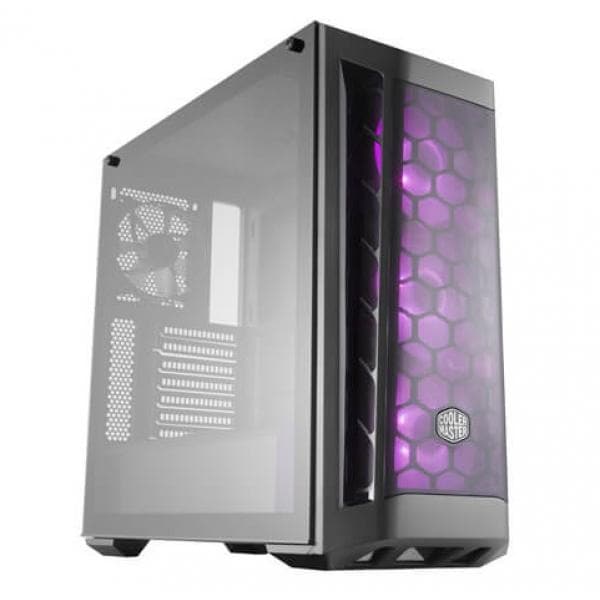

- COOLER MASTER MB511 RGB ATX Mid Tower Cabinet (Black)
Description
Features of COOLER MASTER MB511 RGB
COOLER MASTER MB511 (ATX) RGB MID TOWER computer cpu case offers an eye-catching design, dominated by its Black color scheme and RGB backlight. Although the Cooler Master MB511 is a Mid-tower computer cabinet, It can accommodate a large number of components. The main control panel, where the control and connection of the peripherals are located, is on the top of the case. The case has huge motherboard compatibility like ATX, mATX (Micro ATX), and mITX (Mini ITX) motherboard type in the Cooler Master MasterBox MB511. The mid-tower computer case is suitable for building eye-catching desktop PCs. It can accommodate modern components with effective cooling thanks to its mesh design and triple 120mm inbuilt fans.
The Cooler Master MasterBox MB511 ATX Cabinet contains 6 fan slots with the front 3 already accommodated with 3 120 RGB fans. Cooler Master MasterBox MB511 RGB Mesh Black has 6 slots for 2.5" SSDs and 2 3.5 inches HDDs making sure you never run out of space on your PC.The main control panel Of the MB511 allows you to connect USB 3,2 Gen 1 (USB 3,0), headphones, and microphone giving you one of the best I/O compatibility in the market. The power supply is located at the bottom of the case, where it is not affected by higher temperatures. Dust filters prevent the absorption of small unwanted particles into the cabinet.
- Mesh Front Panel : The mesh front panel offers efficient airflow for demanding systems
- Performance Intake : Large intakes on each side of the front panel pay tribute to high performance cars
- RGB LED Fans And Lighting Control : Three 120mm RGB LED fans in front are pre-installed to create an amazing lighting effect; One RGB controller is included in the accessory pack; If your motherboard does not support the RGB control function, you can connect the RESET button and control the RGB lighting directly from the I/O panel
- Excellent Thermal Performance : Optimized airflow due to the large intakes on each side of the front panel; Additional ventilation on the top panel adds thermal support
- Fan and Radiator Support :Front: Three 120mm or two 140mm fans and up to a 360mm radiator with a maximum thickness of 50mm without fans; Top: Two 120mm or two 140mm fans and supports a 120mm or a 240mm radiator./Rear: One 120mm fan or radiator. All to ensure you don’t have to compromise on performance
- SSD Bracket :Mount an extra SSD on the PSU shroud for more storage

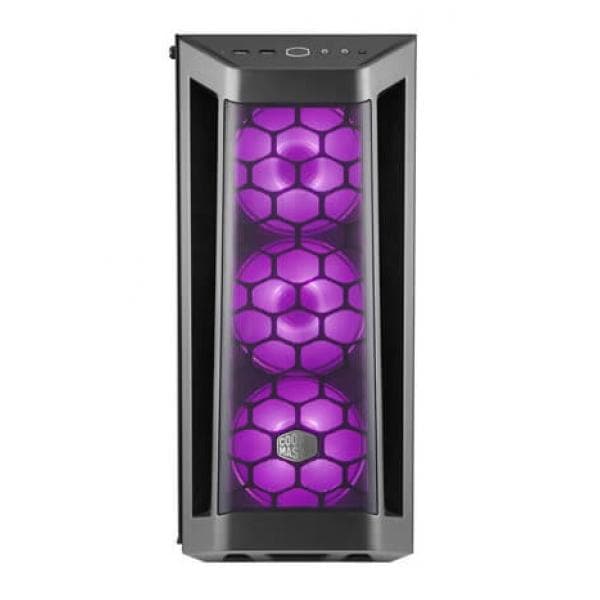

MESH FRONT PANEL
The mesh front panel of this cooler master cpu case offers efficient airflow for demanding systems.
PERFORMANCE INTAKE
Large intakes on each side of the front panel pay tribute to high performance cars.

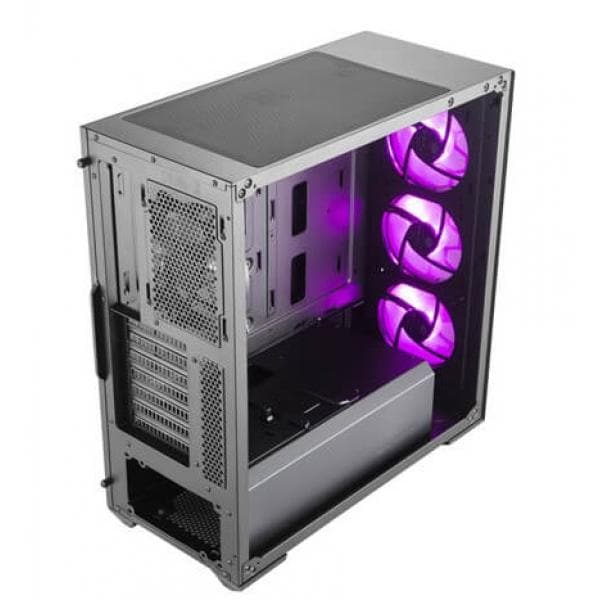

RGB LED FANS AND LIGHTING CONTROL
Three 120mm RGB LED fans in front are pre-installed to create an amazing lighting effect.
One RGB controller is included in the accessory pack. If your motherboard does not support the RGB control function, you can connect the RESET button and control the RGB lighting directly from the I/O panel.
FAN AND RADIATOR SUPPORT
Front: Three 120mm or two 140mm* fans and up to a 360mm radiator with a maximum thickness of 50mm without fans.
Top: Two 120mm or two 140mm fans and supports a 120mm or a 240mm radiator.
Rear: One 120mm fan or radiator. All to ensure you don’t have to compromise on performance.

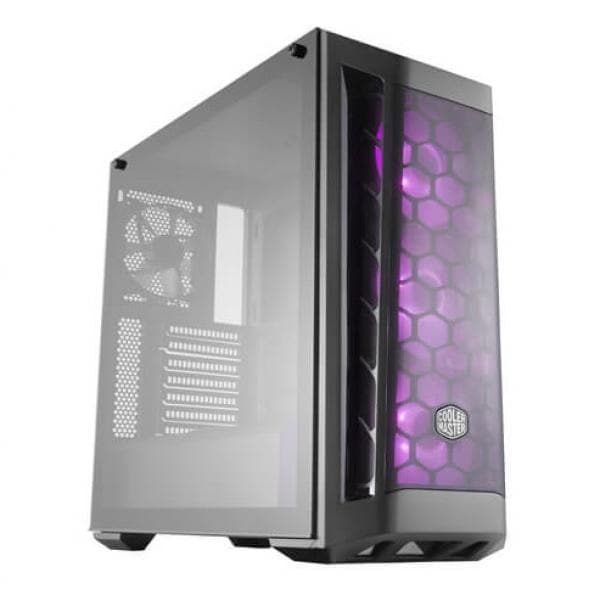

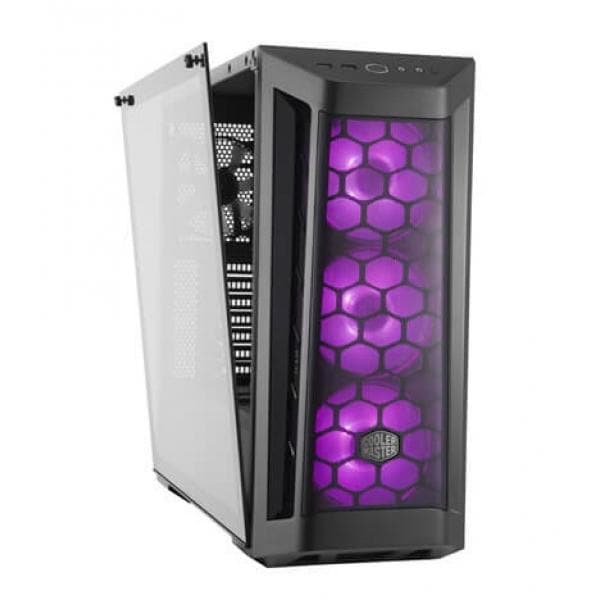

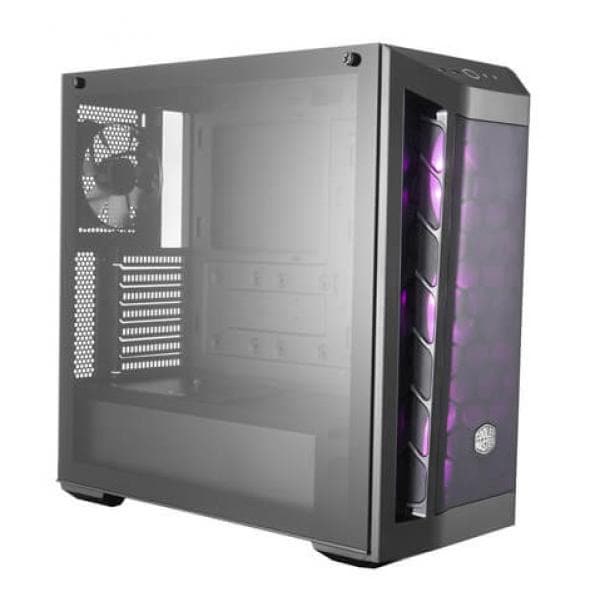

EDGE-TO-EDGE TEMPERED GLASS SIDE PANEL
Showcase your build and system lighting effect through the 4mm-thick tempered glass side panel. The side panel bracket hinges on an angle during removal, while two “captive” screws are held in place with rubber so they are not misplaced.
SSD BRACKET
Mount an extra SSD on the PSU shroud for more storage.
EXPANDING THE POSSIBILITIES

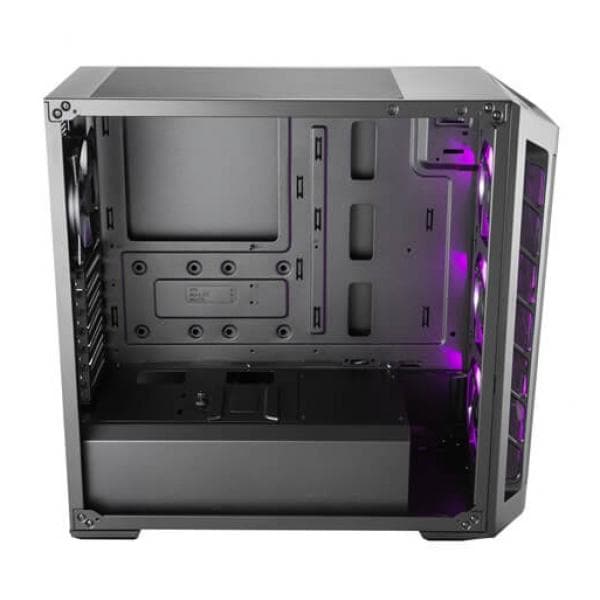

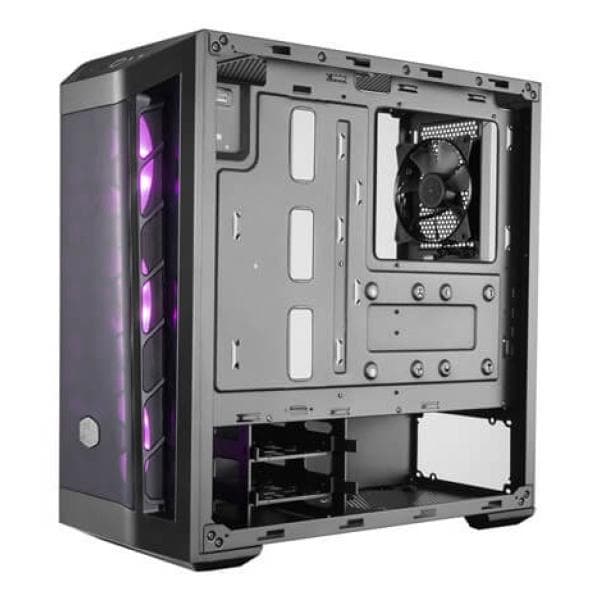

The spacious interior fits all standard motherboards for your gaming needs.
MAIN COMPONENTS CLEARANCE
The MB511 RGB case supports CPU Coolers up to a height of 165mm, Graphic Cards up to a length of 410mm and Power Supplies up to a length of 180mm.
Specifications of COOLER MASTER MB511 RGB
| Product Name | MasterBox MB511 RGB |
| Model number | MCB-B511D-KGNN-RGB |
| Available Color | Black |
| Materials | Steel, Plastic, Tempered glass |
| Dimensions | 496(L) x 217(W) x 469(H) mm |
| Motherboard Support | ATX (up to 272mm width), Micro-ATX, Mini-ITX |
| Expansion Slots | 7 |
| 5.25" Drive Bays | No |
| Combo 3.5"/2.5" Drive Bays | 2 (Max. 2) |
| SSD Drive Bays | 5 (Max. 6) |
| I/O Panel | USB 3.0 x 2, Audio In / Out |
| RGB Control |
RGB controller included 1 to 3 RGB splitter cable included |
| Pre-installed Fan(s) |
Front: 120mm RGB Fan x 3 Rear: 120mm x 1 |
| Fan Support |
Top: 120mm x 2 / 140mm x 2 Front: 120mm x 3 / 140mm x 2 (can only mount behind the front plate) Rear: 120mm x 1 |
| Radiator Support |
Front: 120 / 140 / 240 / 280 / 360mm radiator. (75mm clearance) Top: 120 / 240mm Rear: 120mm |
| Clearances |
CPU Cooler: 165mm / 6.49" PSU: 180mm / 7.08" Graphics card: 410mm / 16.10" |
| Cable Routing | Behind MB Tray: 19mm / 0.74" |
| Dust Filters | Front, Top, Bottom |
| Power Supply Support | Bottom mount, ATX |
