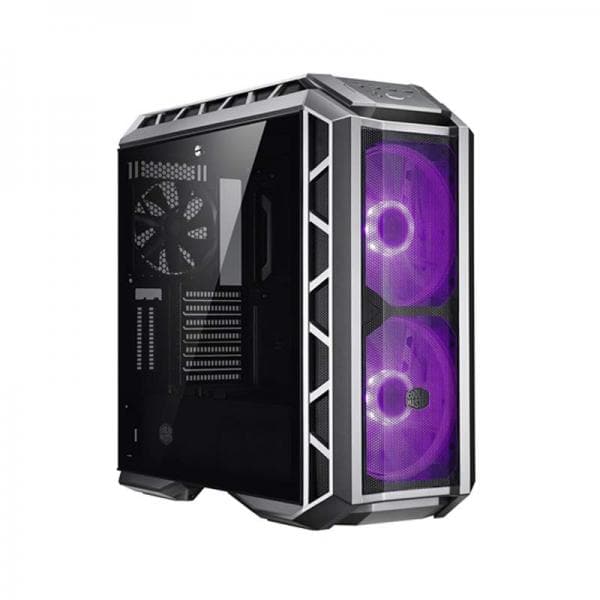

- COOLER MASTER MasterCase H500P Mesh EATX Mid Tower Cabinet (Black)
Description
Features of COOLER MASTER MasterCase H500P Mesh
Equal parts refined, rugged, & ruthless.
Every serious gaming system requires a substantial amount of airflow. Not just for freshly built rigs, but also for upgrading hardware in the future. The COOLER MASTER MasterCase H500P Mesh was engineered for exactly that. Now, with dual 200mm RGB fans, premium addressable lighting comes pre-installed—one upgrade checked off.
Mesh spans the entire front to provide an unrestricted pathway for air, fed to the two massive fans behind the panel. Whether extreme water-cooling or air-cooling is the preferred method, the MasterCase H500P Mesh delivers versatility, performance, and customizability with RGB lighting to boot.
Dual 200mm RGB Fans
The iconic, addressable RGB fans are the core of the H-Series in design and function, capable of operating quietly while moving high volumes of air due to their size.

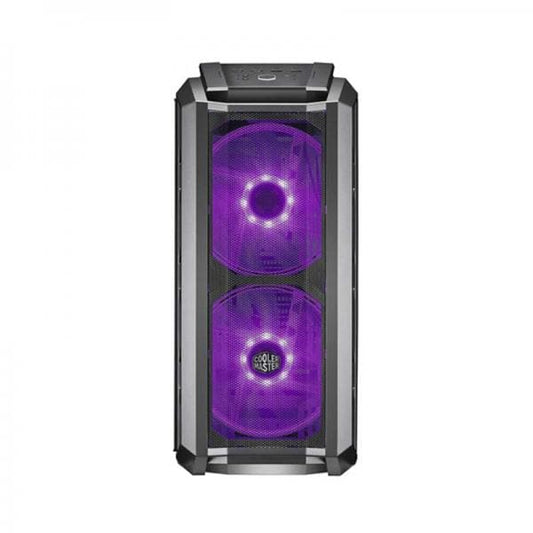

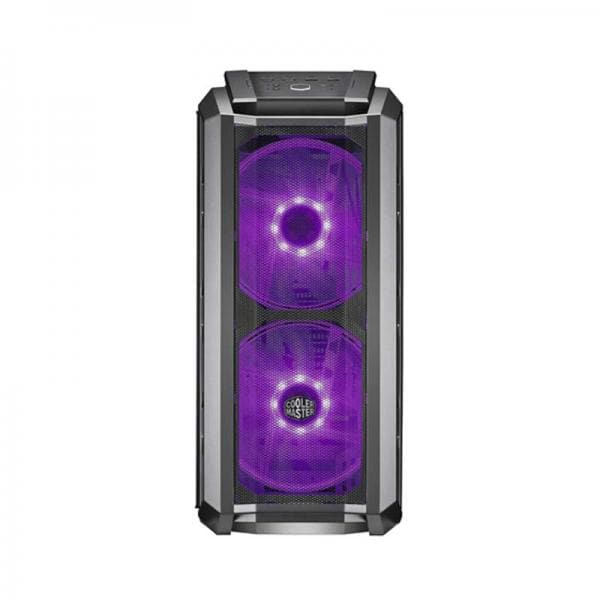

Mesh Front Panel
Two layers of mesh make up the entire front panel to maximize airflow. A finer layer filters out dust while the steel mesh reinforces its structure.
Build By Design
Transparent panels and a tempered glass side panel flaunt the hardware & fans, while the cable covers, PSU shroud, and cable management space hide the clutter.
RGB Lighting System
The pre-installed RGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive RGB lighting system.

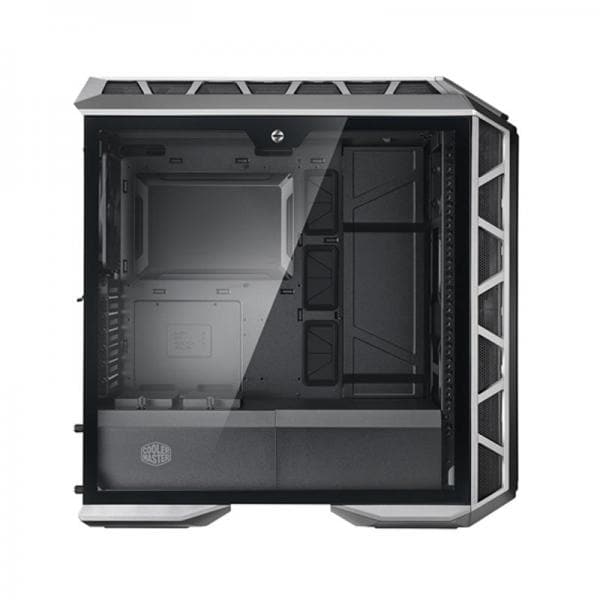

Tempered Glass Side Panel
Gaming hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
RGB Controller
The small RGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard.
The controller comes with 14 lighting presets to make full use of the Addressable LEDs in the system and also allows to be completely switched off by long pressing its button.
It is also possible to attach any external 2pin button to it to be able to switch presets without having to open the system. For ease of use, Cooler Master allows the RESET button to be optionally connected to the controller and used as an external RGB preset switch
Specifications of COOLER MASTER MasterCase H500P Mesh
Model Number | MCM-H500P-MGNN-S11 |
Series | MasterCase Series |
Size | Mid Tower |
Materials | Steel, Plastic, Tempered Glass, Mesh |
Motherboard Support | Mini ITX, Micro ATX, ATX, E-ATX*, (*support for up to 12" x 10.7", will limit cable management features) |
Expansion Slots | 7+2, (Supports vertical graphics card installation) |
5.25" Drive Bays | N/A |
2.5" / 3.5" Drive Bays (combo) | 2 |
2.5" Drive Bays | 2 (Max.4) |

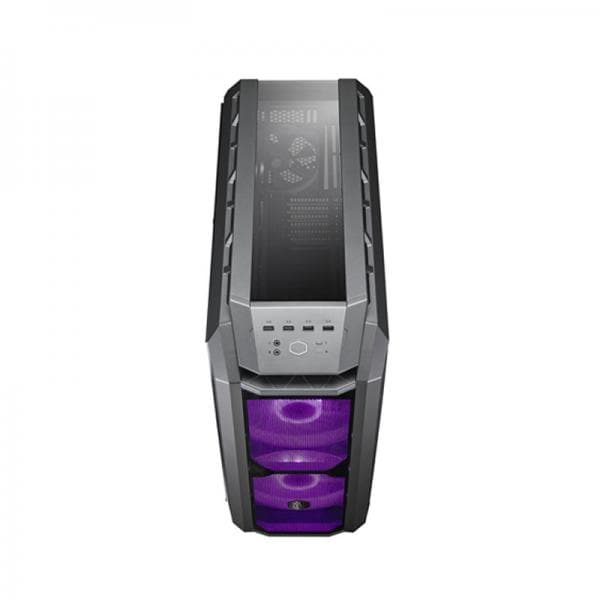

I/O Panel | 2x USB 3.2 Gen 1 (formerly USB 3.0), 2x USB 2.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x RGB Controller, 1x RGB 2-to-3 splitter |
Pre-installed Fans - Front | 2x 200mm RGB Fan |
Pre-installed Fans - Rear | 1x 140mm, 1200RPM |
Fan Support - Top | 3x 120/140mm, 2x 200mm |
Fan Support - Front | 3x 120/140mm, 2x 200mm |
Fan Support - Rear | 1x 120/140mm |
Radiator Support - Top | 120mm, 140mm, 240mm, 280mm, 360mm |
Radiator Support - Front | 120mm, 140mm, 240mm, 280mm, 360mm |
Radiator Support - Rear | 120mm, 140mm |
Clearance - CPU Cooler | 190mm |
Clearance - PSU | 220mm |
Clearance - GFX | 412mm/16.2" |
Dust Filters | Top, Front, Bottom |
Power Supply Support | Bottom mount, ATX |
Dimensions (L x W x H) | 544 x 242 x 542mm / 21.4 x 9.5 x 21.3 inch |
Weight | 11.3 kg |
Available Color(s) | Gun Metal Grey |
Warranty | 2 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
