- COOLER MASTER Vertical Graphics Card Holder Kit V3 - PCIe 4.0 Riser Cable For E-ATX Cabinet (Black)
Description

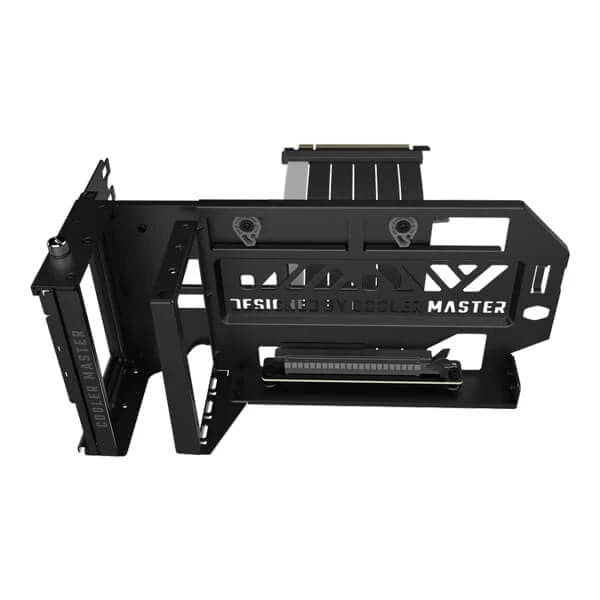

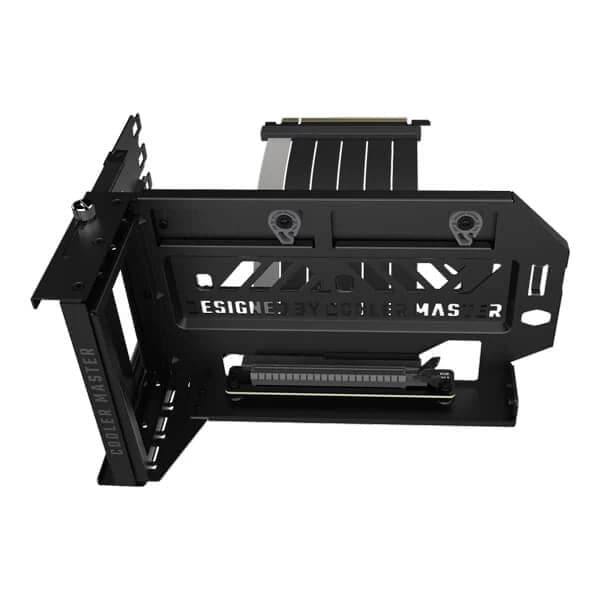

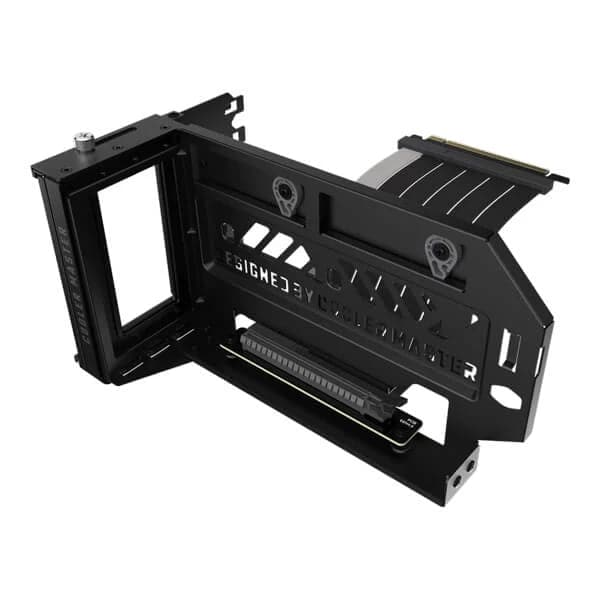

Features of Cooler Master Vertical Graphics Card Holder Kit V3 (Black):
Supporting cases ranging in size from m-ATX to ATX, and featuring a removable adjustable GPU bracket, this remastered design allows unprecedented compatibility with various builds and setups. A PCIe 4.0 riser cable is included to assist the installation process and ensure high efficiency at uncompromised speeds.

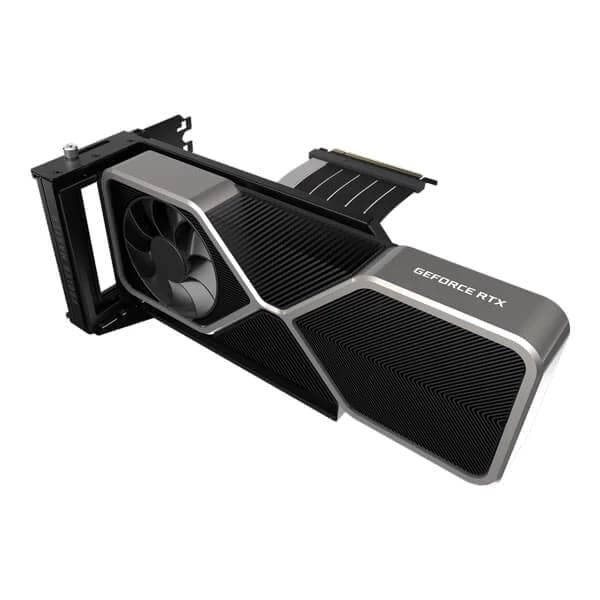

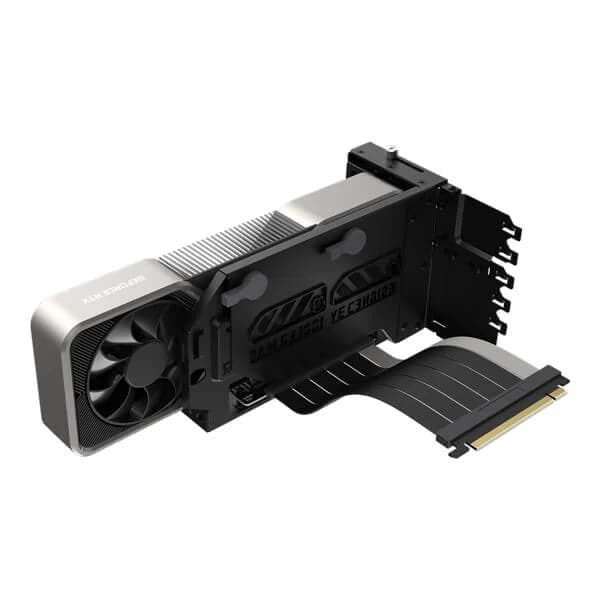

Effortlessly Showcase Your Graphics Card
Bring the best out of your components by showing off your GPU.
Installation in a m-ATX Case
When installing the Cooler Master Vertical Graphics Card Holder Kit V3 (Black) in a m-ATX case users may need to remove the rear case fan for additional clearance.
It is also necessary to use low profiles CPU air-coolers, all-in-one liquid coolers, or custom water cooling loops to guarantee optimal clearances between components.
Compatible with all Standard ATX Chassis
The newly revised Cooler Master Vertical Graphics Card Holder Kit V3 (Black) fits all standard ATX chassis, now providing even more options for adjusting graphics card position.
X Axis Adjustability
Toollessly adjustable up to 65mm horizontally...
Z Axis Adjustability
...as well as up to 30mm towards the side panel.
Intuitive Installation Process
The modular design allows GPUs to placed in the system after the holder has been fixed in a preferred layout.
Specifications of Cooler Master Vertical Graphics Card Holder Kit V3 (Black):
| Model Number | Cooler Master Vertical Graphics Card Holder Kit V3 (Black) (MCA-U000R-KFVK03) |
| Color | Black |
| Dimensions (L x W x H) | GFX Holder kit: 249 x 148.1 x 141.8 mm (close size), GFX Holder kit: 305 x 178.1 x 141.8 mm (open size), Riser cable: 165mm (6.49in) |
| Supported Chassis Type | E-ATX, ATX, Micro ATX (may interfere with component installation on the rear panel. Max. CPU cooler height limited to 70mm.) |
| Supported Graphics Cards | Any length, up to 3 slots wide |
| Riser Cable Model | Riser Cable PCIe 4.0 x16 |
| Compatibility | PCIe 4.0 and older |
| CE Certifications Number | BKC210933AC |
| PCB / Wire UL Numbers | E1895721 / E252840 |
| Component Materials | PCBA, Silver Plated Copper Wire 30 AWG |
| Insulation Materials | PE, TPE |
| Other Materials | ABS, PP, SGCC Steel, Nickel, Gold, Brass |
| Connectors | PCIe x16 Male to PCIe x16 90° Female |
| Rated Working Voltage and Current | DC 12V / 5A |
| Operating Temperature | -20° to +100° Celsius |
| Required PCI slots | Minimum 4 PCI slots required for mounting |
| Weight | 0.81 kg |
| Warranty | 2 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
