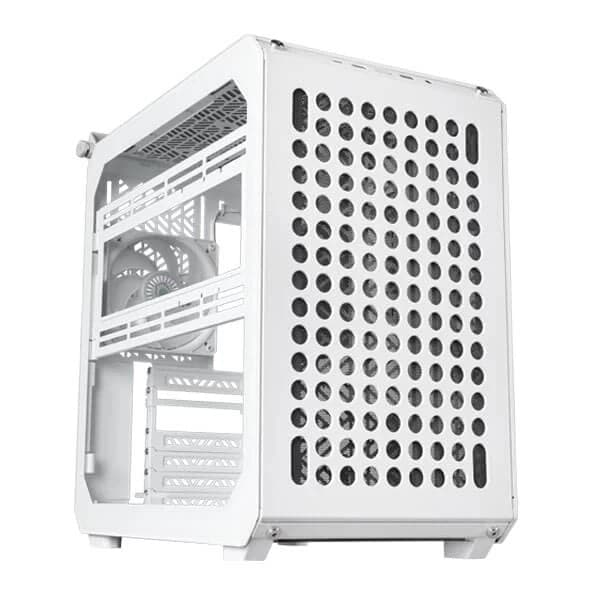

- COOLER MASTER Qube 500 Flatpack Mesh EATX Mid Tower Cabinet (White)
Description
Features of Cooler Master Qube 500 Flatpack Mesh EATX Mid Tower Cabinet (White):
DIY for everyone
An efficient and eco-friendly flat pack design allows for a fun and flexible build experience that both beginners and long-time builders can enjoy.
Build as you unbox
From the moment you open the box, the build begins with fun and easy step-by-step instructions.
Highly customizable
An unprecedented level of customizability allows full creative expression.
Fully modular
Features modular panels that simplify and streamline the usual case prep process. Every panel is separately removable for easy maintenance.
Full-sized specs, pint-sized body
Despite its compact size at 33L, the Cooler Master Qube 500 Flatpack Mesh EATX Mid Tower Cabinet (White can house almost anything you would expect from a larger case, from EATX Motherboards and the latest GPUs to dual 280mm radiators.
Color your way
Fully express yourself with the multi-color Macaron edition. It includes two sets of extra panels, an extra handlebar and two accessory hooks. Because all the panels are modular you can create 3 different color cases or mix and match.
Built-in vertical GPU mount
Vertically mount your GPU with the included bracket. You can even adjust the distance from the side panel to maintain good airflow.
Modular design
Modularity permeates the whole design of the Cooler Master Qube 500 Flatpack Mesh EATX Mid Tower Cabinet (White. The outer panels can be exchanged or placed at the bottom of the case, the handlebar can be mounted on any of the corners, and you can even use the case in mirror or testbench mode.
Great specs
Despite its small size the Cooler Master Qube 500 Flatpack Mesh EATX Mid Tower Cabinet (White) can house up to an EATX motherboard, two 280mm radiators, up to 8 120mm fans, and is compatible with latest GPUs.
Customize and personalize
The GEM mini cable manager and accessory hook (macaron edition only) will allow will allow you to customize the QUBE 500 to your liking, but don’t stop there. Really let your creativity loose with 3D-printed, community-driven designs!
Specifications of Cooler Master Qube 500 Flatpack Mesh EATX Mid Tower Cabinet (White):
Product Name | Cooler Master Qube 500 Flatpack Mesh EATX Mid Tower Cabinet (White) |
Product Number | Q500-WGNN-S00 |
Exterior Color | White |
Materials |
Exterior :Steel, Plastic, TG Left Side Panel :Grey TG + Steel |
Dimensions (L x W x H) |
Incl. Protrusions :406 x 231 x 415mm excl. Protrusions :380 x 231 x 381mm |
Volume (Liters Excl. Protrusions) | 33.44 L |
Motherboard Support | ITX / Micro ATX / ATX / E-ATX (Width up to 296mm w/ SFX PSU, up to 273 w/ ATX PSU) |
Expansion Slots | 7 |
Drive Bays |
3.5” HDD :Max. 4x 3.5” HDD 2.5” SSD:Max. 3x 2.5” SSD |
I/O Panel |
USB Ports:2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 x 2 Type C Audio In / Out: 3.5mm Combo x 1 |
Pre-installed Fan(s) |
Rear:120mm x 1 (1800 rpm) SF White PWM |
Fan Support |
Front:120/140mm x 1 (x2 if PSU is mounted in bottom) Top: 120/140mm x 2 Rear: 120mm x 1 Bottom :120/140mm x 2 Left side:120/140mm x 2 |
Radiator Support |
Front:120/140 mm (240/280mm w/ PSU in bottom) Top : 120/140/240/280mm (280mm can be used within 53mm thickness) Rear: 120mm Bottom:120/140/240/280mm Left side:120/140/240/280mm |
Clearances |
CPU Cooler:164mm~172mm (Remove the water cooling bracket) Power Supply(length):173mm to first GPU slot, 216 maximum space (w/o cable management space) 332mm space mounted in bottom (w/o cable management space) Graphics Card:365mm |
Cable Routing space | Behind MB Tray:29~32mm |
Handle | Grey x 1 |
Gem Mini | Grey x 1 |
Dust Filters | Front, Top, Bottom, Right side |
Power Supply Support | SFX / SFX-L / ATX |
Warranty | 2 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
