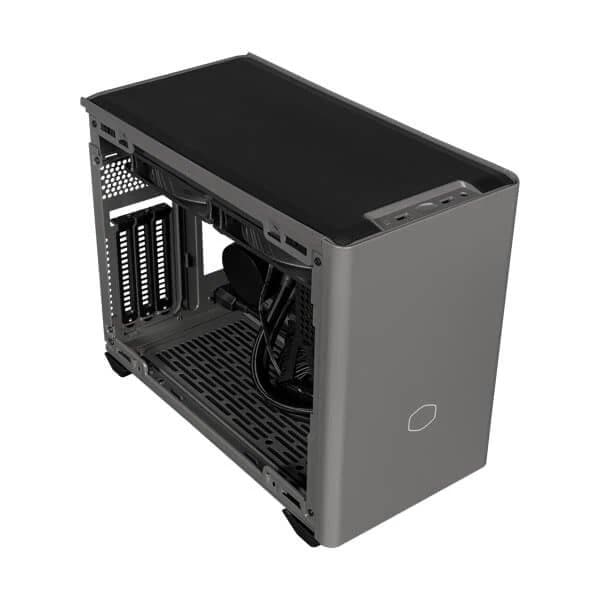

- COOLER MASTER NR200P MAX ITX Mini Tower Cabinet (Black)
Description
Features of COOLER MASTER NR200P MAX
COOLER MASTER NR200P MAX mini pc cabinet debuts Cooler Master’s new MAX Series. Designed with our thermal, power delivery and mechanical design expertise...
SFF Building Just Got Easier
The First of Cooler Master’s MAX Series; Cooler Master’s Expertise at Its Finest; SFF Building Refined Luxurious Out-of-the-Box Solution.
STREAMLINE YOUR BUILD EXPERIENCE

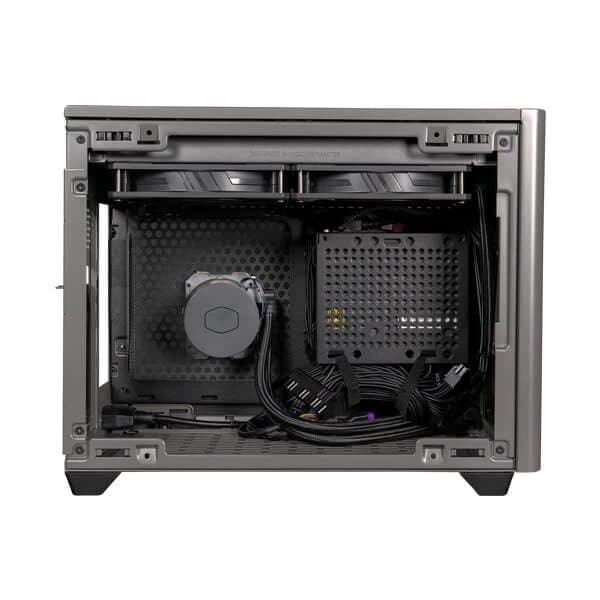

The pre-installed, pre-routed power supply and CPU-cooler
allows for ease of building and optimal cable & tubing management.
Install a motherboard, HDDs and finish off with a GPU:
No hassle, no routing. Stow away excess cables and you’re good to go.
PATENTED QUICK INSTALL GPU PANEL
This exclusive, removable GPU panel design simplifies the process
of mounting large GPUs in SFF chassis, enabling greater hardware
support and hands-free installation.

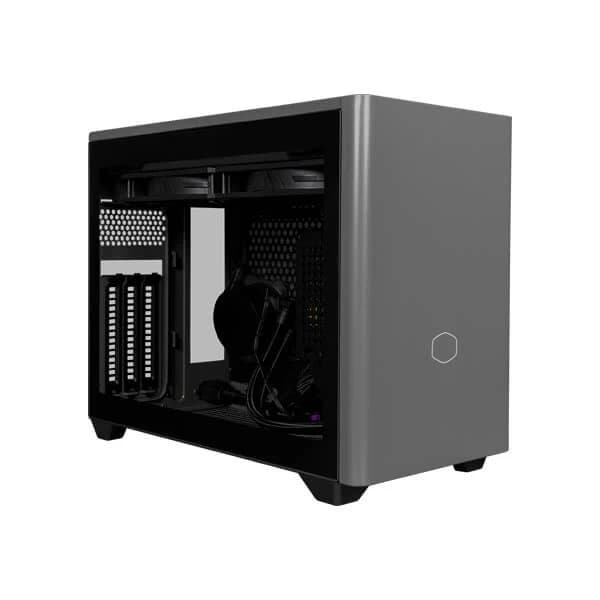

Tempered Glass and Ventilated Steel Left Side Panel Options
NR200P MAX offers users multiple options to customize the appearance and performance of the system. The included ventilated steel panel is ideal for keeping power hungry builds cool and running efficiently, while the edge-to-edge tempered glass panel provides a premium aesthetic.
Tailor-Made Premium Cooling And Power Delivery
Next gen systems are becoming more and more power hungry and to power it all, NR200P MAX implements a 850W Gold certified PSU with custom length textured cables specifically designed to cover all performance needs.
A 280mm radiator, two pre-installed SickleFlow PWM 140mm fans, and a highly acclaimed 3rd gen Cooler Master pump/CPU block provides reliable cooling for the CPU. AMD sockets up to AM4 and Intel sockets up to LGA1700 are fully supported.
Triple-Slot Gpu Support
NR200P MAX supports high performance triple-slot GPUs up to 336mm in length and 140mm in height, four 6+2 pin power cables included. The chassis has been specifically designed for a vertically mounted GPU to ensure powerful performance.
Versatile Hard Drive Support
NR200P MAX provides three dedicated 2.5” hard drive mounting locations. For extra storage, two optional 3.5” hard drive mounting locations may be available depending on hardware configuration.
PREMIUM PCIE GEN4 RISER CABLE INCLUDED
NR200P MAX comes equipped with a premium shielded PCIe Gen4 Riser Cable to ensure both maximum compatibility and performance with all graphics cards.
EASILY ACCESSIBLE M.2 DRIVES
The motherboard tray is designed for unrestricted access to any m.2 drives installed behind the motherboard. The ventilated paneling ensures that m.2 storage drives installed in this location runs cool and reliably.
360° ACCESSIBILITY
All exterior panels can be removed for component installation and cable management. The frame may also be disassembled for advanced access and freedom of customization in building complex systems.
Cooling Efficiency Beyond Compare
NR200P MAX’s built-in 280mm radiator boasts unmatched cooling efficiency owing to a 25% increase in aluminum fin surface area.
Compatible with a wide variety of Intel and AMD sockets (all brackets included), the AIO’s upgraded Gen3 dual-chamber pump is bound to keep any CPU running at optimum performance. Included Sickleflow 140 Non-LED fans utilize a two-tier sealing mechanism to prevent dust accumulation, resulting in longer serviceable life span and silent performance.
Performance Unbounded
This cooler master cpu case have pre-installed, 80 Plus Gold efficiency PSU features 16AWG PCIe full-modular, high efficiency cables tailor-made to allow ease of installation without the hassle of cable management. Tailor-made to a small form factor, this PSU allows clearance for the largest, widest graphics cards while making the most of NR200P MAX’s 18 liter chassis.
Specifications of COOLER MASTER NR200P MAX
| Product Number | NR200P-MCNN85-SL0 |
| Exterior Color | Black / Grey |
| Materials – Exterior | SGCC Steel, Mesh, ABS Plastic |
| Materials – Left Side Panel | Tempered Glass x1, Steel x1 |
| Dimensions (L x W x H) |
377 x 185 x 292mm (incl. Protrusions), 361 x 185 x 274mm (excl. Protrusions) |
| Volume | 18.30L |
| Motherboard Support | Mini-ITX, Max. size: 170 x 180mm |
| Expansion Slots | 3 |
| Drive Bays – 5.25″ ODD | 0 |
| Drive Bays – 3.5″ HDD | 1 (Max. 2) |
| Drive Bays – 3.5″ / 2.5″ Combo | 1 |
| Drive Bays – 2.5″ SSD | 2 (Max. 3) |
| I/O Panel | 2 x USB 3.2 Gen 1 (USB 3.0), 1x 3.5mm Headset Jack (Audio + Mic) |

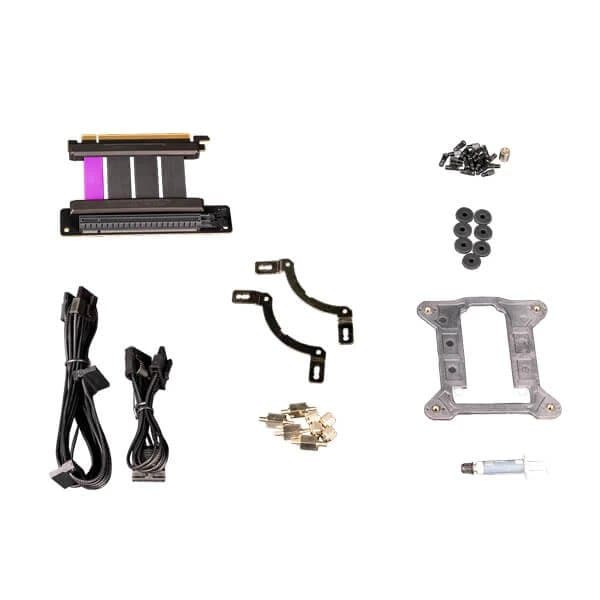

| Included Accessories | 1x MasterAccessory Riser Cable PCIe 4.0 x16 – 50mm |
| Included CPU Cooling Solution |
280mm radiator, 2 x 140mm SickleFlow PWM, Gen 3 Cooler Master Pump / CPU Block
|
| Included Power Supply Unit | V850 SFX GOLD 850 Watt |
| Fan Support – Top | 2 x 120mm / 2 x 140mm |
| Fan Support – Bottom |
1 x 120mm (max 15mm, with 3.5″ HDD at the bottom), 2 x 120mm (max 15mm, w/o 3.5″ HDD at the bottom)
|
| Radiator Support – Top | 240mm / 280mm |
| Clearances – CPU Cooler | 67mm |
| Clearances – Power Supply | 130mm |
| Clearances – Graphics Card |
L: 336mm (incl. power connector) , H: 160mm (incl. power connector) , W: 75mm (triple slot)
|
| Dust Filters | Bottom, Left, Right, Top Panels |
| Power Supply Support | SFX, SFX-L |
| Size | Mini ITX |
| Warranty | 2 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice.
|
