- COOLER MASTER MWE 1250W V2 80+ Gold Fully Modular ATX 3.0 Power Supply
Description
Features of Cooler Master MWE 1250W V2 80+ Gold Fully Modular ATX 3.0 Power Supply:

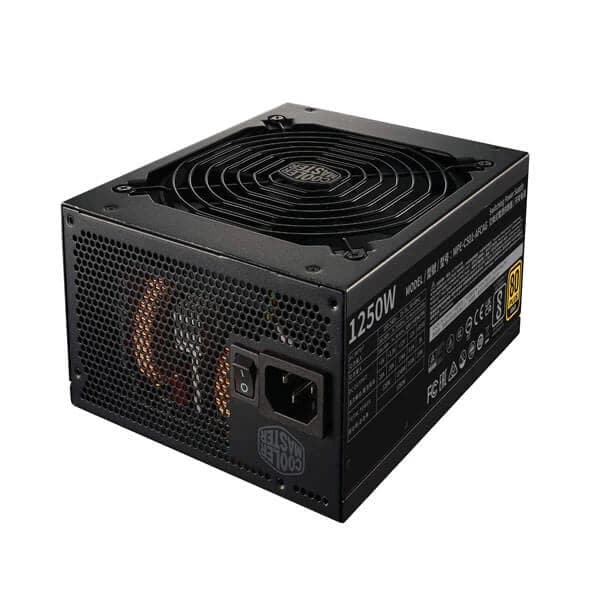

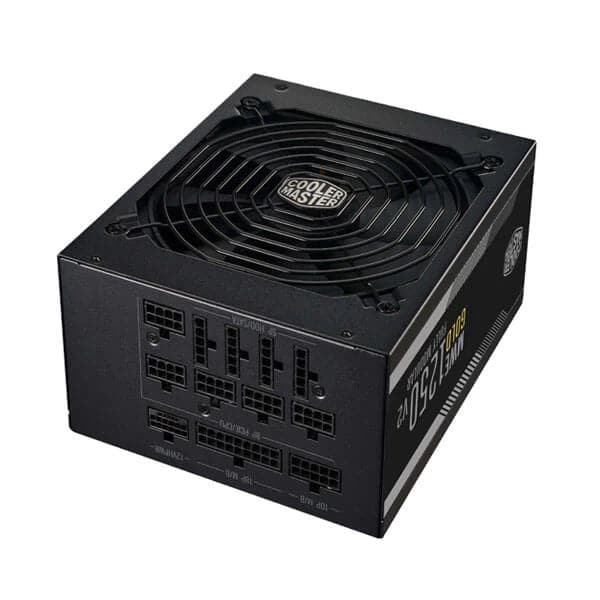

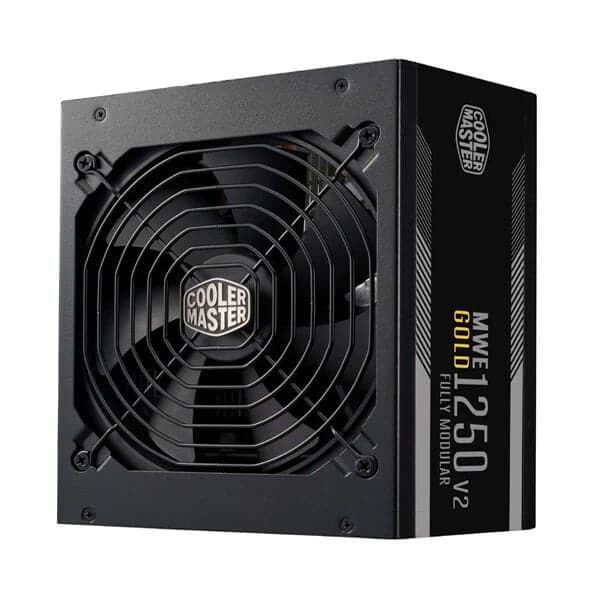

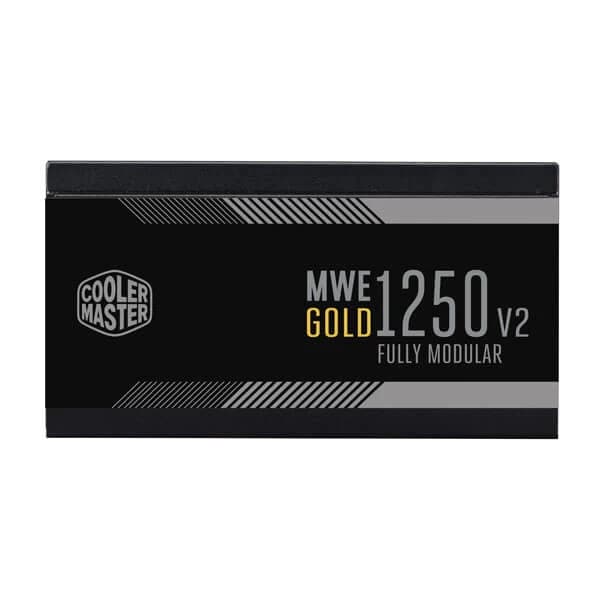

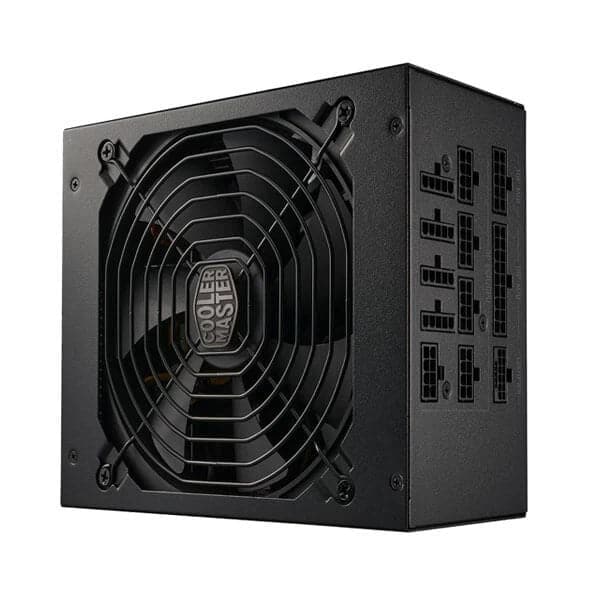

Cooler Master MWE 1250W V2 80+ Gold Fully Modular ATX 3.0 Power Supply brings optimal performance for a classic configuration. The Cooler Master MWE 1250W V2 80+ Gold Fully Modular ATX 3.0 Power Supply power supply features virtue of 80 PLUS Gold efficiency, fully modular cabling, and a 140mm silent fan, fully support ATX3.0 with 600W 12VHPWR connectors. Together, Cooler Master provides the power supply complete with high efficiency and reliability to improve your PC experience.
-
Highly Efficient Performance : The 80 PLUS Gold certification
guarantees a minimum efficiency of 90%. -
140mm FDB Fan : MWE Gold 1250 – V2 has delivered to a premium
high air flow and long life bearing fan, offering more effective cooling
performance. -
Fully support ATX3.0 : 12VHPWR connector with a compact 12+4 pin
cable can pump up to 600W of power to a GPU via a single cable. -

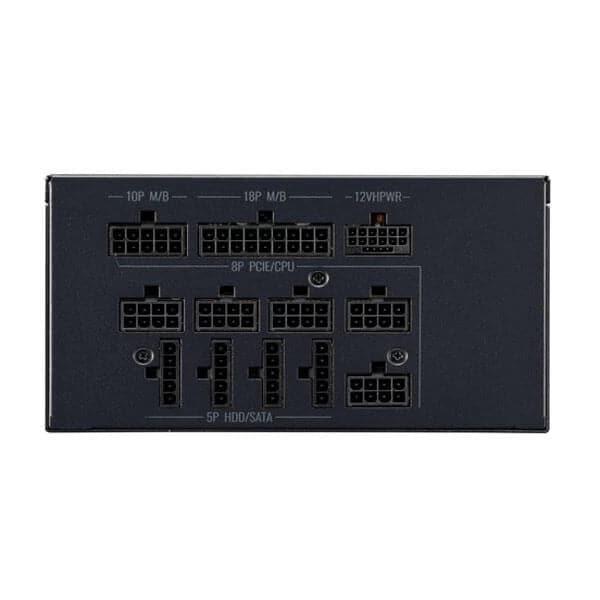

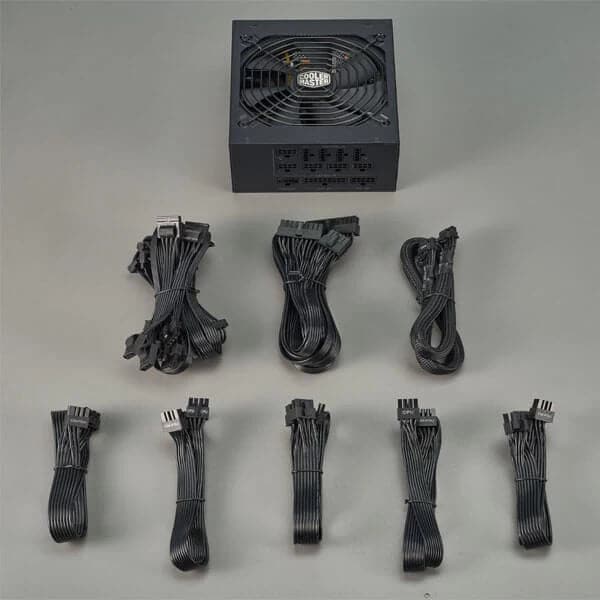

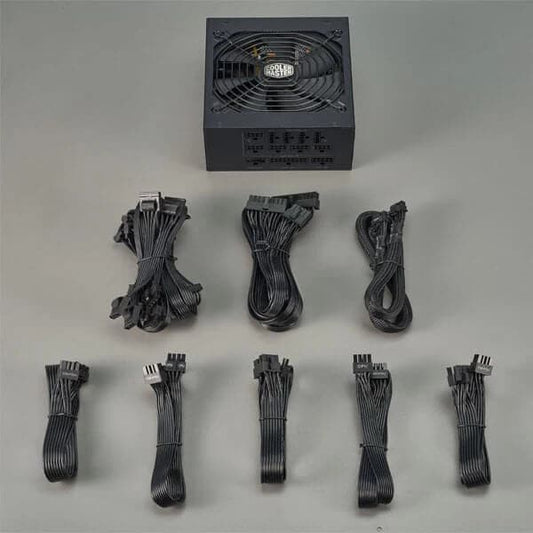

Fully Modular Cabling : Cooler Master MWE 1250W V2 80+ Gold Fully Modular ATX 3.0 Power Supply comes with fully modular flat,
black cables for increased airflow. -
10 Year Warranty : Cooler Master MWE 1250W V2 80+ Gold Fully Modular ATX 3.0 Power Supply model comes with a 10 year
factory warranty from purchase date.
Specifications of Cooler Master MWE 1250W V2 80+ Gold Fully Modular ATX 3.0 Power Supply:
Product Name | Cooler Master MWE 1250W V2 80+ Gold Fully Modular ATX 3.0 Power Supply |
ATX3.0 | |
Item Code | MPE-C501-AFCAG-3 |
ATX Version | ATX Rev. 3.0 |
PFC | Active PFC |
Input Voltage | 100 - 240V |
Input Current | 13 - 6A |
Input Frequency | 50 - 60Hz |
Dimensions (L x W x H) | 180 x 150 x 86mm |
Fan Size | 140mm |
Fan Bearing | FDB |
Efficiency | ≥ 90% @ Typical Load |
80 PLUS Rating | 80 PLUS Gold |
ErP 2014 Lot 3 | Yes |
Operating Temperature | 0 - 50°C |
Power Good Signal | 100 - 150 ms |
Hold Up Time | ≥ 16ms at 100% Load |
MTBF | 100,000 hours"}">>100,000 hours |
Protections |
OVP / OPP / SCP / OCP / UVP / OTP / Inrush Protection |
Regulatory |
TUV,cTUVus,CE,FCC,BSMI,CCC, EAC,RCM,UKCA,BIS |
Connectors: ATX 24 Pin | x1 = 1x (650mm) |
EPS 4+4 Pin | x1 = 1x (650mm) |
EPS 8 Pin | x1 = 1x (650mm) |
SATA | x12 = 3x (500+120+120+120mm) |
Peripheral 4 Pin | x4 = 1x (500+120+120+120mm) |
PCI-e 6+2 Pin | x3 = 3x (550mm) |
12VHPWR | x1 = 1x (650mm) |
AC Input | 100 - 240V` 13 - 6A 50 - 60Hz | ||||
DC Output
|
+3.3 V | +5V | +12V | -12V | +5Vsb |
20A | 20A | 104A | 0.3A | 3A | |
Total Power
|
120W | 1248W | 3.6W | 15W | |
1250W |
