- COOLER MASTER MWE 1050W V2 80 Plus Gold Fully Modular ATX 3.0 Power Supply
Description
Features of Cooler Master MWE 1050W V2 80 Plus Gold Fully Modular ATX 3.0 Power Supply:
Cooler Master MWE 1050W V2 80 Plus Gold Fully Modular ATX 3.0 Power Supply brings optimal performance for a classic configuration. The MWE Gold 1050/1250 -V2 power supply features virtue of 80 PLUS Gold efficiency, fully modular cabling, and a 140mm silent fan, fully support ATX3.0 with 600W 12VHPWR connectors. Together, Cooler Master provides the power supply complete with high efficiency and reliability to improve your PC experience.
Highly Efficient Performance : The 80 PLUS Gold certification of Cooler Master MWE 1050W V2 80+ Gold Fully Modular ATX 3.0 Power Supply guarantees a minimum efficiency of 90%.

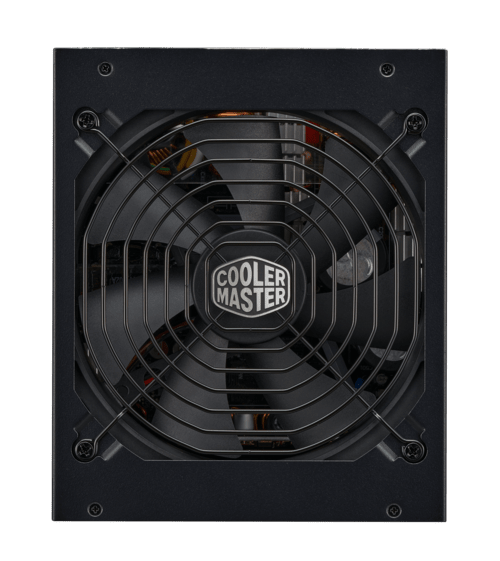

140mm FDB Fan : Cooler Master MWE 1050W V2 80 Plus Gold Fully Modular ATX 3.0 Power Supply has delivered to a premium high air flow and long life bearing fan, offering more effective cooling performance.
Fully support ATX3.0 : Fully ATX 3.0 and PCIe Gen 5.0 compatible. The compacted 12+4 pin 12VHPWR connector supports up to 600W of power to a GPU through a single cable.
100% Japanese Capacitors : Implementing the highest quality of Japanese capacitors to increase efficiency and reduce ripple noise.

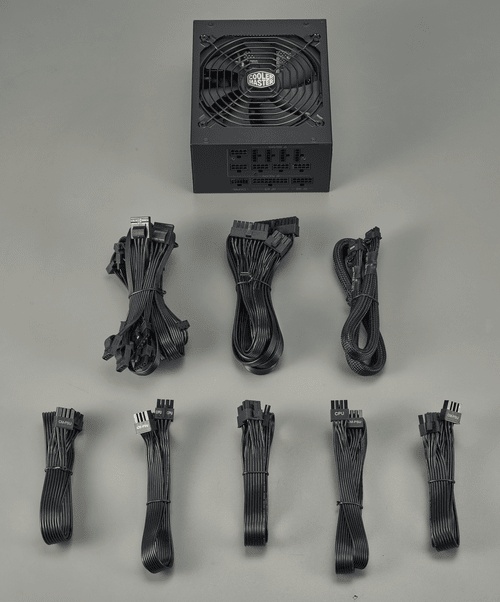

Fully Modular Cabling : MWE Gold - V2 comes with fully modular flat, black cables for increased airflow.
Specifications of Cooler Master MWE 1050W V2 80 Plus Gold Fully Modular ATX 3.0 Power Supply:
Product Name | Cooler Master MWE 1050W V2 80 Plus Gold Fully Modular ATX 3.0 Power Supply |
ATX3.0 | |
Item Code | MPE-A501-AFCAG-3 |
ATX Version | ATX Rev. 3.0 |
PFC | Active PFC |
Input Voltage | 100 - 240V |
Input Current | 13 - 6A |
Input Frequency | 50 - 60Hz |
Dimensions (L x W x H) | 180 x 150 x 86mm |
Fan Size | 140mm |
Fan Bearing | FDB |
Efficiency | ≥ 90% @ Typical Load |
80 PLUS Rating | 80 PLUS Gold |
ErP 2014 Lot 3 | Yes |
Operating Temperature | 0 - 50°C |
Power Good Signal | 100 - 150 ms |
Hold Up Time | ≥ 16ms at 100% Load |
MTBF | 100,000 hours"}">>100,000 hours |
Protections |
OVP / OPP / SCP / OCP / UVP / OTP / Inrush Protection |
Regulatory |
TUV,cTUVus,CE,FCC,BSMI,CCC, EAC,RCM,UKCA,BIS |

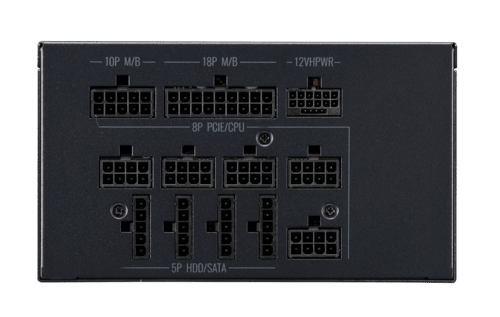

Connectors: ATX 24 Pin | x1 = 1x (650mm) |
EPS 4+4 Pin | x1 = 1x (650mm) |
EPS 8 Pin | x1 = 1x (650mm) |
SATA | x12 = 3x (500+120+120+120mm) |
Peripheral 4 Pin | x4 = 1x (500+120+120+120mm) |
PCI-e 6+2 Pin | x3 = 3x (550mm) |
12VHPWR | x1 = 1x (650mm) |
AC Input | 100 - 240V` 13 - 6A 50 - 60Hz | ||||
DC Output
|
+3.3 V | +5V | +12V | -12V | +5Vsb |
20A | 20A | 87.5A | 0.3A | 3A | |
Total Power
|
120W | 1050W | 3.6W | 15W | |
1050W |
