- COOLER MASTER MWE 850 V2 80+ Gold Fully Modular ATX 3.1 Power Supply ( 850W )
Description
Features of COOLER MASTER MWE 850 V2 80+ Gold Fully Modular ATX 3.1 Power Supply ( 850W )
MWE Gold 850 V2 ATX 3.1
- ATX 3.1 support
- A 90-degree 12V-2x6 adapter cable
- High temperature resilience
- High-quality Japanese capacitors
- Fully modular cabling
- 5-year warranty
Level Up Your Power
Cooler Master presents the MWE Gold V2 ATX 3.1 Ready featuring high power, ultra-silent performance with exceptional efficiency and reliability.
ATX 3.1 Support & a Durable 12V-2x6 Adapter Cable
Includes ATX 3.1 support and a 90-degree 12V-2x6 PCIe 5.1 connector with higher electrical durability and three 8-pin connectors with improved safety, capable of bringing up to 600W to your GPU.
High Temperature Resilience
A 50°C operating temperature and high quality Japanese capacitors allow for pushing your machine to the limits.
Certified Efficiency
The MWE Gold V2 ATX 3.1 is certified to achieve more than 90% efficiency at typical loads.
Three 8-pin Connectors
Up to 600W of power is split between three 8-pin connectors, providing enhanced safety.

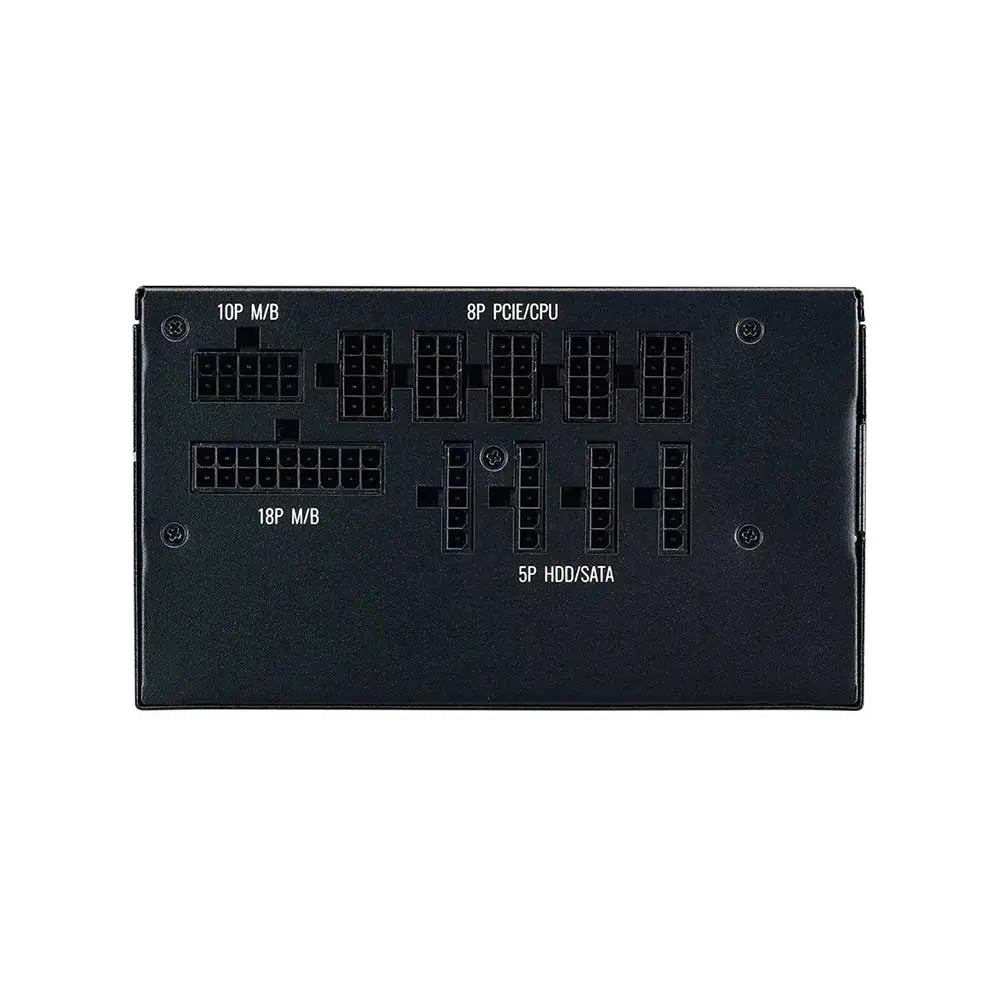

Fully Modular Cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
Specifications of COOLER MASTER MWE 850 V2 80+ Gold Fully Modular ATX 3.1 Power Supply ( 850W )

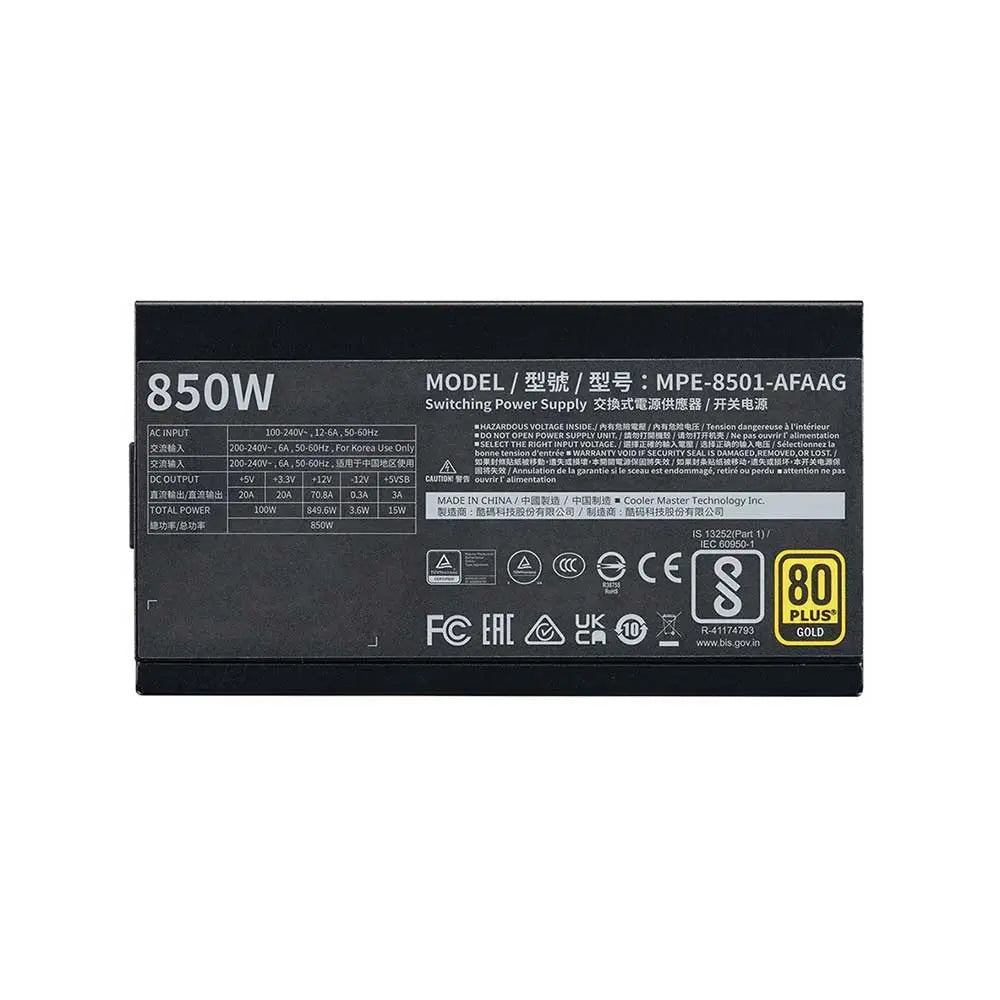

Model | MPE-8501-AFAAG-3EIN |
ATX Version | ATX 12V Ver. 3.1 |
PFC | Active PFC |
Input Voltage | 100-240V |
Input Current | 12-6A |
Input Frequency | 50-60Hz |
Dimensions (LxWxH) | 160 x 150 x 86 mm |
Fan Size | 120mm |
Fan Bearing | HDB |
Efficiency | ≥90% @ Typical Load |
80 Plus Rating | 80 PLUS Gold |
ErP 2014 Lot 3 | Yes |
Operating Temperature | 0-50°C |
Power Good Signal | 100 – 150 ms |
Hold Up Time | ≥ 16ms |
MTBF | >100,000 Hours |
Protections | UVP / OVP / OPP / OTP / SCP / OCP |
Regulatory | TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA |
ATX 24 Pin Connectors | 1 |
EPS 4+4 Pin Connectors | 1 |
EPS 8 Pin Connector | 1 |
SATA Connectors | 12 |
Peripheral 4 Pin Connectors | 4 |
PCI-e 6+2 Pin Connectors | 4 |
12V-2×6 Connectors | 1 (1 to 3) |
Category | Above 750W |
Series | MWE Gold Series |
Modular | Fully Modular |
Form Factor | ATX |
80 Plus Efficiency | Gold |
Watts | 850W |
Warranty | 5 Years |
Note** | **Prices, Specifications & Features are subject to change without notice |
