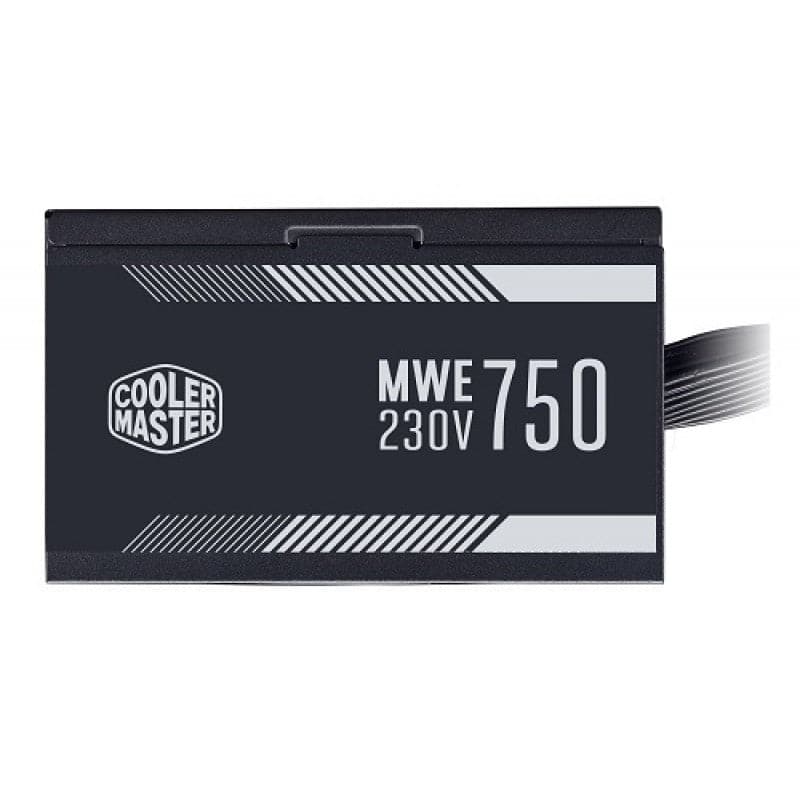

- COOLER MASTER MWE 750W 80+ White Non Modular ATX 2.0 Power Supply
Description
Features of COOLER MASTER MWE 750W 80+ White
80 PLUS STANDARD 230V EU CERTIFIED
It’s important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much power is retained and/or lost when transferring it from the wall to your components. It does not indicate the overall quality of the PSU. A Cooler Master Power Supply doesn’t need an 80 PLUS Gold rating to be safe and reliable. And a 750W Power Supply with an 80 PLUS Gold rating isn’t necessarily either of those things. The MWE White guarantees a typical efficiency of 85% while being both safe and reliable.

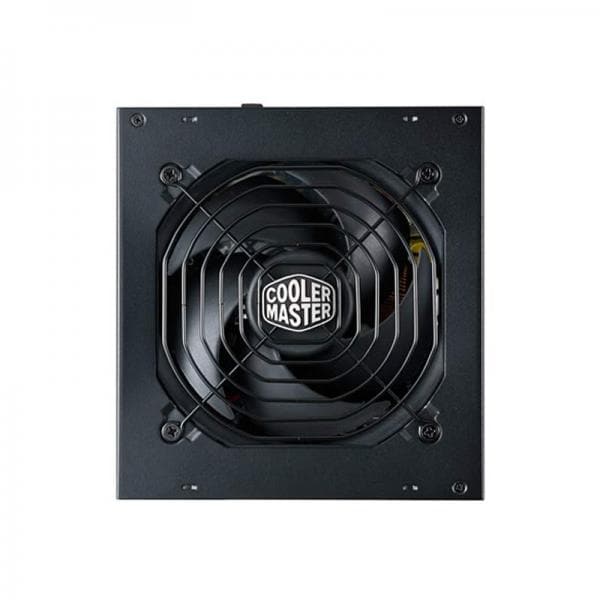

120MM HDB FAN
The constant struggle between cooling and noise is as old as the consumer PC industry itself. Keeping your components cool without having to hear about it while you work is still one of the greatest challenges for all fan-based cooling technologies. The MWE White’s solution to this problem is a thermally sensitive 120mm HDB fan. It spins based on the system’s temperature, constantly adjusting to keep your PSU running smoothly and safely with the minimum amount of noise required.
SINGLE 12V RAIL
Getting power from the wall to the PSU and then to your components is a tricky situation. The power comes in one voltage level, but your components need a different one. That power has to first be transferred to/through a converter in order to make it safe for your parts to use without overloading. The lines/rails used to initially move power from the wall to the converter need to be reliable and consistent to ensure your system’s overall performance. That’s why the MWE White only uses one 12V rail for this process. This way all the components in your system are constantly fed the same power from the same source in order to guarantee consistency between all connections.
DC-TO-DC CIRCUIT DESIGN
Power comes in multiple voltage levels. The wall delivers power in one voltage level but your components each need a specific voltage to operate properly. The process of converting raw power from the wall to the multiple voltage levels your components need requires special components to complete this process quickly, efficiently, and safely. The MWE White’s DC-to-DC LLC technology was painstakingly crafted to accomplish this goal. The Dual Forward circuit layout has been designed to convert 12V power to 3V and 5V levels with minimal ripple noise, 80 PLUS efficiency, and reduced risk to your connected components.
Get the best 80 Plus Gold psu power supply price from us today!
Specifications of COOLER MASTER MWE 750W 80+ White
MODEL | MPE-7501-ACABW-IN |
SERIES | MWE Series |
80 PLUS | Standard |
MODULAR | Non Modular |
ATX VERSION | ATX 12V Ver. 2.52 |
PFC | Active PFC |
INPUT VOLTAGE | 200-240Vac |
INPUT CURRENT | 6A |
INPUT FREQUENCY | 50-60Hz |
DIMENSIONS | 140(L) x 150(B) x 86(H) mm |
FAN SIZE | 120mm |
FAN BEARING | HDB |
FAN SPEED | 2400 RPM |
NOISE LEVEL @ 20% | 11.12 dBA |
NOISE LEVEL @ 50% | 20.3 dBA |
NOISE LEVEL @ 100% | 39.5 dBA |
EFFICIENCY | 85% Typically |
80 PLUS RATING | 80 PLUS Standard 230V EU |
ERP 2014 LOT 3 | Yes |
OPERATING TEMPERATURE | 40°C |
POWER GOOD SIGNAL | 100-500ms |
HOLD UP TIME | >14ms at 100% full load@230Vac |
MTBF | >100,000 Hours |
PROTECTIONS | OVP, OPP, SCP, UVP, OTP |
REGULATORY | CCC, CE, TUV-RH, EAC, RCM, cTUVus, FCC, BSMI, KC, CB |
ATX 24-PIN CONNECTORS | 1 |
EPS 4 4 PIN CONNECTORS | 1 |
EPS 8 PIN CONNECTOR | 1 |
SATA CONNECTORS | 6 |
PERIPHERAL 4-PIN CONNECTORS | 3 |
PCI-E 6 2 PIN CONNECTORS | 4 |
WATTAGE | 500 to 750W |
Warranty | 5 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
