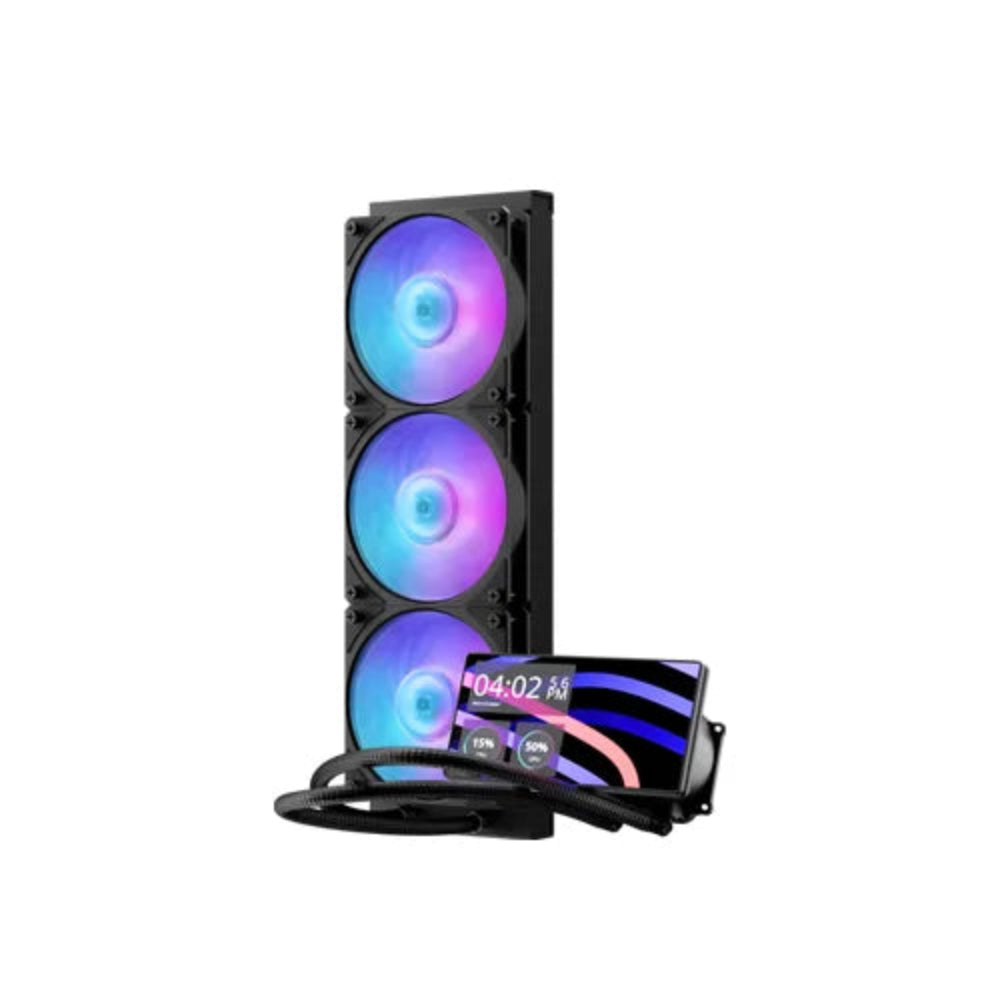

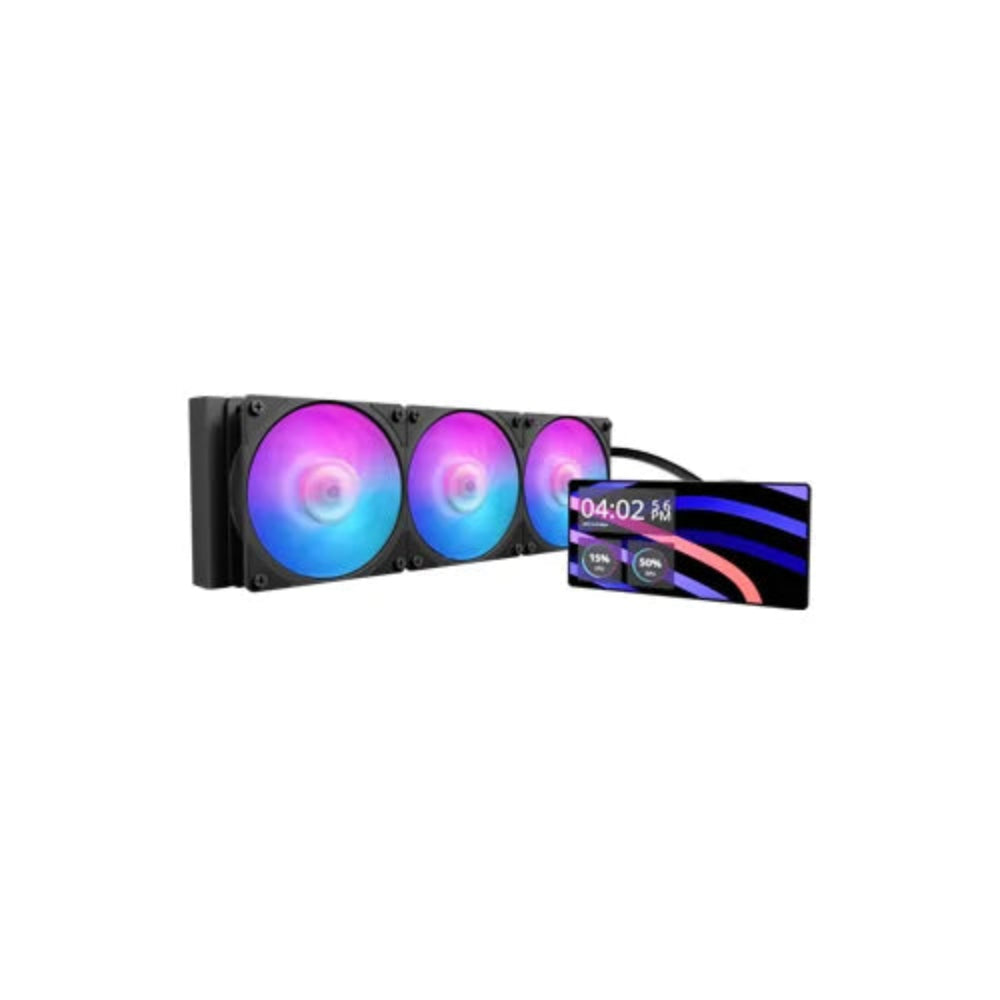

COOLER MASTER MasterLiquid Core 360 ARGB CPU Liquid Cooler ( Black ) ( With 6 inch LCD Display )

Features of COOLER MASTER MasterLiquid Core 360 ARGB CPU Liquid Cooler ( Black ) ( With 6 inch LCD Display )

• EXPANSSIVE 6-INCH TFT LCD: A stunning 960x480 resolution display providing the largest canvas in its class for real-time monitoring and creative assets
• THERMAL EXCELLENCE: Engineered for high-load production, the system delivers a massive 75.2 CFM of airflow and 3.63 mmH2O air pressure to maintain optimal temperatures
• WHISPER-QUIET POWER: Features a robust 3200 RPM pump and high-velocity 2400 RPM fans that prioritize cooling efficiency while keeping noise levels at a whisper-quiet 30 dB(A)
• MASTERCTRL ECOSYSTEM: Total control over your thermal profiles and screen orientation through our unified software, ensuring your hardware and creative tools are perfectly synced
• BUILT FOR LONGEVITY: Backed by an industry-leading 6-year warranty, providing peace of mind for mission-critical professional builds.
• OPTIMUM TUBING LENGTH: 400 mm tubing allows for effortless cooler installation in any orientation

The MASTERLIQUID Core LCD Series features a massive 6-inch display, transforming your pump into a high-definition command center. Engineered for creators, it offers an expansive canvas for telemetry or digital art.With precision ball-joint adjustment and MasterCtrl support, it ensures seamless synchronization and perfect viewing angles. It’s the ultimate visual centerpiece for your professional workstation.

CPU Socket

• Intel: Intel LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
• AMD AM5 / AM4 socket

Waterblock Dimensions: 153.5 x 84.2 x 83.9 mm (6 x 3.3 x 3.3 inch)

Radiator Material: Aluminum

Tube: Length 400mm

FAN

• Dimensions (L x H x W): 120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)
• Profiles: Addressable RGB
• Speed: 0-2400 RPM ± 10%
• Air Flow (Max): 127.8 m3/h (75.2 CFM)
• Air Pressure (Max): 3.63 mmH2O
• MTTF: >200,000 hours
• Noise Level (Max): 30 dB(A)
• Bearing: LDB
• Connector: 7-Pin PWM+ARGB
• Rated Voltage: 12 VDC
• Rated Current: 0.2 A
• Safety Current: 0.4 A
• Power Consumption: 2.4 W

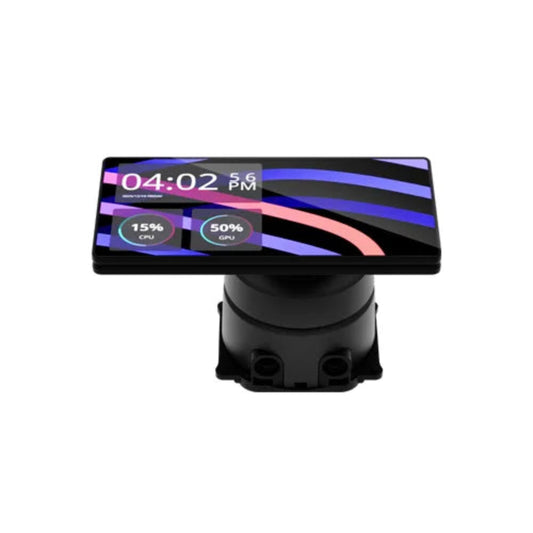

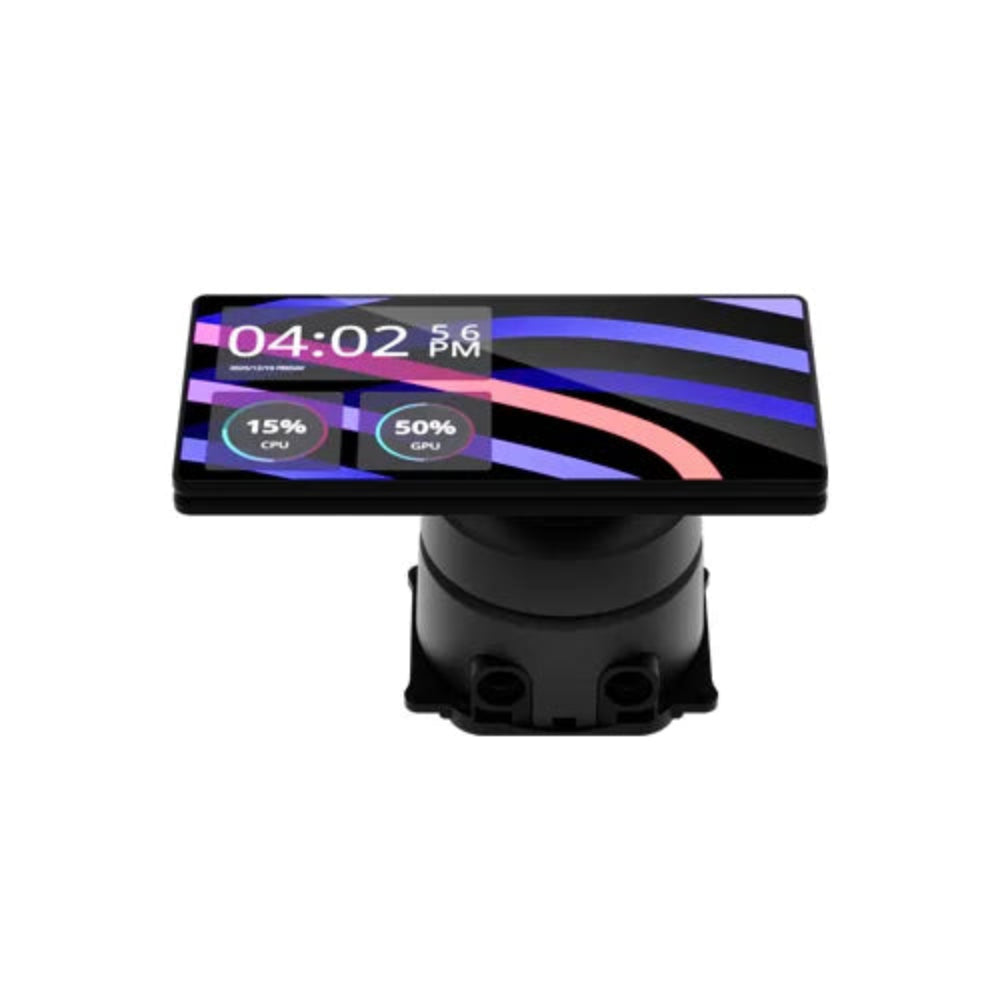

Pump

• Profiles: Addressable RGB
• Speed: 3200±10% RPM
• MTTF: > 35,0000 hours
• Noise Level (Max): 25 dB(A)
• Rated Voltage: 12 VDC
• Power Consumption: 7.2 W
• Connector: 3-Pin ARGB + 4-Pin PWM

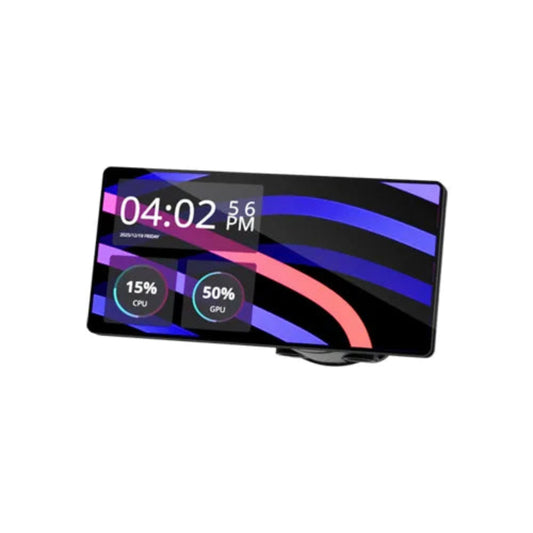

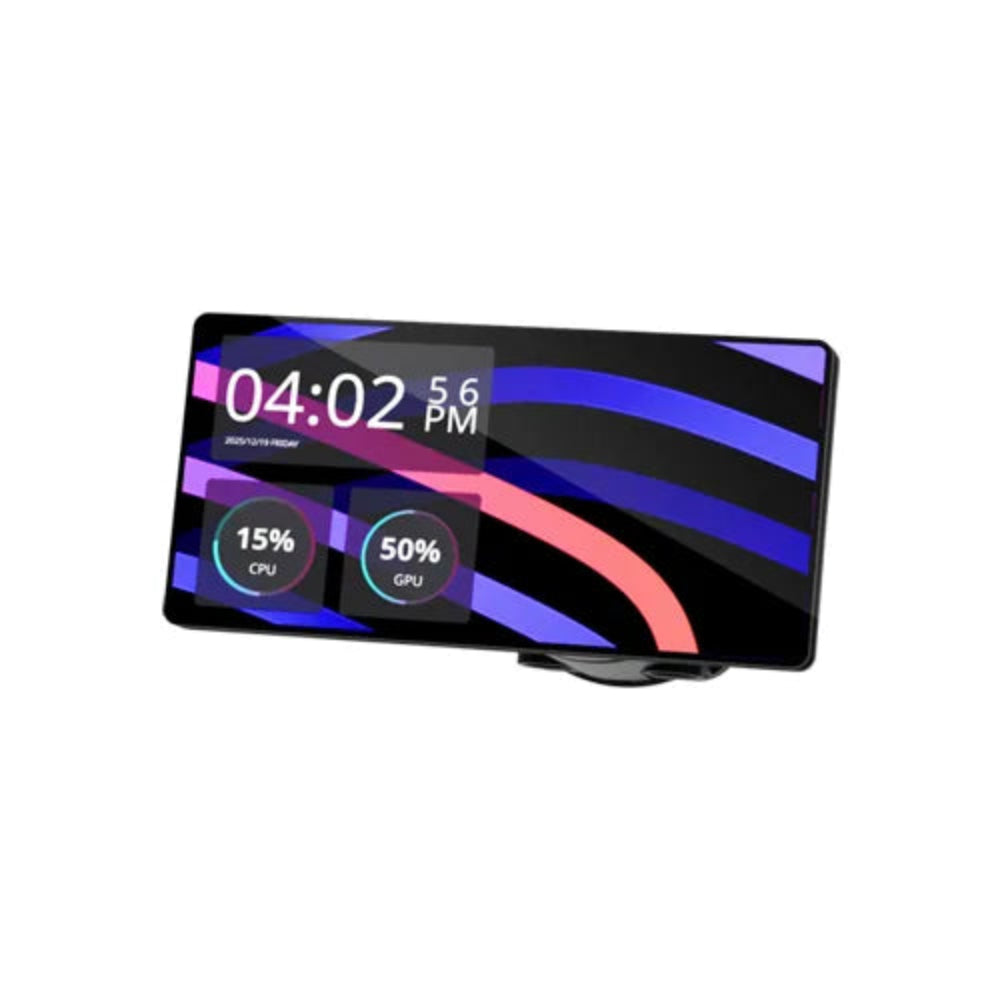

Display Module

• Display Type: TFT LCD
• DispIay Area (Resolution): 6 inch (960*480)
• Luminance: 300 cd/m2
• Rated VoItage: 5 VDC
• Rated Current: 0.4 A
• Safety Current: 0.6 A
• Power Consumption: 3 W
• Connector: USB 2.0 9PIN
• Orientation: Software-MasterCTRL adjustable

Specifications of COOLER MASTER MasterLiquid Core 360 ARGB CPU Liquid Cooler ( Black ) ( With 6 inch LCD Display )
