Description

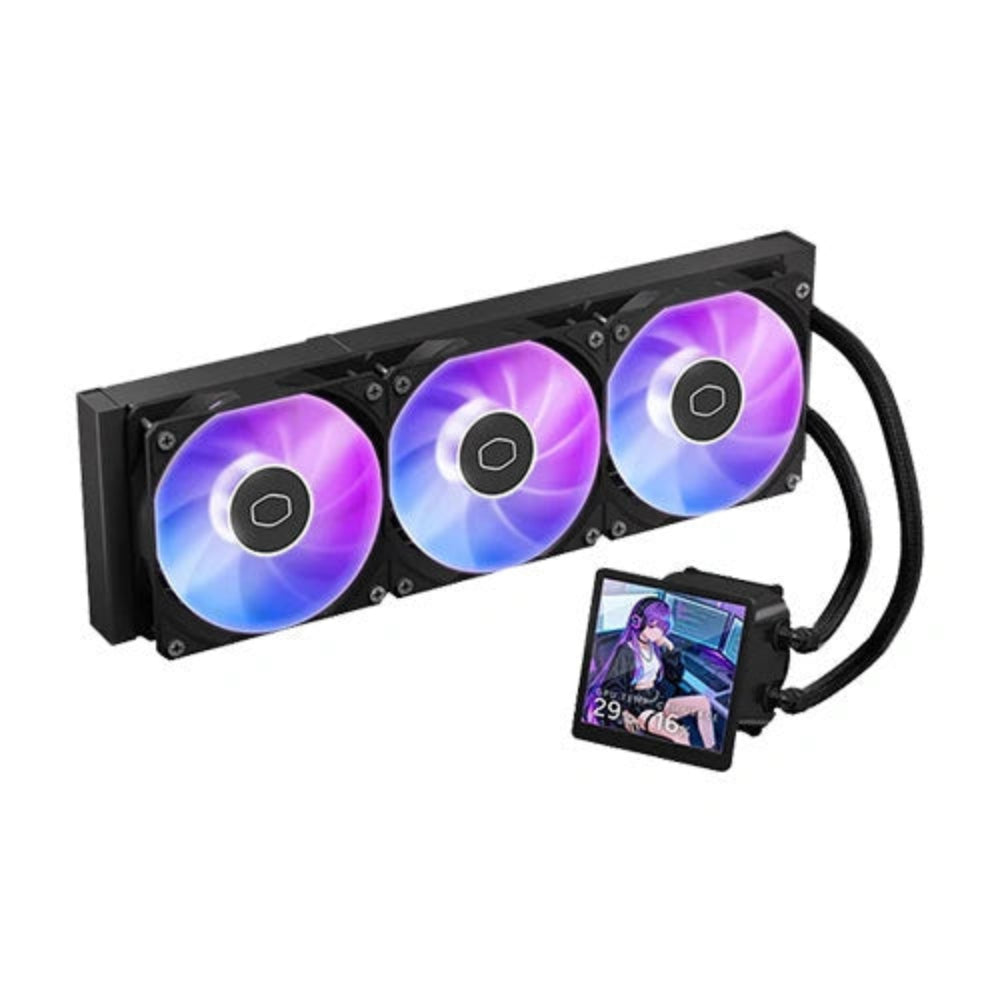

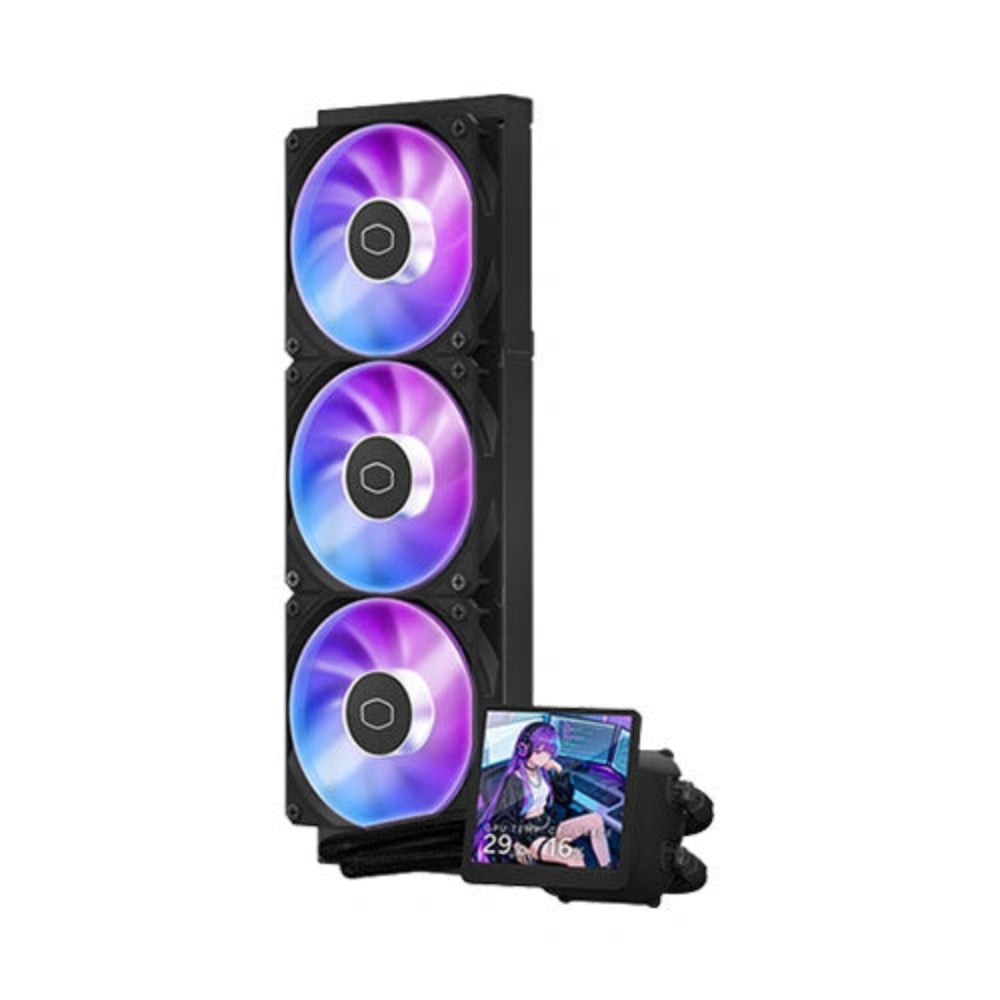

Features of COOLER MASTER MasterLiquid 360 Core 360mm Non-RGB CPU Liquid Cooler (Black) ( With 4 inch LCD Display )
- 4-inch High-Resolution LCD
- Rotatable Display Base
- Dual-Chamber Pump Design
- Three-Phase Motor
- High-Temperature Resistant Sealing
CoolerMaster MasterLiquid Core LCD 360 4-inch
4-inch High-Resolution LCD
A 4-inch, 480 × 480 LCD display designed to be clearly visible inside modern PC builds. Display real-time system stats, custom images, or video, and adjust it to match your setup with simple, intuitive controls.
Real‑time monitoring of computer operating status
All computer operating parameters are clearly displayed, helping to ensure safe and stable device operation.
360° adjustable base / Rotatable Display Base
The patented rotatable base allows 360-degree adjustment, so the screen stays properly oriented regardless of how the cooler is installed. However your system is configured, your display stays aligned.
Dual-Chamber Pump Design
A redesigned dual-chamber pump improves coolant flow and focuses cooling directly on the CPU hot spot. The result is more efficient heat transfer with smoother, quieter operation under load.
Core Upgrades
Three-phase Motor A three-phase motor keeps the pump running smoothly and consistently, reducing vibration and supporting low-noise performance during sustained use.
Ceramic Impeller
Does not easily deform under high-temperature conditions and has strong tolerance to additives and metal ions
High-Temperature Resistant Sealing
Durable materials, high-temperature resistant sealing, and automotive-grade coolant are designed to support long-term reliability and help reduce the risk of leakage over time.
- CPU Socket: Intel LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156, AMD AM5 / AM4
- Radiator Material: Aluminum
- Radiator Dimensions: 360: 394 x 119.6 x 27.2 mm (15.5 x 4.7 x 1.1 inch)
- Pump Profiles: Addressable RGB
- Pump Speed: 2800 ±10% RPM
- Pump Noise Level: 25 dBA (Max)
- Pump Rated Voltage: 12 VDC
- Fan Power Consumption: 7.2 W
- Pump Connector: 3-Pin ARGB + 4-Pin PWM
- Tube Length: 400 mm
- Fan Dimensions (L x W x H): 120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)
- Fan LED: Addressable RGB
- Fan Quantity: 360: 3 PCS
- Fan Speed: 650 ~ 1750 RPM ±10%
- Fan Airflow: 122.4 m³/h (71.9 CFM) (Max)
- Fan Air Pressure: 1.86 mmH₂O (Max)
- Fan MTTF: >40,000 Hours
- Fan Noise Level: 27.2 dBA (Max)
- Fan Bearing Type: Rifle Bearing
- Fan Connector: 7-Pin PWM + ARGB
- Fan Rated Voltage: 12 VDC
- Fan Rated Current: 0.26 A
- Fan Safety Current: 0.37 A
- Fan Power Consumption: 3.12W
Specifications of COOLER MASTER MasterLiquid 360 Core 360mm Non-RGB CPU Liquid Cooler (Black) ( With 4 inch LCD Display )
| Model Number | MLX-D36M-A18PA-RL |
| Cooling Type | LIQUID AIO COOLER |
| Socket Support | LGA1700,LGA1851,LGA1200,LGA1156,LGA1155,LGA1151,LGA1150,AM5,AM4 |
| Supported Cooler CPU Wise | intel i3,intel i5,intel i7,intel i9,Core ultra 5,Core ultra 7,Core ultra 9,AMD Ryzen 3,AMD Ryzen 5,AMD Ryzen 7,AMD Ryzen 9 |
| Radiator Size | 360 mm |
| Fan Size | 120 mm |
| PWM Controller | YES |
| Warranty | 5 Years |
| NOTE*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
