- COOLER MASTER MasterCase H500 ATX Mid Tower Cabinet (Black)
Description
Features of COOLER MASTER MasterCase H500
The COOLER MASTER MasterCase H500 computer cpu case has a mind blowing design with either a transparent or mesh front panel from the Mastercase lineup. The Cooler Master MasterCase H500 ATX Cabinet features two 200mm RGB fans and a controller with a clear view of the side. The mesh or transparent options of the Cooler Master MasterCase H500 gives users the option to choose from either optimized airflow or aesthetics. The pre-installed two 200mm RGB fans along with the included controller help to customize the aesthetics and match the taste of a particular user. The Mastercase H500 comes with another pre-installed 120mm standard fan in the back for exhaust. The top panel of the cabinet can handle a pair of 120mm or 140mm fan or up to a 240mm radiator.
The front panel of cooler master cpu case has radiator support of up to 360mm. The light tinted grey transparent tempered glass panel of the case provides an ideal clear view inside the cabinet showcasing the expensive build and the beautiful RGB lighting. The inside of a system needs to be covered to hide the cable clutter and manage the extra cables for makes it aesthetically pleasing. The front cable cover and the PSU does that job with ease. The top magnetic dust filter on the top panel allows entry of fresh air while preventing the entry of dust and particulate. The case handle of Cooler Master MasterCase H500 is a raised portion of the front panel that acts as a handle for transport with support for weight up to 20kg.
- Mesh and Transparent Options Included

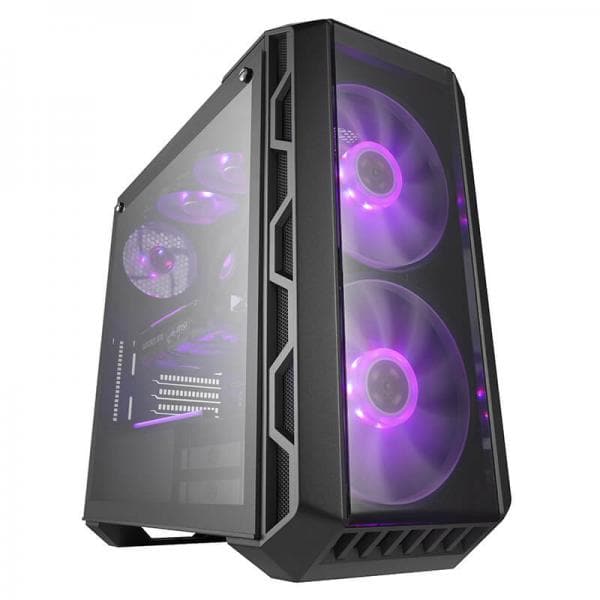

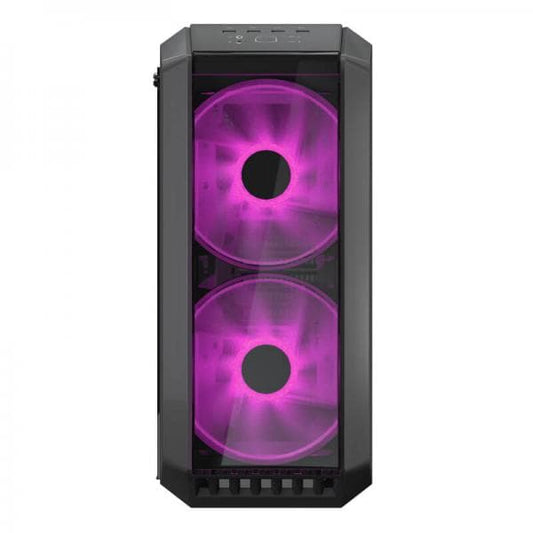

- Two 200mm RGB Fans and Controller
- Clear View Inside
- Radiator Support
- Covers for Clean Building
- Top Magnetic Filter
- Case Handle for Transport.

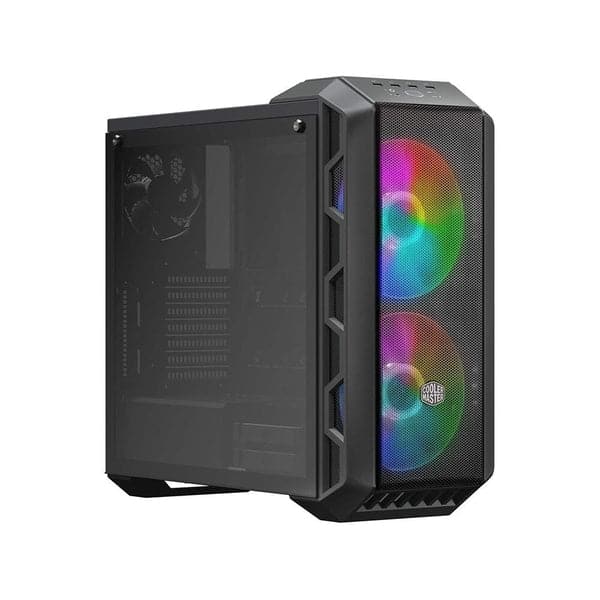

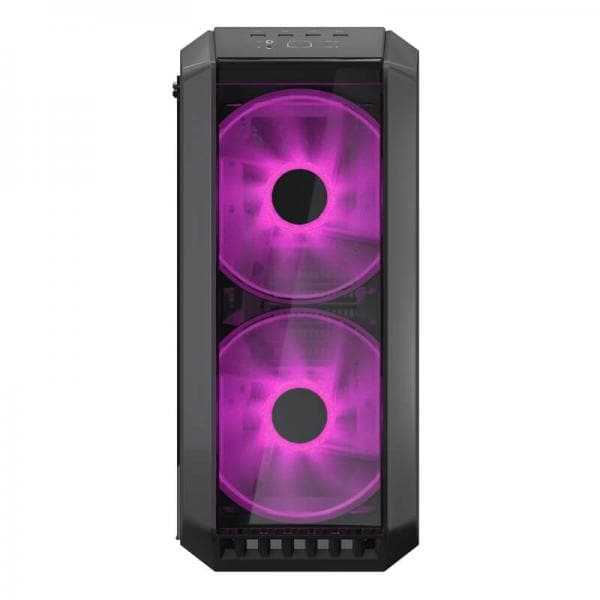

Mesh And Transparent Options Included
Choose between the mesh front panel for optimized airflow or the transparent panel for aesthetics with the included accessory.

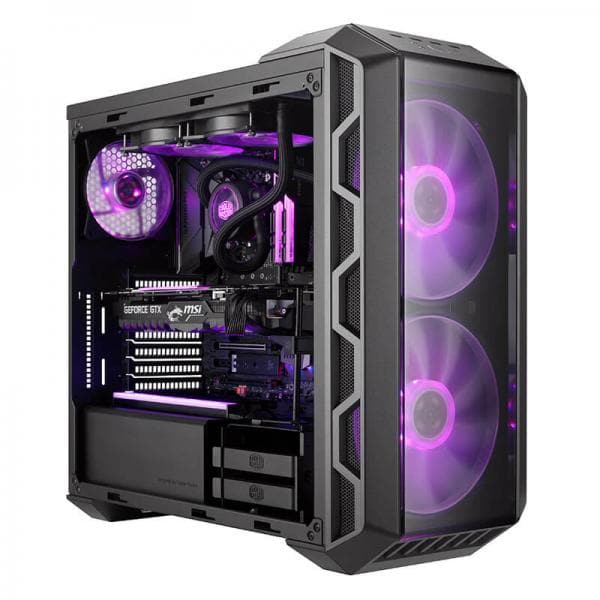

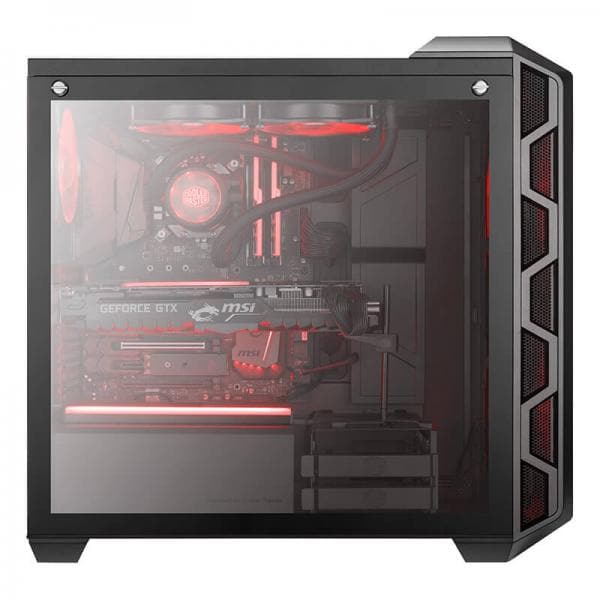

Clear View Inside
A light grey tinted tempered glass side panel is ideal for showcasing your build with (RGB) lighting.

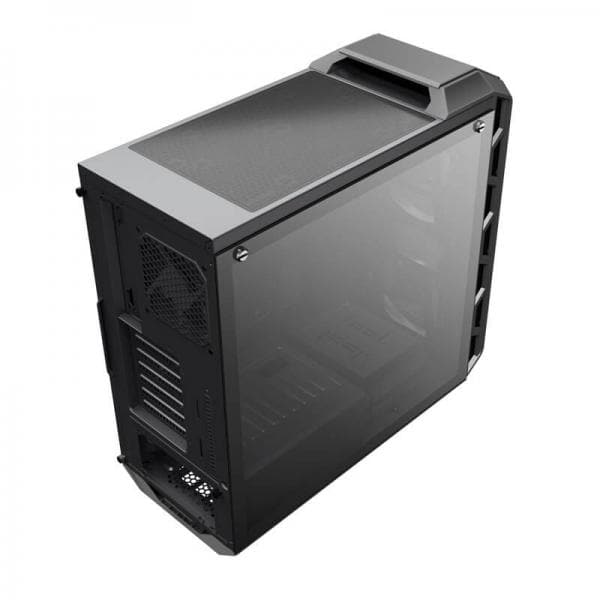

Top Magnetic Filter
Air passes through a flush magnetic filter on the top panel for added thermal support.
Case Handle For Transport
The raised front panel covers a portion of the top panel to act as a handle for transport. It can support up to 20kg.
Specifications of COOLER MASTER MasterCase H500
Product Name | MasterCase H500 |
Model Number | MCM-H500-IGNN-S00 |
Available Color | Iron Grey |
Materials |
Body: Steel Front Panel: Mesh, Acrylic & Plastic Top Panel: Steel & Plastic Left Side Panel: Tempered Glass Right Side Panel: Steel |
Dimensions (LxWxH) |
Excl. Panels: 450 x 220 x 445mm Incl. Panels: 525 x 228 x 502mm |
Motherboard Support | ATX, Micro-ATX, Mini-ITX |
Expansion Slots | 7 |
5.25" Drive Bays | No |
Combo 3.5" / 2.5" Drive Bays | 2 |
2.5" SSD Drive Bays | 2 |
I/O Port |
Power-LED Color: White HDD-LED Color: White USB-Ports: 2x USB 2.0, 2x USB 3.0 Audio In / Out: Yes Reset Switch: Yes Other: N/A |
RGB Control | Onboard button on the RGB Controller or via the Reset Switch (1x 1-to-3 RGB Splitter Cable Included) |
Pre-installed Fan(s) - Top | N/A |
Pre-installed Fan(s) - Front | 2x 200mm RGB Fan |
Pre-installed Fan(s) - Rear | 1x 120mm (Black) Fan |
Pre-installed Fan(s) - Bottom | N/A |
Fan Support - Top | 2 x 120mm / 2 x 140mm / 1 x 200mm |
Fan Support - Front | 3 x 120mm / 2 x 140mm / 2 x 200mm |
Fan Support - Rear | 1 x 120mm |
Fan Support - Bottom | N/A |
Radiator Support - Top | 120 / 140 / 240mm |
Radiator Support - Front | 120 / 140 / 200 / 240 / 280 / 360mm |
Radiator Support - Rear | 120mm |
Radiator Support - Bottom | N/A |
Clearance - CPU Cooler | 167mm / 6.5" |
Clearance - PSU | 180mm / 7.1" |
Clearance - GFX | 410mm / 16.1" |
Cable Routing - Behind Motherboard Tray | 30mm |
Dust Filters | Top, Front, Bottom |
Power Supply Support | Bottom Mount, ATX |
Warranty | 2 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
