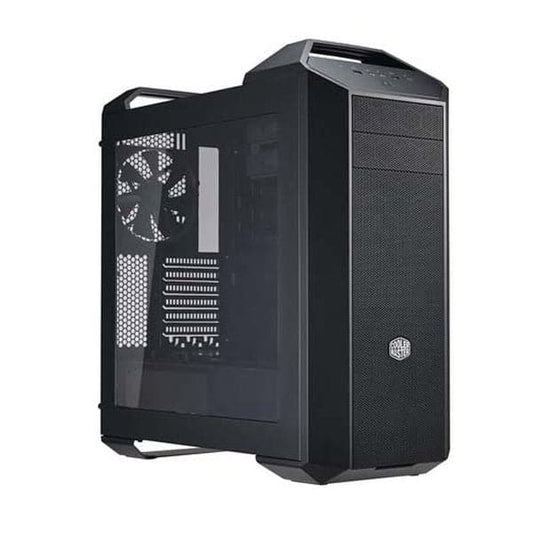

- COOLER MASTER MasterCase 5 Windowed ATX Mid Tower Cabinet (Black)
Description
Features of COOLER MASTER MasterCase 5 Windowed
At heart, the COOLER MASTER MasterCase 5 computer cpu case advocates a new relationship that binds component makers and users closer together. Its elegantly smooth, flexible FreeForm Modular System supports multiple outlooks, allowing you to upgrade rather than entirely replace your case as your needs change over time. Go with either basic dual top handles and standard door of the MasterCase 5 or an elevated mesh top cover of the MasterCase Pro 5.
Unique clip-and-click components panel for drive cage adjustment
Supports up to 6 x 140mm fans – including 3 in the front and 2 at the top
Easier to install water cooling reservoirs and support for extra-long graphics cards
Dual chamber design with partition panel to isolate power supplies andcables
Slip-and-clip solid state drive pockets with four mounting positions – two hidden behind the motherboard and two on top of the partition

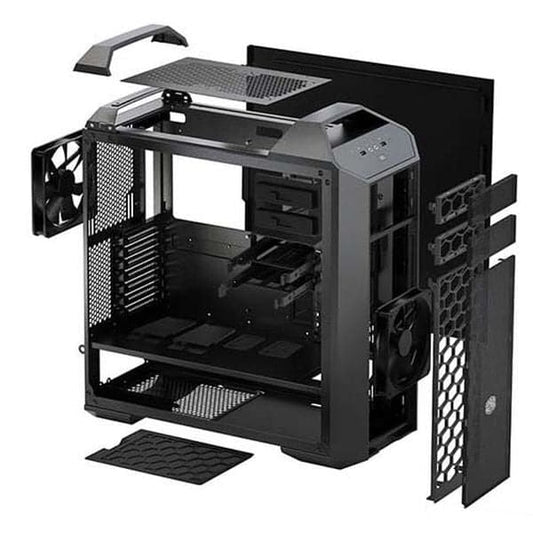

FreeForm™ Modular System
We want you to have absolute control over how your case looks and functions. The FreeForm™ Modular System of the MasterCase 5 ATX Cabinet lets you adjust the exterior structure and aesthetic via a range of replacement panels and doors. Each choice changes the look and feel of the case, but also the flexibility of the interior layout.
Customize with External Modularity
Easily customize your case by adding a top cover and water bracket for a new look along with liquid cooling radiator support, freeing up space inside the case. And if you want to show off your system, a window side panel is also available. These options are included in MasterCase Pro 5 version or available separately.

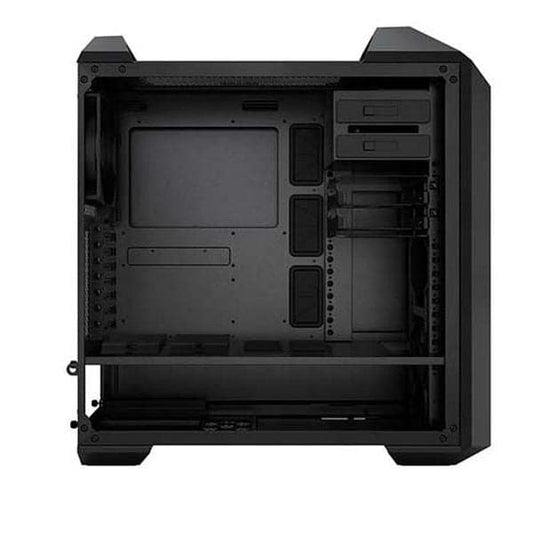

Adjust Internal Layout Clip-and-Click Panel
But this isn't just about aesthetics. Each decision opens new possibilities.
Leveraging our unique clip-and-click panel, FreeForm lets users vertically adjust or entirely remove your optical disk drive (ODD) and HDD via sliding locks so intuitive you'll play with your configurations just for fun. Well, some people will. Just click-in the cages, and adjust the height to suit your needs. Position them at the top to allow room for up to three extra-long graphics cards, or retain only the bottom positioned cages to add a front-mounted radiator for even more cooling options.
- Integrate replacement accessories like:
- Fan brackets
- Water cooling reservoirs
- GPU support brackets
Slip-and-Clip Pockets
The first cooler master cpu case to incorporate two easy to install slip-and-clip solid-state drive pockets (2.5") with four easy mounting positions. Showcase them on the partition panel or hide them behind the motherboard tray for a cleaner look.
A.Two behind the motherboard tray
B.Two on top of power supply partition
Unmatched Ventilation
FreeForm enables the option to install three front-mounted 140mm fans and a 280mm radiator for unmatchable ventilation due to a unique facility to horizontally shift the bottom-mounted hard disk drives. There's also support for up to six 140mm fans through the case, unique for a mid-sized tower.
Accessories
FreeForm extends beyond the case to include all the support you need in terms of selecting
and purchasing components through a range of accessories to truly help you Make It Yours.
Specifications of COOLER MASTER MasterCase 5 Windowed
Model | |
Brand | Cooler Master |
Model | MCX-0005-KWN00 |
Spec | |
Type | Mid Tower |
Color | Grey |
Case Material | SECC, Plastic |
Motherboard Compatibility | ATX, MICRO-ATX, MINI-ITX |
With Side Panel Window | Window side panel |
Expansion | |
External 5.25" Drive Bays | 2 |
Internal 3.5" Drive Bays | 2 |
Expansion Slots | 7 |
Front Ports | |
Front Ports | USB 3.0 x 2, Audio In & Out (supports HD Audio) |
Cooling System | |
140mm Fans | Pre-Installed - Front and Rear : 140mm x1 |
Physical Spec | |
Dimensions | 512x235x548 mm |
Weight | 10.6 kg |
