- COOLER MASTER MB520 RGB ATX Mid Tower Cabinet (Black)
Monsoon Sale Offer
Description
Features of COOLER MASTER MB520 RGB
- DarkMirror Front Panel
- RGB LED Fans and Lighting Control
- Performance Intakes
- Edge-To-Edge Tempered Glass Side Panel
- Support for a Total of 6 Fans and Water Cooling
- Graphics Card Support Up to 410mm
- Storage Trays and Full-Length PSU Shroud

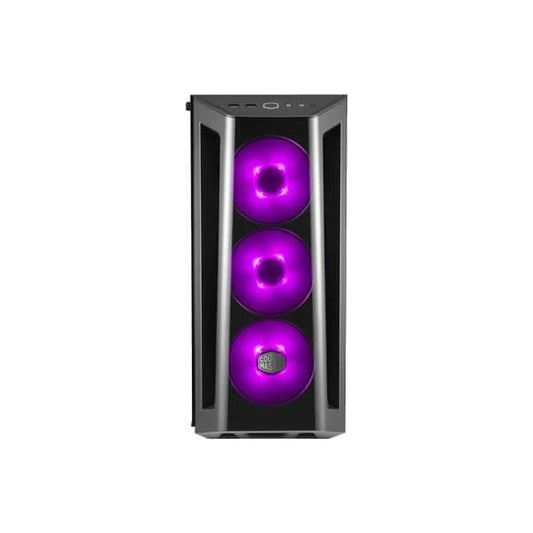

DARK MIRROR FRONT PANEL
Shade light through a transparent, tinted front panel.
PERFORMANCE INTAKE
The COOLER MASTER MB520 RGB features Large intakes on each side of the front panel which let the system breathe easy.

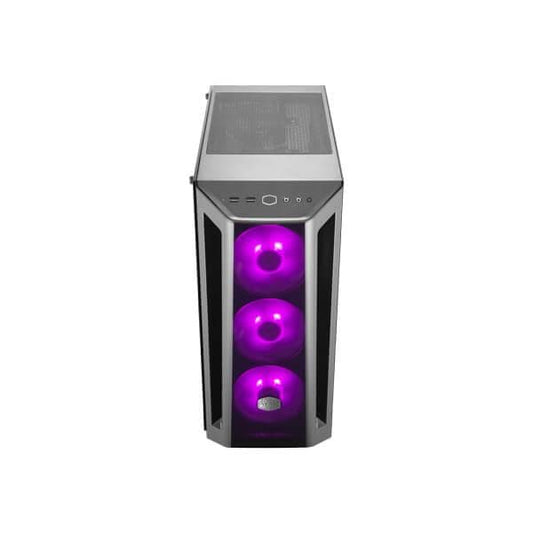

RGB LED FANS AND LIGHTING CONTROL
Three 120mm RGB LED fans in front are pre-installed to create an amazing lighting effect.
One RGB controller is included in the accessory pack. If your motherboard does not support the RGB control function, you can connect the RESET button and control the RGB lighting directly from the I/O panel.
EXCELLENT THERMAL PERFORMANCE
Optimized airflow due to the large intakes on each side of the front panel. Additional ventilation on the top panel adds thermal support.
FAN AND RADIATOR SUPPORT
Front: Three 120mm or two 140mm fans and up to a 360mm radiator with a maximum thickness of 50mm without fans. Top: Two 120mm or two 140mm fans and supports a 120mm or a 240mm radiator. Rear: One 120mm fan or radiator. All to ensure you don’t have to compromise on performance.

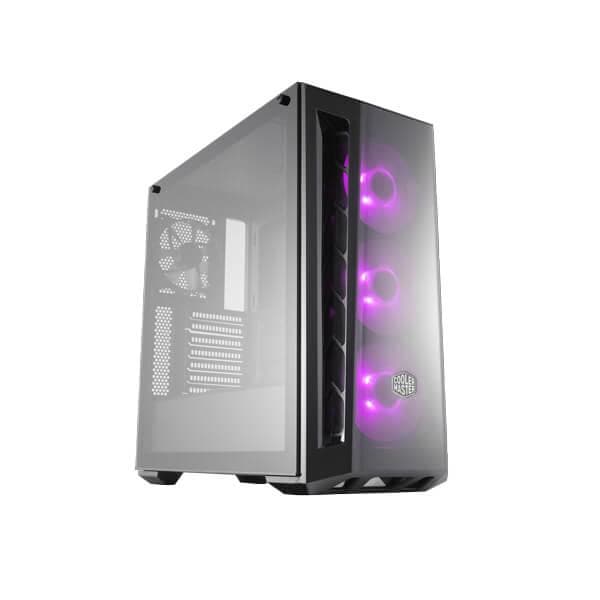

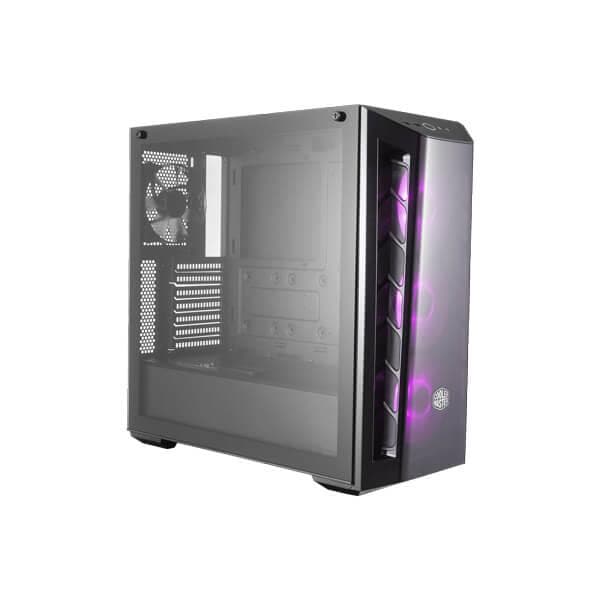

EDGE-TO-EDGE TEMPERED GLASS SIDE PANEL
Showcase your build and system lighting effect through the 4mm-thick tempered glass side panel. The side panel bracket hinges on an angle during removal, while two "captive" screws are held in place with rubber so they are not misplaced.
GFX CABLE ROUTING
Conveniently route the graphics card cable through the PSU shroud grommet.

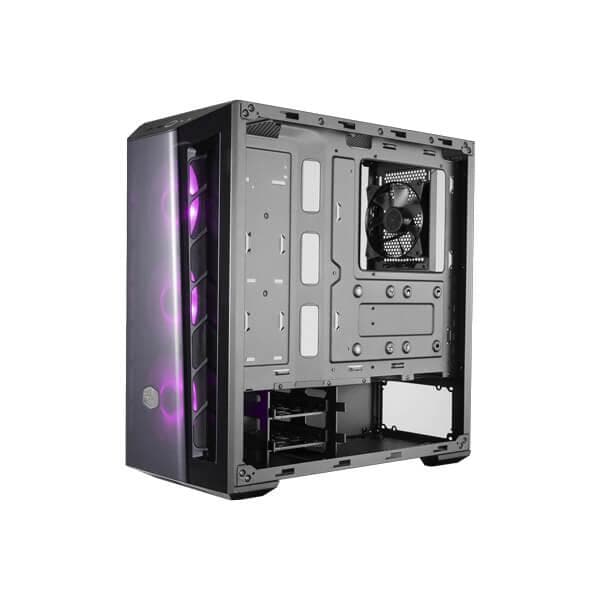

EXPANDING THE POSSIBILITIES
The spacious interior fits all standard motherboards for your gaming needs.
MAIN COMPONENTS CLEARANCE
The MB520 RGB case supports CPU Coolers up to a height of 165mm, Graphic Cards up to a length of 410mm, and Power Supplies up to a length of 180mm.
Specifications of COOLER MASTER MB520 RGB
| Product Name | MasterBox MB520 RGB |
| Model number | MCB-B520-KGNN-RGB |
| Available Color | Black |
| Materials | Steel, Plastic, Tempered glass |
| Dimensions | 496(L) x 218(W) x 468(H)mm |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Expansion Slots | 7 |
| 5.25" Drive Bays | No |
| Combo 3.5"/2.5" Drive Bays | 2 (Max. 2) |
| SSD Drive Bays | 4 (Max. 6) |
| I/O Panel | USB 3.0 x 2, Audio In / Out |
| RGB Control | RGB controller included1 to3 RGB splitter cable included |
| Pre-installed Fan(s) | Front: 120mm RGB LED fan x 3Rear: 120mm black fan x 1 |
| Fan Support | Top: 120mm x 2 / 140mm x 2Front: 120mm x 3 / 140mm x 2Rear: 120mm x 1 |
| Radiator Support | Front: 120 / 140 / 240 / 280 / 360mmTop: 120 / 240mmRear: 120mm |
| Clearances | CPU Cooler: 165mm / 6.49"PSU: 180mm / 7.08"Graphics card: 410mm / 16.10" |
| Cable Routing | Behind MB Tray: 19-27mm / 0.74"-1.06" |
| Dust Filters | Front, Bottom, Top |
| Power Supply Support | Bottom Mount, ATX |
| Warranty | 2 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
