Description

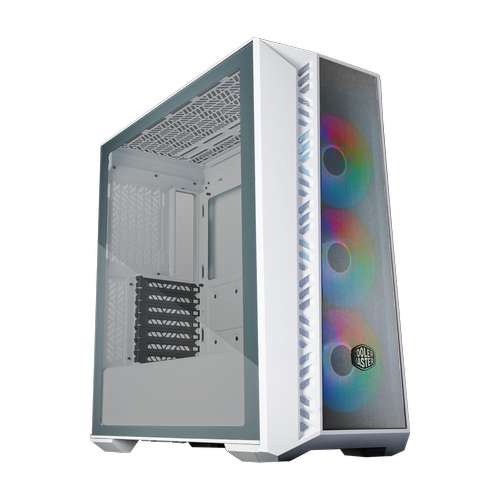

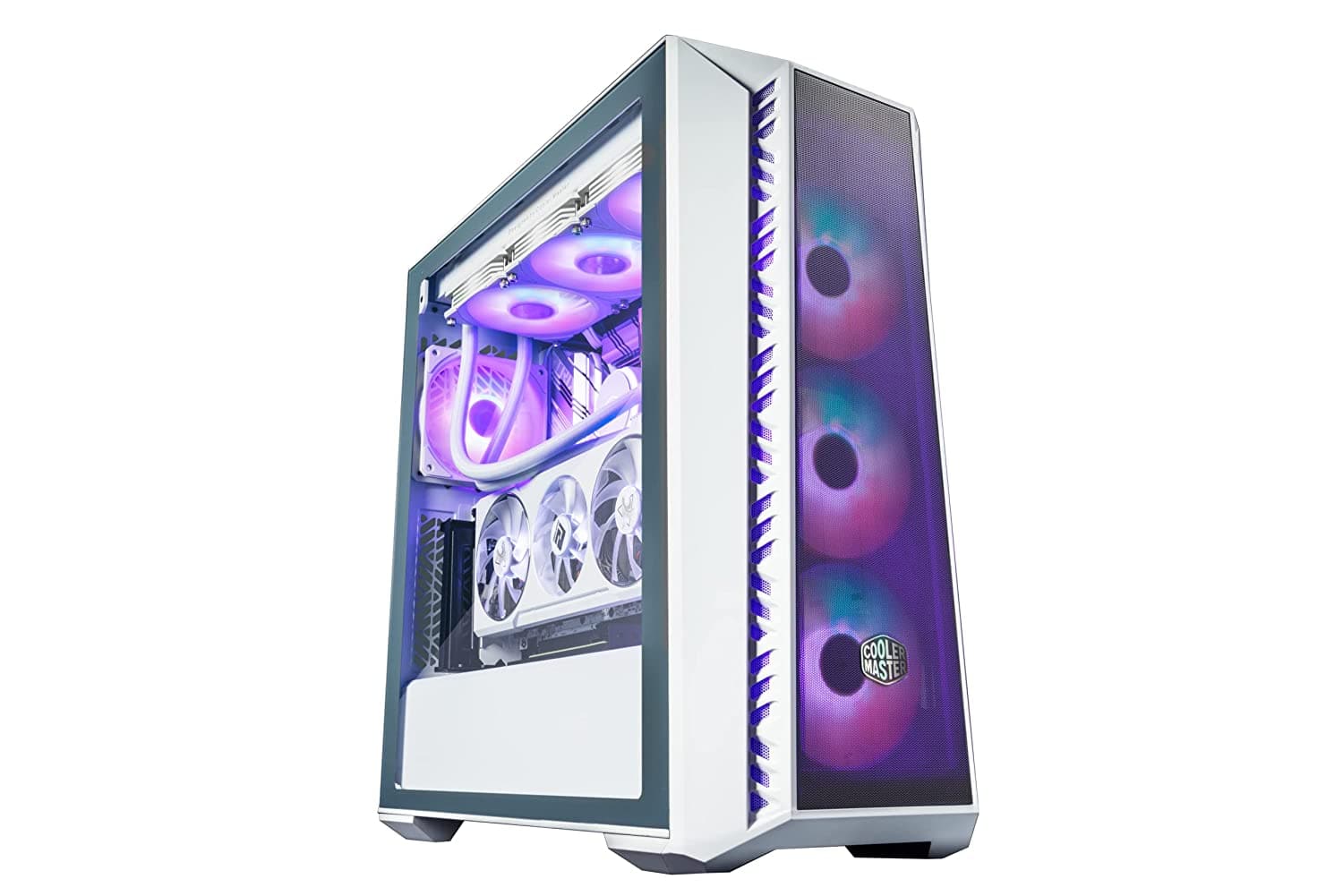

Features of Cooler Master MB520 Mesh ATX Mid Tower Cabinet (White)
MasterBox 520 computer cpu case is the ideal chassis for both novice and experienced gamers alike, providing users multiple options in case design to satisfy different needs. Whether you place upmost value on system performance and high quality gaming experiences, or dazzling aesthetics and an outlook that stands out, MasterBox 520 has something in for you. This cooler master cpu case has pre-installed with three 120mm ARGB fans, your system is brought to life with stunning lighting effects, completely customizable to match your theme or preference. Additional mechanical upgrades such as a removable top panel and robust dust filter ensure a pleasant, hassle-free installation experience.
- Pick and Play – Pick and choose the best design for your needs and tastes: tempered glass or FineMesh ventilated front panel designs? Black or white colorways? Get ready to build, and we’ll take care of the rest.

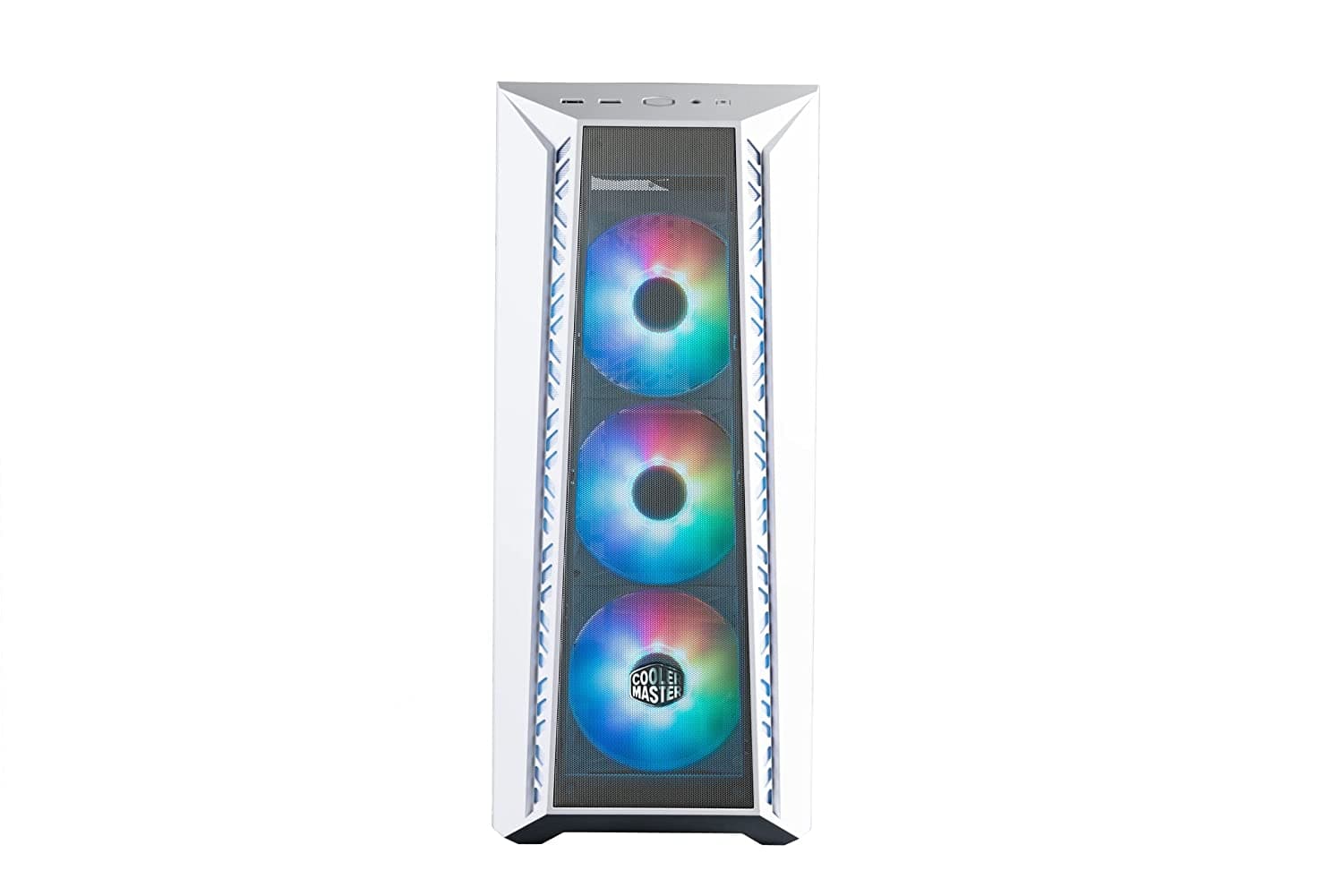

- Three 120mm ARGB Fans Included – Pre-installed ARGB fans of the Cooler Master MB520 Mesh ATX Mid Tower Cabinet (White) provide ample airflow, ensuring low temperatures, high performance, and eye catching aesthetics during even the most intense gaming sessions. The included ARGB/PWM Hub facilitates ease of cable management and allows users to tailor light effects to match the theme of the build.
- Removable Top Panel -The top panel of Cooler Master MB520 Mesh ATX Mid Tower Cabinet (White) is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.

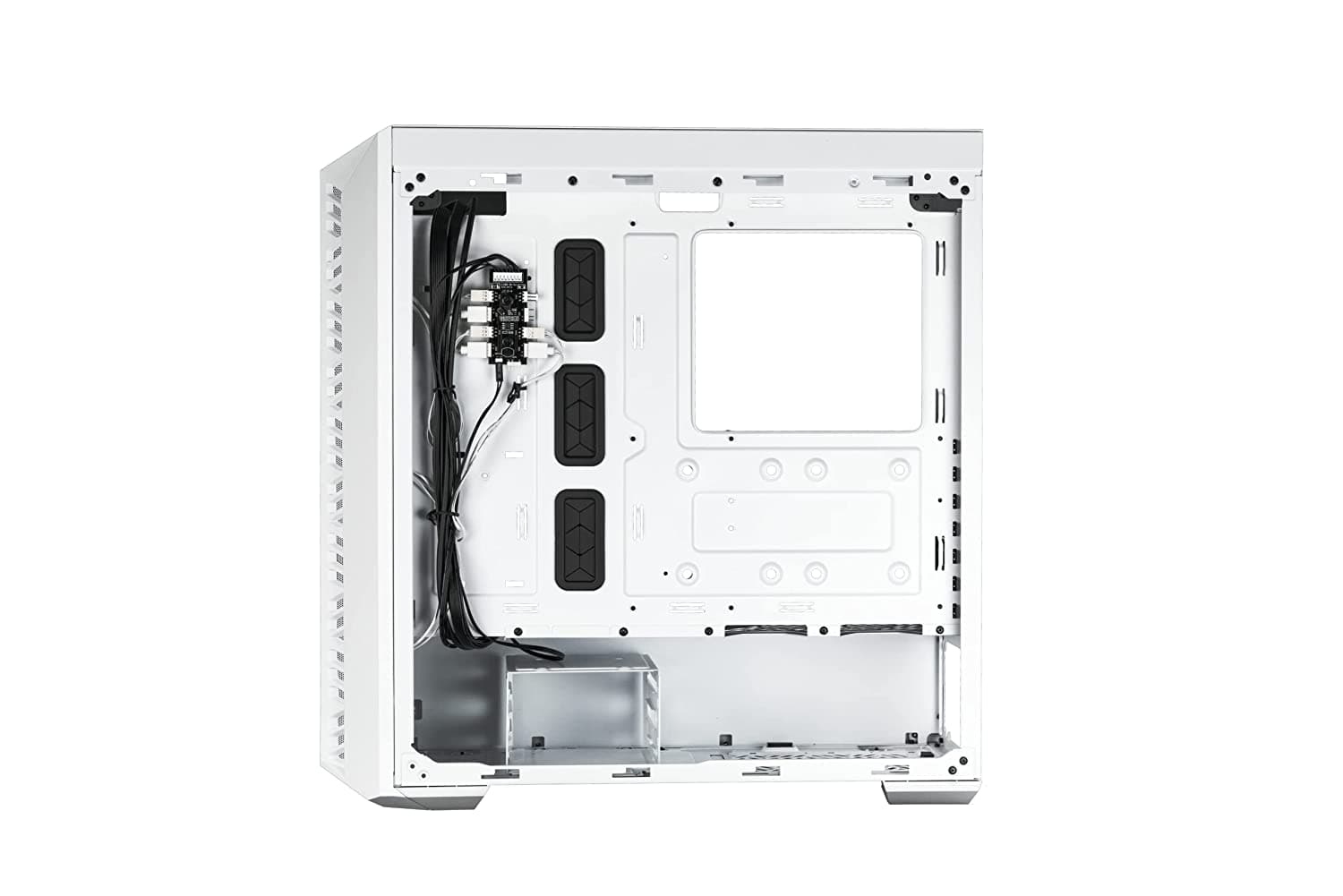

- Screwless & Tool-Free TG Side Panel – The tempered glass side panel is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel.
- Versatile Cooling Options – Cooler Master MB520 Mesh ATX Mid Tower Cabinet (White) has support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.
- Removable HDD cage – The HDD cage is completely removable for improved access during assembly and system upgrades.
- Upgraded Removable Dust Filter Bracket – The bottom dust filter bracket is robust and locked sturdily in place during travel, remaining easy to remove for cleaning purposes.
Specifications of Cooler Master MB520 Mesh ATX Mid Tower Cabinet (White):
Product Name | Cooler Master MB520 Mesh ATX Mid Tower Cabinet (White) |
Product Number | MB520-KHNN-S00 |
Exterior Color | White |
Materials
|
Exterior Steel, ABS Plastic, Tempered Glass |
Left Side Panel Tempered Glass |
|
Dimensions (L x W x H)
|
incl. Protrusions 502 x 210 x 498mm |
Body Size 443 x 210 x 498mm |
|
Volume | 50L |
Motherboard Support |
Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12″ x 10.7″ motherboards, may impact cable management feature) |
Expansion Slots | 7 |
Drive Bays
|
5.25“ ODD 0 |
2.5″/3.5” Combo 2 |
|
2.5” SSD 3 |
|
I/O Panel
|
USB Ports "1x USB 3.2 Gen1 Type-A 1x USB 3.2 Gen2 Type-C" |
Audio In / Out 1x 3.5mm Headset Jack (Audio + Mic) |
|
Other 1x Reset/ARGB Button |
|
ARGB Control | ARGB/PWM Hub |
Pre-installed Fan(s)
|
Front 3x 120mm ARGB Fan |
Top N/A |
|
Rear 1x 120mm Non-LED Fan |
|
Fan Support
|
Front 3x 120mm / 2x 140mm |
Top 3x 120mm / 2x 140mm |
|
Rear 1x 120mm |
|
Radiator Support
|
Front 120/140/240/280/360mm |
Top "120/140/240/280/360mm (recommended maximum thickness – 55mm)" |
|
Rear 120mm |
|
Clearances
|
CPU Cooler 165mm |
Power Supply "200mm (recommended up to 170mm)" |
|
Graphics Card 410mm |
|
Dust Filters | Front, Top, Bottom |
Power Supply Support | Bottom mount, ATX PS2 |
Warranty | 2 Years |
