- COOLER MASTER Masterbox MB520 Mesh ATX Mid Tower Cabinet (Black)
Description
Features of Cooler Master Masterbox MB520 Mesh ATX Mid Tower Cabinet (Black):
- With USB 3.2 Gen2 Type-C
- Three 120mm ARGB Fans Included management and allows users to tailor light effects to match the theme of the build.
- Removable Top Panel
- Screwless & Tool-Free TG Side Panel
- Versatile Cooling Options
- Removable HDD cage
- Upgraded Removable Dust Filter Bracket

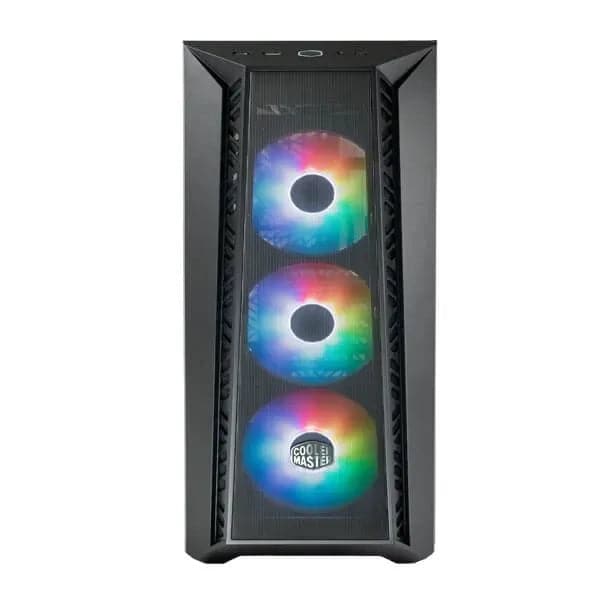

FineMesh Performance Front Panel –
Large mesh intakes of the Cooler Master Masterbox MB520 Mesh ATX Cabinet (Black) offer unrestricted airflow and stellar thermals for demanding systems.
Three CF120 ARGB Fans Included –
Pre-installed CF120 ARGB fans of Cooler Master Masterbox MB520 Mesh ATX Mid Tower computer cpu case (Black) provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions. The included ARGB controller allows users to manage systems lighting independently from the hardware configuration if needed.
Removable Top Panel –
The top panel of cooler master cpu case is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.

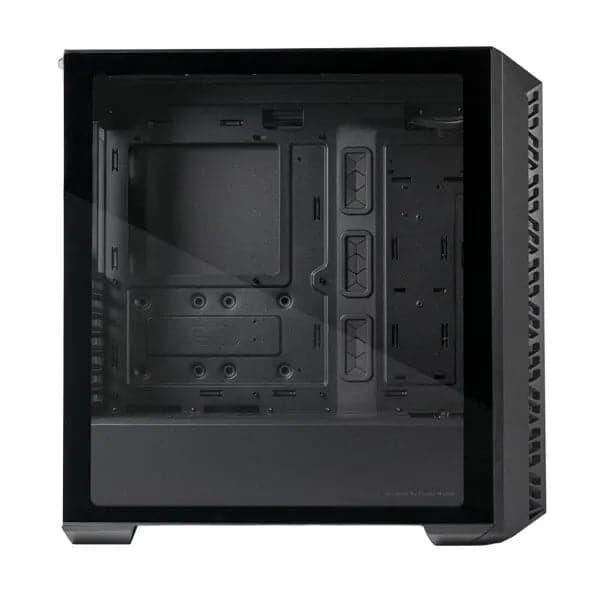

Screwless & Tool-Free TG Side Panel –
The tempered glass side panel is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel.
Versatile Cooling Options –
Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.
Removable HDD cage –
The HDD cage is completely removable for improved access during assembly and system upgrades.
Upgraded Removable Dust Filter Bracket –
The bottom dust filter bracket is robust and locked sturdily in place during travel, remaining easy to remove for cleaning purposes.
Specifications of Cooler Master Masterbox MB520 Mesh ATX Mid Tower Cabinet (Black):
Product Name | Cooler Master Masterbox MB520 Mesh ATX Mid Tower Cabinet (Black) |
Product Number | MB520-KHNN-S00 |
Exterior Color | Black |
Materials
|
Exterior Steel, ABS Plastic, Tempered Glass |
Left Side Panel Tempered Glass |
|
Dimensions (L x W x H)
|
incl. Protrusions 502 x 210 x 498mm |
Body Size 443 x 210 x 498mm |
|
Volume | 50L |
Motherboard Support |
Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12″ x 10.7″ motherboards, may impact cable management feature) |
Expansion Slots | 7 |
Drive Bays
|
5.25“ ODD 0 |
2.5″/3.5” Combo 2 |
|
2.5” SSD 3 |
|
I/O Panel
|
USB Ports "1x USB 3.2 Gen1 Type-A 1x USB 3.2 Gen2 Type-C" |
Audio In / Out 1x 3.5mm Headset Jack (Audio + Mic) |
|
Other 1x Reset/ARGB Button |
|
ARGB Control | ARGB/PWM Hub |
Pre-installed Fan(s)
|
Front 3x 120mm ARGB Fan |
Top N/A |
|
Rear 1x 120mm Non-LED Fan |
|
Fan Support
|
Front 3x 120mm / 2x 140mm |
Top 3x 120mm / 2x 140mm |
|
Rear 1x 120mm |
|
Radiator Support
|
Front 120/140/240/280/360mm |
Top "120/140/240/280/360mm (recommended maximum thickness – 55mm)" |
|
Rear 120mm |
|
Clearances
|
CPU Cooler 165mm |
Power Supply "200mm (recommended up to 170mm)" |
|
Graphics Card 410mm |
|
Dust Filters | Front, Top, Bottom |
Power Supply Support | Bottom mount, ATX PS2 |
Warranty | 2 Years |
Reviews ( 0 )
Frequently asked questions
1. Does the COOLER MASTER Masterbox MB520 Mesh come with fans?
The basic version that comes with COOLER MASTER MB520 Mesh. COOLER MASTER Masterbox MB520 mesh typically has a single front 120mm fan that is pre-installed. But, the specific fan configuration may differ according to the particular retail package and location. Certain models, especially those that are marked as ARGB could contain additional already installed ARGB fans in the front. It's important to review the specifications on the retailer's site or on the official website of the manufacturer to verify the exact fan count and the kind of model that is included in your selected model.
2. Which COOLER MASTER is best?
A best Cooler Master product is dependent on your individual requirements and preferences. Cooler Master offers a wide assortment of products that include coolers, cases, power supplies, as well as peripherals. For cases they offer, the MasterBox series is renowned because of its versatility, whereas the Cosmos series is designed for the most expensive designs. To cool the air, their MasterLiquid AIO coolers and MasterAir air coolers are highly regarded. The best choice for cooling requires taking into consideration factors such as price, features you want and the intended usage. Comparing specifications and reading reviews is crucial to make an informed choice.
3. What is the maximum length of a MB520 Mesh GPU?
The COOLER MASTER Masterbox MB520 Mesh can support graphics cards that have lengths that exceed 410mm. This clearance is large enough to allow the installation of a wide range of top-of-the-line long graphics cards that are currently available. If you do install a front radiator to provide liquid cooling, your GPU length could be cut. It is recommended to verify that your graphic card's dimensions are correct and if you are planning to install a front radiator, examine the remaining clearance to ensure that the fit is correct.
4. Is a MB520 Mesh case good?
Yes it is, this COOLER MASTER Masterbox Mesh is widely regarded as a top case, especially due to its exceptional airflow. Its front panel mesh layout allows for maximum airflow, which is vital to ensure cool temperatures for components with high performance. It also provides ample space for managing cables and installation of components and makes it suitable for both experienced and novice builders. The case's low price is also what makes it an excellent rival in the mid-tower case market.
5. Is the MB520 Mesh an ARGB?
The COOLER MASTER Masterbox Mesh MB520 comes in regular as well as ARGB (Addressable RGB) versions. The ARGB version comes with already-installed ARGB fans as well as an ARGB controller, which allows users to create custom lighting effects. The standard model may have conventional fans, or none even. So, in order to make sure that the case you select is equipped with ARGB features it is essential to confirm the specifications of the seller for the item.
6. How to remove MB520 front panel?
Front panel on the MB520 Mesh is made to be removed to allow for cleaning and maintenance. It is usually removed by pulling it off of the chassis. Certain models may have latches or clips that need to be released prior to pulling. It is recommended to go through the case manual to determine the most effective method of removal of the front panel. It is crucial that you remove your front panel using attention, in order to prevent any damage to the case's plastic or metal parts.
7. Does COOLER MASTER Masterbox MB520 Mesh have good airflow?
Yes it is, it is true that the COOLER MASTER Masterbox is famous for its outstanding airflow. Its most notable element is the mesh front panel that lets airflow flow freely to the intake fan, thereby cooling all internal parts. This is particularly useful in high-performance systems that generate an enormous amount of heat.
8. What is the price of COOLER MASTER Masterbox MB520 Mesh Argb?
The price of COOLER MASTER Masterbox the MB520 Mesh ARGB is usually approximately around Rs. 7,355. However, it is subject to change according to the location, retailer, and ongoing sales. It is recommended to check the product page of COOLER MASTER Masterbox MB520 Mesh ARGB for latest pricing.
9. Are COOLER MASTER fans quiet?
Cooler Master provides a broad selection of fans, and their noise levels differ based upon the type of fan and its RPM (revolutions per minute). Certain Cooler Master fans are made specifically to operate quietly while others focus on the airflow efficiency, which can result in higher levels of noise. Cooler Master's SickleFlow series, for instance, is recognized for its ability to provide a compromise between performance and noise. When buying any fan review the fan's DBa score is a wise procedure.
